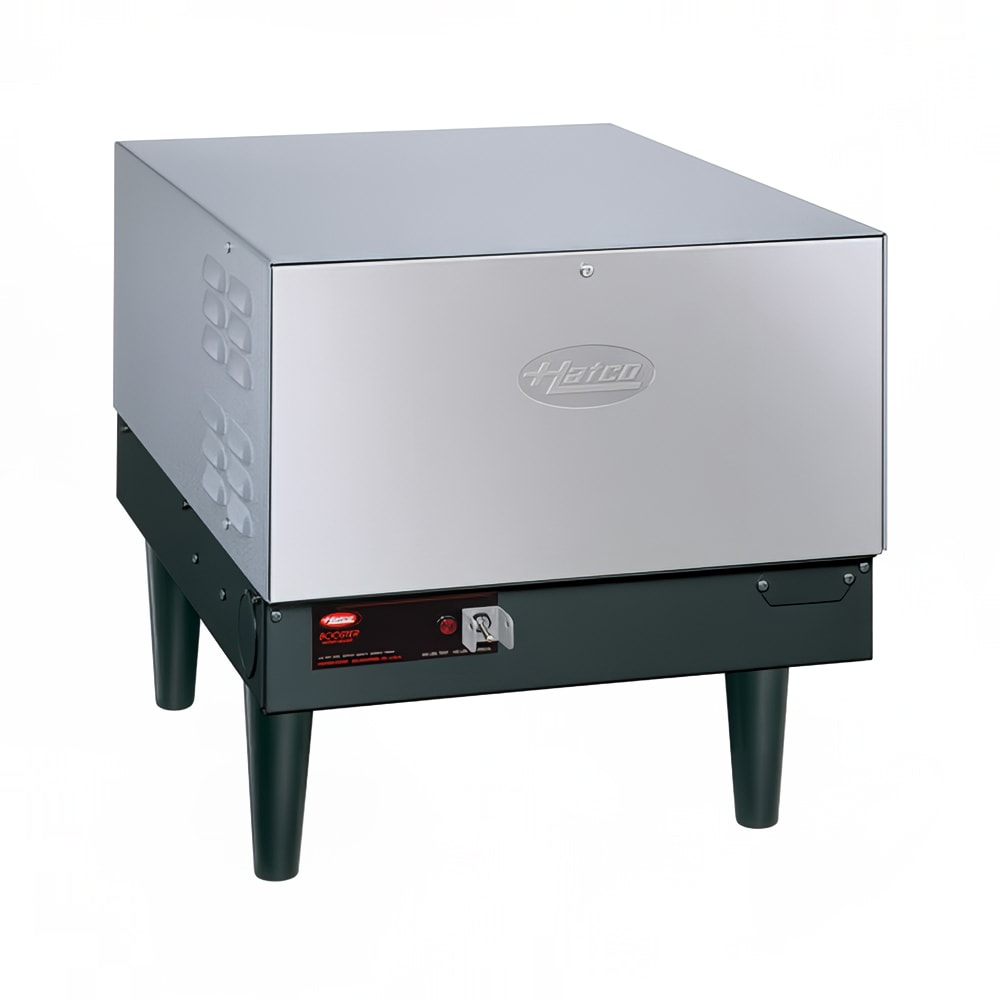

Hatco C-54 Compact Booster Water Heater, 6 Gallon, 54 kW, 208v/3ph
Typically ships in 9 - 13 Business Days
Retail Price: $8,656.00
$4,760.80 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 1 Phase |
| 480V, 3 Phase |
Hatco C-54 Description
The Hatco C-54 compact booster heater ensures sanitizing water is at a proper temperature of 180 degrees Fahrenheit in warewashers. When water is flowing at 542 gallons per hour, the unit provides a 40-degree-Fahrenehit rise in water temperature. Its tank has a 6-gallon storage capacity and is cement lined for corrosion and limescale resistance.
This fiberglass-insulated unit keeps heat inside the tank, and the pilot light turns on when the unit is operating. By releasing water only when necessary, the temperature/pressure relief valve lowers the pressure in the tank. If the water level is too low, the low-water cut-off shuts off power to the heating element, preventing element burnout that could damage the system. This Hatco C-54 compact booster heater fits conveniently under dishtables and sits on 6-inch legs.
- Ensures water is 180 degrees F for sanitizing cycles in warewashers
- 542 GPH with 40-degree F rise
- 310 GPH with 70-degree F rise
- 6-gal. storage capacity
- Tank is lined with Castone®, a cement-like substance, for structure
- Fiberglass insulation minimizes heat loss
- On/off switch has a pilot light indicator that illuminates when the power is on
- Temperature/pressure relief valve releases water to lower pressure in the tank
- Pressure-reducing valve ensures flow pressure is regulated and stabilized
- Low-water cut-off shuts off power to the heating element if the water level is too low, preventing burnout
- Swing-away front panel provides access to the internal components for maintenance
- Strong stainless steel front panel resists corrosion and can withstand heavy use
- Powder-coated body enhances durability for lasting use
- 6-in. plastic legs keep the unit elevated off the dishroom floor
- 18 in. W x 29 5⁄16 in. D x 18 3⁄100 in. H
- 54 kW, 149.9 A
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-54 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 54-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/3-ph, NSF, cUL, UL
Watch a video about this product
Hatco C-54 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 542 |
| 70F Recovery (gph) | 310 |
| Amps | 149.9 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 54 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 51 - 60 |
| Width (in) | 18 |
| Weight | 142.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-54 Hatco C-54 Compact Booster Water Heater, 6 Gallon, 54 kW, 208v/3ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,760.80 / Each | $4,708.55 / Each | $4,760.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 9 - 13 Business Days | IN STOCK: Ships in 1 Business Day | |
| Usage Level | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 542 | 542 | 542 |
| 70F Recovery (gph) | 310 | 310 | 310 |
| Capacity (gallons) | 6 | 6 | 6 |
| Width (in) | 18 | 18 | 18 |
| Watts | 51 - 60 | 51 - 60 | 51 - 60 |
| Heat | Electric | Electric | Electric |
| Voltage | 208 | 480 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
