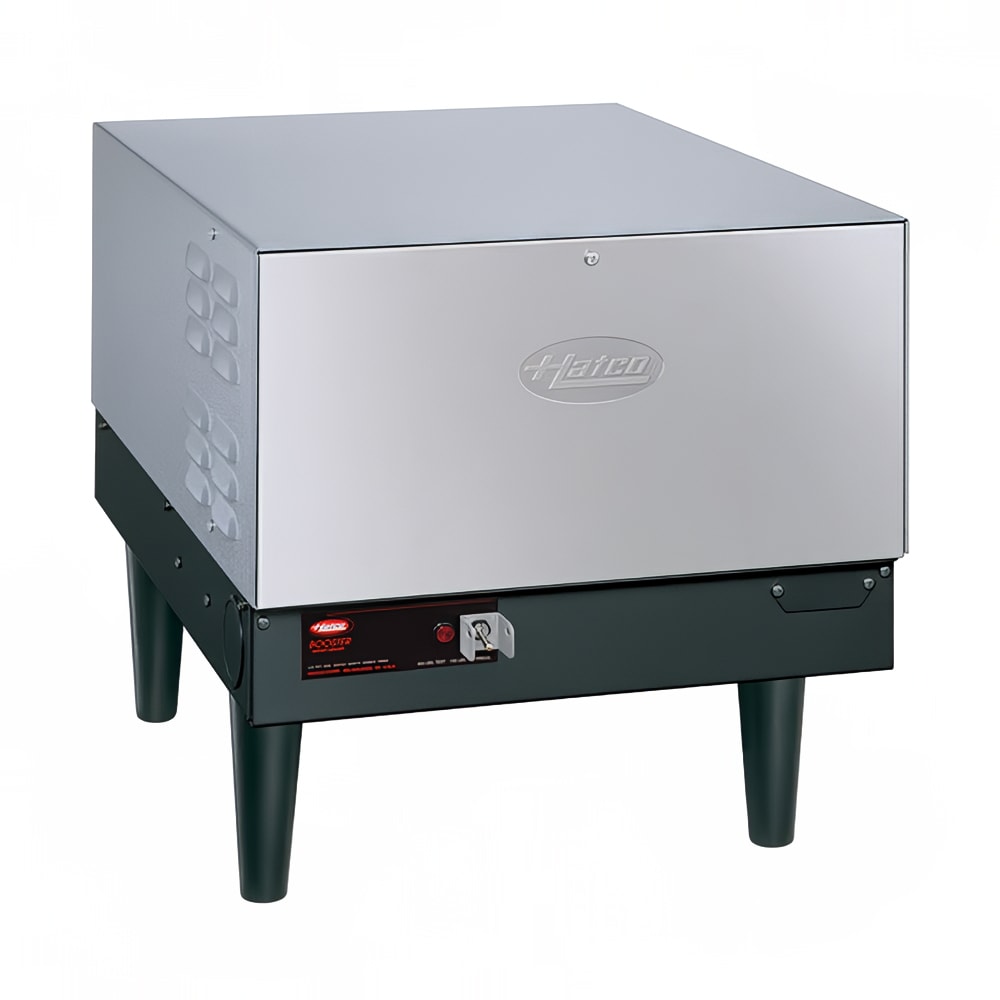

Hatco C-36 Compact Booster Heater, 6 Gallon, 36 KW, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-C362403 • MPN: C-36-240-3-QS
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $4,546.00
$2,500.30 / Each

Selected Voltage: 240V, 3 Phase

Image may not depict product color, inclusions or accessories.

Hatco C-36 Description


The Hatco C-36 compact booster heater has a 6-gallon storage capacity in its Castone® tank. Fiberglass insulation minimizes heat loss and a temperature/pressure relief valve releases water when the temperature or pressure is too high. To regulate and stabilize flow pressure, the system has a pressure-reducing valve, while its low water cut-off prevents the element from burnout when water levels are too low. The heavy-duty stainless steel front panel is corrosion resistant and has a swing-away design that provides access to the components for maintenance. The Hatco C-36 compact booster heater sits on 6-inch legs, so it does not have to be placed directly on washroom floors.

Product Details

  • Ensures the temperature of rinse water is 180 degrees F
  • 206 GPH with 70-degree F rise
  • 361 GPH with 40-degree F rise
  • Castone-lined tank has a 6-gal. capacity
  • Fiberglass insulation minimizes heat loss
  • On/off switch includes a pilot indicator light
  • 2 temperature/pressure gauges monitor the levels in the tank
  • Temperature/pressure relief valve lowers pressure by releasing water from the tank when needed
  • Pressure-reducing valve regulates and stabilizes flow pressure
  • Low water cut-off shuts off power to the element if the level of water is low, preventing the element from burning out
  • Swing-away front panel design provides access to the internal components
  • Front panel is constructed of stainless steel for durability and corrosion resistance
  • Powder-coated body provides additional strength for consistent use
  • 6-in. plastic legs elevate the unit off dishroom floors
  • 240 V/60 Hz/3 ph, 86.7 A, 36 kW
  • Overall dimensions: 18 in. W x 29.31 in. D x 18.03 in. H
  • CE and cULus listed; NSF certified
  • Made in the U.S.

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/3-ph, NSF, cUL, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco C-36 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 361 gph
70F Recovery 206 gph
Heat Electric
KW 36
Width (in) 18
Width (in) Range 16 - 20 in
Voltage 240
Phase 3
Hertz 60
Weight 142.00
Hatco C-36 Certifications
  • UL
  • NSF
