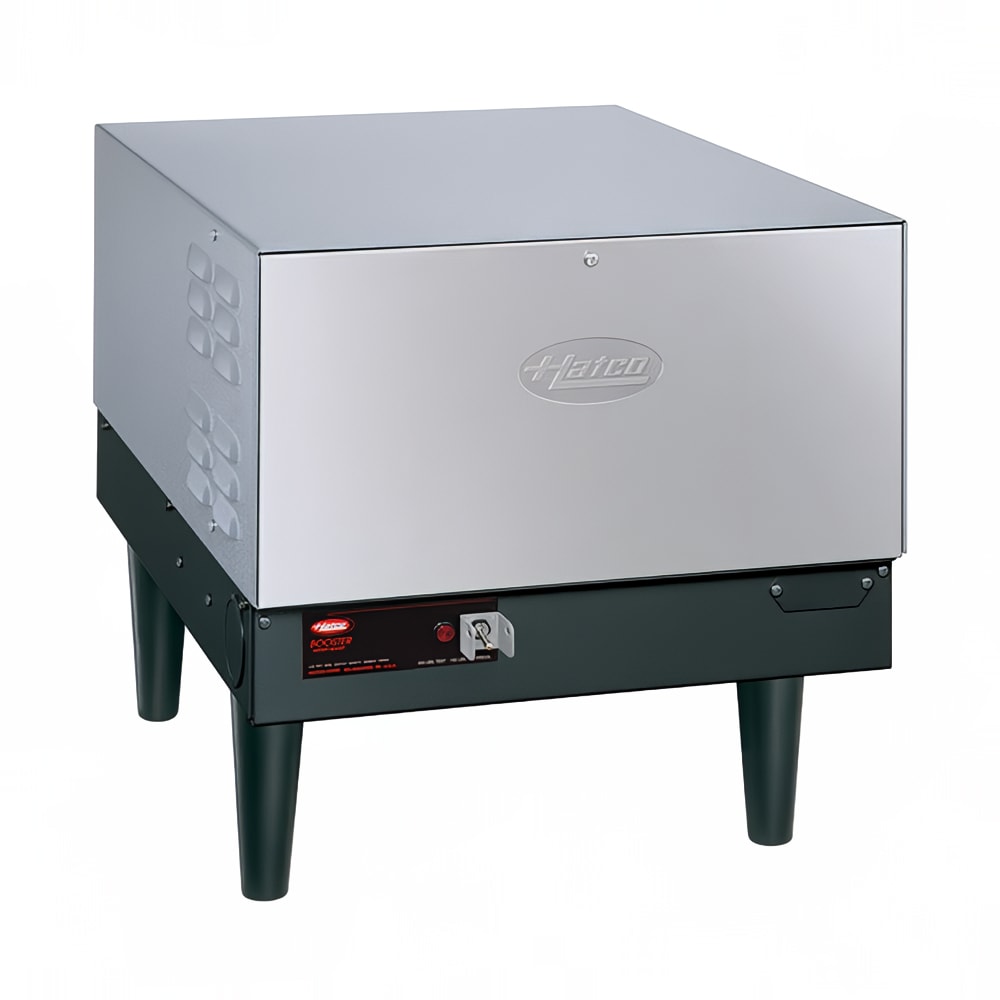

Hatco C-36 Compact Booster Water Heater, 6 Gallon, 36 kW, 208v/3ph

This Hatco C-36 compact booster heater is designed to heat water to 180 degrees Fahrenheit for sanitizing cycles in dishmachines. If 206 gallons are used per hour, this model can provide a 70-degree-Fahrenheit rise, and if 361 gallons are used, it provides a 40-degree-Fahrenheit rise. Operators can turn this unit on and off with a switch, and an indicator light shines when it is operating. Pre-plumbed and pre-wired with a calibrated thermostat, this heater has a high-temperature limit control to prevent overheating and a low-water cut-off to prevent element burnout by shutting off the power if the water level is too low.

If the booster heater needs to be serviced, the operator can access the components behind the swing-away front panel. This panel is made of heavy-duty stainless steel, and the rest of the body is powder coated for corrosion resistance. Fiberglass insulation in the heater prevents heat from leaking out. Compact and electric, this Hatco C-36 booster water heater can be placed beside a dishwasher on its 6-inch legs or under a dishtable with separately-sold slide brackets.

Product Details

• Raises the temperature of dishwashing water to 180 degrees F to sanitize dishes
• Provides 40-degree-F rise to water at 361 GPH
• Provides 70-degree-F rise to water at 206 GPH
• On/off switch and pilot indicator light
• Pre-plumbed and pre-wired with a calibrated immersion thermostat
• High-temperature limit control
• Temperature/pressure relief valve and gauges
• Pressure-reducing valve regulates and stabilizes flow pressure
• Low-water cut-off feature shuts off power to the heating elements if the water level is too low, preventing element burnout
• Stainless steel front panel swings open for access to low-water cut-off switch, control fuses, and transformer for servicing
• Powder-coated hammertone body resists corrosion
• Castone® cement-lined, 6-gal.-capacity tank
• Fiberglass insulation minimizes heat loss
• 6-in. plastic legs for floor use
• Can be installed under a dishtable with slide brackets (sold separately)

Dimensions & Utilities

• 18 in. W x 29⁵/₁₆ in. D x 18³/₁₀₀ in. H
• 36 kW, 100 A
• 208 V/60 Hz/3 ph

Product Features

*Free shipping on Hatco C-36 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-36 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure

Certifications
