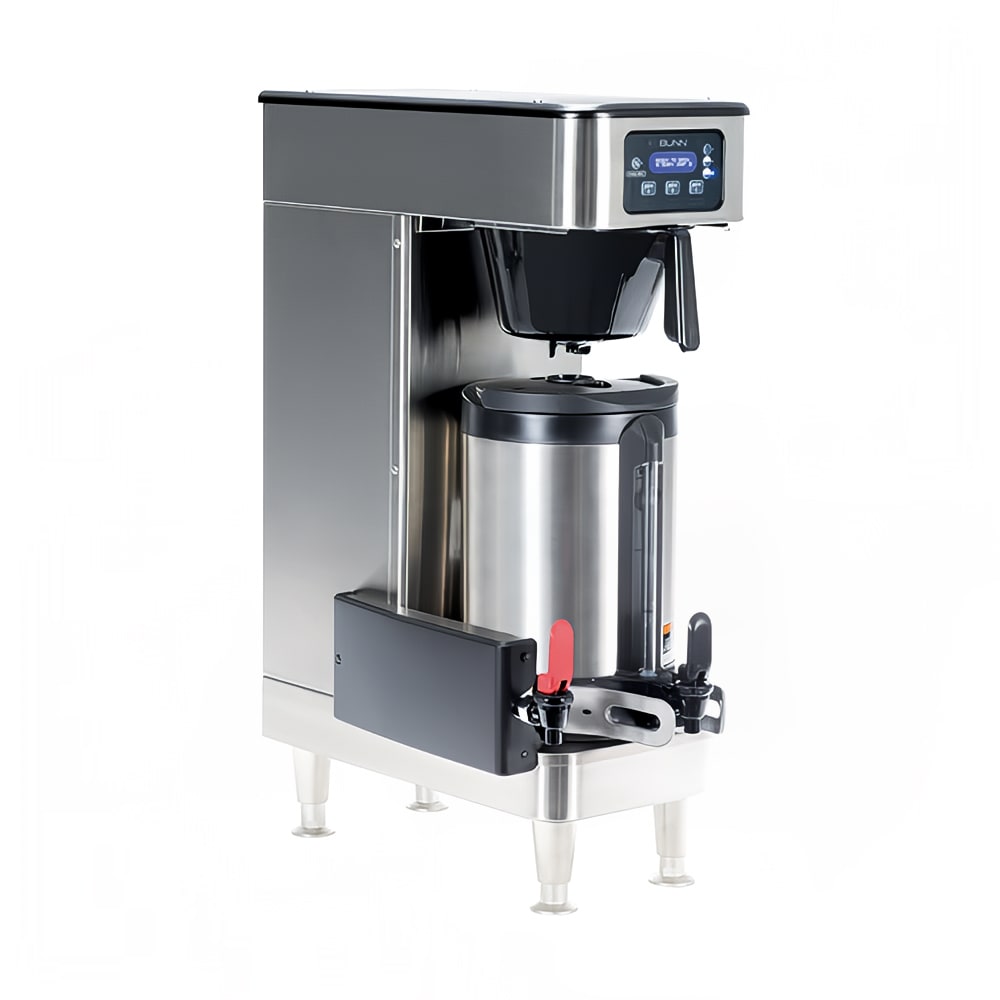

Bunn ICB SH Infusion Series® Automatic Coffee Brewer for Soft Heat® Thermal Servers, 120/208-240v (51100.0103)

This BUNN ICB SH-DV coffee brewer (51100.0103) is intended to dispense coffee into a BUNN Soft Heat® server, making it ideal for self-service coffee stations or for instances when coffee doesn't need to be served immediately after being brewed. Its Infusion Series technology features three brew buttons and three batch sizes to diversify the types and amounts of coffee it can brew. Its Peak Extraction™ spray head has a 17-hole structure that sprays in multiple directions at once, coating coffee grounds evenly. Preinfusion and pulse brew mechanisms maximize flavor extraction, and an electronic funnel lock prevents brew funnel removal until the drip-through process is complete, reducing waste. This machine can brew (82) 8-ounce cups of coffee per hour.

For improved user control, BUNN ICB SH-DV coffee brewer (51100.0103) has a digital readout with a front panel that provides machine status, a brew counter, and digital temperature control. The readout can be programmed to display information in English, Spanish, or French and in metric or imperial measurements. During slow periods, the unit will reduce its tank temperature automatically to save energy. This 11⁴/₅-inch-wide by 23¹/₅-inch-deep by 32⁴/₅-inch-high structure can be installed on a countertop, and its stainless steel construction resists corrosion, rust, and daily use in high-traffic businesses. Its trunk and corners are rounded, creating a modern, sleek appearance that can be displayed in front-of-house applications.

Product Details

• For use with Soft Heat servers (sold separately)
• Automatic operation
• Brews (82) 8-oz. cups per hour
• Digital readout with displays in English, Spanish, or French and imperial or metric measurements
• Digital readout includes machine status, targeted advertising messages, temperature control, and brew counter
• Wireless interface
• USB programming capability
• Automatic energy-saver mode when idle
• Peak Extraction spray head with multidirectional design
• Infusion Series technology: 3 brew buttons and 3 batch sizes
• Preinfusion and pulse brew mechanisms
• Electronic funnel lock
• Black plastic funnel
• Stainless steel construction with gray finish and rounded corners and trunk
• Hot water faucet built into side
• 4-in. satin nickel legs
• Required operating pressure: 20-90 PSI
• Required input water temperature: 60 degrees F
• Required water flow: 1 GPM

Product Features

Dimensions & Utilities

• 11⁴/₅ in. W x 23¹/₅ in. D x 32⁴/₅ in. H
• 15 A, 1,800 W
• 120 V/60 Hz/1 ph, cord with NEMA 5-20P plug (field convertible to 120-208 or 120-240 V)
• ³⁄₈-in. male flare fitting

*Free shipping on Bunn ICB SH within the 48 contiguous states.

From The Manufacturer

51100.0103 ICB SH-DV Coffee Brewer, Infusion Series®, for use with Soft Heat® servers (sold separately), pre-infusion & pulse brew, programmable digital display, wireless interface, USB programming capability, brew counter, black plastic funnel, stainless steel & grey finish, 4" satin nickel legs, 120v/60/1-ph, 1800 watts, 15 amps, cord, NEMA 5-20P (field convertible to 120/208v/60/1-ph, 2900 watts, 14 amps (direct wired) or 120/240v/60/1-ph, 4050 watts, 17 amps (direct wired)), UL, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor; 3-year Parts & Labor Electronics

Bunn ICB SH Specifications

One of the most trusted brands in the coffee maker industry, BUNN has manufactured reliable coffee and tea dispensers since 1957. The family-owned company's line of coffee makers specializes in producing high-volume, quality coffee, but it also sells tea, juice, and frozen drink dispensers.
