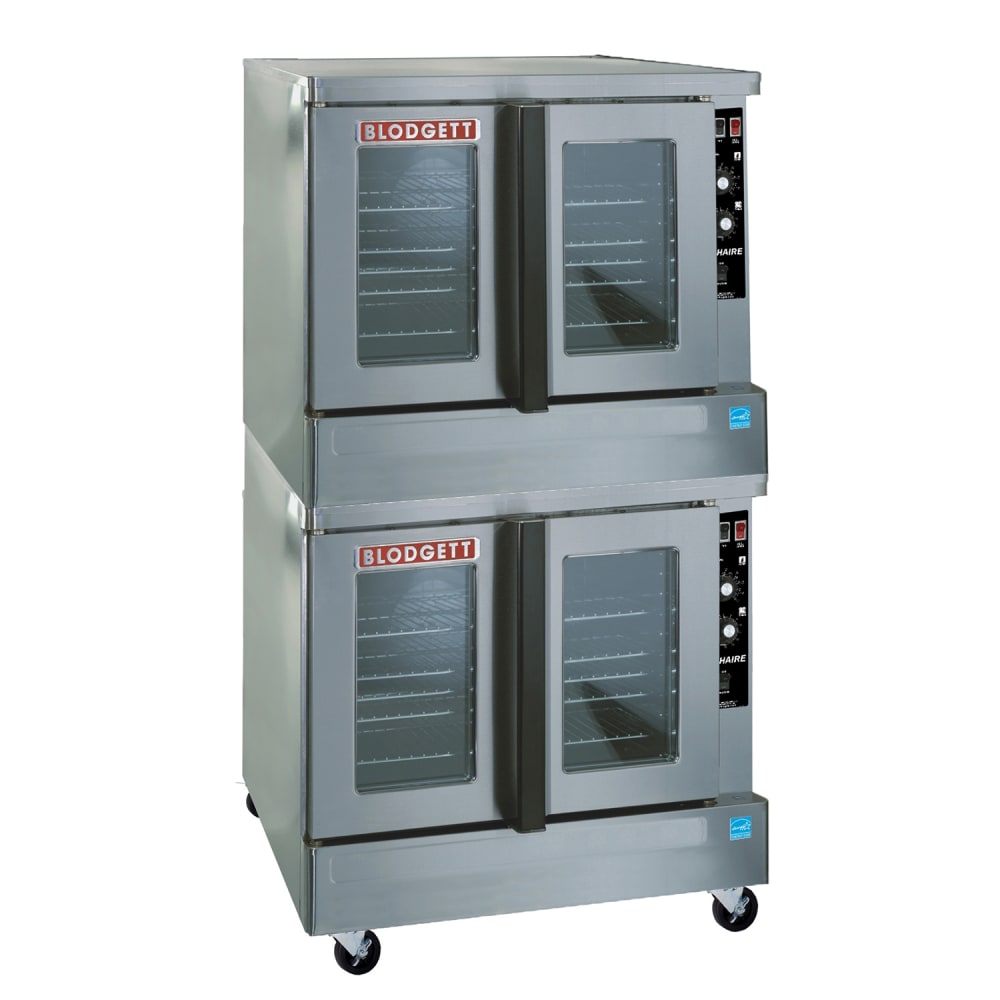

Blodgett ZEPH-100-E DBL Zephaire Double Full Size Electric Convection Oven - 22kW, 220-240v/3ph
$13,598.00 /Each
Selected Voltage: 220-240V, 3 Phase
| 220-240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 1 Phase |
Blodgett ZEPH-100-E DBL Description
In each compartment of the Blodgett ZEPH-100-E DBL Zephaire convection oven, three tubular heaters can generate heat between 200 and 500 degrees Fahrenheit as operators adjust the solid-state infinite controls. A two-speed fan motor blows heat throughout the sections, which helps disperse heat uniformly to cook contents quickly. To maintain temperatures, the unit's top, back, sides, and bottom are insulated with solid mineral fiber. In total, each section includes five chrome-plated racks with 11 positions; as many as five 18-inch by 26-inch pans can fit in the compartment simultaneously.
The Blodgett ZEPH-100-E DBL convection oven is a two-level model, measuring 38 1⁄4 inches wide by 36 7⁄8 inches deep by 70 5⁄8 inches high. Constructed of durable, rigid stainless steel, this oven includes a full angle-iron frame for added strength as pans are loaded and retrieved repeatedly. Two glass doors built into each section feature a powder-coated door handle that opens them simultaneously using only one hand. To ensure the unit remains stable on uneven flooring, it's fitted with 6 1⁄2-inch adjustable stainless steel legs.
- 2-deck, standard-depth design
- Stainless steel top, sides, and front
- Full angle-iron frame
- Solid mineral fiber insulation in top, back, sides, and bottom
- 5 removable, chrome-plated racks with 11 positions spaced 1 5⁄8 in. apart
- Accommodates (10) 18-in. x 26-in. pans (5 pans per section)
- 6 tubular heaters (3 per compartment)
- 1⁄2-HP motor with automatic thermal overload protection
- 2-speed fan motor
- 4 interior oven lamps (2 per section)
- Solid-state infinite controls with 60-min. manual timer
- Operating temperature range: 200-500 degrees F
- Control area cooling fan
- 4 dependent doors (2 per section)
- Powder-coated door handles for simultaneous opening
- Dual-pane thermal glass windows
- Triple-mounted, pressure-lock doors with turnbuckle assemblies
- Double-sided porcelain baking compartment liners
- Aluminized blower wheels
- 6 1⁄2-in. adjustable legs
- Vent connector included
- Interiors: (2) 29 in. W x 24 1⁄4 in. D x 20 in. H
- Overall: 38 1⁄4 in. W x 36 7⁄8 in. D x 70 5⁄8 in. H
- 24-26 A, 22 kW, 1⁄2 HP
- 220-240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Blodgett ZEPH-100-E DBL within the 48 contiguous states.
From The Manufacturer
Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR®
Watch a video about this product
Blodgett ZEPH-100-E DBL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 36.88 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 70.63 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 11 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Zephaire |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 220/240 |
| Warranty | 2-year Parts & Labor; 3-year Door Parts |
| Width (in) | 38.25 |
| Weight | 960.00 |
