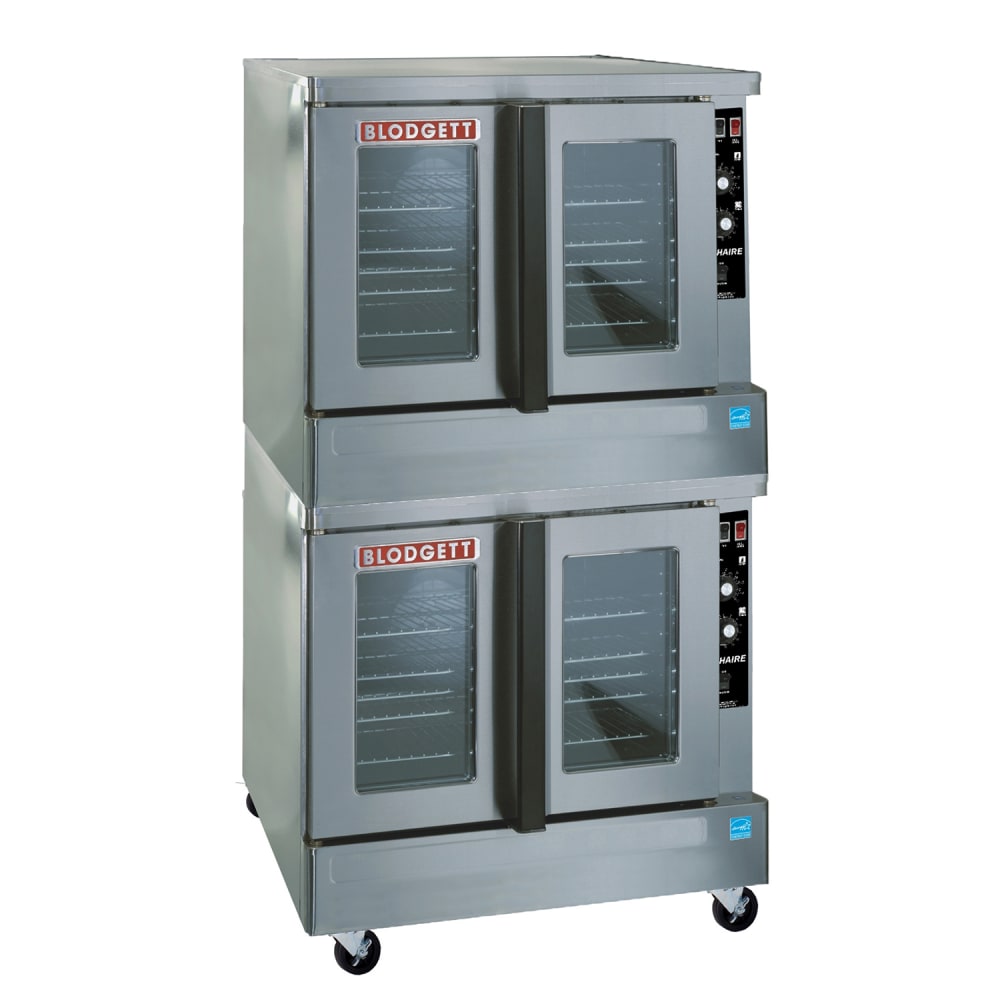

Blodgett ZEPH-100-E DBL Zephaire Double Full Size Electric Convection Oven - 22kW, 220-240v/1ph

KaTom #: 015-ZEPH1EDBLM2201 • MPN: ZEPH-100-EDBL (M) 220/240/1
  • 015-ZEPH1EDBLM2201 Primary Thumbnail Image

Typically ships in 9 - 13 Business Days

Free Shipping Item

$13,598.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 220-240V, 1 Phase

Noah Wilbourn User Image
Ask a Foodservice Equipment Specialist

Blodgett ZEPH-100-E DBL Description

Because the Blodgett ZEPH-100-E DBL Zephaire convection oven's two-speed fan circulates heat from the two compartments' tubular heaters, it disperses high temperatures uniformly throughout the decks to expedite baking. This system can be used to rethermalize, roast, or bake various products quickly; operators can adjust each section's temperatures from 200 to 500 degrees Fahrenheit using its solid-state infinite controls. A 60-minute timer tracks elapsed time accurately, reducing the risk of undercooking or burning. To maintain programmed temperatures in cool ambient spaces or during pan loading and retrieval, the top, back, sides, and bottom are insulated with solid mineral fiber.

Each compartment in the Blodgett ZEPH-100-E DBL double-deck, standard-depth convection oven is equipped with five chrome-plated racks with 11 positions spaced 1 5⁄8 inches apart. In total, each section can support five 18-inch by 26-inch baking spans in side-to-side configurations. The sections' two doors open simultaneously with their powder-coated handle, enabling operators to access the cabinet fully, which can help streamline pan loading. Dual-pane glass windows provide a direct view through the doors into the compartments so users can manage browning. Built to last in commercial settings, this stainless steel model includes a full angle-iron frame for added stability as pans are loaded and retrieved over time. Its double-deck design doesn't occupy additional floorspace as it's stacked, measuring 38 1⁄4 inches wide by 36 7⁄8 inches deep—the same dimensions as a single-deck unit. For leveling on irregular flooring, it's furnished with 6 1⁄2-inch adjustable stainless steel legs.

  • 2-deck configuration with standard depths
  • Stainless steel top, sides, and front with full angle-iron frame
  • Top, back, sides, and bottom insulated with solid mineral fiber
  • 5 removable, chrome-plated racks with 11 positions (spaced 1 5⁄8 in. apart)
  • Capacity per section: (5) 18-in. x 26-in. pans
  • 6 tubular heaters (3 per section)
  • 1⁄2-HP motor with automatic thermal overload protection
  • 2-speed fan motor
  • 4 interior oven lamps (2 per compartment)
  • Solid-state infinite controls with 60-min. manual timer
  • Operating temperature range: 200-500 degrees F
  • Control area cooling fan
  • 4 dependent doors (2 per section) with powder-coated door handles and dual-pane thermal glass windows
  • Triple-mounted, pressure-lock doors with turnbuckle assemblies
  • Double-sided porcelain baking compartment liners
  • Aluminized blower wheels
  • 6 1⁄2-in. adjustable legs
  • Vent connector included

  • Interiors: (2) 29 in. W x 24 1⁄4 in. D x 20 in. H
  • Overall: 38 1⁄4 in. W x 36 7⁄8 in. D x 70 5⁄8 in. H
  • 44 A, 22 kW, 1⁄2 HP
  • 220-240 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett ZEPH-100-E DBL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR®

Warranty Icon
2-year Parts & Labor; 3-year Door Parts

Watch a video about this product

Blodgett ZEPH-100-E DBL Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
