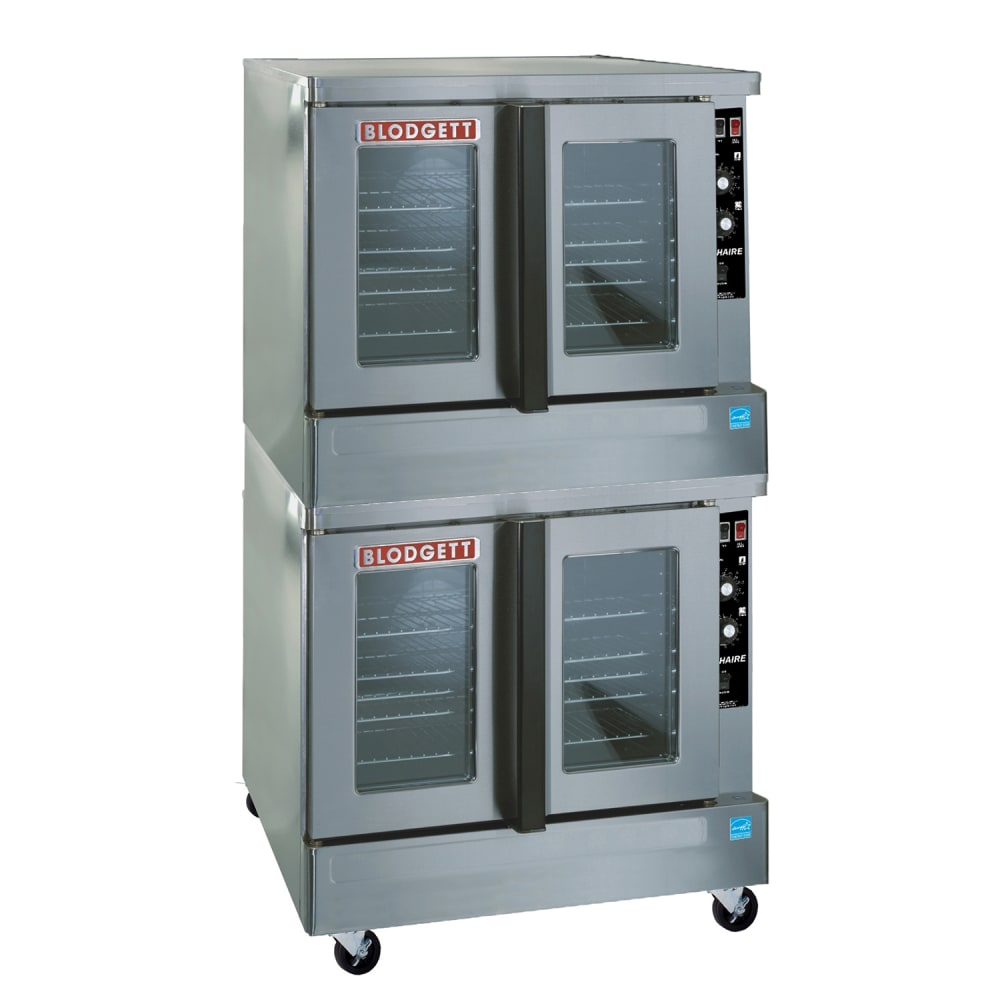

Blodgett ZEPH-100-E DBL Zephaire Double Full Size Electric Convection Oven - 22kW, 208v/1ph

KaTom #: 015-ZEPH1EDBLM2081 • MPN: ZEPH-100-EDBL (M) 208/1
  • 015-ZEPH1EDBLM2081 Primary Thumbnail Image
Free Shipping Item

$13,598.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 208V, 1 Phase

Noah Wilbourn User Image
Ask a Foodservice Equipment Specialist

Blodgett ZEPH-100-E DBL Description

To cook, roast, and rethermalize foods faster than standard ovens, the Blodgett ZEPH-100-E DBL Zephaire double-deck convection oven uses a two-speed, 1⁄2-horsepower blower fan motor to circulate heat evenly in each section, while three tubular heaters integrated into each compartment direct heat toward pans. Operators can modify each section's temperatures between 200 and 500 degrees Fahrenheit using the solid-state infinite control, and a 60-minute timer tracks elapsed time for consistent results. To preserve temperatures, the unit's top, back, sides, and bottom are insulated with solid mineral fiber.

To maximize output without occupying additional floorspace, the Blodgett ZEPH-100-E DBL convection oven includes two decks and measures 38 1⁄4 inches wide by 36 7⁄8 inches deep by 70 5⁄8 inches high. Dual-pane thermal glass windows grant a direct view into the compartments so users can monitor baking, and dependent design of the doors enables operators to open them with one hand and access the pans fully. The two sections' porcelainized baking compartment liners are simple to wipe clean, and each compartment's five chrome-plated racks accommodate five 18-inch by 26-inch baking pans in left-to-right positions. These removable racks provide 11 positions with a minimum of 1 5⁄8-inch spacing. For lasting rigidity as pans are loaded and retrieved, this stainless steel unit includes a full angle-iron frame. To prevent wobbling, its 6 1⁄2-inch legs can be adjusted for leveling on irregular surfaces.

  • Double-deck configuration with standard depths
  • Stainless steel top, sides, and front with full angle-iron frame
  • Top, back, sides, and bottom insulated with solid mineral fiber
  • 5 removable, chrome-plated racks in each section with 11 positions
  • Minimum spacing: 1 5⁄8 in.
  • Capacity per compartment: (5) 18-in. x 26-in. pans
  • 6 tubular heaters (3 per section)
  • 1⁄2-HP motor with automatic thermal overload protection
  • 2-speed fan motor
  • 4 interior oven lamps (2 per compartment)
  • Solid-state infinite controls with 60-min. manual timer
  • Operating temperature range: 200-500 degrees F
  • Control area cooling fan
  • 4 dependent doors (2 per section)
  • Dual-pane thermal glass windows
  • Powder-coated door handles
  • Triple-mounted, pressure-lock door designs with turnbuckle assemblies
  • Double-sided porcelain baking compartment liners
  • Aluminized blower wheels
  • 6 1⁄2-in. adjustable legs
  • Vent connector included

  • Interiors: (2) 29 in. W x 24 1⁄4 in. D x 20 in. H
  • Overall: 38 1⁄4 in. W x 36 7⁄8 in. D x 70 5⁄8 in. H
  • 51 A, 22 kW, 1⁄2 HP
  • 208 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett ZEPH-100-E DBL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR®

Warranty Icon
2-year Parts & Labor; 3-year Door Parts

Watch a video about this product

Blodgett ZEPH-100-E DBL Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
