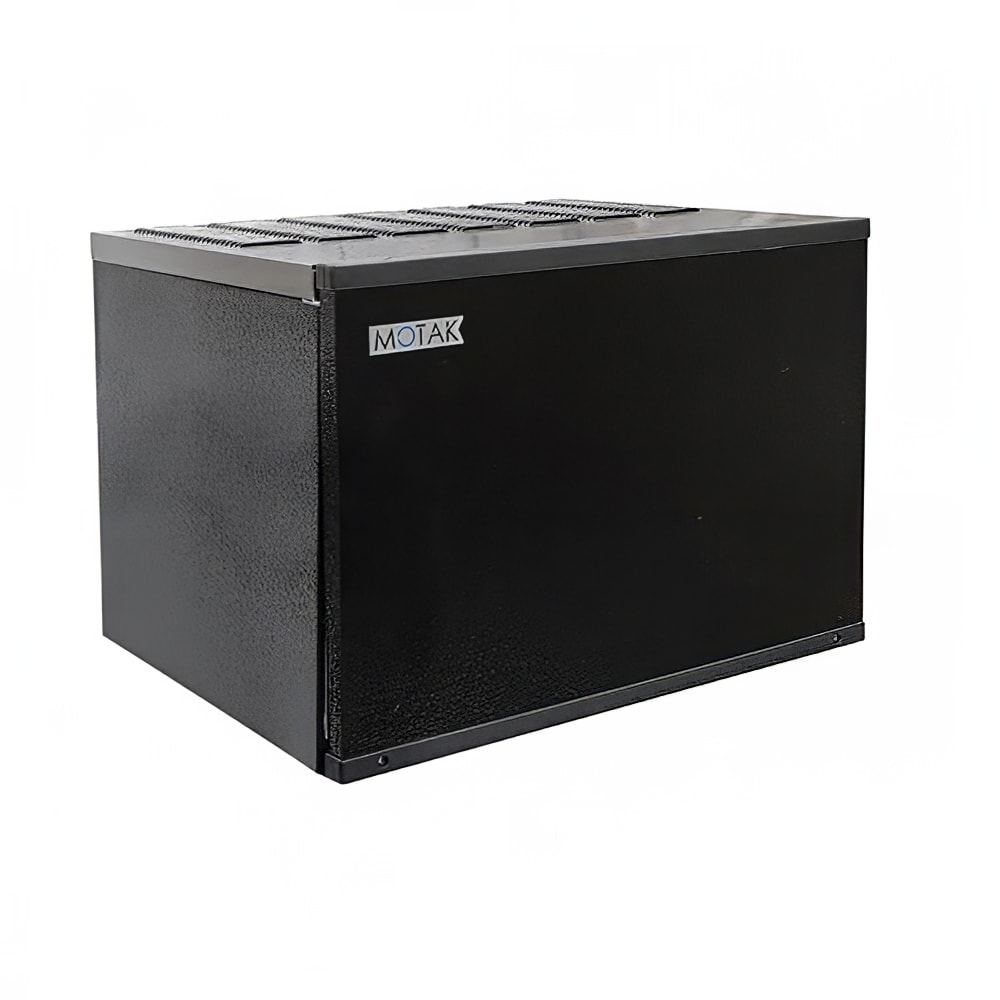

MoTak PKM0535SA-161 30" Half Cube Ice Machine Head - 525 lb/24 hr, Air Cooled, 115v/1ph

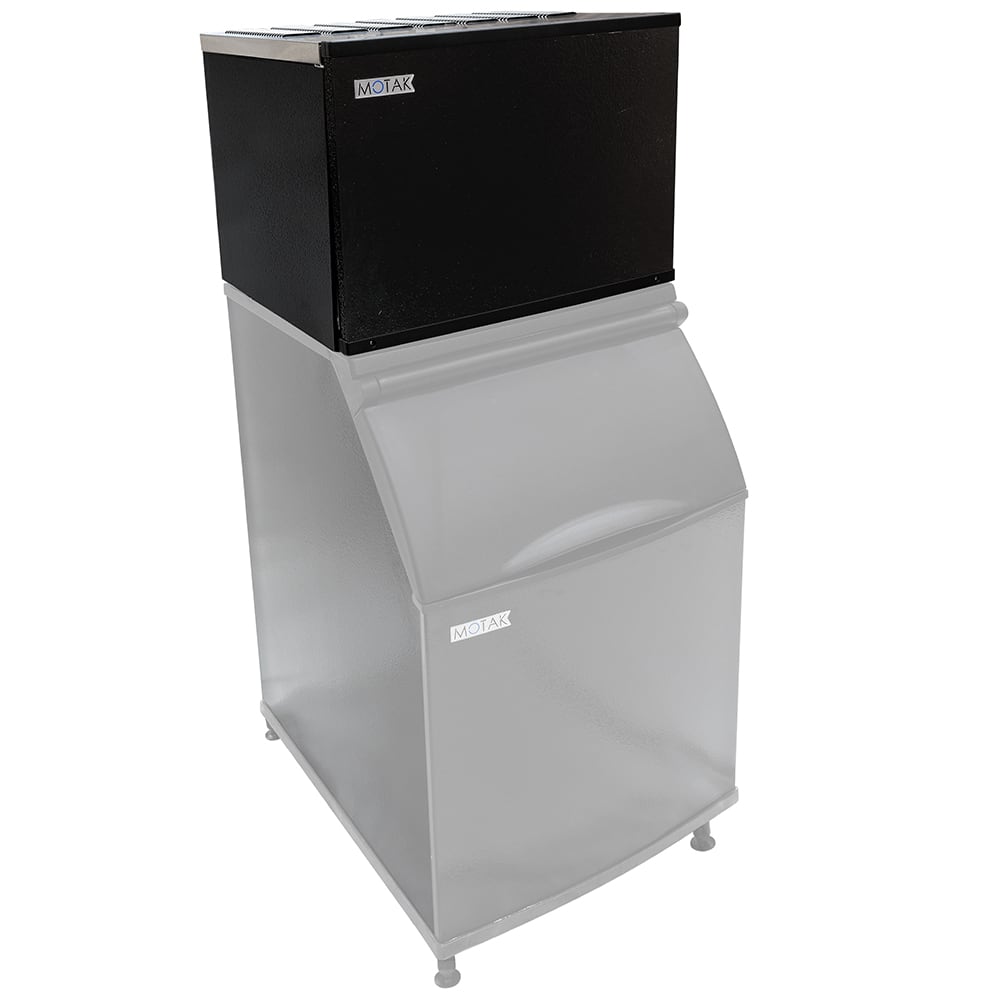

The MoTak PKM0535SA-161 ice cube machine produces half-cube ice—a type of ice that nestles compactly in a glass, making it a good choice for chilling beverages such as water, soda, tea, and lemonade. It makes as much as 535 pounds of ice per day, enough ice to meet demand in a low- to medium-volume location, such as a small corner store or cafe. Measuring 30 inches wide by 24¹/₂ inches deep by 21¹/₂ inches high, this machine is compact and fits well into areas without much available space. No bin is included with this ice cube machine head; an ice storage container must be purchased separately.

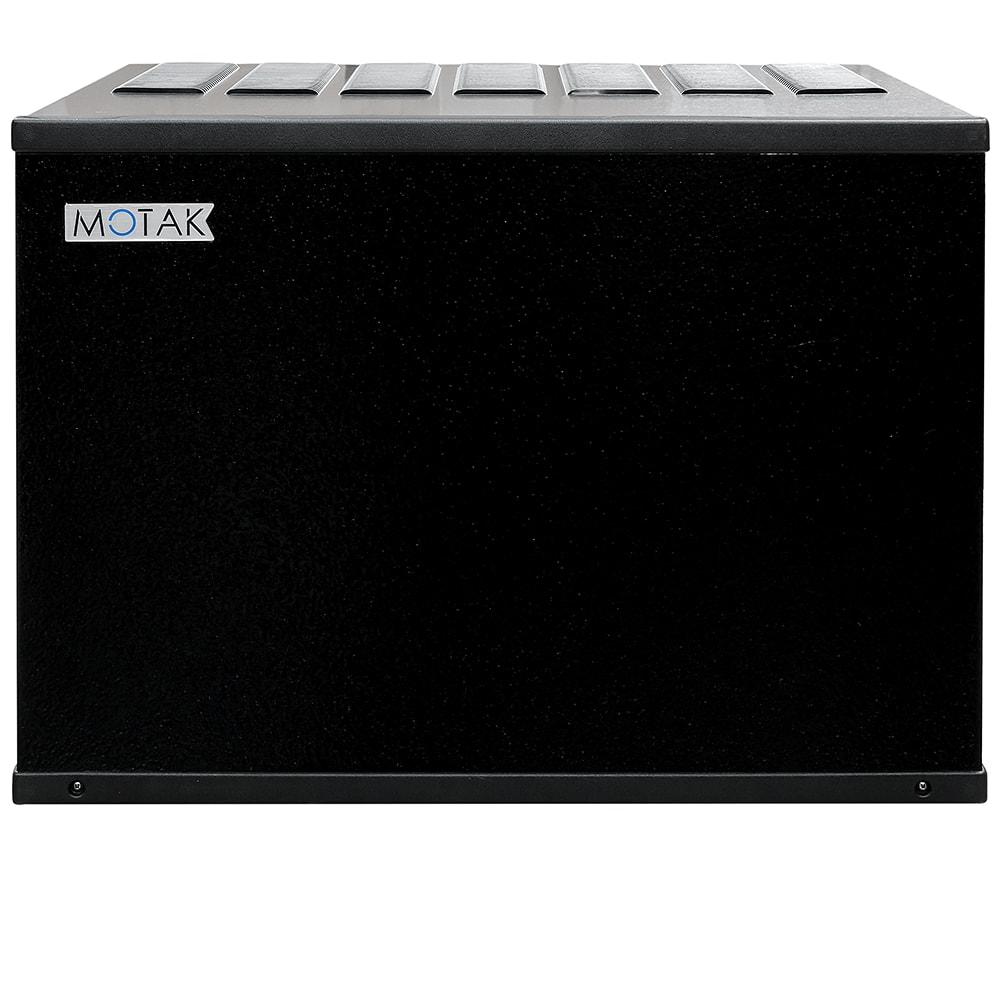

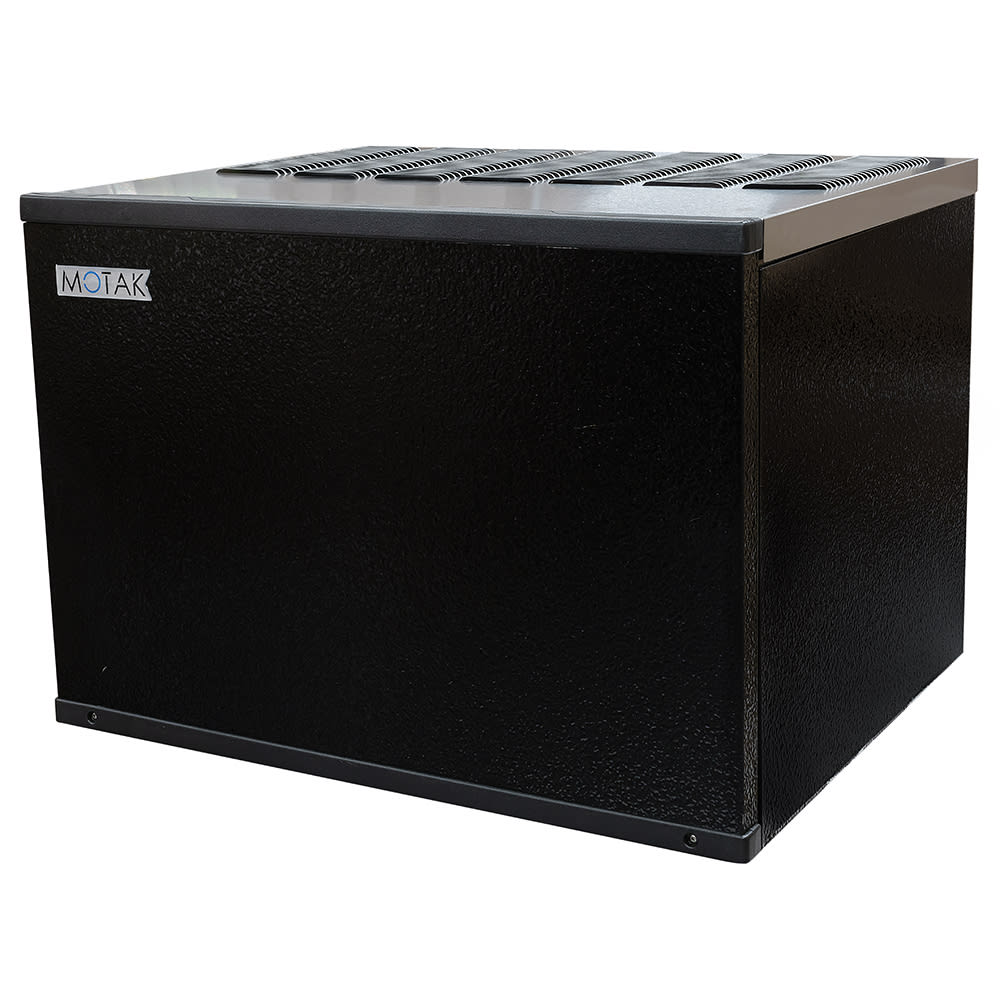

To conceal marks, fingerprints, and stains, the MoTak PKM0535SA-161 ice machine head is constructed with a smudge-resistant, black exterior that blends well with most locations and maintains a clean appearance with minimal effort. Inside the unit, its food zone can be accessed quickly for cleaning purposes, reducing labor. Removable components include the ice maker's water shield, distribution tube, pump floats, and trough. With these removable parts, the ice maker is simple to maintain.

Product Details

• Produces half-cube ice
• Maximum daily ice production: 535 lbs. per day
• AHRI daily ice production: 400 lbs. per day
• Designed with smudge-resistant, black exterior for long-term use
• Water shield, distribution tube, pump floats, and trough can be removed for thorough cleaning
• Accessible food zone streamlines maintenance

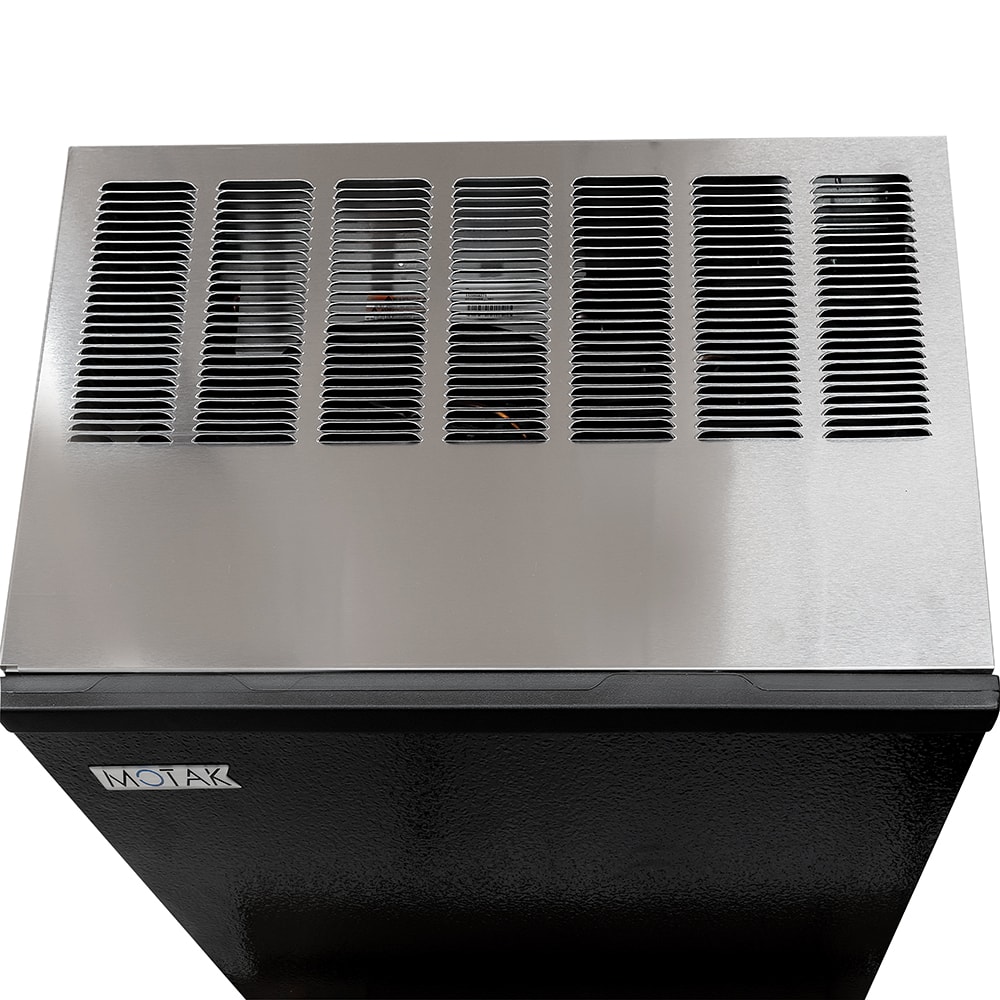

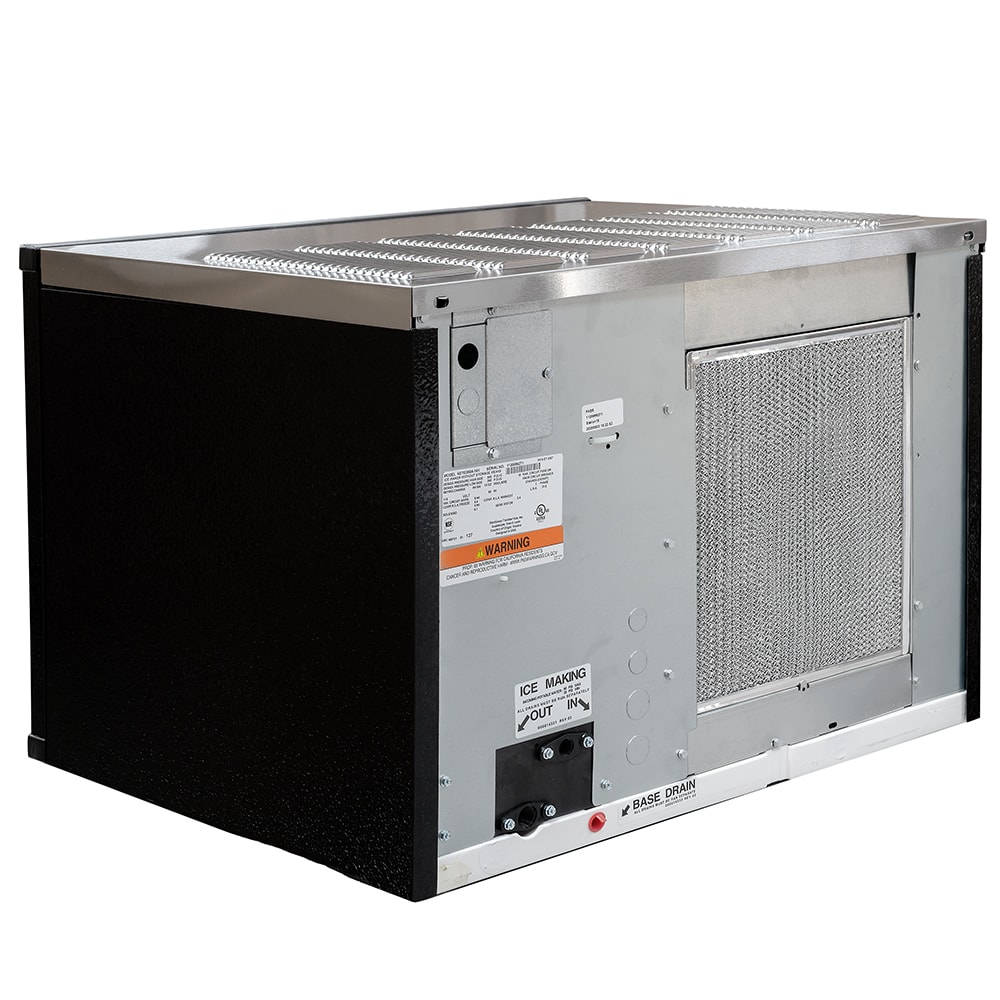

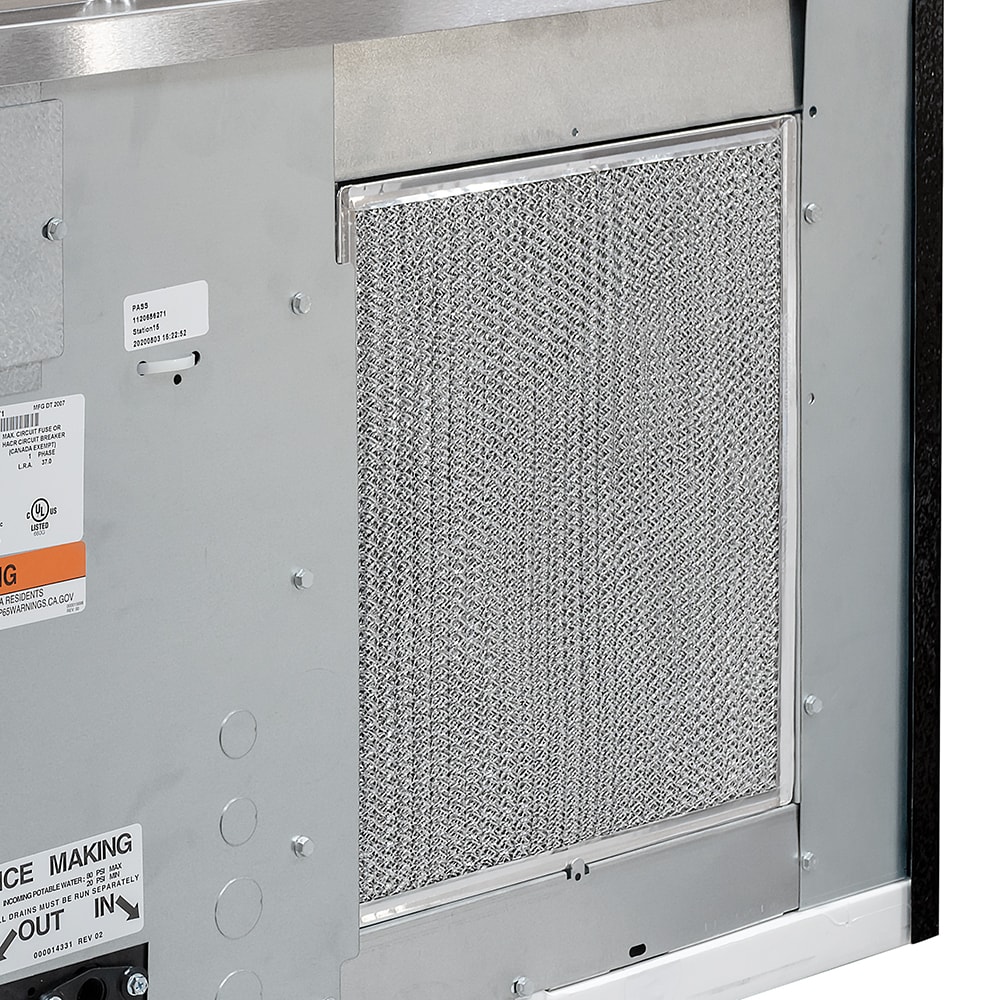

• Back air inlet and top outlet
• 6,100-BTU peak heat transfer capacity
• Operates with R410A refrigerant

Product Features

Dimensions & Utilities

• Half-size cubes: ³⁄₈ in. W x ⁷⁄₈ in. D x 1¹⁄₈ in. H
• Overall: 30 in. W x 24¹/₂ in. D x 21¹/₂ in. H
• 12.7 A
• 115 V/60 Hz/1 ph

*Free shipping on MoTak PKM0535SA-161 within the 48 contiguous states.

From The Manufacturer

MoTak Ice Cube Machine, cube style, air cooled, self-contained condenser, 30"W, production capacity up to 525 lb/24 hours at 70°/50° (380 lbs at 90°/70°), half-size cube, black exterior, R410A refrigerant, 115v/60/1-ph, 20.0 amps, NSF, cULus

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

MoTak PKM0535SA-161 Specifications

A KaTom house brand, MoTak offers an economy line of commercial appliances including refrigeration, cooking equipment, and ice machines. MoTak—sold exclusively by KaTom—offers products designed for budget-conscious operations and sourced from factories used by well-known equipment manufacturers.
