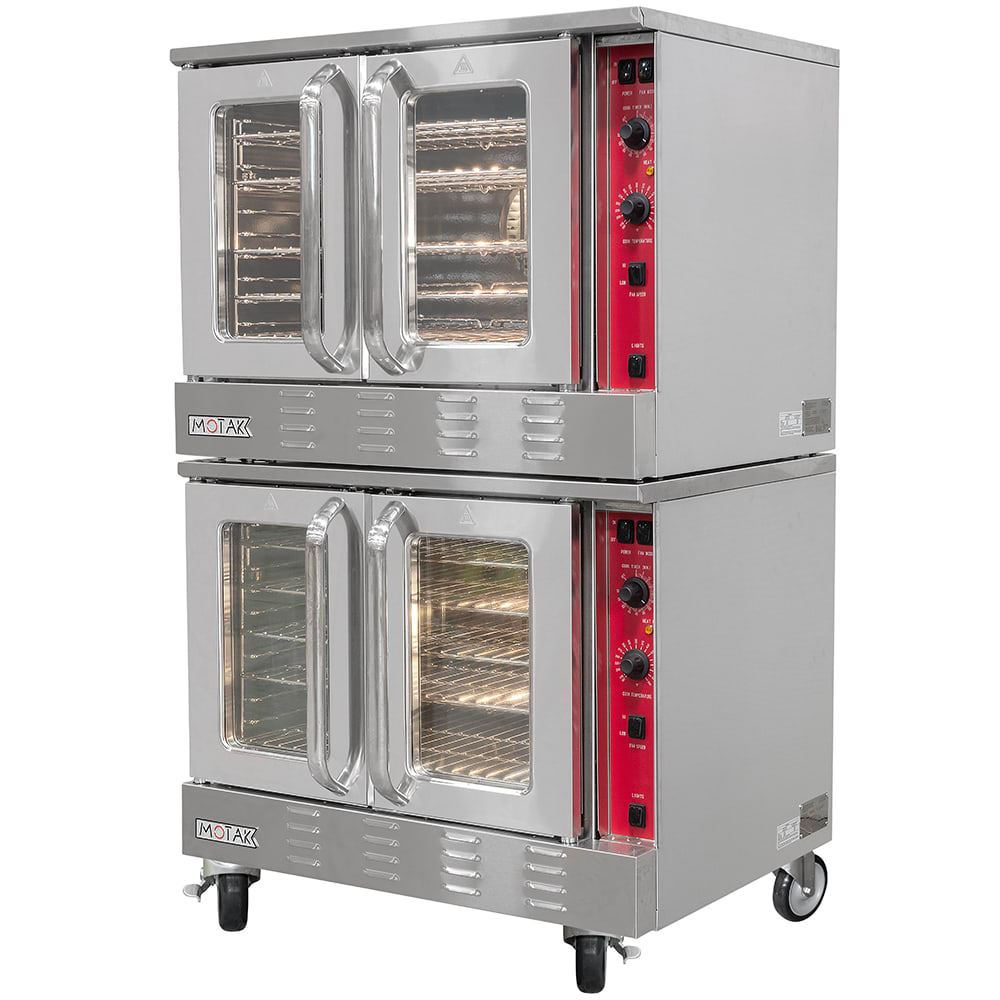

MoTak MCO-1-DBL Double Full Size Convertible Gas Convection Oven - 108,000 BTU

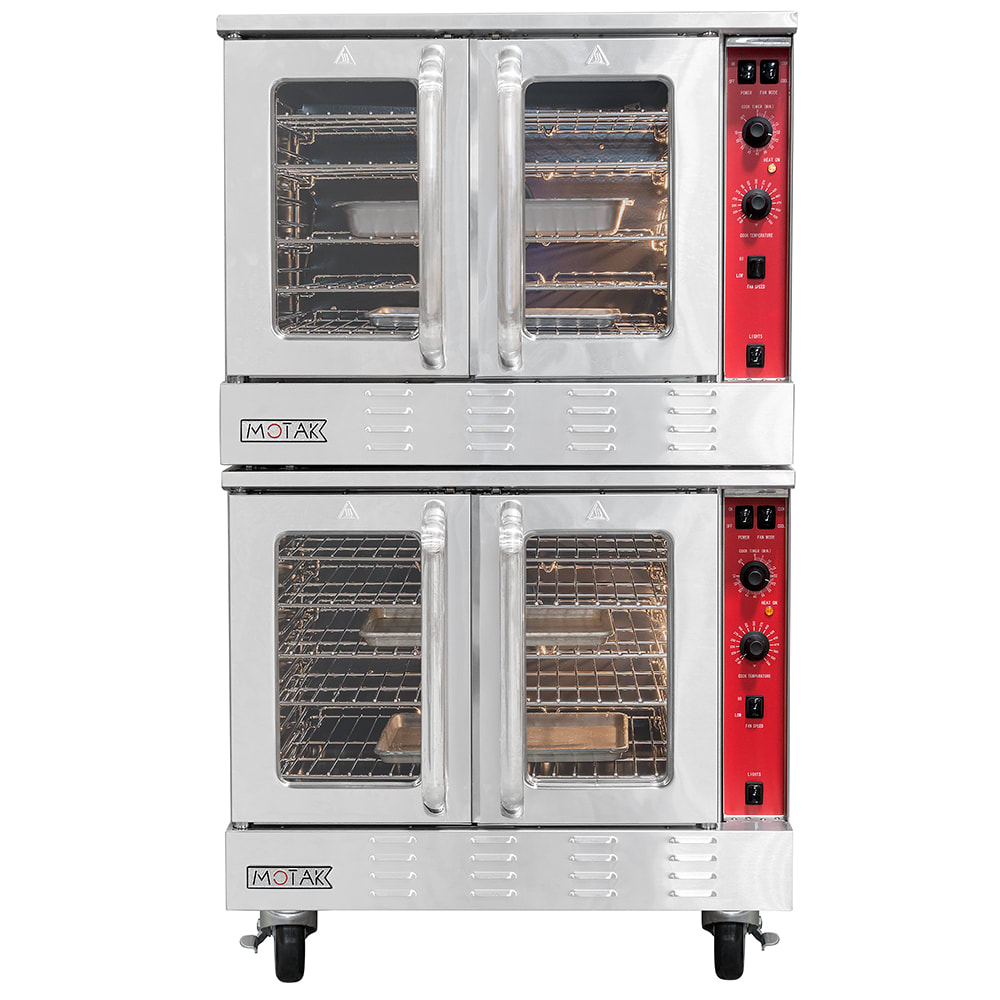

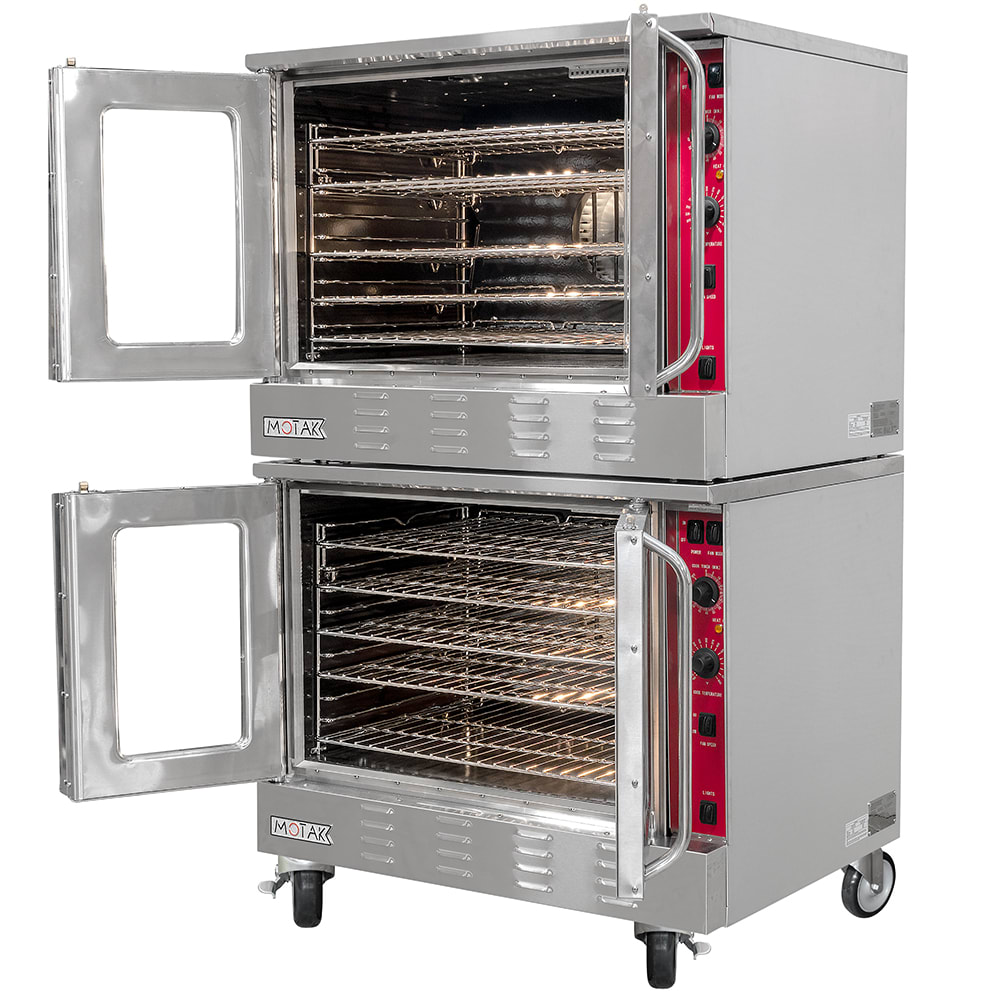

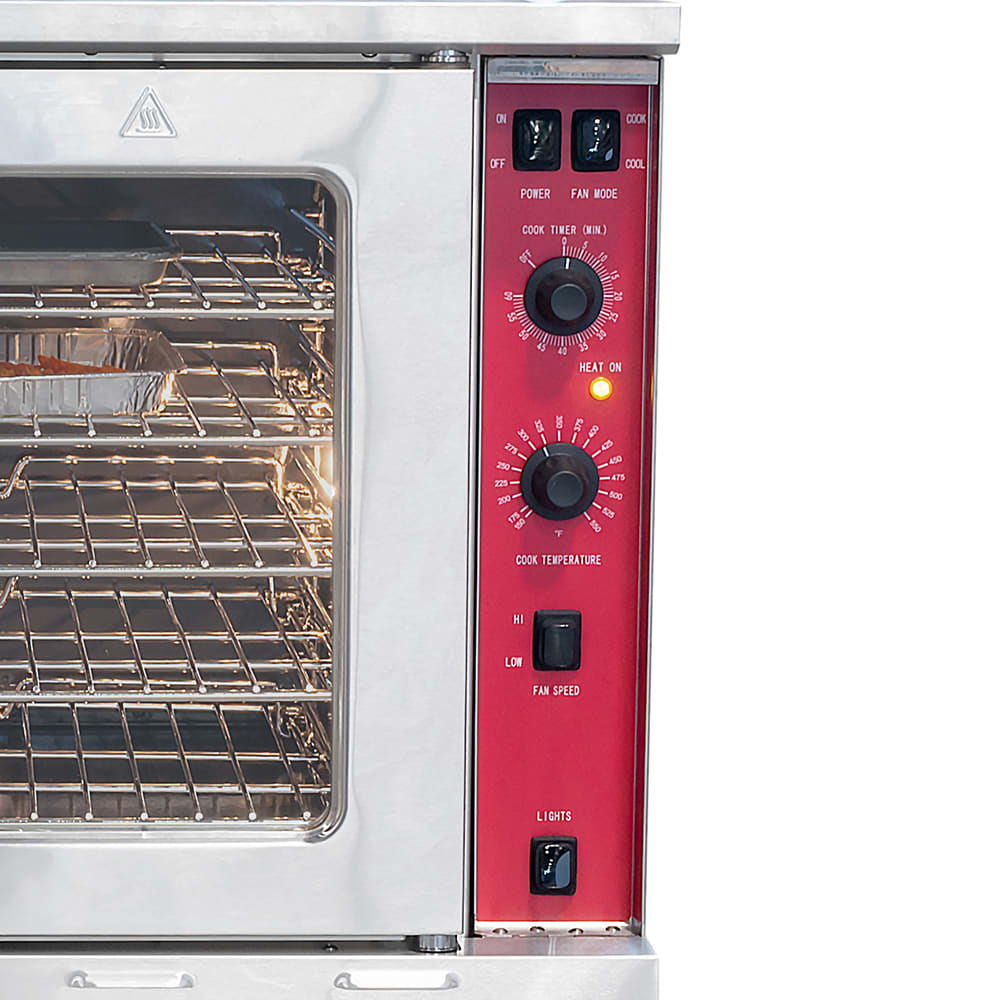

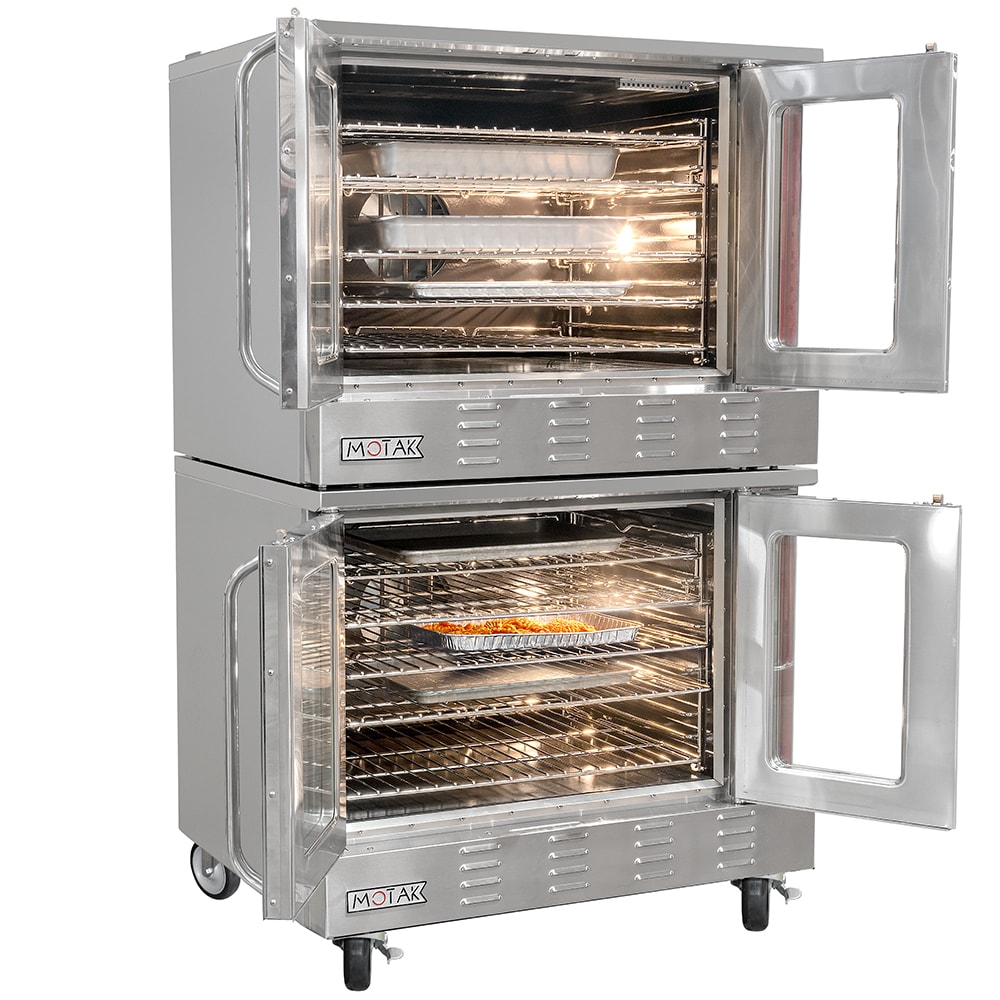

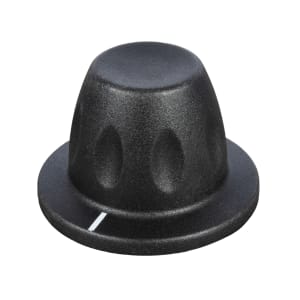

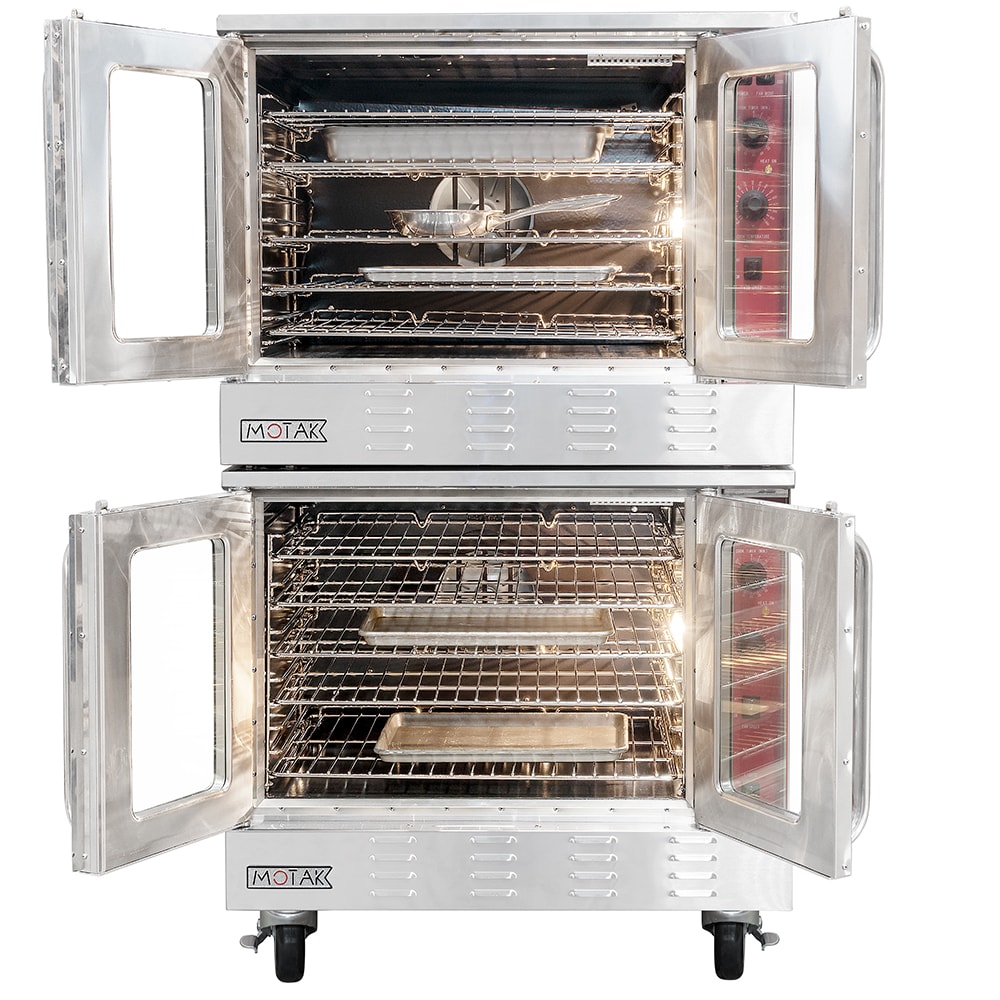

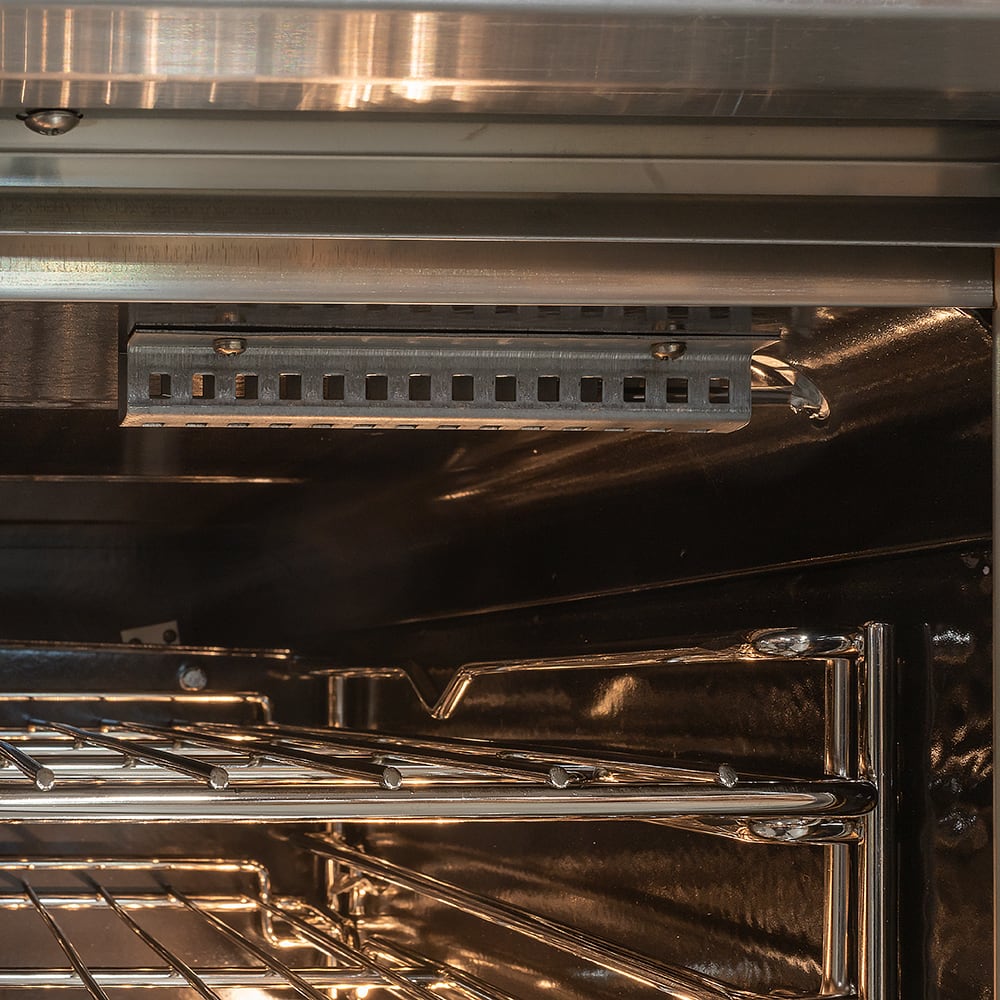

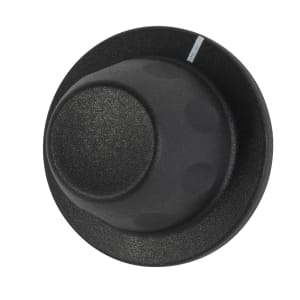

To support bulk cooking, the MoTak MCO-1-DBL double full-size convertible convection oven features two decks—each with five heavy-duty chrome-plated racks. The racks can be adjusted on the 10-position rack guide, which features 1¹⁄₂-inch spacings. Operators can adjust each deck's temperature from 150 to 550 degrees Fahrenheit with the corresponding manual temperature knob, while a temperature-ready indicator light glows when the oven is preheated. A 60-minute continuous-ring timer notifies the operator when foods are finished cooking to reduce the risk of under or overdone products, and for even air circulation, it's built with a forced-air, two-speed fan motor.

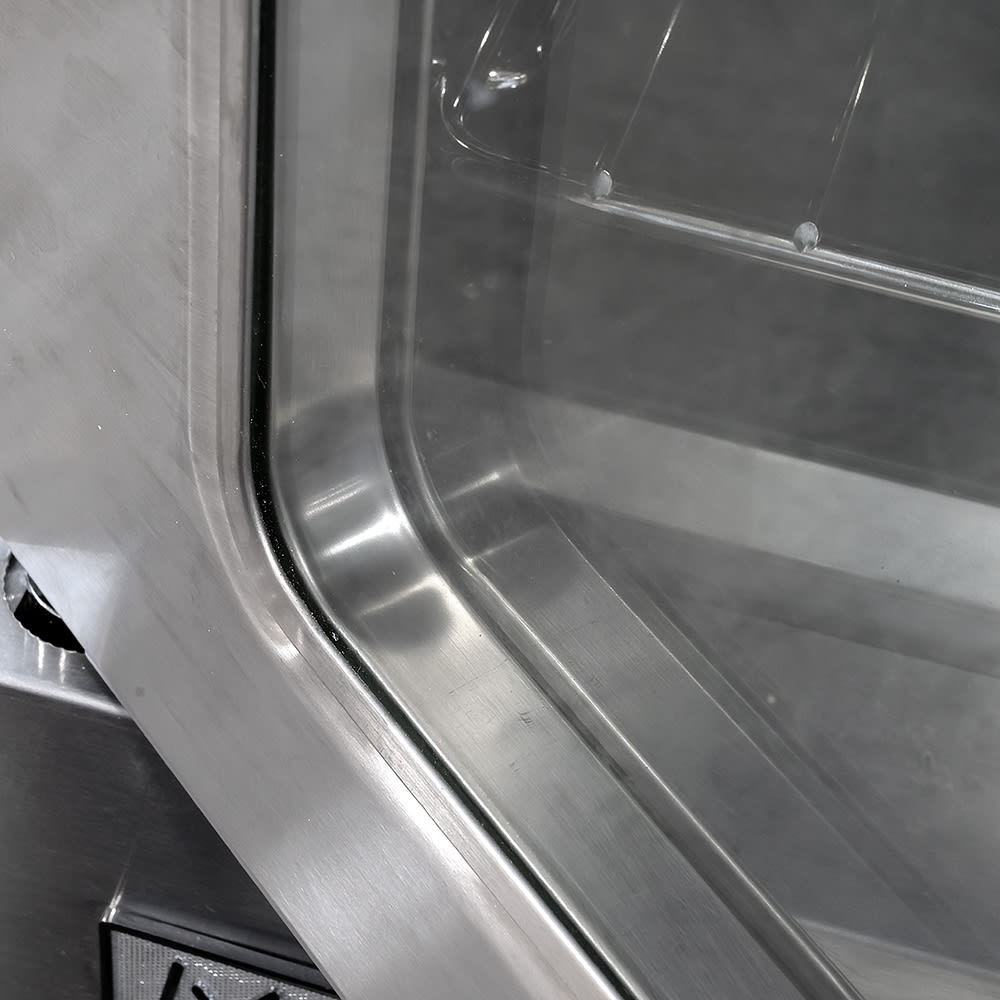

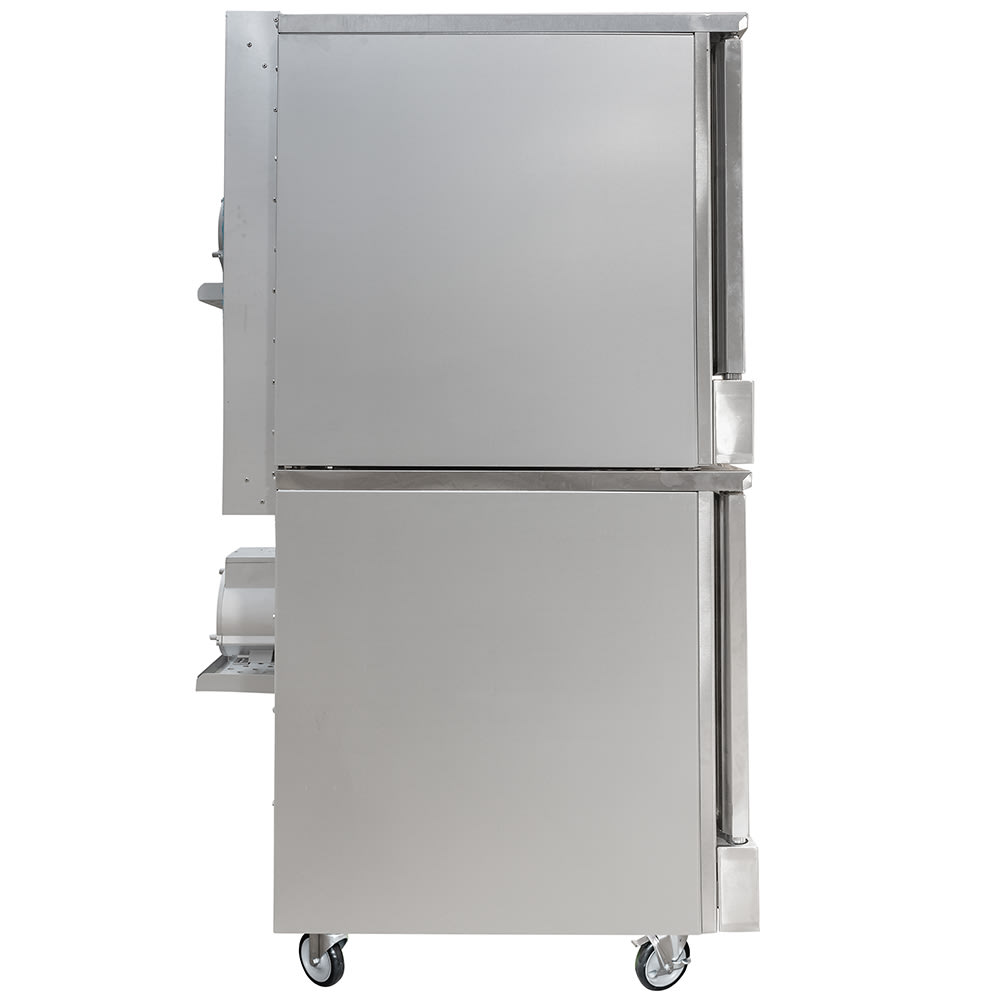

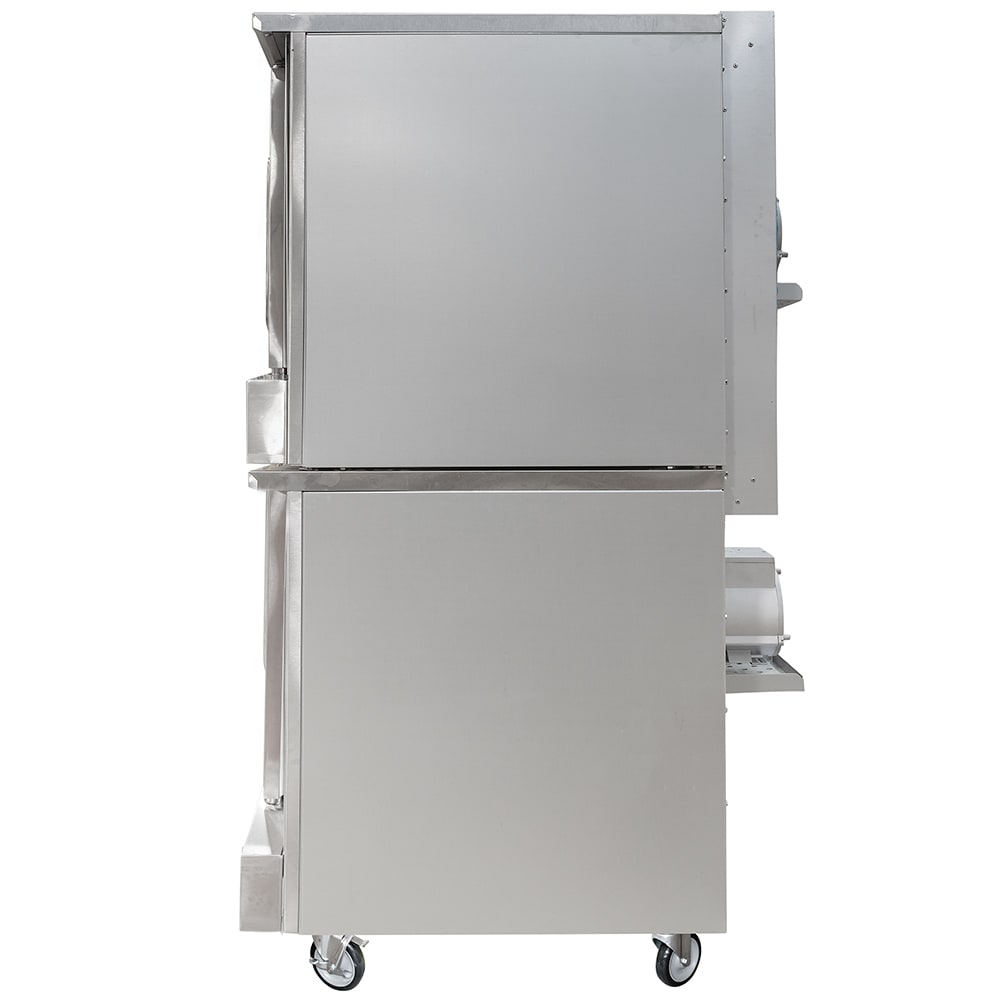

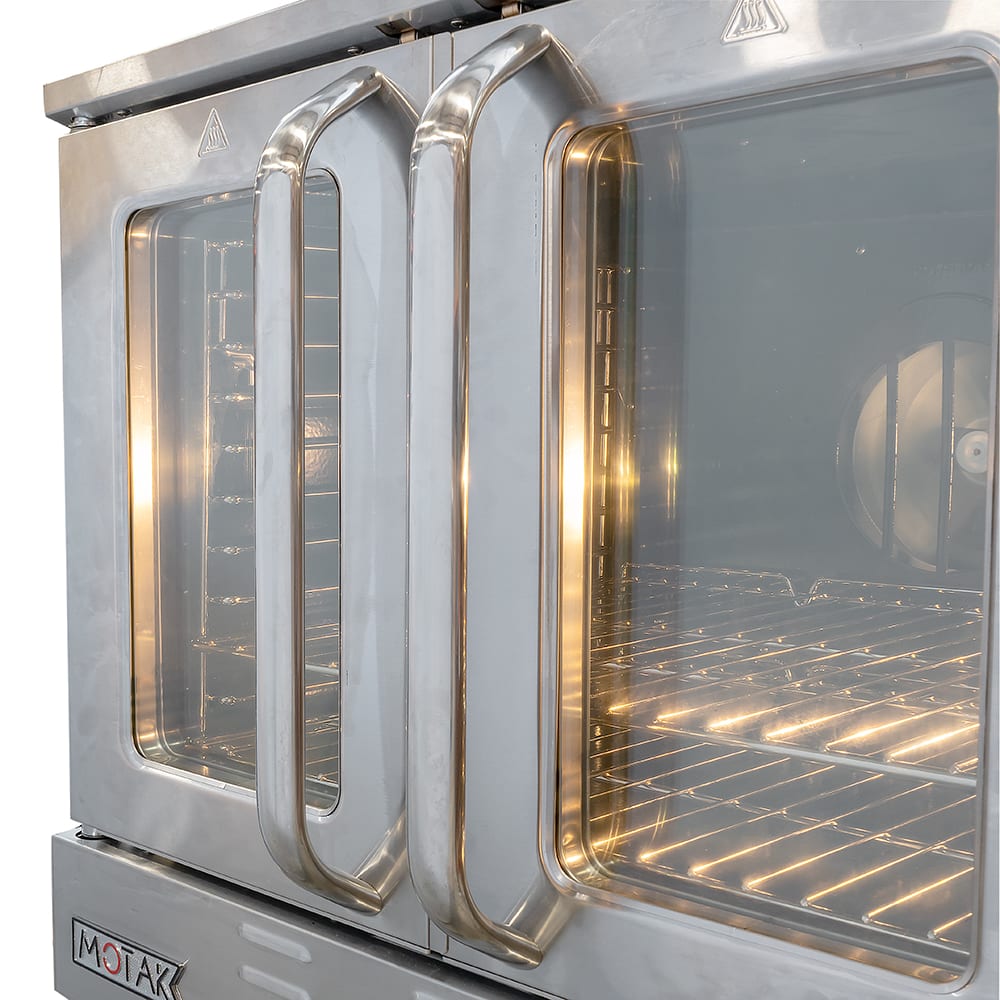

The MoTak MCO-1-DBL convertible convection oven boasts a porcelain enamel interior that can be quickly wiped down, reducing bacteria and food buildup. The doors' double-pane thermal glass windows enable operators to view food while the doors are closed to ensure proper cooking with minimal heat loss. When the doors are opened, an interlock switch automatically shuts off the fans and burners for user safety. This 38-inch-wide by 40.3-inch-deep by 67.9-inch-tall unit is built with corrosion-, dent-, and wear-resistant stainless steel sides, front, top, and legs, while its casters facilitate smooth mobility for cleaning or maintenance.

Product Details

• Full-size, double-deck configuration
• Stainless steel doors, front, sides, top, and legs

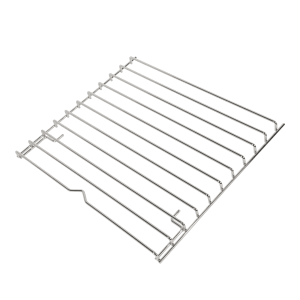

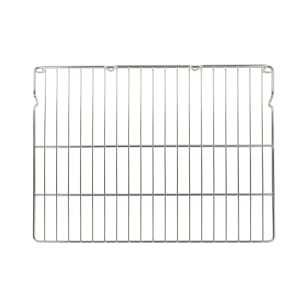

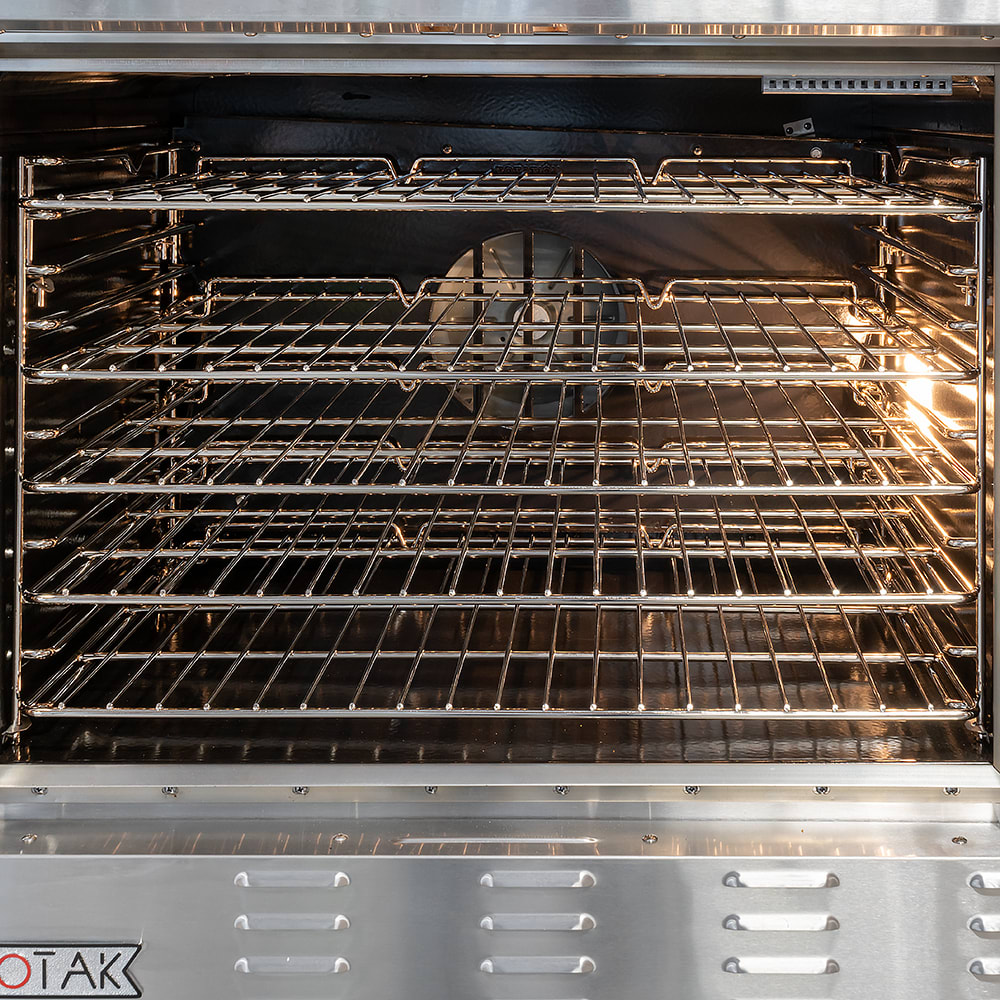

• 5 heavy-duty chrome-plated oven racks per deck (10 total)
• Temperature range: 150-550 degrees F
• 2 doors with double-pane thermal glass windows per deck

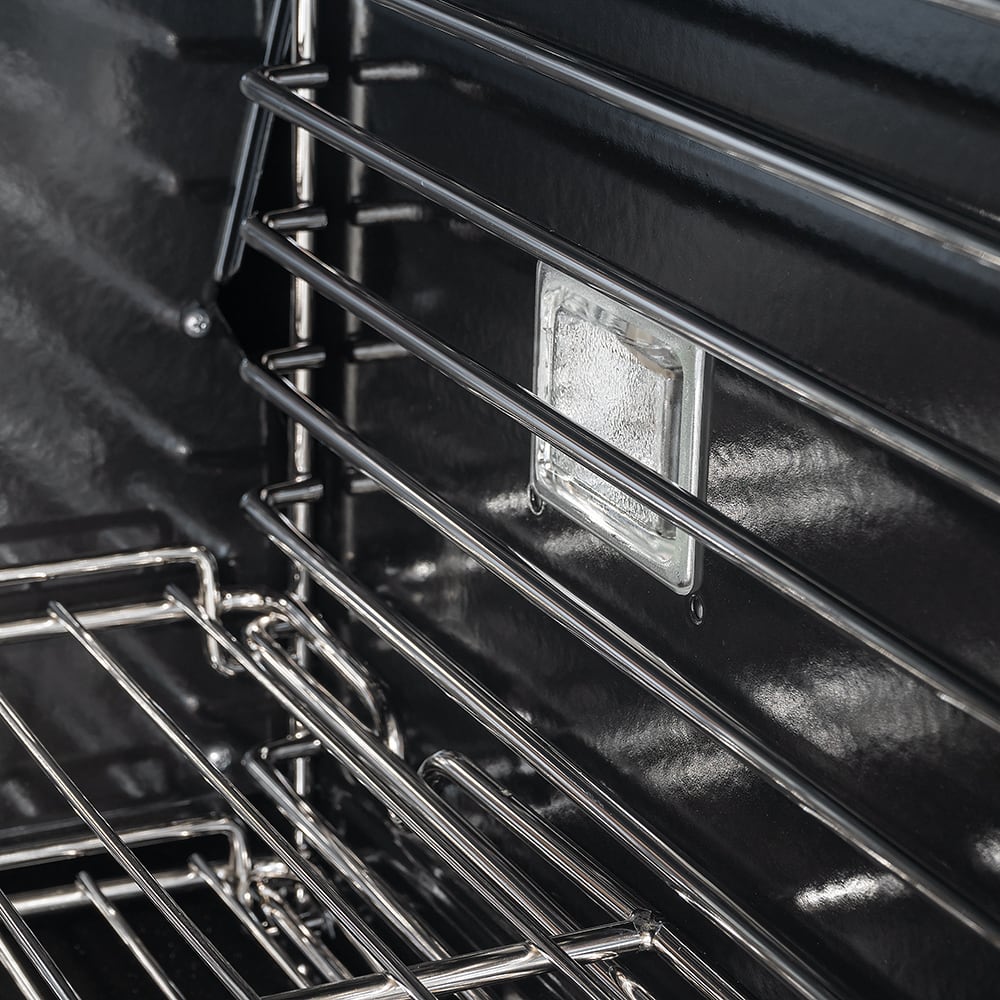

• Porcelain enamel interiors with seamless corners

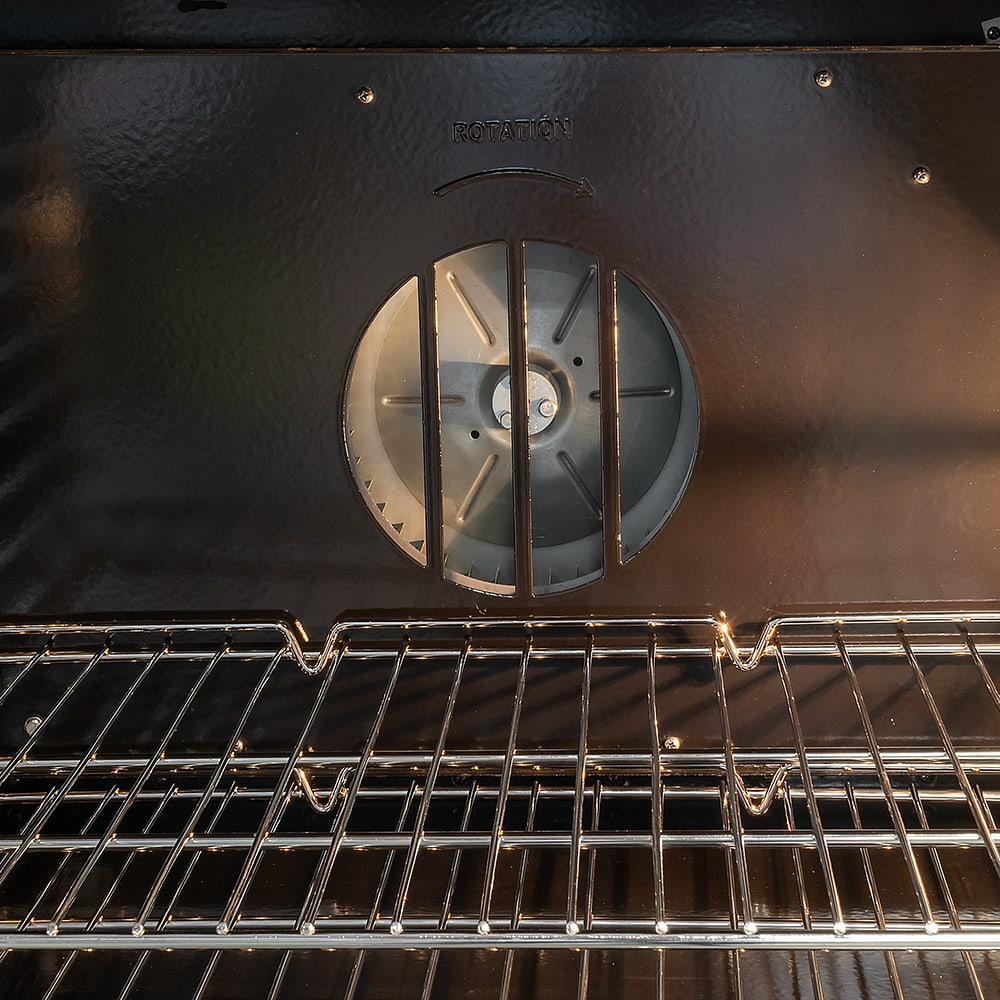

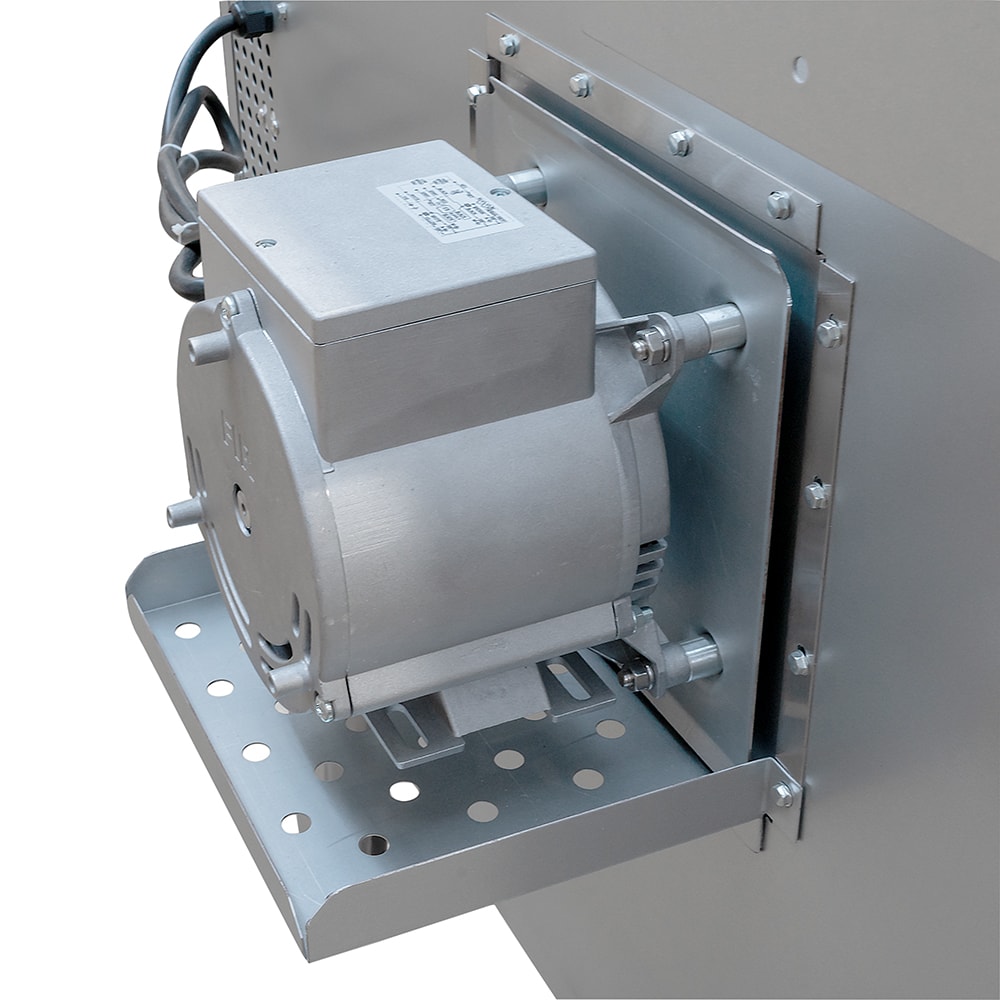

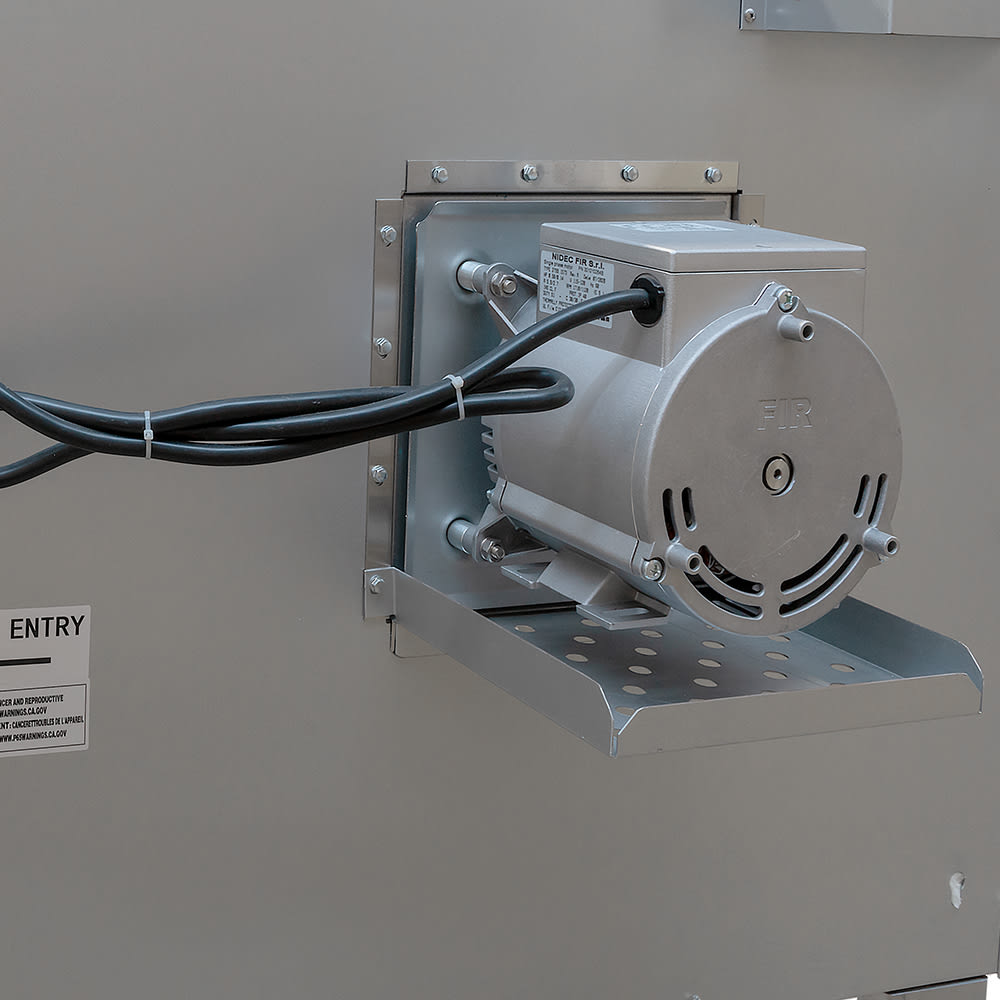

• Forced-air, 2-speed fan motors
• 60-minute continuous-ring timer featuring manual shutoff
• Temperature-ready indicator light
• Interlock switch turns off fans and burners when doors are opened

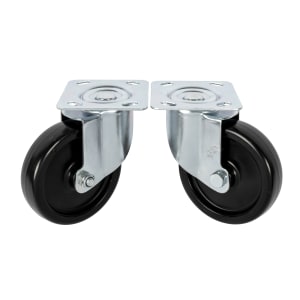

• Fitted with casters
• 108,000 BTU (54,000 BTU per deck)

Dimensions & Utilities

• Baking chambers: (2) 28¹⁄₂ in. W x 21¹⁄₂ in. D x 20 in. H
• Overall: 38 in. W x 40.3 in. D x 67.9 in. H
• (2) 5.9 A, (2) ¹⁄₂ HP
• 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
• Powered by natural gas (LP gas conversion kit included)

Product Features

From The Manufacturer

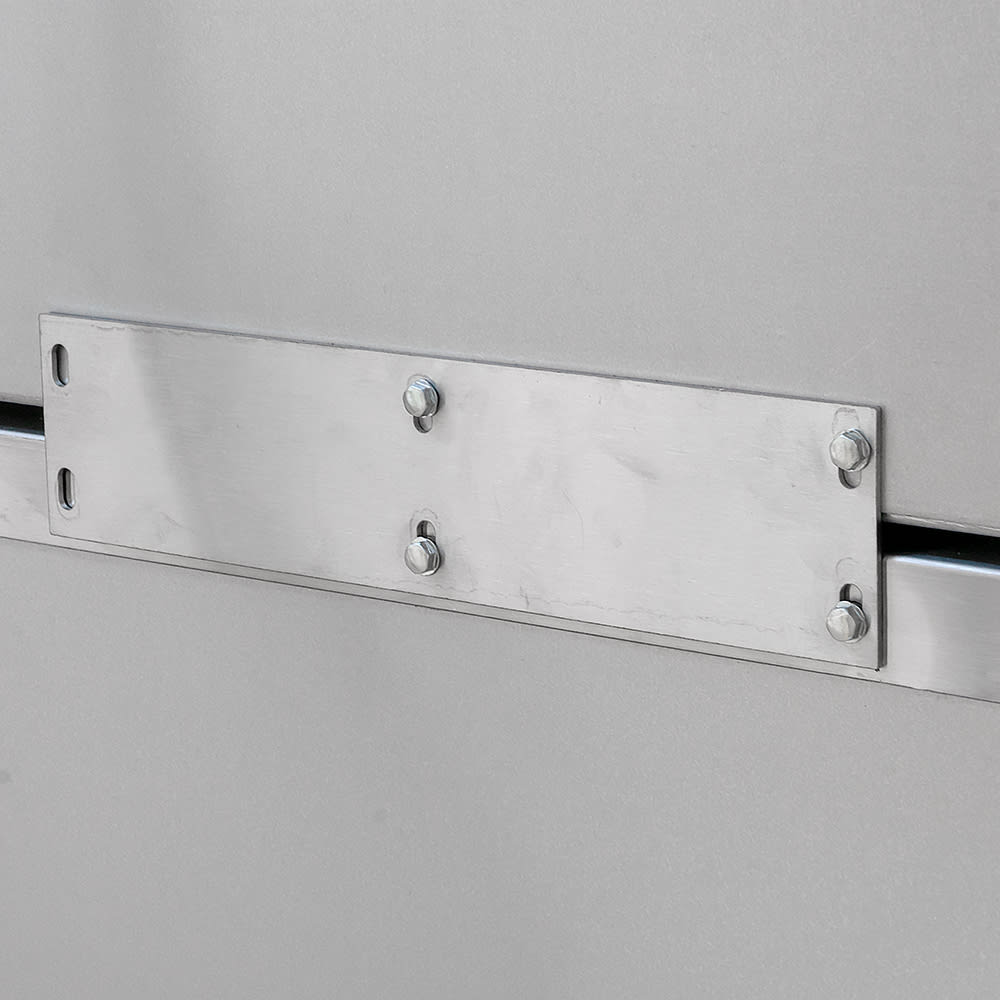

MoTak Convection Oven, natural gas, double-deck, full-size, stainless steel doors, double pane thermal glass windows, (5) chrome-plated racks per deck, (10) rack positions with 1-1/2" spacing per deck, solid state thermostat, 250°F to 550°F temperature range, manual shut-off, 60 minute timer, electronic spark ignition, with two-speed fan motor, porcelain enamel interior, stainless steel front, sides, & top, stacking kit with casters, 108,000 BTU, (2) 1/2 HP, (2) 120v/60/1-ph, (2) 5.9 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation (LP conversion kit included)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor
