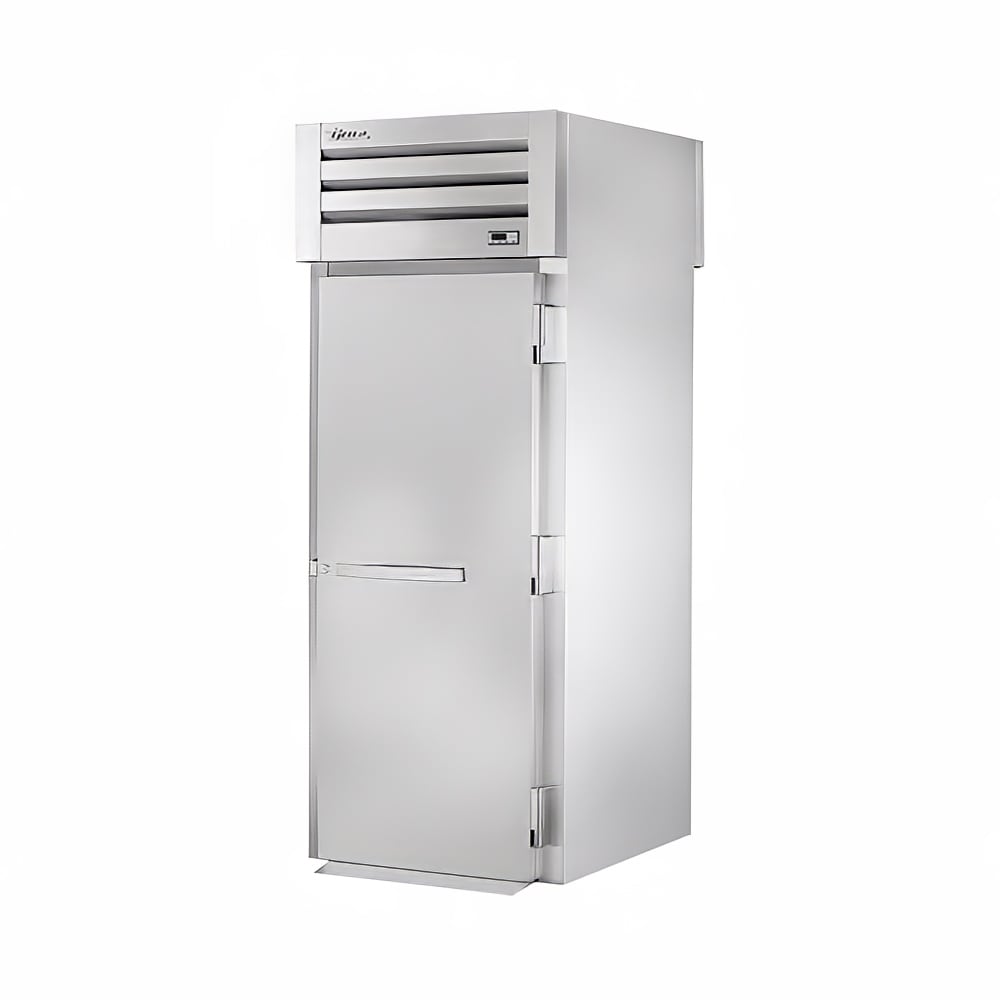

TG Series - Roll-Thru Heated Cabinet, 89' High
Model TG1HRT89-1S-1S - 1 Solid Front / 1 Solid Back Swing Doors, 38 Cu. Ft.
TRUE - 100% Manufactured in America - Over 60 years experience - Best In Class 2001-2008 Eight Consecutive Years
- Oversized and balanced, environmentally friendly (R404A) refrigeration system - holds food safe -10 degree F.
- Exterior - 300 series stainless steel front, doors & bottom. Anodized quality aluminum finished ends, back & top.
- Interior - attractive, NSF approved, white vinyl coated aluminum sides and back. 300 series stainless floor and door liner.
- Accepts roll-in rack (inboard castor) with maximum dimensions of 27'W x 29'D x 66'H. (supplied by others)
- Heavy gauge reversible doors. Three cam-lift hinges per door - lifetime guaranteed. Designed for easy product access with a full 180 degree open capability and stay open feature at 120 degree .
- Reversible wiper gaskets for positive seal.
- Recessed handles (lifetime guaranteed).
- Exterior mounted digital electronic thermometer with manual defogger.
- Top mounted unit positioned out of food zone to maximize storage capacity.
- Glass condensate pan to prevent electrolysis.
- Heavy gauge stainless steel ramp standard.
- Incandescent interior lighting.
- Magnetic door gaskets.
- Epoxy coated evaporator.
- Interior bumper protects cabinet.
- Minimum wattage heater in cabinet frame and door
- Hot gas condensate for energy efficiency.
- Energy saver switch.
- Foamed-in-place polyurethane high density cell insulation (CFC free). Optional Features / Accessories, Up-charge and lead times may apply
- Metal door handle.
- Electronic temperature control.
- Correctional facility options - consult factory.
- Export units available - consult factory. Warranty Info
- 1 year warranty on all parts and labor
- Additional 4 year on compressor. (U.S.A. only) Installation Manual
- View Installation Manuals for True Refrigeration Equipment
Remote Cabinet Info
Remote cabinets (condensing unit supplied by others; system comes standard with 404A expansion valve and requires R404A refrigerant). Contact Customer Service for more information.
SPEC SERIES® Heated Roll-thru, 89"H, one-section, stainless steel front, aluminum sides, (1) stainless steel door front & rear, locks, cam-lift hinges, color-coded temperature display, aluminum interior, interior lighting, stainless steel ramps, 2KW, 115/208-230v/60/1, 9' cord, NEMA 14-20P, [accommodates 27"Wx29"Dx72"H cart, NOT included], cULus, UL EPH Classified, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
True Refrigeration STG1HRT89-1S-1S SpecificationsPDF Spec Sheet
|Also Known As||TG1HRT-89-1S-1S, TRUE TG1HRT-89-1S-1S, TRUTG1HRT891S1S, 890TG1HRT891S1S, TG1HRT891S1S|
|Category||Pass Thru/Specialty Heated Cab|
|Doors||Full Solid/ Full Solid|
|Specialty Options||Roll Thru|
|Warranty||3 year parts & labor; 5 year compressor|
|Warranty||3 yr P&L|
