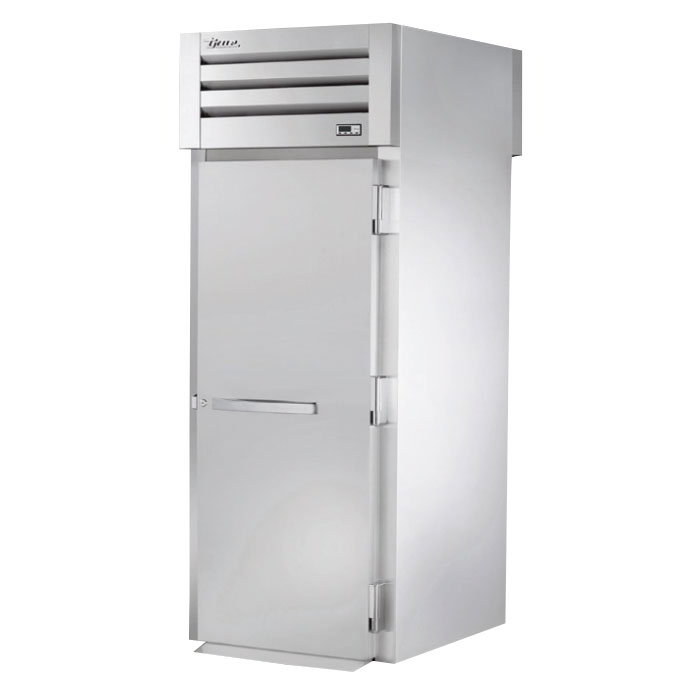

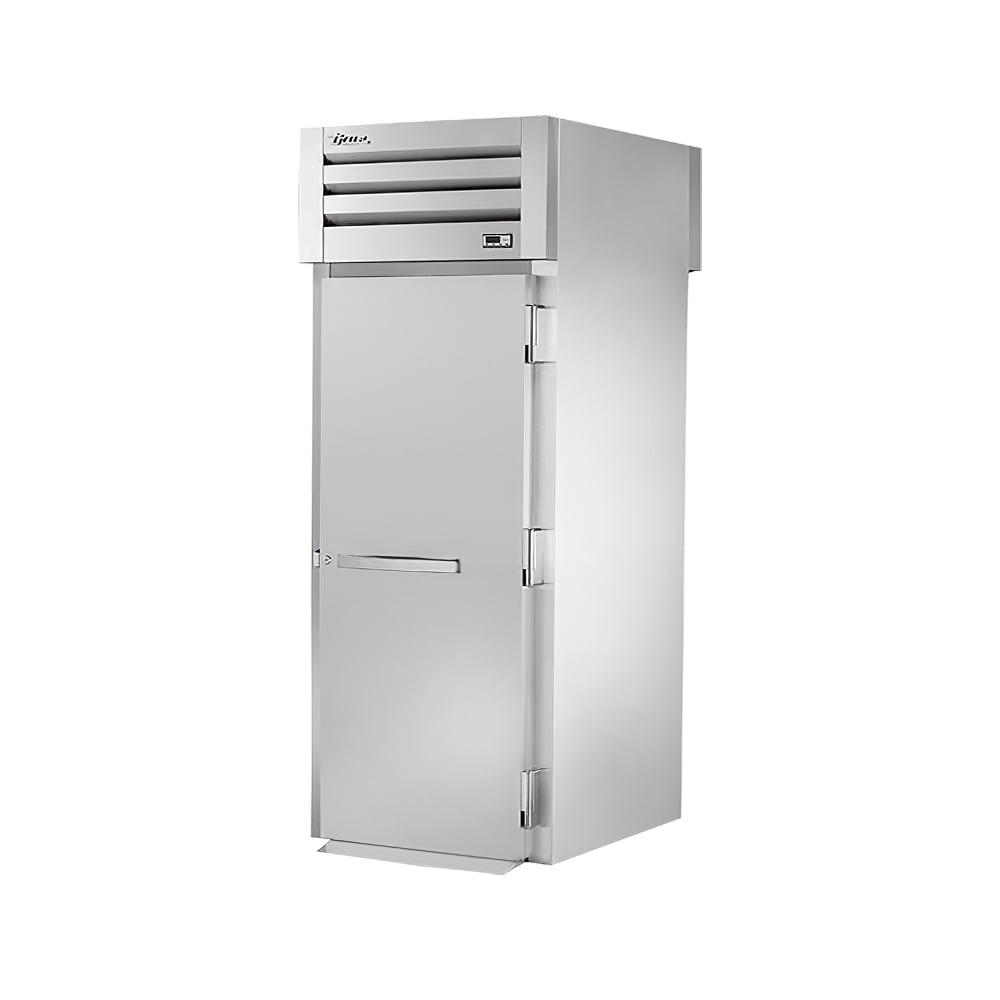

TA Series - Roll-Thru Heated Cabinet
Model TA1HRT-1S-1S - 1 Solid Front / 1 Solid Back Swing Doors, 37 Cu. Ft.
TRUE - 100% Manufactured in America - Over 60 years experience - Best In Class 2001-2008 Eight Consecutive Years
- Provides cabinet holding temperature of 80 degree F to 180 degree F (26.6 degree to 82.2 degree C)
- Internal fan provides low velocity, forced-air heated distribution to assure even temperatures throughout the cabinet.
- Equipped with low-velocity to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
- Two (2) stainless steel (for corrosion resistance), finned tube heated elements. (1000 watts each) for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.
- 300 series stainless steel exterior front, sides, back and bottom. The very finest stainless with higher tensile strength for fewer dents and scratches
- Anodized aluminum interior cabinet liner 300 series stainless steel floor with coved corners.
- (3) lifetime guaranteed, cam-lift hinges per door. Full 180 degree open capacity with a stay open features at 120 degrees.
- Three (3) adjustable, heavy duty chrome plated wire shelves. 25' x 28 13/16' D (635 mm x 732). Four (4) chrome plated shelf clips to included per shelf.
- Designed to accept roll-in racks (inboard castors) with a maximum dimensions of 27' x L x 29' D x 66' H (686 mm x 737 mm x 1677 mm). (1) heavy gauge stainless steel ramps standard per door. Optional Features / Accessories Up-charge and lead times may apply
- Metal door handle.
- Export units - consult factory.
- Prison package options - consult factory. Warranty Info
- 1 year warranty on all parts and labor
- Additional 4 year on compressor. (U.S.A. only) Installation Manual
- View Installation Manuals for True Refrigeration Equipment
Remote Cabinet Info
Remote cabinets (condensing unit supplied by others; system comes standard with 404A expansion valve and requires R404A refrigerant). Contact Customer Service for more information.
SPEC SERIES® Heated Roll-thru, one-section, stainless steel front & sides, (1) stainless steel door front & rear, locks, cam-lift hinges, color-coded temperature display, aluminum interior, interior lighting, stainless steel ramps, 2KW, 115/208-230v/60/1, 9' cord, NEMA 14-20P, [accommodates 27"Wx29"Dx66"H cart, NOT included], cULus, UL EPH Classified, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
True Refrigeration STA1HRT-1S-1S SpecificationsPDF Spec Sheet
|Also Known As||TA1HRT1S1S, TA1HRT-1S-1S, TRUTA1HRT1S1S, TRUE TA1HRT-1S-1S, 890TA1HRT1S1S|
|Category||Pass Thru/Specialty Heated Cab|
|Construction||SS Exterior & Alum Interior|
|Doors||Full Solid/ Full Solid|
|Specialty Options||Roll Thru|
|Warranty||3 year parts & labor; 5 year compressor|
|Warranty||3 yr P&L|
