True TDM-DZ-59-GE/GE-B-W 59 1/4" Full Service Dual Zone Bakery Case w/ Curved Glass - (4) Levels, 115v

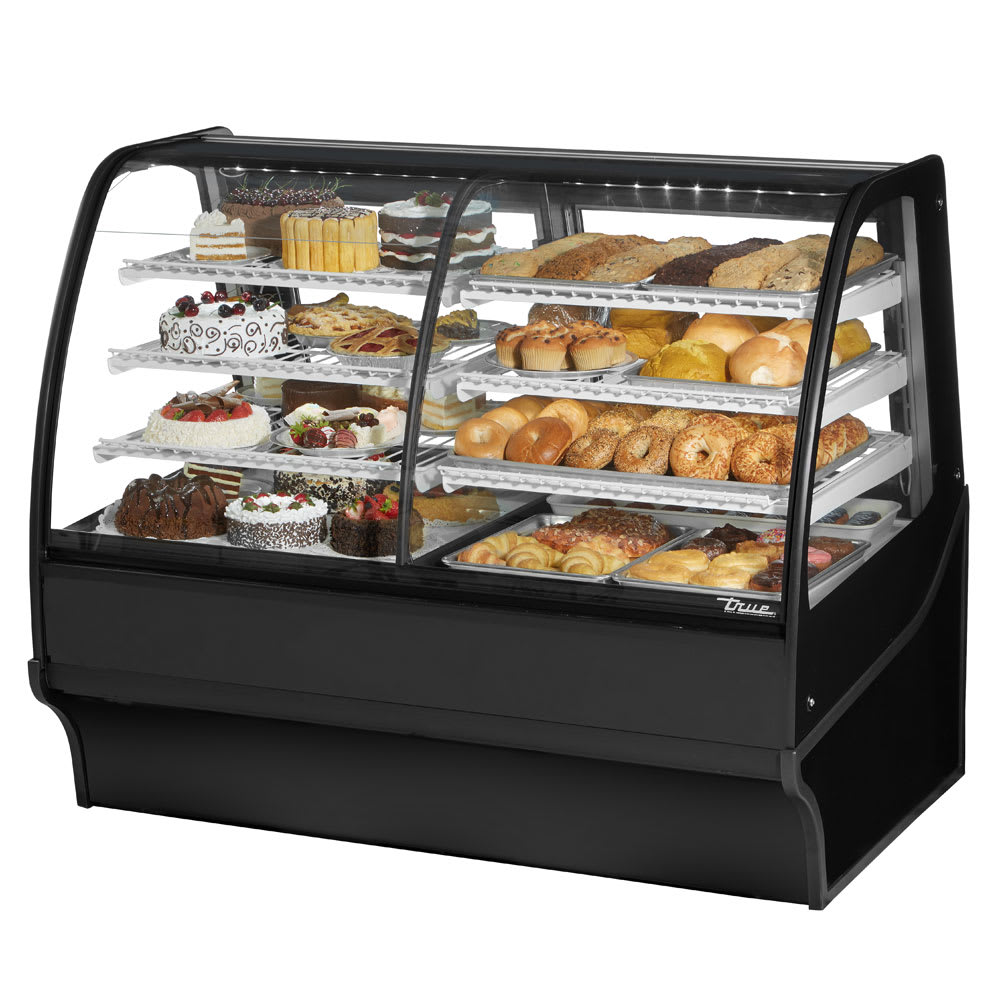

The True TDM-DZ-59-GE/GE-B-W dual-zone bakery case has a glass front and sides, showing off products to passersby while LED lights brighten the interior and draw the eye. Customers can stand close to the unit and still see the products through its curved front while six white, PVC-coated shelves on the inside support baked goods. These shelves can be raised or lowered to fit various products. From the back, staff members can slide open the rear doors and quickly serve customers, while the front lifts up for cleaning and rearranging food.

The True TDM-DZ-59-GE/GE-B-W dual-zone display case is divided into two sections—regular and refrigerated—as the refrigerated system keeps contents from 33 to 41 degrees Fahrenheit to prevent desserts with chocolate or whipped cream from melting. It keeps cool by running R290 hydrocarbon refrigerant through capillary tubes and retains cold air with polyurethane insulation. To ensure smooth operation, a reversing fan helps circulate air and clean dirt off the condenser coils. Fitting into most themes, this unit has a black-coated exterior and contrasting white interior.

Product Details

• Black-coated aluminum exterior resists dings and corrosion
• White-coated steel interior resists scrapes and scratches
• Steel frame rail provides structure
• Dense, polyurethane insulation in walls
• Sliding glass doors hasten access
• 12-in. door handles
• Front glass panel opens for cleaning
• Tempered glass front and sides display products
• LED lights brighten the interior
• 6 heavy-duty, PVC-coated shelves
• Adjustable shelves can hold 150 lbs. each
• Can hold (8) 18-in. W x 26-in. D pans and (4) 9-in. W x 26-in. D pans (sold separately)
• Leg levelers steady the unit

Refrigeration System

• Temperature holding range: 33-41 degrees F
• Electronic temperature control
• Environmentally friendly R290 hydrocarbon refrigerant
• Capillary tube system has cooling components in a single area
• Epoxy-coated evaporator resists corrosion
• Reversing fan helps clean debris off condenser coils
• Quick-access condenser pulls out

Dimensions & Utilities

• 59¹⁄₄ in. W x 39 in. D x 49¹⁄₈ in. H
• 10 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TDM-DZ-59-GE/GE-B-W within the 48 contiguous states.

From The Manufacturer

Display Merchandiser, Dual Zone (Dry/Refrigerated), 59-1/4"L, curved glass front, glass ends, (3) tiered levels of adjustable white PVC coated wire shelves (6 shelves total), LED interior lighting, powder coated black exterior, powder coated white interior, (2) rear sliding glass doors, self-contained refrigeration, R290 Hydrocarbon refrigerant, reverse condensing fan motor, 1/4 HP, 10.0 amps, 115/60/1-ph, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TDM-DZ-59-GE/GE-B-W Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	Black
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Phase	1
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Refrigeration Type	Refrigerated
Series	TDMDZ Series
Shelving Type	Wire
Voltage	115
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	59.25
Weight	770.00
