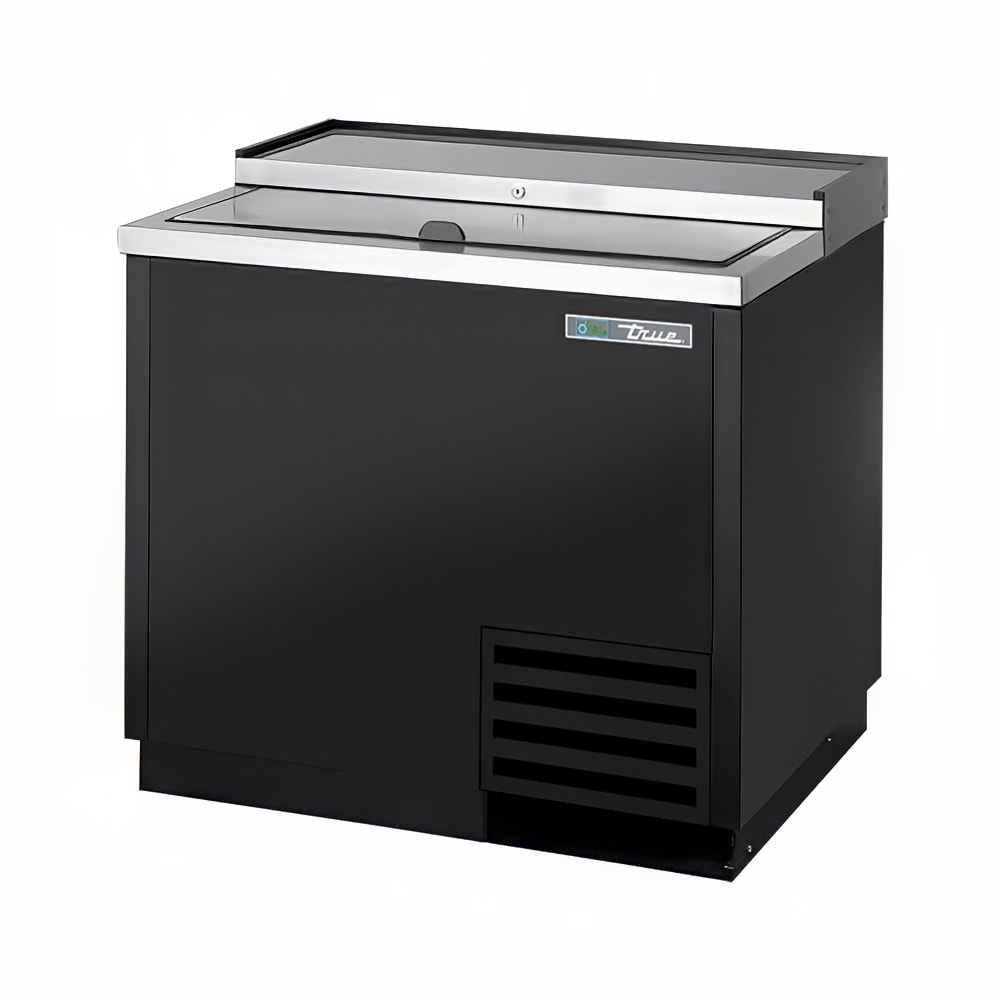

True TD-36-12-HC 36" Forced Air Bottle Cooler - Holds (264) 12 oz Bottles, Lid Locks, 115v

The True TD-36-12-HC bottle cooler has an oversized, factory-balanced refrigeration system that maintains set levels within a temperature range of 33 to 38 degrees Fahrenheit. Forced-air cooling guides airflow to cool the top, most accessible bottles first. To eliminate the potential for corrosion and reduce maintenance time, the evaporator is coated in epoxy. Its electronically commutated evaporator and condenser fan motors move a consistent volume of air to reduce heat and conserve energy. Prolonging the unit's life and maintaining accurate product temperature, the fan motor reverses for 20 seconds upon start up to remove dirt and dust from the condensing coil. Although users should still perform routine preventative maintenance, this feature helps reduce energy consumption and ensures smooth operation.

The exterior's front, sides, and back are made of black powder-coated, cold-rolled steel with a stainless steel countertop and lids, and the interior is made of heavy-duty galvanized steel. The entire cabinet structure is constructed with foamed-in-place, high-density polyurethane insulation, which—along with a black powder-coated steel frame rail—provides stability to the cabinet. The True TD-36-12-HC bottle cooler can accommodate 11 cases of 12-ounce bottles or 14.5 cases of 12-ounce cans. Inside the cabinet, two PVC-coated dividers separate drinks to maximize storage.

Product Details

• Accommodates 11 cases of 12-oz. bottles or 14.5 cases of 12-oz. cans
• 2 PVC-coated bin dividers provide organization
• Bottle cap opener and cap catcher help when serving customers
• LED lighting reveals the interior
• Temperature holding range: 33-38 degrees F
• Self-contained capillary tube system meters R290 hydrocarbon refrigerant to chill the unit
• Evaporator and condenser fan motors move a consistent volume of air to minimize heat production and energy consumption
• Condensing fan motor blows in reverse for 20 seconds to remove dirt and debris from the condensing coil
• Refrigeration system slides out from behind the front grille for maintenance
• Forced-air cooling system pushes air over the top bottles first to ensure they are as cold as the ones on the bottom
• Evaporator is coated in epoxy for corrosion resistance

Product Features

Cabinet Construction

• Stainless steel countertop and sliding lid
• Cold-rolled black powder-coated steel exterior sides, front, and back
• Galvanized steel interior is durable
• Polyurethane insulation retains cold air in the cooler
• Steel frame rail is black powder coated to resist corrosion

Dimensions & Utilities

• 36⁵⁄₈ in. W x 27⁷⁄₈ in. D x 33¹⁄₂ in. H
• 1.4 A, ¹⁄₁₀ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TD-36-12-HC within the 48 contiguous states.

From The Manufacturer

Bottle Cooler, flat top, (11cs) 12 oz. bottles or (14.5cs) 12 oz. can capacity, stainless steel counter top & (1) lid, barrel lock standard, well design, (2) PVC coated adjustable bin dividers, LED interior lighting, bottle cap opener & cap catcher, black powder coated exterior, galvanized interior, R290 Hydrocarbon refrigerant, 1/10 HP, 115v/60/1-ph, 1.4 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TD-36-12-HC Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Top
Bottle Capacity	264
Color	Black
Cubic Feet	9.8
Depth (in)	27.88
Door Type	Sliding
Height (in)	33.5
Hertz	60
NEMA	5-15P
Number of Dividers	2
Phase	1
Product	Bottle Coolers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Series	TD Series
Special Features	Door Locks
Supports	Base
Type	Forced Air
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	36.63
Weight	230.00
