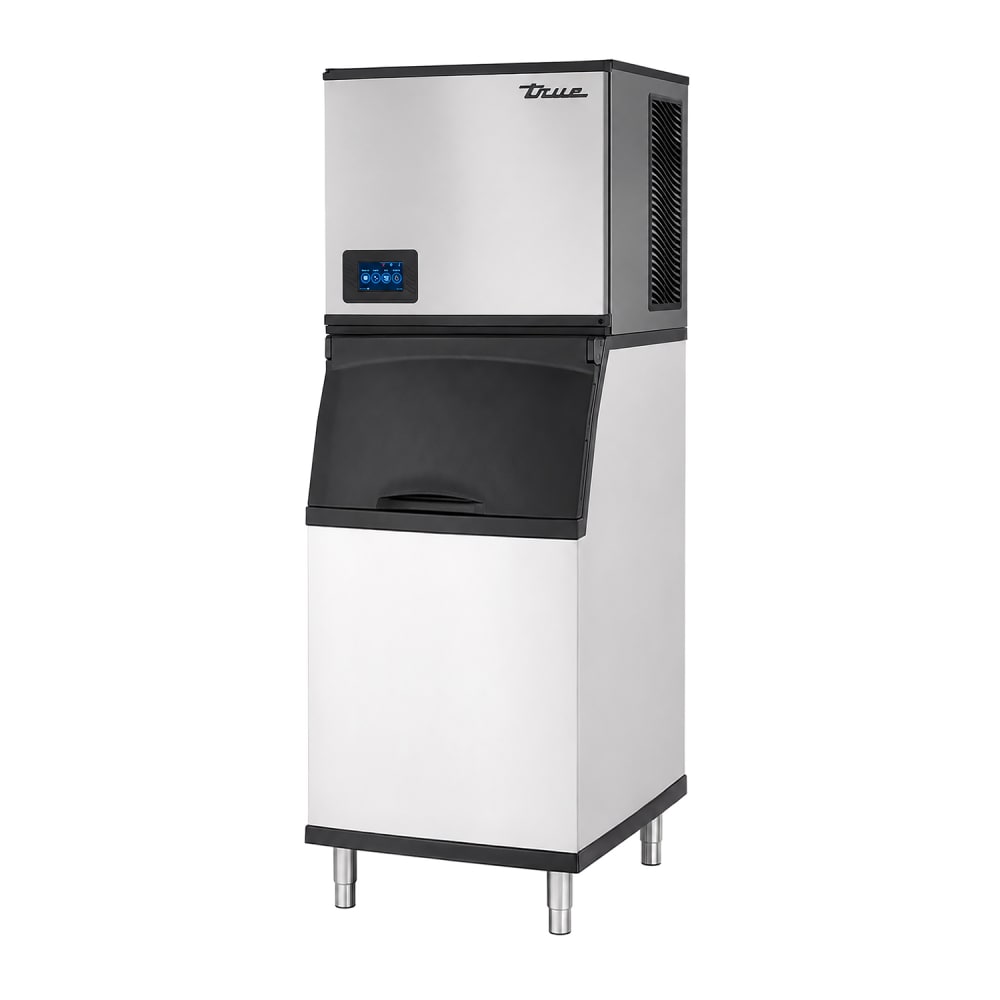

True TCIM-522-LA1-A~T-3/TIB-422-A 550 lb Large Cube Ice Machine w/ Bin - 320 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,678.00 /Each
True Refrigeration TCIM-522-LA1-A~T-3/TIB-422-A Description
Equipped with a front display with touch controls, the True TCIM-522-LA1-A~T-3/TIB-422-A large cube ice machine’s ice production is digitally controlled, and when incoming water measures 50 degrees Fahrenheit and incoming air measures 70 degrees, this machine can create 560 pounds of ice every 24 hours. With an aluminum exterior and plastic interior, this unit is durable for constant use. Its air-cooled design requires a 6-inch clearance on the left, right, and back sides. This machine utilizes R290 refrigerant for energy-efficient cooling, and if issues in performance start to arise, the built-in alarms will go off. Operators can remotely monitor and shut off this unit.
The True TCIM-522-LA1-A~T-3/TIB-422-A ice machine storage bin can hold up to 320 pounds of ice, and the Magnascoop® ice scoop permits convenient storage with its magnetic design. For an ideal sanitary environment, the bin is lined with an antimicrobial plastic liner and the ice baffle is removable when cleaning is needed. To slow the rate at which ice melts, the bin is insulated with high-density polyurethane foam. Overall, the ice machine measures 24 3⁄5 inches wide by 22 1⁄4 inches deep by 22 3⁄16 inches high, and the storage bin measures 22 2⁄5 inches wide by 35 1⁄8 inches deep by 50 inches high.
- From the True Ice series
- TrueTech aluminum exterior
- Plastic interior
- 560-lb. daily ice production
- Large cube-style ice
- R290 hydrocarbon refrigerant
- Air-cooled condenser
- High/low pressure transducers
- Fully-insulated evaporator
- Removable air filter
- Ultra-quiet fan operation
- Ambient temperature range: 35-110 degrees F
- Water temperature range: 35-100 degrees F
- 7,600-BTU heat transfer capacity
- 320-lb. storage capacity
- TruTech aluminum exterior
- Heavy-duty plastic lid and frame
- Hinge design
- High-density polyurethane foam insulation
- Plastic interior with antimicrobial liner
- Removable ice baffle
- Includes Magnascoop
- 3-in. adjustable legs
- 4 3⁄10-in. display with touch operation
- Programmable ice production
- Built-in alarms
- Push notifications
- Time-of-Flight™ ice sensor
- Remote monitoring with back-end data access
- Remote shut off
- Ice maker: 24 3⁄5 in. W x 22 1⁄4 in. D x 22 3⁄16 in. H
- Bin: 22 2⁄5 in. W x 35 1⁄8 in. D x 50 in. H
- 15 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TCIM-522-LA1-A~T-3/TIB-422-A within the 48 contiguous states.
From The Manufacturer
True Ice Series Ice Maker, head only (bin sold separately), cube style (large), self-contained, air-cooled condenser, 24.6"W x 22.23"D x 22.18"H, up to 550 lb. production/24 hr, advanced electronic control with 4.3" touch display, Truetech aluminum exterior finish, R290 Hydrocarbon Refrigerant, TrueZone™ protection sold separately, UL EPH Classified, cULus
True Ice Series Ice Storage Bin, slope front, 22" wide, 320 lb. bin storage 22"W x 34"D x 50"H, Antimicrobial imbedded plastic interior, Truetech aluminum exterior finish, UL EPH Classified, cULus
True Refrigeration TCIM-522-LA1-A~T-3/TIB-422-A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 550 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 320 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 72.18 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2024 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | Alert System |
| Special Features | Antimicrobial |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 304.00 |
