True TCIM-522-FA1-A~T-3/TIB-422-A 550 lb Full Cube Ice Machine w/ Bin - 320 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,678.00 /Each
True Refrigeration TCIM-522-FA1-A~T-3/TIB-422-A Description

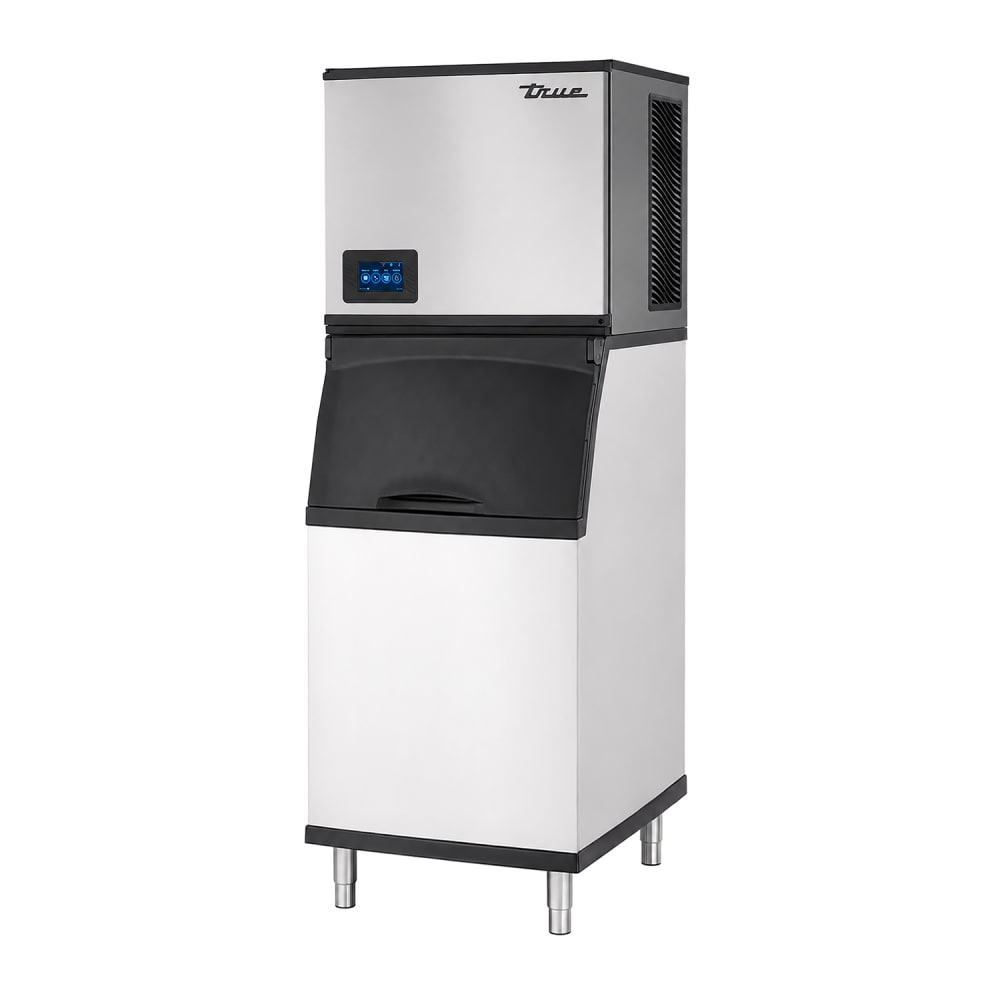

Designed with an air-cooled condenser, the True TCIM-522-FA1-A~T-3/TIB-422-A full-cube ice machine eases installation, and the unit uses R290 refrigerant to remove heat from the unit. The Time-of-Flight™ sensor and built-in alarms notify users of current conditions to ensure consistent operation, and it makes cube-style ice ideal for soft and mixed drinks. The unit’s ice production is programmable using the digital display, and under optimal conditions, the machine produces 560 pounds of ice every day. For simple cleaning, the air filter is removable.

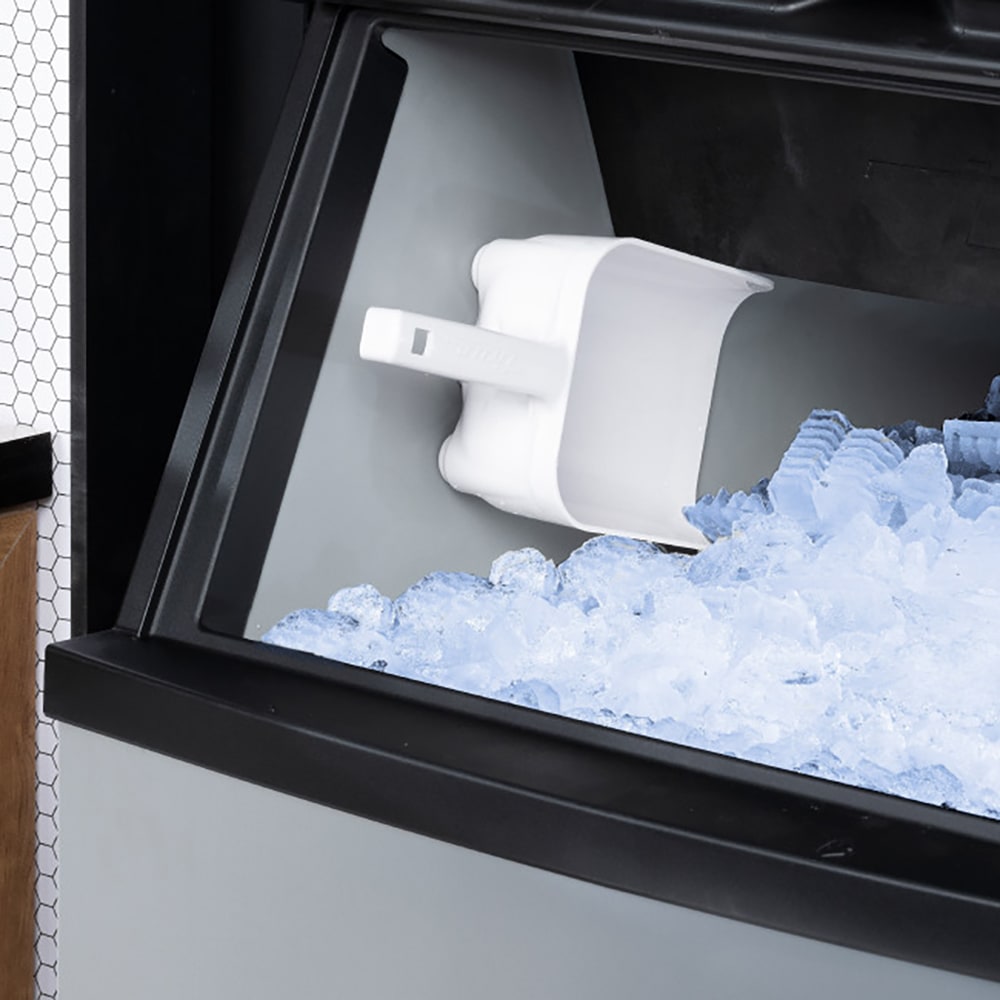

The True TCIM-522-FA1-A~T-3/TIB-422-A ice machine is attached to a 320-pound storage bin, which is lined with an antimicrobial plastic liner for maintained sanitation. Both the bin and machine are made with TrueTech aluminum panels for durability, while the bin is insulated with high-density polyurethane foam to prevent ice from melting. For full access, the heavy-duty plastic lid is top hinged, and the included Magnascoop® provides easy ice scoop storage.
- From the True Ice series
- TrueTech aluminum front and side panels
- Plastic interior
- 560-lb. production capacity every day
- Produces cube-style 7⁄8-in. ice
- R290 hydrocarbon refrigerant
- Air-cooled condenser
- High/low pressure transducers
- Fully-insulated evaporator
- Removable air filter
- Ultra-quiet fan operation
- Ambient temperature range: 35-110 degrees F
- Water temperature range: 35-100 degrees F
- 7,600-BTU heat transfer capacity
- 320-lb. storage capacity
- TruTech aluminum exterior
- Heavy-duty plastic lid and frame
- Top-hinged design
- High-density polyurethane foam insulation
- Plastic interior with antimicrobial plastic liner
- Removable ice baffle
- Magnascoop included
- Front digital display with touch operation
- Programmable ice production
- Built-in alarms
- Time-of-Flight ice sensor
- Remote monitoring with back-end data access
- Remote shut off
- Ice maker: 24 3⁄5 in. W x 22 1⁄4 in. D x 22 3⁄16 in. H
- Bin: 22 2⁄5 in. W x 35 1⁄8 in. D x 50 in. H
- 15 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TCIM-522-FA1-A~T-3/TIB-422-A within the 48 contiguous states.
From The Manufacturer
True Ice Series Ice Maker, head only (bin sold separately), cube style (full), self-contained, air-cooled condenser, 24.6"W x 22.23"D x 22.18"H, up to 550 lb. production/24 hr, advanced electronic control with 4.3" touch display, Truetech aluminum exterior finish, R290 Hydrocarbon Refrigerant, TrueZone™ protection sold separately, UL EPH Classified, cULus
True Ice Series Ice Storage Bin, slope front, 22" wide, 320 lb. bin storage 22"W x 34"D x 50"H, Antimicrobial imbedded plastic interior, Truetech aluminum exterior finish, UL EPH Classified, cULus
True Refrigeration TCIM-522-FA1-A~T-3/TIB-422-A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 550 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 320 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 72.18 |
| Hertz | 60 |
| Ice Type | Extra-large Cube |
| Kitchen Innovations Awards | 2024 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | Alert System |
| Special Features | Antimicrobial |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 304.00 |
