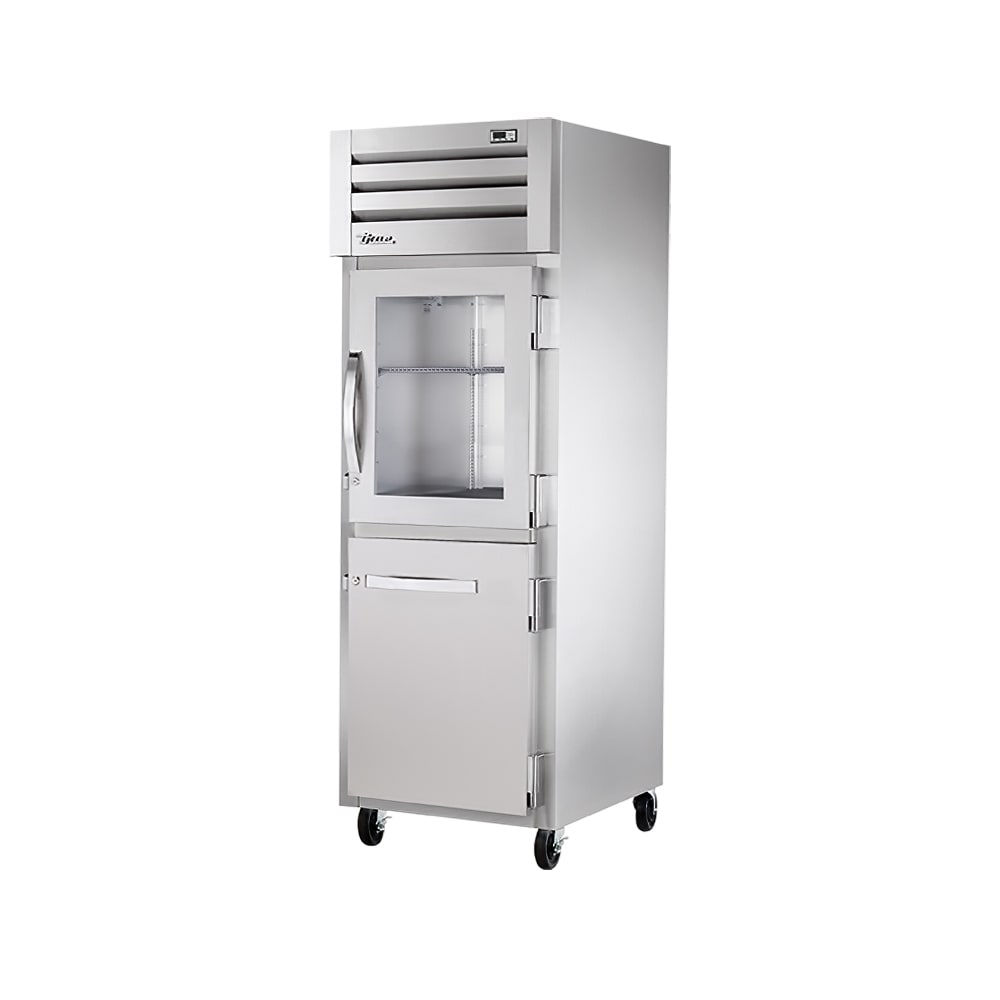

True STG1R-1HG/1HS-HC 27 1/2" One Section Reach In Refrigerator, (1) Glass Door, (1) Solid Door, Right Hinge, 115v

The True STG1R-1HG/1HS-HC SPEC SERIES® one-section reach-in refrigerator has a bottom half-door constructed of stainless steel and a top half-door constructed of double-pane, thermal-insulated glass. These doors have bolt-style locks to stop theft and magnetic door gaskets to prevent air from seeping out, while exterior sides are made of aluminum that matches the stainless steel. Its interior has an aluminum back and side walls that are resistant to corrosion. A stainless steel floor and ceiling provide durability, and the polyurethane insulation is foamed in place to retain cold air.

The True STG1R-1HG/1HS-HC reach-in refrigerator has a digital display on the outside of the unit to monitor the temperature, and since it is out of reach of unauthorized users, the top-mounted refrigeration system prevents tampering. Using R290, the self-contained capillary tube system keeps the unit cool. To reduce heat and energy consumption, the evaporator and condenser fan motors are electronically commutated to push a consistent volume of air. This reach-in refrigerator can be set between 33 to 38 degrees Fahrenheit. For the first 20 seconds when the compressor cycles on, the condensing fan motor reverses direction to blow dirt and dust away from the condensing coil. When the coil is cleaned regularly, it helps the unit operate effectively using improved product temperatures. This feature, although effective, is not designed as a replacement for routine maintenance.

Product Details

• Part of the SPEC SERIES
• Stainless steel exterior door has matching aluminum sides
• Aluminum side walls and back in the interior
• Interior floor and ceiling are constructed of durable stainless steel
• Insulated with Foamed-in-place polyurethane insulation keeps cabinet cool
• Top half-door is constructed of double-pane, thermal-insulated glass
• Half-door on the bottom is constructed of stainless steel
• Bolt-style door locks secure contents
• Magnetic door gaskets seal the doors
• LED interior lighting is safety shielded
• Digital temperature display on the exterior monitors temperatures
• Pre-wired at factory and ready for final connection

Refrigeration System

• Temperature range: 33-38 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• Top-mounted refrigeration system is difficult to tamper with
• Electronically commutated evaporator and condenser fan motors reduce energy consumption
• Reverse condensing fan motor cleans the condensing coil

Dimensions & Utilities

• 27¹⁄₂ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 3.8 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration STG1R-1HG/1HS-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator, reach-in, one-section, (1) glass & (1) stainless steel half doors with locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
