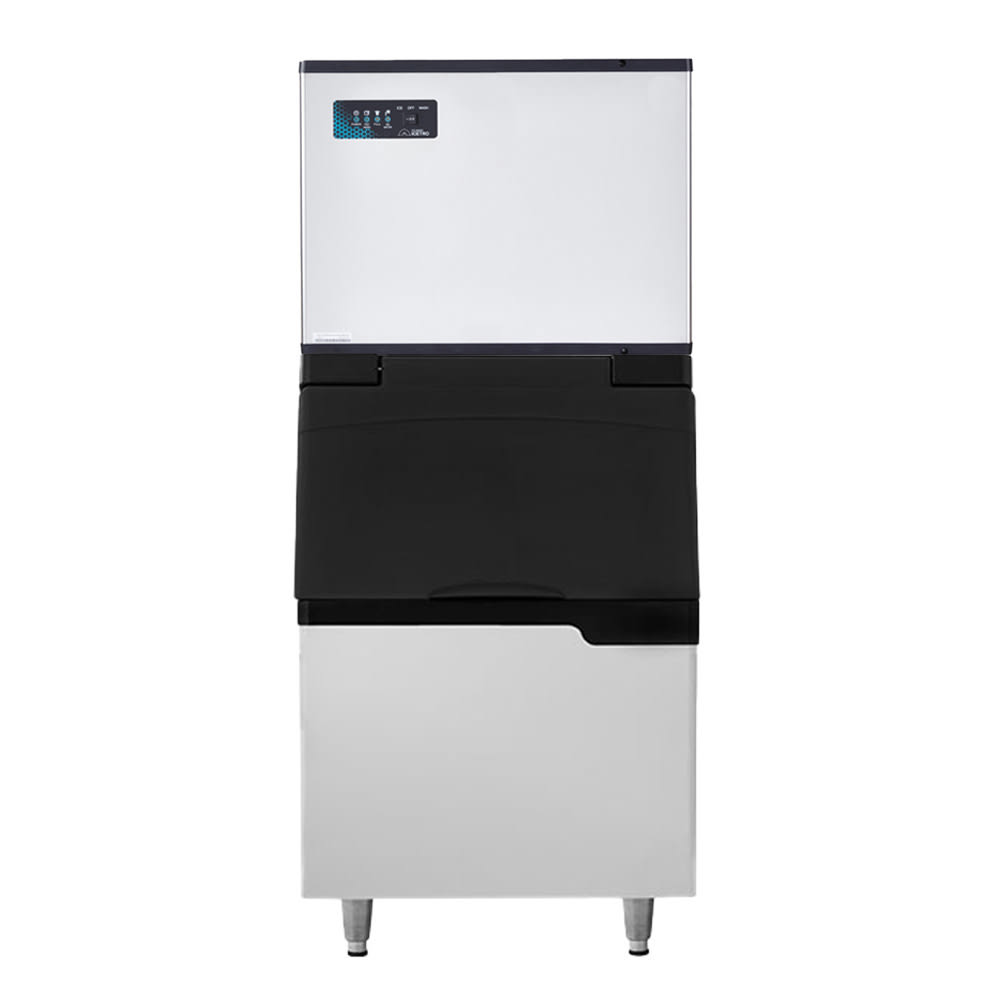

ICETRO IM-0550-AH/IB-044 551 lb Maestro Half Cube Ice Machine w/ Bin - 440 lb Storage, Air Cooled, 115v
Retail Price: $11,948.00
$5,974.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
ICETRO IM-0550-AH/IB-044 Description
To accommodate high-traffic restaurants that sell dispensed ice, bagged ice, smoothies, or soft drinks, the ICETRO IM-0550-AH/IB-044 ice machine with bin produces 399 pounds of half-cube ice when incoming water is 70 degrees Fahrenheit and air is 90 degrees Fahrenheit. This type of ice measures 1 1⁄8 inches by 3⁄8 of an inch by 7⁄8 of an inch, allowing it to nest in drinks more densely than full-cube ice to increase liquid displacement. Its self-contained, air-cooled condenser operates with R-404A refrigerant, while a front-mounted diagnostic panel displays operational information to assist with maintenance. Users can simply flip the cleaning switch to start an automatic cleaning cycle. Because the ABS plastic interior is treated with an antimicrobial agent, bacterial and slime growth is slowed between regular cleaning periods to protect interior components. To ease maintenance and cleaning, the water distributor tube, water sump, water curtain, pins, and hangers can be removed, and the hinged front door panel grants interior access.
For uniformity and rust-resistant durability, the ICETRO IM-0550-AH/IB-044 ice machine head and bin boast 304 stainless steel exteriors. The bin's interior is made of simple-to-clean plastic, and because it's insulated with high-density urethane, it can slow the process of ice melting to minimize waste. The hinged plastic front door provides full access to the interior so staff can reach the bottom of the unit. To ensure stability during ice retrieval, its stainless steel legs can be raised from 6 3⁄10 inches to 7 4⁄5 inches. Overall, this unit measures 30 inches wide by 34 3⁄10 inches deep by 74 9⁄10 inches tall and can hold 440 pounds of ice.
- Maximum 24-hour production: 551 lbs.
- Produces half-cube ice
- Half-cube ice dimensions: 1 1⁄8 in. x 3⁄8 in. x 7⁄8 in.
- Air-cooled, self-contained condenser
- R-404A refrigerant
- Corrosion-resistant 304 stainless steel exterior
- Antimicrobial ABS plastic interior
- Diagnostic panel for assistance with maintenance and service
- Cleaning switch starts automatic cleaning cycle
- Evaporator section reduces airborne bacteria
- Magnetic frame, cleanable condenser air filters
- Flush time can be adjusted to minimize scale buildup
- Removable water distributor tube, water sump, heavy-duty water curtain, pins, and hangers
- Hinged front door panel provides access to interior components
- Vented sides and top
- Compatible with the ICETRO ICEPRO400 water filtration system (not included)
- Operating ambient temperature range: 50-100 degrees F
- Operating water temperature range: 50-90 degrees F
- Operating water pressure range: 20-80 PSI
- 440-lb. ice storage capacity
- Exterior is durable, corrosion-resistant 304 stainless steel
- Top-hinged black ABS plastic lid
- Comfort-grip handle
- Plastic interior
- Insulated with high-density urethane
- Stainless steel feet can be adjusted from 6 3⁄10 in. to 7 4⁄5 in.
- Ice machine head: 30 in. W x 24 4⁄5 in. D x 22 3⁄5 in. H
- Ice storage bin: 30 in. W x 34 3⁄10 in. D x 52 3⁄10 in. H (53 4⁄5 in. H when legs are fully raised)
- Overall: 30 in. W x 34 3⁄10 in. D x 74 9⁄10 in. H (76 2⁄5 in. H when legs are fully raised)
- 20 A, 5.91 kW
- 115 V/60 Hz/1 ph
- Electrical connection requires hardwiring on site
*Image may not depict product color, inclusions or accessories.
*Free shipping on ICETRO IM-0550-AH/IB-044 within the 48 contiguous states.
From The Manufacturer
Maestro Modular Ice Maker, cube-style, 30"W, air-cooled, self-contained condenser, production capacity up to 551 lbs/24 hr at 70°/50° (399 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, half-size cubes, 115v/60/1-ph, NEMA 5-15P, CE, cETLus, ETL-Sanitation
Ice Bin, 30" W, approximately 440 lbs storage capacity, top-hinged door, plastic interior, stainless steel exterior, adjustable feet (up to 7.8")
Watch a video about this product
ICETRO IM-0550-AH/IB-044 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | ICETRO |
| 24 Hr. Production (lb) | 551 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 551 |
| Compressor Type | Air Cooled |
| Depth (in) | 34.3 |
| Height (in) | 68.6 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Maestro |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 356.00 |
