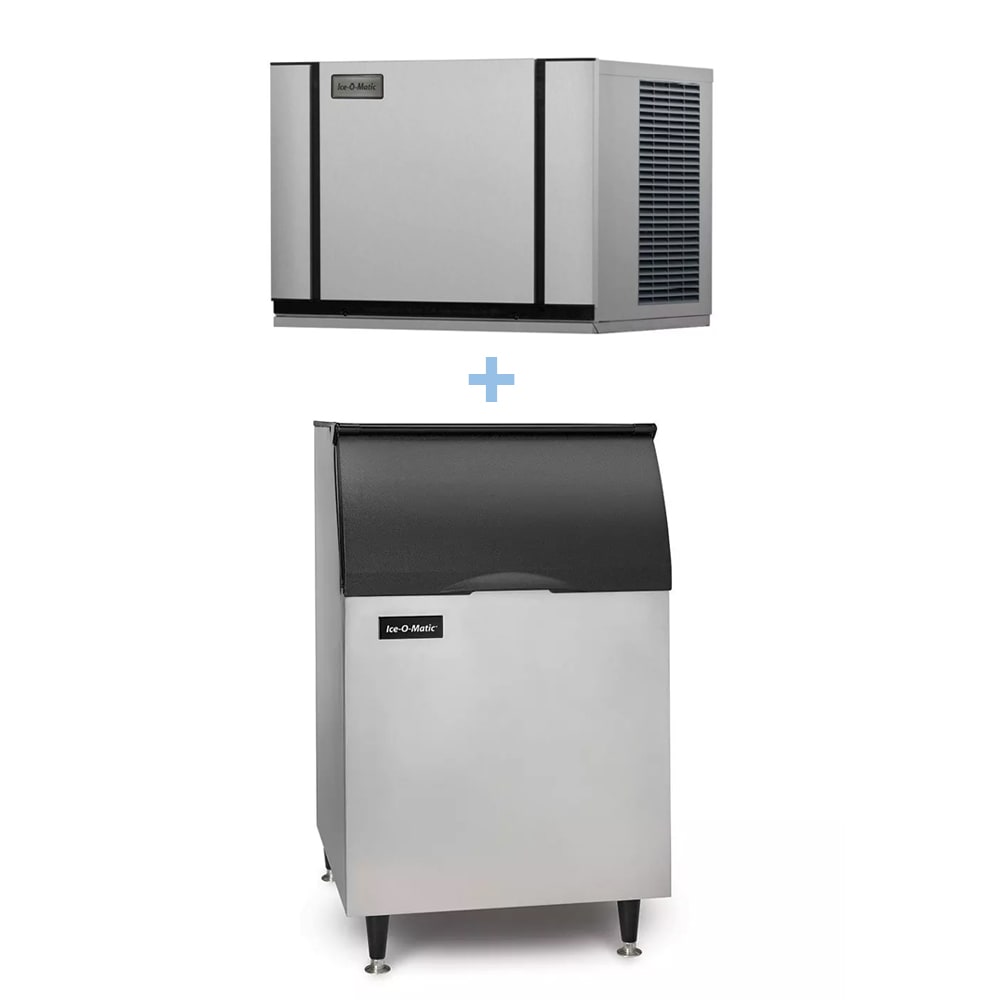

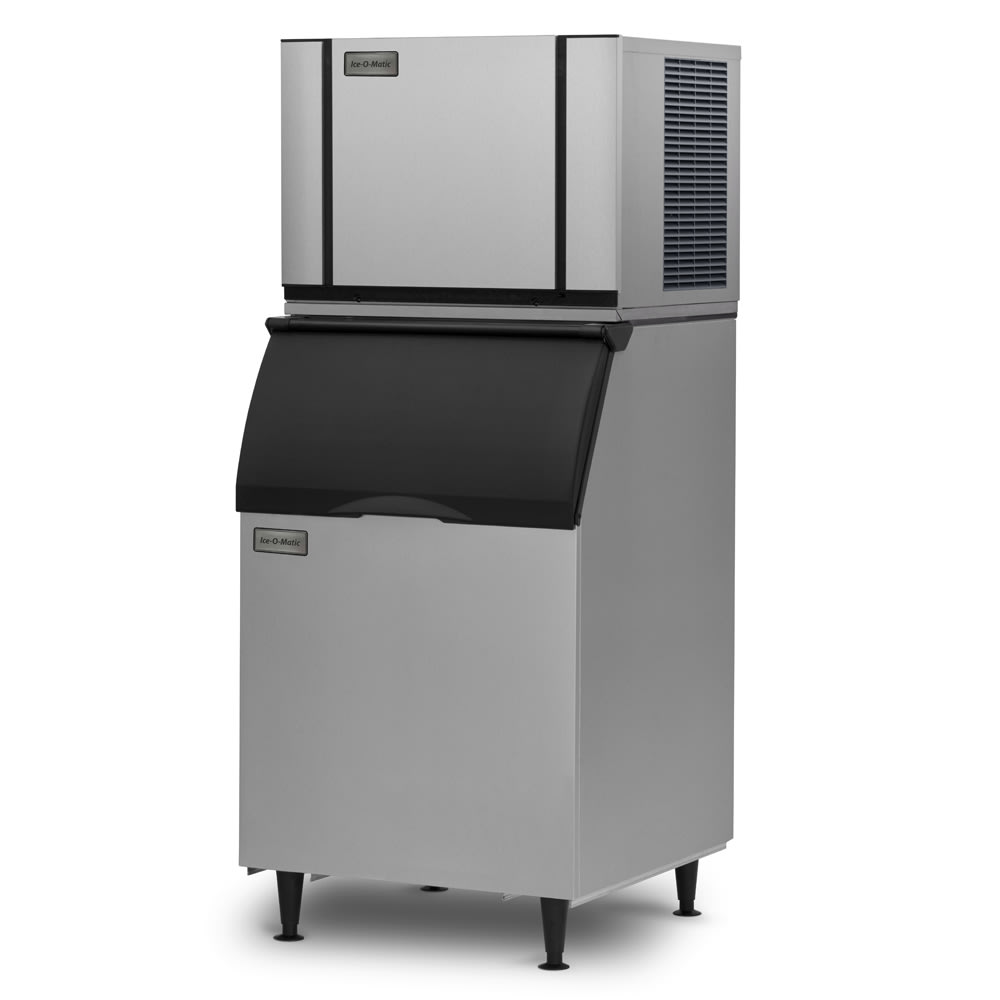

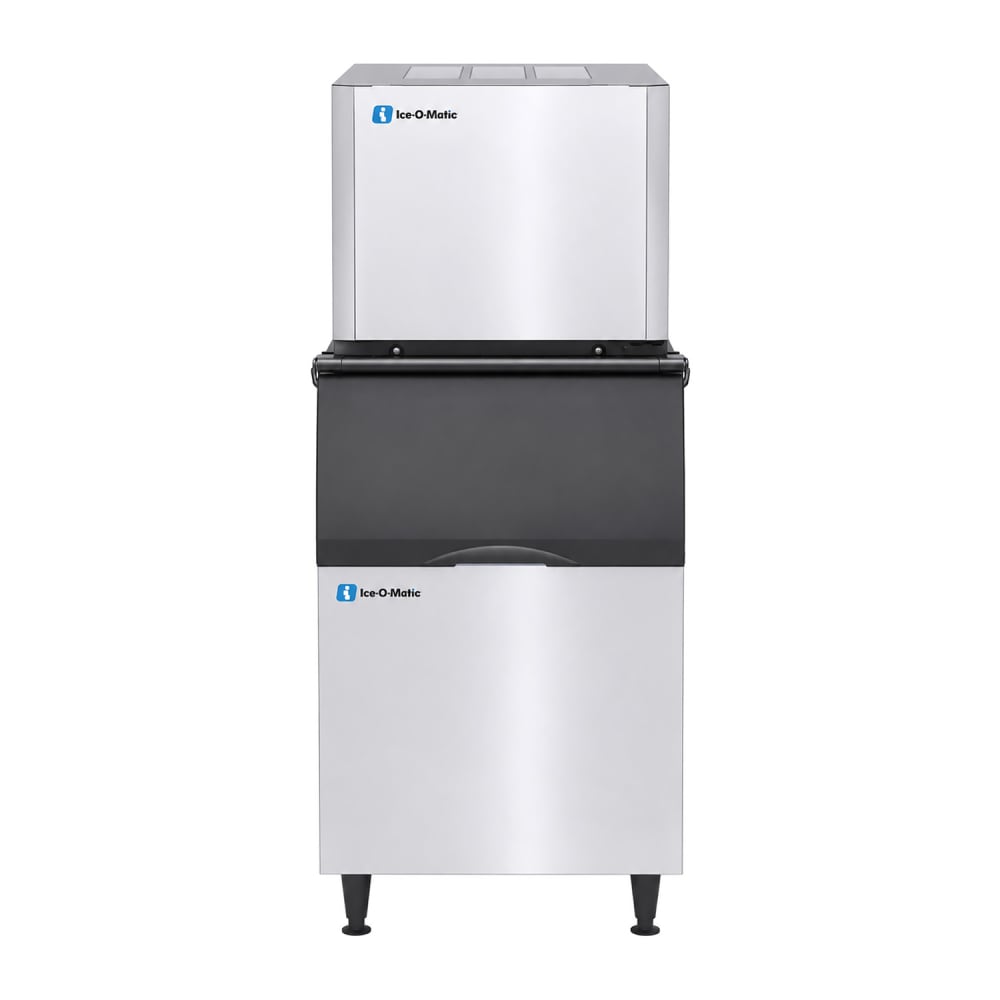

Ice-O-Matic CIM0530HA/B55PS 561 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 115v

The Ice-O-Matic CIM0530HA/B55PS ice maker head with bin has a compact, modular design that's just 30 inches wide to fit into locations with limited space. Able to hold 510 pounds of ice at a time, the bin is made with a durable rotocast aluminum exterior that resists dents and corrosion. Inside, it's lined with foamed polyethylene to insulate the ice and prevent it from melting; the interior is accessible via its top-hinged, sloped door.

Providing digital diagnostics, the Ice-O-Matic CIM0530HA/B55PS universal control board streamlines operation and simplifies calibrating multiple units. To alert users when cleaning is required, the ice maker has a dedicated smart LED light, and its LED display helps users monitor the unit's settings at a glance. To initiate sanitizing and descaling procedures, this machine includes one-touch controls.

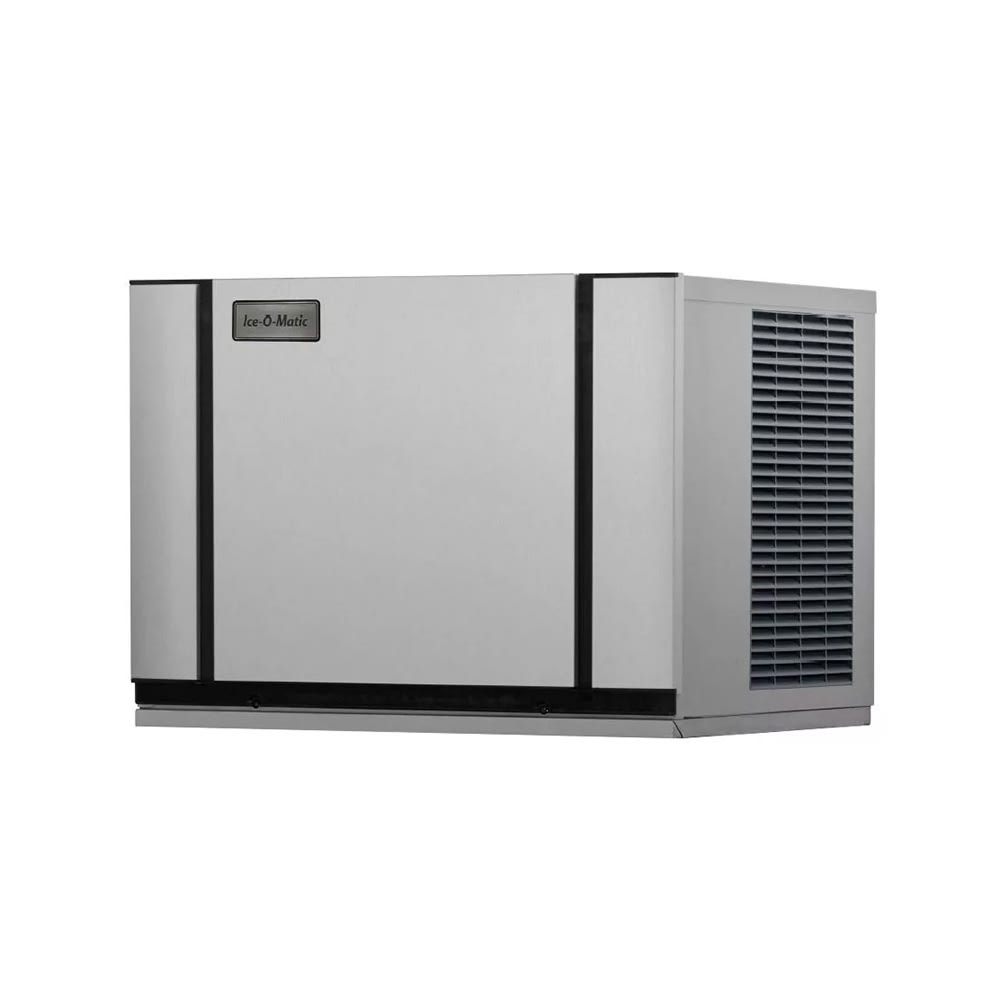

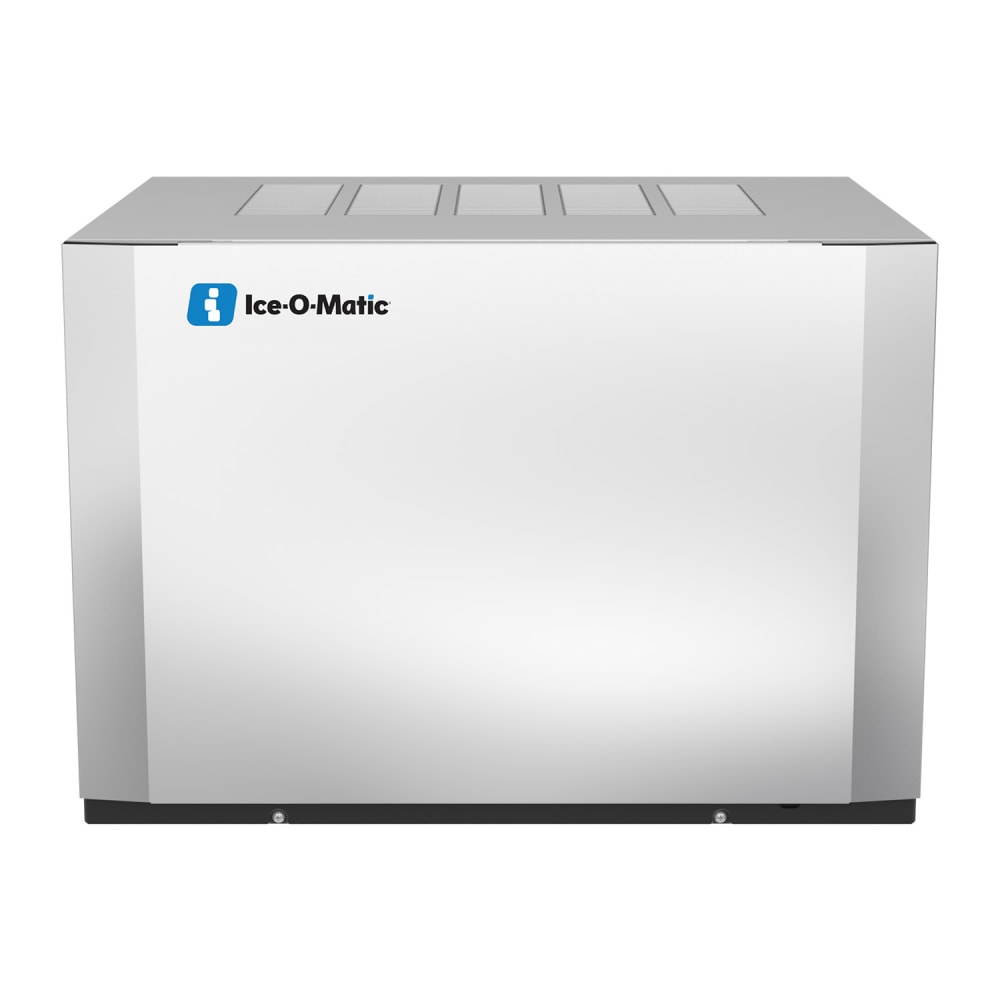

Ice Maker Details

• Part of the Elevation Series™
• 520-lb. maximum daily ice production
• 390-lb. AHRI-certified ice production
• Half-size ice cubes
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Condenser is self-contained to conserve space
• Dual setup exhausts hot air from top and side
• Plastic foodzone doesn't harbor bacterial buildup
• Removable, dishwasher-safe, BPA-free components
• Primed with PURE ICE® antimicrobial treatment to prevent cross contamination
• 1-touch sanitizing and descaling controls
• Smart LED light alerts employees if cleaning is needed
• LED display enhances visibility
• Digital diagnostics supplied by universal control board with Smart Harness™
• Some components can be recycled
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG
• 6,252-BTU heat transfer capacity

Product Features

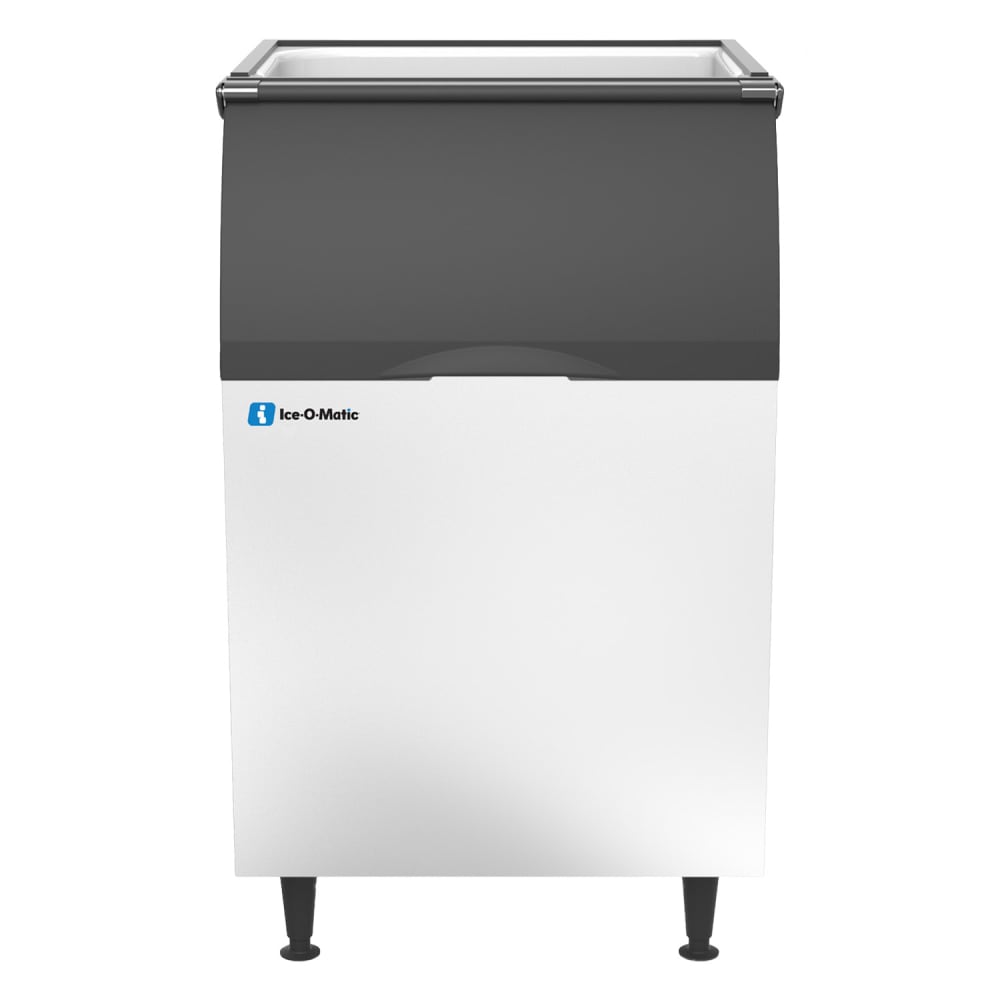

Bin Product Details

• 510-lb. capacity
• Rotocast aluminum exterior lends the unit a finished appearance
• Interior is lined with foam-insulated polyethylene
• Top-hinged, sloped front access door
• Adjustable, 6-in. legs add stability
• Multiple bin top sizes are available and are sold separately

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• Bin: 30 in. W x 31 in. D x 50 in. H
• 17.8 A, 5.87 kW
• 115 V/60 Hz/1 ph
• Ice maker potable water inlet: ³⁄₈-in. FPT
• Ice maker water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. dia.
• Electrical connection junction box: ⁷⁄₈-in. dia.

*Free shipping on Ice-O-Matic CIM0530HA/B55PS within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts
