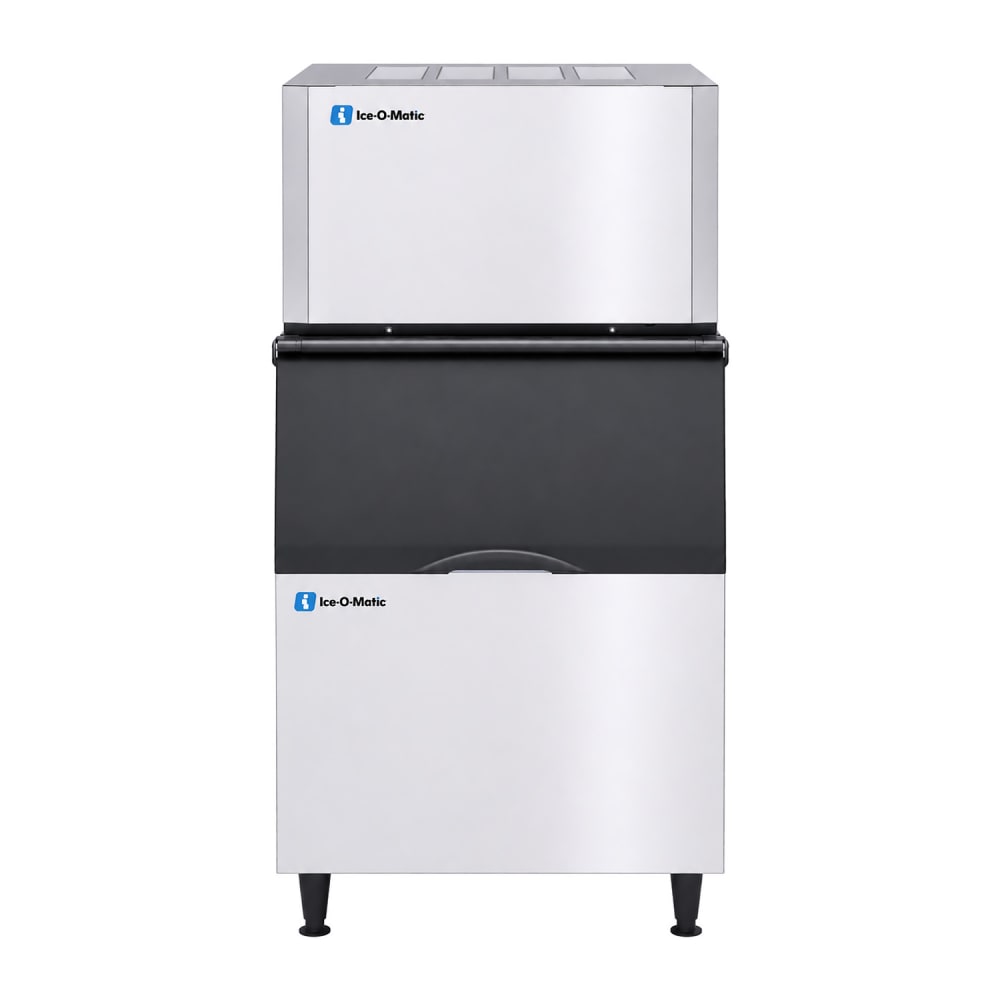

Ice-O-Matic CIM0530FA90/B55 561 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,552.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0530FA90/B55 Description
In 24 hours, the Ice-O-Matic CIM0530FA90/B55 Elevation™ ice maker and bin combo can make 561 pounds of ice if incoming water is 70 degrees Fahrenheit and the surrounding air is 70 degrees Fahrenheit. However, if either of these temperatures is higher, the unit will produce less ice. Its full-size cubes measure 7⁄8 inches on every side and work great in a variety of beverages—from water and sodas to alcoholic drinks. As ice is formed, it drops into a 510-pound-capacity storage bin lined with sanitary polyethylene and insulated with 1.5 to 3 inches of dense polyurethane.
This Ice-O-Matic CIM0530FA90/B55 ice machine with bin has features that facilitate cleaning so ice stays clean and fresh. For regular cleaning, a preset cycle removes dirt from the interior, and for more thorough sanitation, its interior is protected by an Agion® antimicrobial agent that hinders mold growth. Unlike metal units, the plastic food zone does not have sharp corners that trap debris, and its removable components can be cleaned in the dishwasher.
- Part of the Elevation series
- 561-lb. maximum daily ice production
- Creates full-size cubes
- Full cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Agion® protection slows down mold and slime growth
- LED light signals when interior needs cleaning
- 1-touch button starts a descale or sanitation cycle
- Food zone constructed of plastic to facilitate cleaning
- Food zone features removable, dishwasher-safe components
- Smart Harness™ controls are accessible and made with universal components
- Air-cooled condenser blows air out the side and top to reduce risk of obstruction
- Uses R290 refrigerant
- 510-lb. ice storage capacity
- Foam insulation helps ice stay frozen
- Sloped door offers interior access
- Polyethylene interior is sanitary
- Aluminum exterior is durable
- 6- to 7-in. adjustable legs
- Incoming water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSIG
- Ambient air temperature: 50-100 degrees F
- Bin: 30 in. W x 31 in. D x 50-51 in. H (depending on adjustable legs)
- Ice machine: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530FA90/B55 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0530FA90/B55 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 561 |
| Access | Lift Up Door |
| Also Known As | CIM0530FA/B55PS |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 280.00 |
