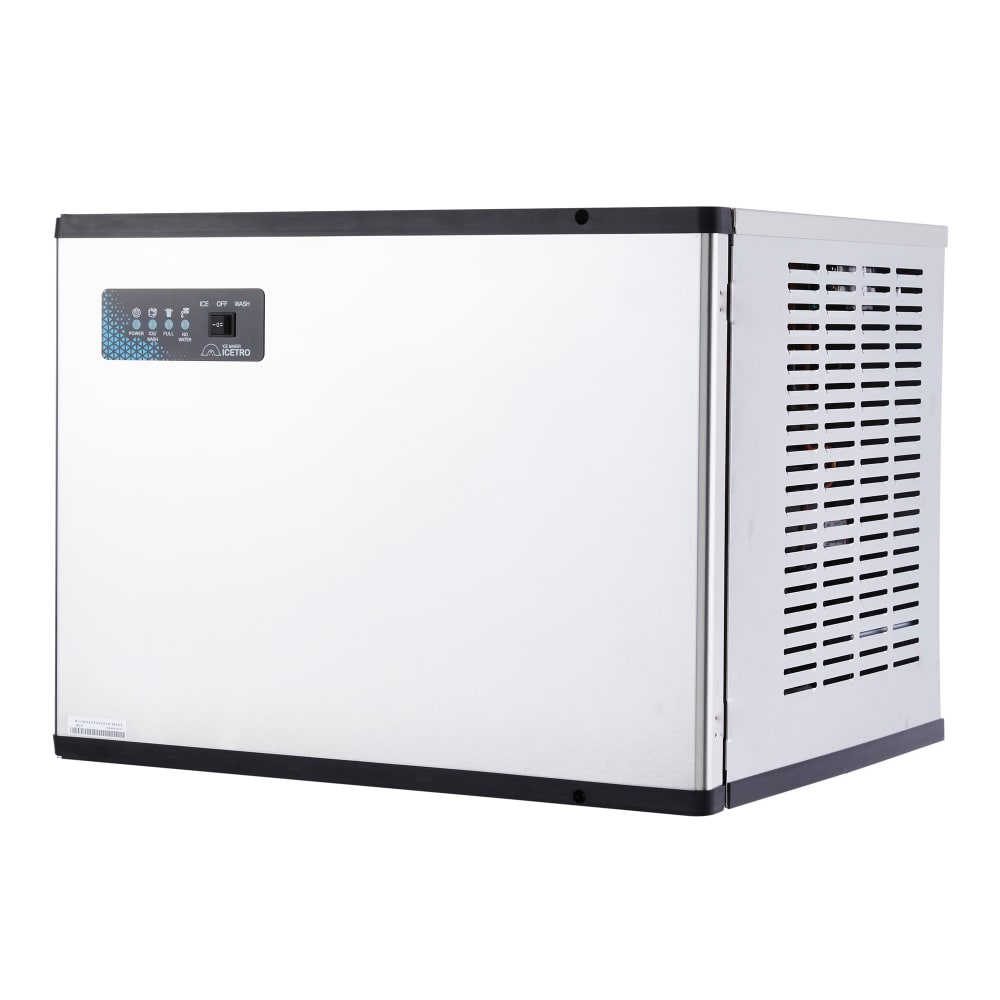

ICETRO IM-0460-AH 30" Maestro Half Cube Ice Machine Head - 444 lb/24 hr, Air Cooled, 115v/1ph

The ICETRO IM-0460-AH Maestro modular ice maker produces half-cube ice measuring 1¹⁄₈ inches by ³⁄₈ of an inch by ⁷⁄₈ of an inch. This type of ice is great for bagging and dispensing and can be served in soft drinks or blended into smoothies. It tightly nests in drinks, increasing liquid displacement so operators can save on beverage costs. To produce 444 pounds of half-cube ice in 24 hours, ambient air must be 70 degrees Fahrenheit and incoming water should be 50 degrees Fahrenheit; this air-cooled unit features a self-contained condenser that operates with R-404A refrigerant. A front-mounted diagnostic panel displays operational information to staff can monitor unit status and determine maintenance needs.

The ICETRO IM-0460-AH ice maker head measures 30 inches wide by 24⁴⁄₅ inches deep by 22³⁄₅ inches tall to fit on the ICETRO IB-033 ice storage bin or ICETRO IB-044 ice storage bin (both sold separately). Its 304 stainless steel exterior delivers a sleek, classic appearance that matches other back-of-house equipment while providing lasting corrosion resistance and durability. While the ABS plastic interior is treated with an antimicrobial agent to minimize slime buildup and inhibit bacterial growth between regularly scheduled cleanings, the unit's cleaning switch can be flipped on to initiate the automatic cleaning cycle. For additional cleanliness, the evaporator's enhanced design can reduce airborne bacteria, and to simplify cleaning and maintenance, the water distribution tube, water sump, water curtain, pins, and hangers can easily be removed.

Product Details

• Replaces WM-0460-AC/ACH
• Maximum 24-hour production: 444 lbs.
• Produces half-cube ice
• Half-cube ice dimensions: 1¹⁄₈ in. x ³⁄₈ in. x ⁷⁄₈ in.
• Air-cooled unit featuring self-contained condenser
• R-404A refrigerant
• Durable and rust-resistant 304 stainless steel exterior
• Antimicrobial ABS plastic interior reduces slime buildup and inhibits bacterial growth between regular cleanings

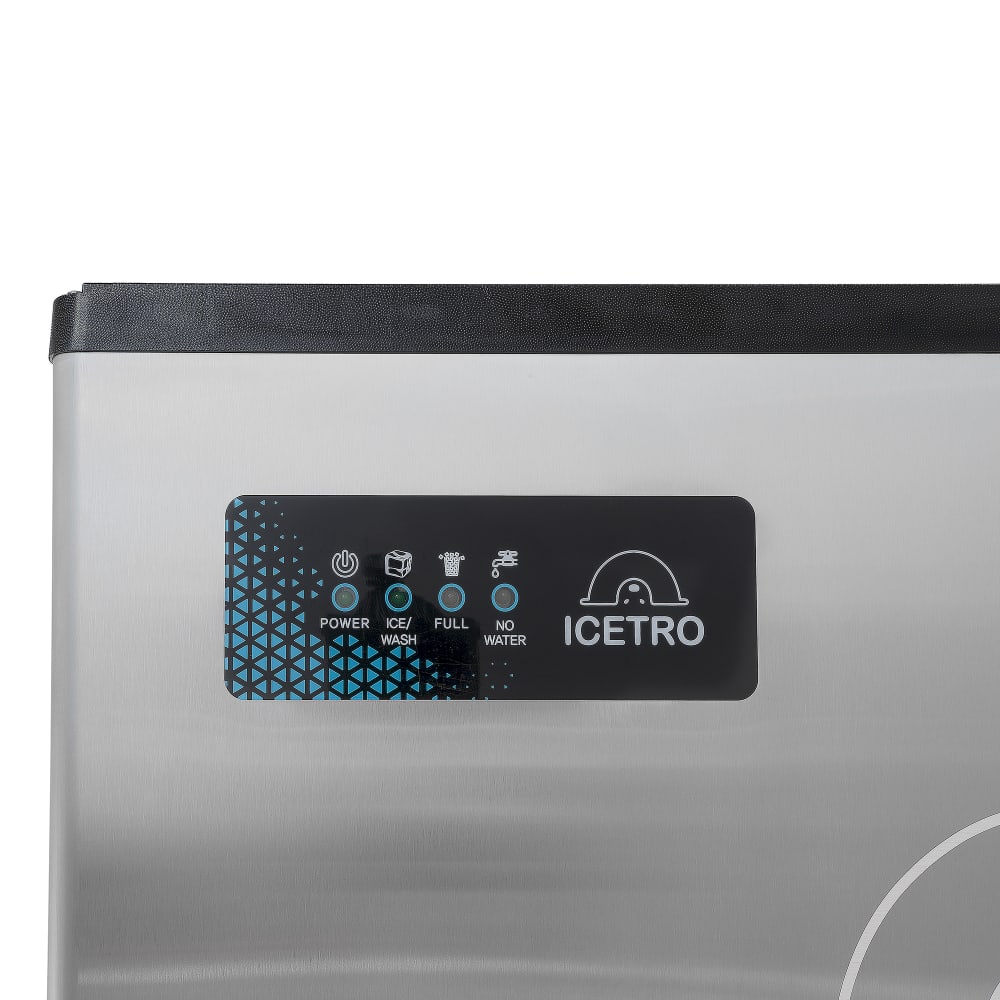

• Diagnostic panel aids in maintenance and service
• Cleaning switch initiates automatic cleaning cycle
• Evaporator section reduces airborne bacteria
• Magnetic frame cleanable condenser air filters
• Adjustable flush time to reduce scale buildup
• Water distributor tube, water sump, heavy-duty water curtain, pins, and hangers can be removed
• Hinged front door panel for access to interior components

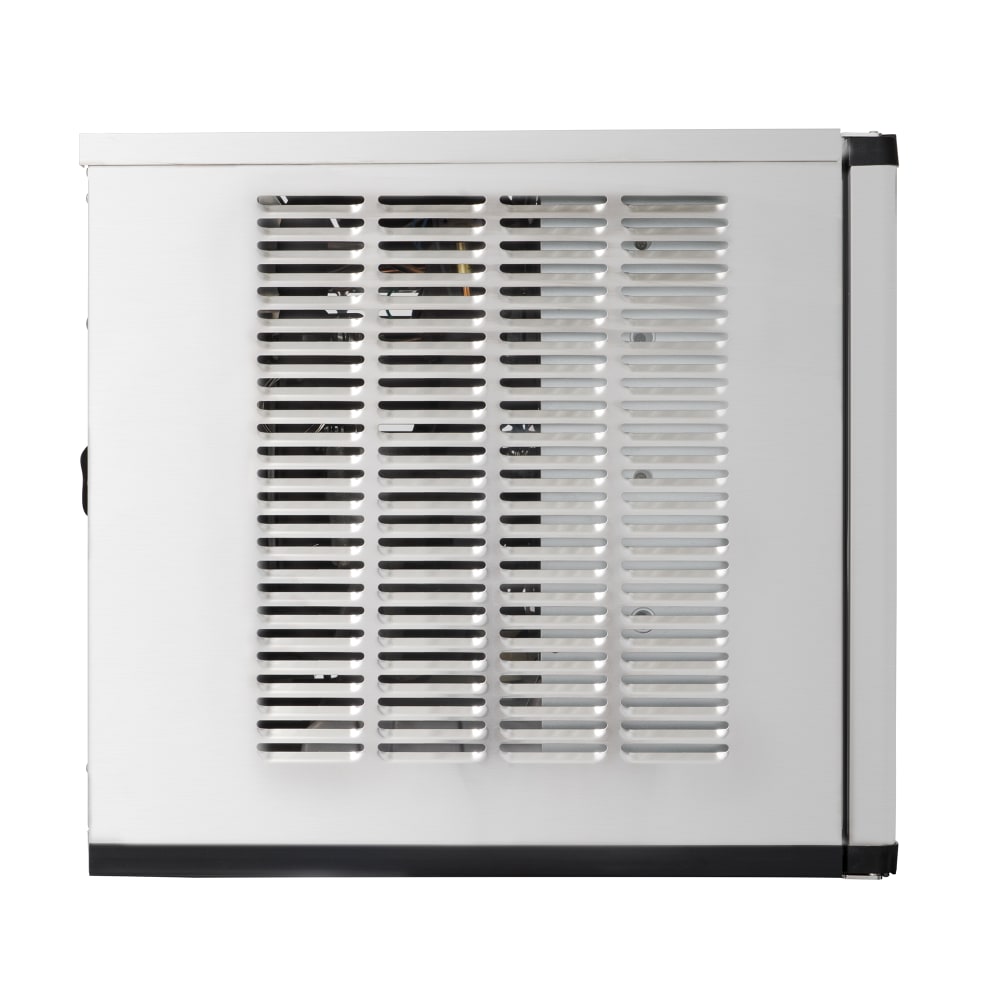

• Vented sides and top
• Compatible with the ICETRO IB-033 ice storage bin and the ICETRO IB-044 ice bin (sold separately)
• Can be used with the ICETRO ICEPRO400 water filtration system (not included)
• Operating ambient temperature range: 50-100 degrees F
• Operating water temperature range: 50-90 degrees F
• Operating water pressure range: 20-80 PSI

Dimensions & Utilities

• 30 in. W x 24⁴⁄₅ in. D x 22³⁄₅ in. H
• 15 A, 5.43 kW
• 115 V/60 Hz/1 ph
• Electrical connection requires hardwiring on site

Product Features

*Free shipping on ICETRO IM-0460-AH within the 48 contiguous states.

From The Manufacturer

Maestro Modular Ice Maker, cube-style, 30"W, air-cooled, self-contained condenser, production capacity up to 444 lbs/24 hr at 70°/50° (364 lbs at 90°/70°), diagnostic control panel, auto cleaning cycle, ABS antimicrobial interior, 304 stainless steel exterior, half-size cubes, 115v/60/1-ph, NEMA 5-15P, CE, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts
