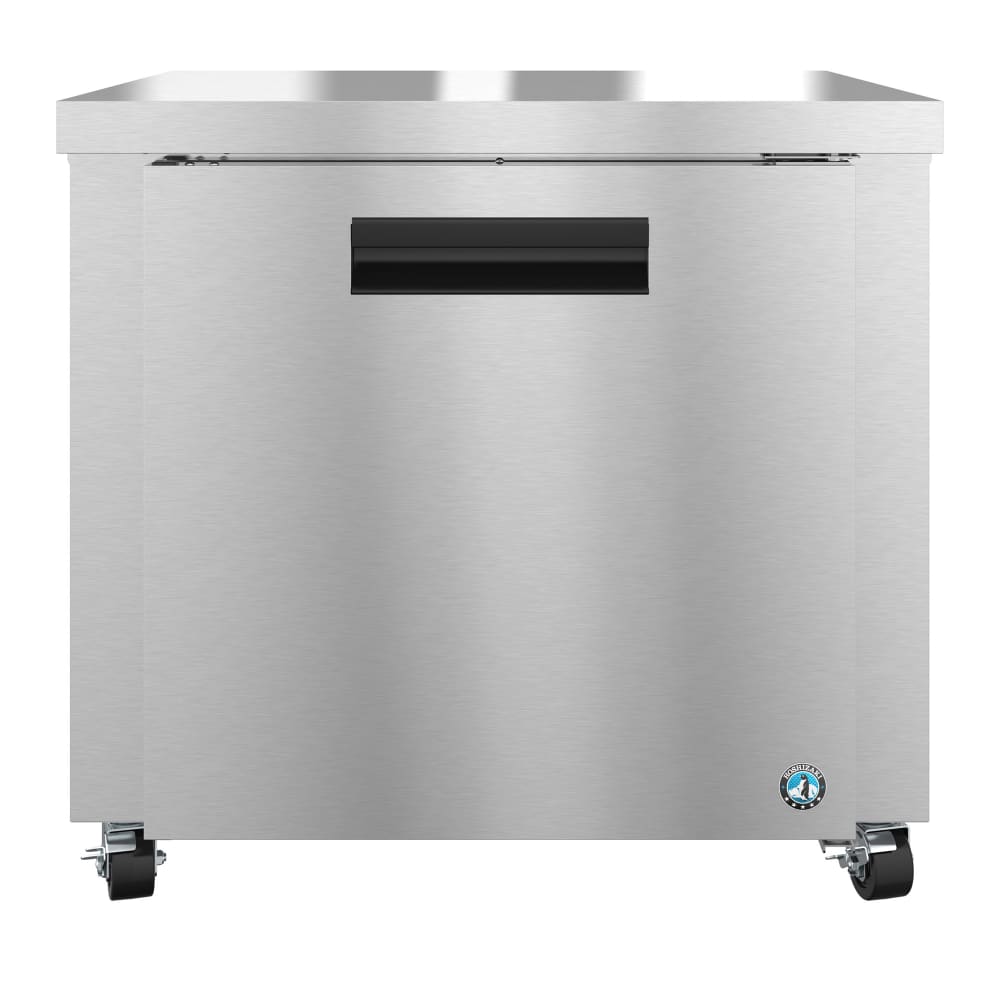

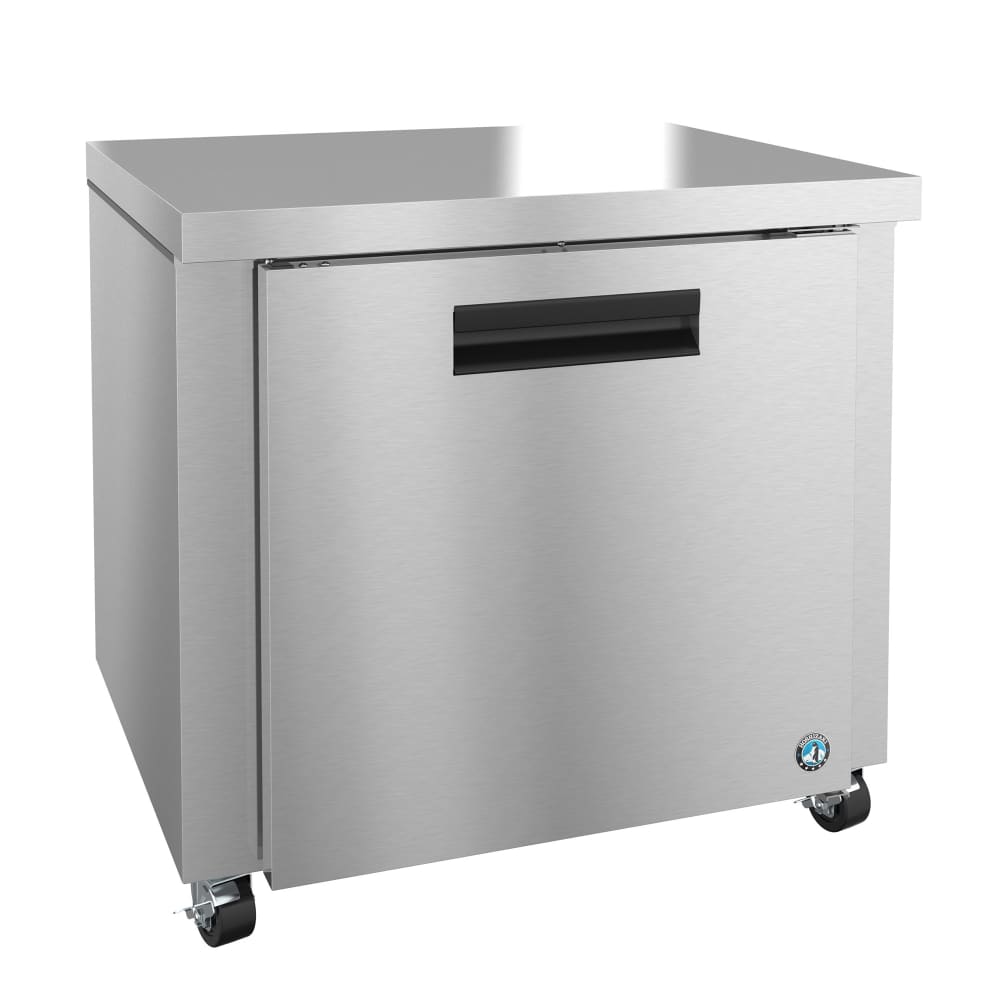

Hoshizaki UR36B 36" W Undercounter Refrigerator w/ (1) Section & (1) Door, 115v

The Hoshizaki UR36B reach-in refrigerator fits comfortably underneath countertops in various settings and resists corrosion because of its stainless steel construction. It boasts an 8.64-cubic-foot capacity that features one adjustable shelf made of anodized aluminum. This storage space is sealed with a stainless steel, field-reversible door and insulation, maintaining temperatures between 32 to 52 degrees Fahrenheit. Additionally, this door is equipped with the stay-open feature when pushed to 90 degrees and automatically shuts at lesser angles. To facilitate smooth movement when needed, this refrigerator is placed atop four 4-inch casters with two that brake for additional stability.

The Hoshizaki UR36B undercounter refrigerated unit uses a rear-mounted, self-contained refrigeration system and a developed air distribution method to ensure food products remain safe for consumption. The refrigeration component includes an evaporator and a durable enamel-coated evaporator coil that work to expel hot gas condensate. Additionally, eco-friendly R290 hydrocarbon refrigerant travels through a network of capillary tubing to remove hot air for consistently cold temperatures. This refrigerator is programmed with off-cycle defrosts, which suspend refrigeration to thaw ice buildup and ensure all parts run efficiently.

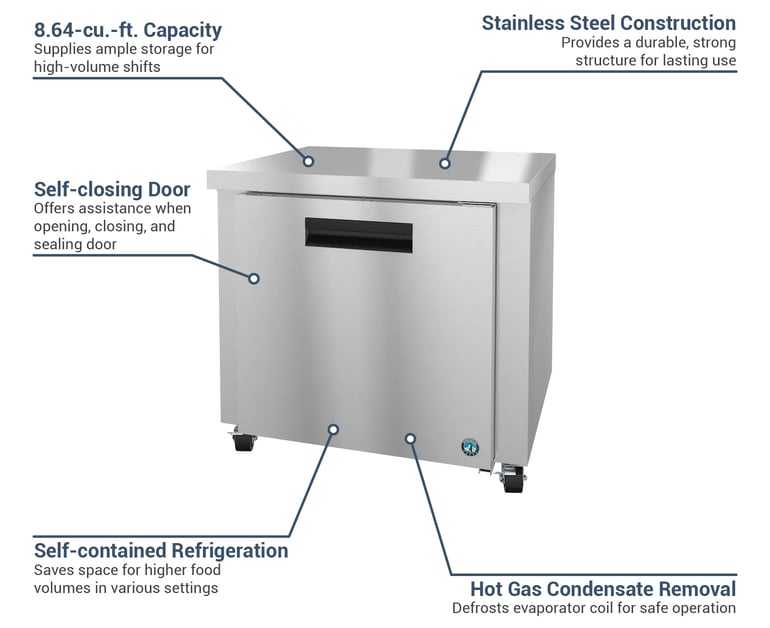

Product Details

• Steelheart series
• 8.64-cu.-ft. capacity
• Interior and exterior front, sides, and top made of stainless steel
• 1 field-reversible stainless steel door
• Door self closes and stays open past 90 degrees
• 1 handle constructed of extruded aluminum
• 1 epoxy-coated shelf
• (4) 4-in. casters
• 2 casters brake
• Insulated cabinet and door
• Temperature holding range: 32 to 52 degrees F

Refrigeration System

• Self-contained refrigeration at the rear
• Air distribution system spreads cool air evenly
• Enamel-coated evaporator coil
• Removes hot gas condensate
• Off-cycle defrosts
• Hydrocarbon R290 refrigerant

Dimensions & Utilities

• 36 in. W x 31 in. D (57¹/₂ in. D with door open) x 33³/₄ in. H
• 2.5 A, ¹/₆ HP motor
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, one-section, 36"W, 9.9 cu. ft., self-contained rear mounted refrigeration system, (1) solid hinged door, (1) adjustable shelf, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/6 HP, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

6-year Parts; 5-year Labor; 7-year Compressor Parts
