Hoshizaki SR72B-30MD2 72" Steelheart Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The strong and durable Hoshizaki SR72B-30M mega top sandwich table is primarily made of corrosion-resistant stainless steel which extends to its interior and exterior front, sides, and covers. This resilient fridge and its inner workings are built to withstand frequent use. With a self-contained, rear-mounted refrigeration system, this reach-in is paired with an epoxy-coated evaporator which facilitates hot gas condensate removal and time-initiated defrosts that aim to preserve its functionality. A system of capillary tubing spans the body, forcing out hot air with environmentally friendly R290 hydrocarbon refrigerant. This refrigeration unit is finished with an air distribution system that fans cool air from the storage cavity to the pan housing. The four 6-inch casters aid with unit movement when it must be cleaned or relocated.

The design of the Hoshizaki SR72B-30M food prep table's upper half protects the 30 sixth-size, topping-filled pans from external contaminants while maintaining temperatures between 32 and 52 degrees Fahrenheit. Adapter bars suspend these 4-inch-deep pans above the cold liner, while the top rail has a slightly larger depth of 6 inches for higher volume ingredients. A 72-inch cutting board below this area catches food crumbs and provides a clean surface upon which to make stuffed hoagies or mixed green salads. For additional space, this workstation is paired with a three-section storage cavity sealed with stainless steel doors and removable, magnetic gaskets. Line cooks can prop these doors open at 90 degrees to utilize the stay-open feature when gathering additional supplies and ingredients. These doors shut automatically for user convenience when opened to lesser angles. Each section is paired with an adjustable shelf to optimize the layout and the unit itself is attached to four casters for simplified movement.

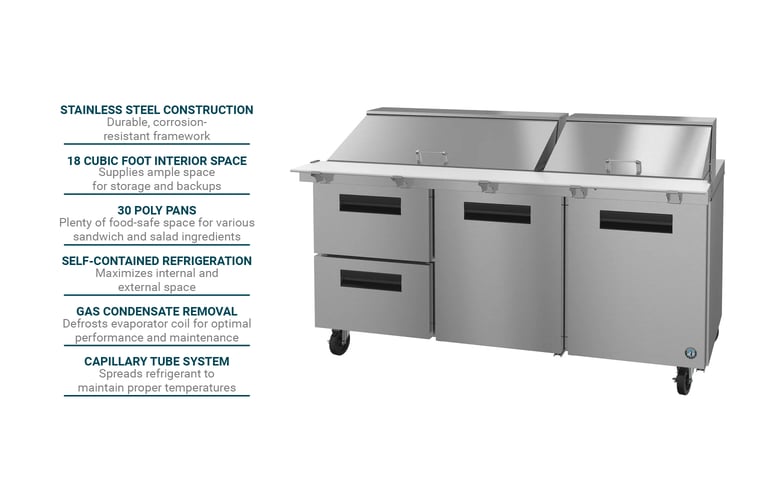

Product Details

• Steelheart series
• Stainless steel interior and exterior front, sides, and covers
• 18 cu. ft. interior space
• 30 sixth-size poly pans measure 4-in.-deep
• Maximum of 6-in.-depth on top rail
• 3 stainless steel doors stay open past 90 degrees and automatically shut at lesser angles
• Field-reversible doors for optimal layout
• Paired with 72-in. cutting board
• (4) 6-in. casters with 2 locking

Refrigeration System

• Self-contained and rear-mounted refrigeration unit
• Capillary tubing spreads eco-friendly refrigerant
• R290 hydrocarbon refrigerant
• Evaporator initiates hot gas condensate removal
• Defrosts occur in timed intervals
• Air distribution system helps maintain cool temperatures
• Temperature holding range: 32-52 degrees F

Dimensions & Utilities

• Cutting board: 72 in. W x 10 in. D x ¹/₂ in. H
• Overall: 72 in. W x 35 in. D x 44¹/₄ in. H
• 4 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki SR72B-30MD2 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Mega Top Refrigerator, three-section, 72"W, 18 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, (2) adjustable shelves, (2) drawers, provided with (30) 1/6 pans 4" deep, 6" maximum pan depth (drawer & top rail), 10" D x 1/2" thick white polyethylene cutting board & a full set of adapter bars, stainless steel interior, stainless steel exterior front, sides & hinged top cover, (4) 6" casters (2 with brakes), hot gas condensate removal, R290 Hydrocarbon refrigerant, 1/3 HP, NEMA 5-15P, cETLus, ETL-Sanitation (Made to order: allow 4-6 week lead time)

*Image may not depict product color, inclusions or accessories.

6-year Parts; 5-year Labor; 7-year Compressor Parts
