Hoshizaki UF60A Steelheart 60" W Undercounter Freezer w/ (2) Sections & (2) Doors, 115v

The Hoshizaki UF60A two-section undercounter freezer uses environmentally friendly R290 hydrocarbon refrigerant in its self-contained condenser to keep temperatures between -10 and 10 degrees Fahrenheit. If maintenance is needed, the refrigeration system can be accessed from the rear, and because the unit breathes from its front, it can be installed adjacent to other kitchen equipment. To retain cold air in the cabinet, it's insulated with foamed-in-place polyurethane and the two doors seal shut with gaskets, which are removable for cleaning purposes.

Two storage shelves in the Hoshizaki UF60A undercounter freezer are epoxy coated for durability, and the evaporator also is coated to resist corrosion in moist environments. Extruded handles on the doors stay out of the way while providing access to the two sections. Mounted on 4-inch casters, this freezer can be rolled elsewhere in the kitchen, and to keep it still, two of these casters have brakes. The interior, front, sides, and top are made of durable stainless steel that streamlines cleaning.

Product Details

• Part of the Steelheart series
• 17.55 cu. ft. of interior space
• 2 sections
• Temperature holding range: -10 to 10 degrees F
• 2 solid doors with gaskets to seal them shut
• Extruded aluminum door handles
• 2 adjustable shelves with epoxy coating for durability
• Resilient, stainless steel front, sides, top, and interior
• (4) 4-in. stem casters, 2 with brakes, for mobility
• Cools with R290 hydrocarbon refrigerant
• Self-contained, rear-mounted refrigeration system
• Front-breathing design
• Epoxy-coated evaporator coil is protected from corrosion
• 2-in. foamed-in-place, polyurethane insulation
• Ideal ambient temperature range: 45-100 degrees F
• 804.2-BTU heat transfer capacity

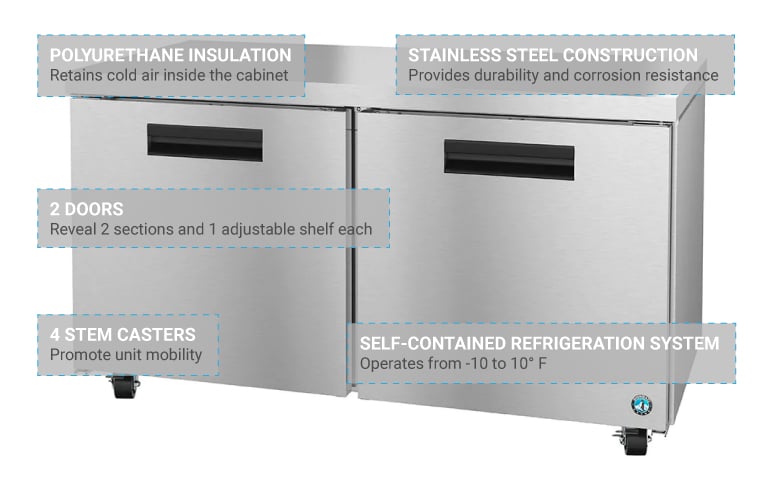

Product Features

Dimensions & Utilities

• 60 in. W x 31 in. D x 33.63 in. H
• 5.6 A, 4.22 kW, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

*Free shipping on Hoshizaki UF60A within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Freezer, reach-in, two-section, 60"W, 17.55 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/3 HP, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

5-year Limited Labor, 6-year Parts, 7 year compressor

Hoshizaki UF60A Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Optional Accessories
