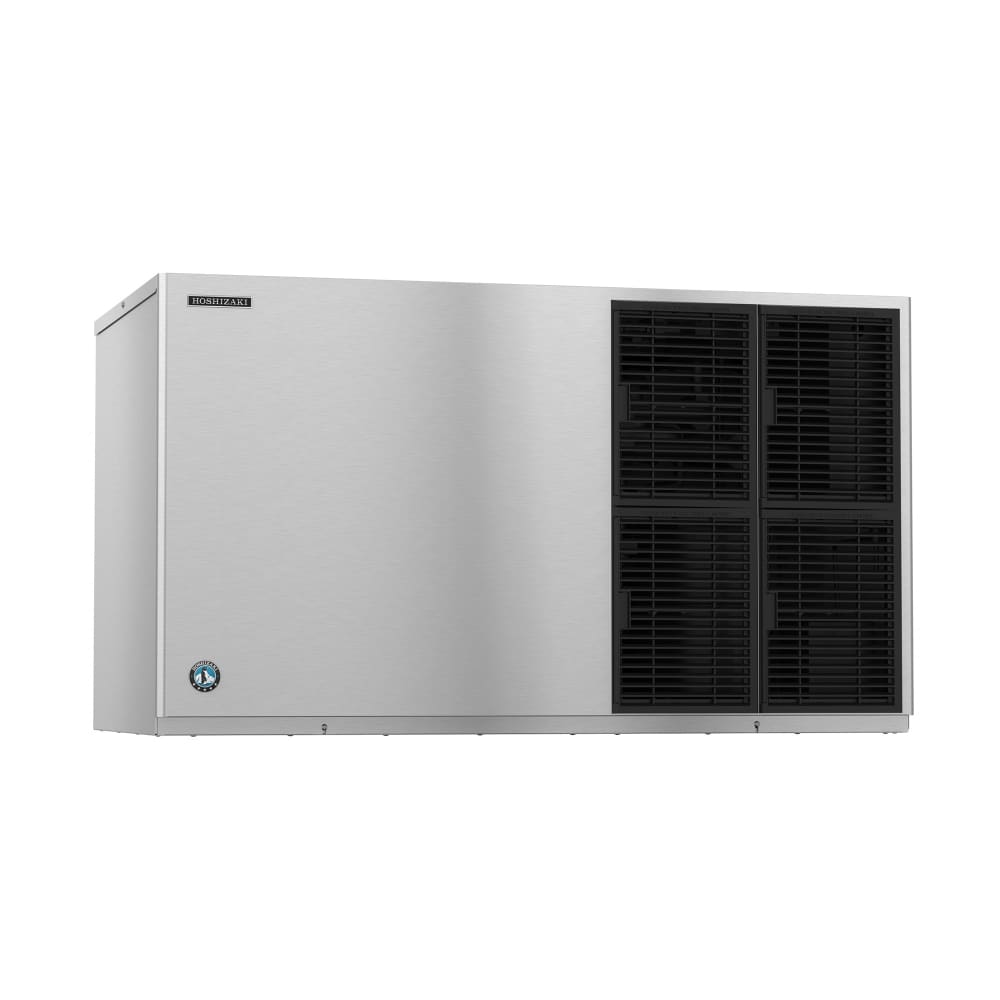

Hoshizaki KM-1301SAJ3 48" Crescent Cube Ice Machine Head - 1427 lb/24 hr, Air Cooled, 208-230v/3ph

Using a self-contained condenser and R404A refrigerant, the Hoshizaki KM-1301SAJ3 ice machine head can produce a maximum amount of 1,427 pounds of ice per day, though this number will be lower if environmental conditions aren't ideal. It makes crescent-shaped ice, which is great for drinks, and if maintenance is needed, the EverCheck™ alert system will inform users that something is wrong. To create ice quicker than similar ice machines, the CycleSaver™ design speeds up the process.

The Hoshizaki KM-1301SAJ3 crescent-cube ice machine head is coated in H-GUARD Plus antimicrobial, which slows the growth of bacteria and decreases the frequency with which is needs to be cleaned. For durability and corrosion resistance in high-volume environments, its finish and evaporator are stainless steel. Meaning one will need to be purchased separately for use, this unit doesn't include a bin or dispenser.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 1,427-lb. maximum daily ice production
• 1,350-lb. AHRI-certified daily ice production
• Makes crescent-cube ice

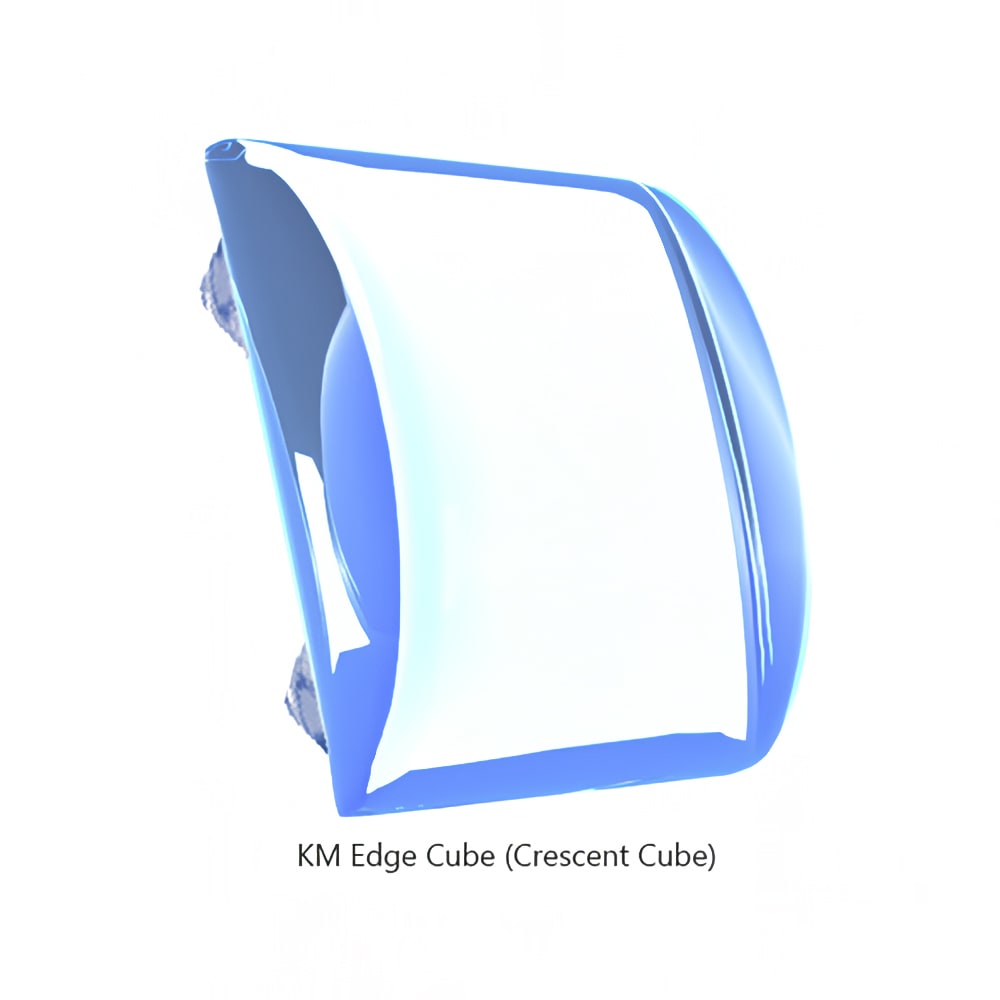

• Crescent-cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• Air-cooled, self-contained condenser
• H-GUARD Plus antimicrobial slows bacteria growth
• EverCheck alert system indicates maintenance needs
• CycleSaver design creates ice quickly
• Corrosion-resistant stainless steel finish and evaporator
• Operates with R-404A refrigerant
• No bin or dispenser included
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 18,400-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 48 in. W x 27.38 in. D x 27.38 in. H
• 9.5 A, 3.95 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-1301SAJ3 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1427 lb/24 hours at 70°/50° (1350 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 9.5 amps, NSF, UL, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
