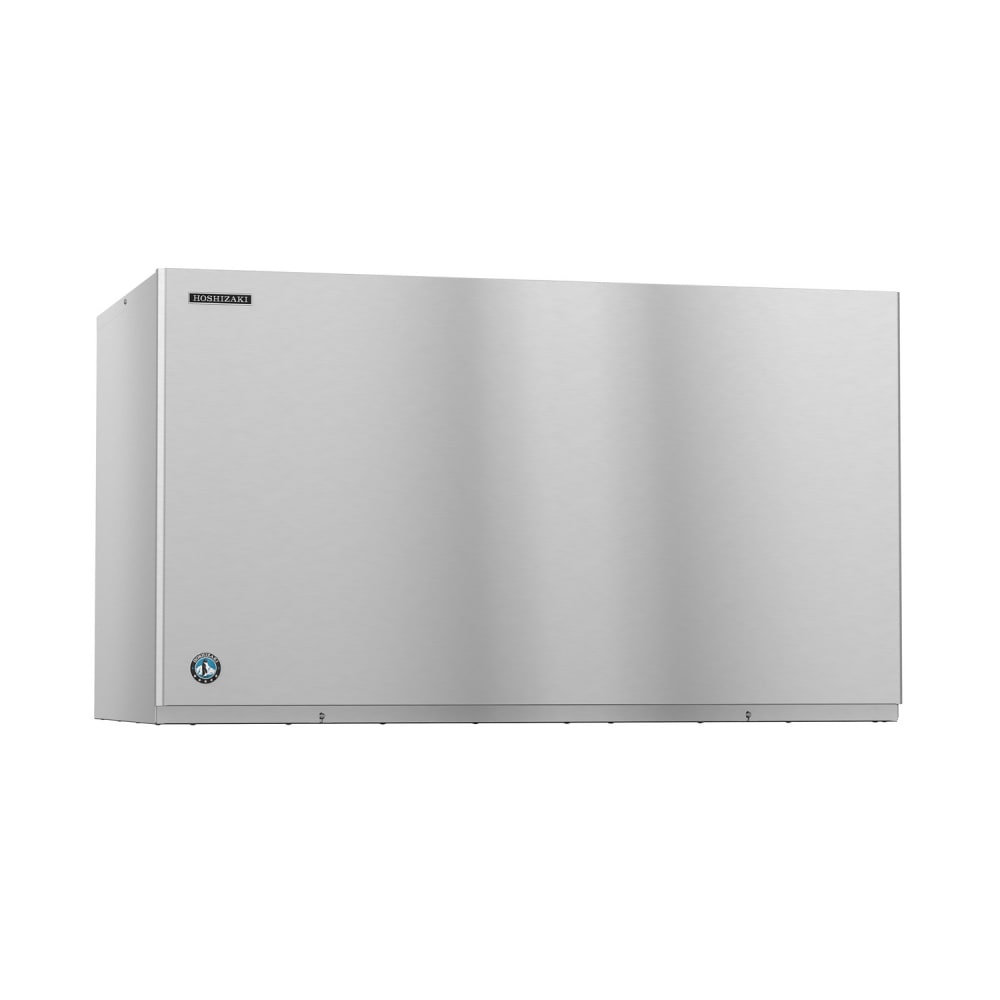

Hoshizaki KM-1301SWJ3 48" Crescent Cube Ice Machine Head - 1360 lb/24 hr, Water Cooled, 208-230v/3ph
$9,705.00 /Each
Contact us for details!
Hoshizaki KM-1301SWJ3 Description
To create ice quickly and efficiently, the Hoshizaki KM-1301SWJ3 ice machine head has a CycleSaver™ design. Its water-cooled condenser operates with R404A refrigerant to create as many as 1,360 pounds of ice daily in ideal conditions. However, if the ambient temperature of the room rises to 90 degrees Fahrenheit, the ice machine will only make 1,355 pounds per day. Streamlining the installation process and reducing the risk of cross contamination, the compressor is self-contained
The Hoshizaki KM-1301SWJ3 crescent-cube ice machine head has an EverCheck™ alert system that informs users if something is hindering the unit's ability to operate. It is protected with H-GUARD Plus antimicrobial—an agent that slows the growth of bacteria to ensure clean and fresh ice. Its evaporator is made of stainless steel so it won't corrode, and the stainless steel exterior is durable for high-volume use.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 1,360-lb. maximum daily ice production
- 1,355-lb. AHRI-certified daily ice production
- Makes crescent-cube ice
- Crescent-cube ice size: 1 1⁄2 in. x 1⁄2 in. x 1 1⁄8 in.
- H-GUARD Plus antimicrobial agent slows the growth of bacteria
- EverCheck alert system alerts users of unideal conditions
- CycleSaver design creates ice quickly
- Water-cooled, self-contained condenser
- Uses R404A refrigerant
- Stainless steel evaporator is corrosion resistant
- Resilient stainless steel exterior
- No bin or dispenser included
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 20,100-BTU heat transfer capacity
- 48 in. W x 27.38 in. D x 27.38 in. H
- 6.1 A, 3.25 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1301SWJ3 within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, water-cooled, self-contained condenser, production capacity up to 1360 lb/24 hours at 70°/50° (1355 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 6.1 amps, NSF, UL
Watch a video about this product
Hoshizaki KM-1301SWJ3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1360 |
| Compressor Type | Water Cooled |
| Depth (in) | 27.38 |
| Height (in) | 27.38 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 3 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 335.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM1301SWH3
Compare to Similar Items
| Attributes |
Hoshizaki KM-1301SWJ3 Hoshizaki KM-1301SWJ3 48" Crescent Cube Ice Machine Head - 1360 lb/24 hr, Water Cooled, 208-230v/3ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $9,705.00 / Each | $8,891.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| 24 Hr. Production (lb) | 1360 | 1444 |
| Ice Type | Crescent Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 48 | 48 |
| Rating | Best | Best |
| Voltage | 208/230 | 208/230 |
| Series | KM EDGE | Prodigy ELITE® |
| Refrigerant | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
