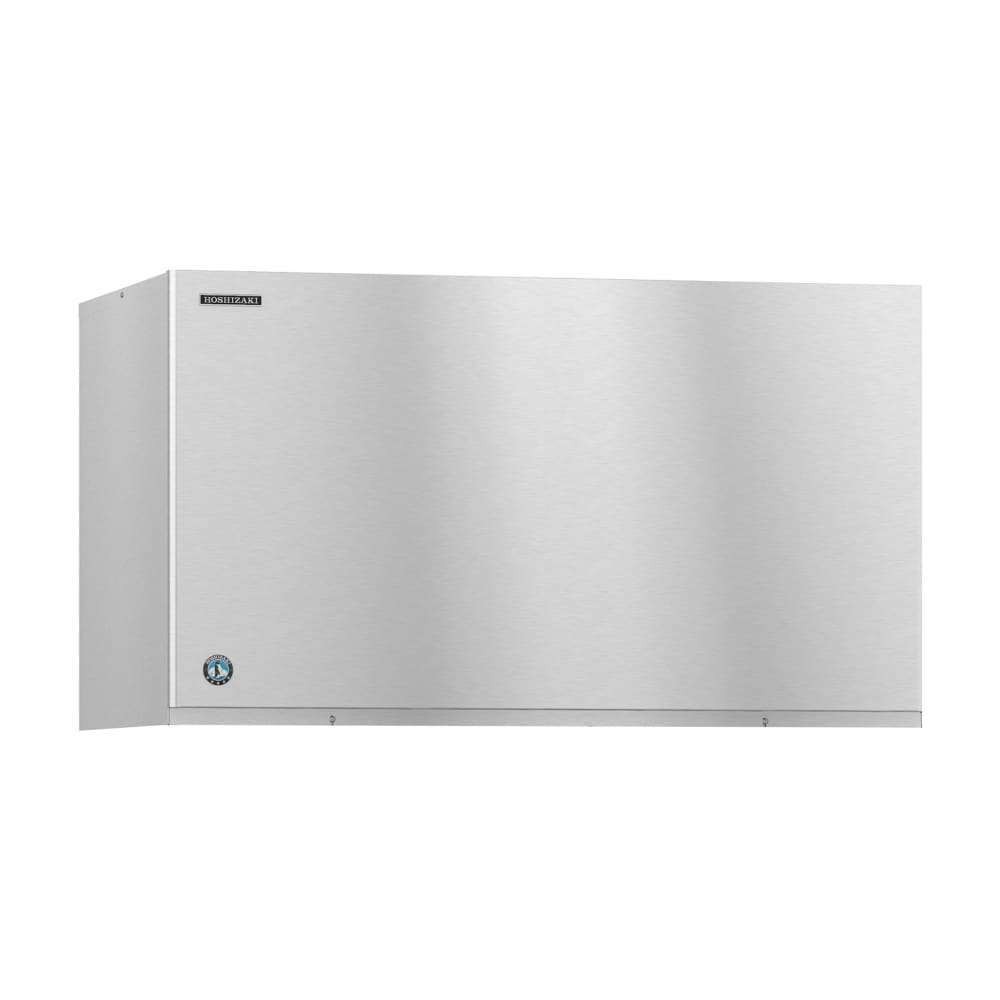

Hoshizaki KM-1301SRJZ3 48" Crescent Cube Ice Machine Head - 1433 lb/24 hr, Remote Cooled, 208-230v/1ph

The Hoshizaki KM1301SRJZ3 ice machine head has a stainless steel exterior and evaporator to ensure durability and to resist rust and corrosion. This unit requires a remote condenser and an ice bin, both of which are sold separately, for operation. If the unit is installed in a location with an ambient temperature of 70 degrees Fahrenheit and an incoming water temperature of 50 degrees Fahrenheit, it can produce up to 1,433 pounds of ice.

The Hoshizaki KM1301SRJZ3 ice maker head is produces crescent cube ice to serve with soft drinks and other beverages. This unit relies on R404A hydrocarbon refrigerant to maintain cold temperatures. To ensure proper airflow, it is recommended that this unit be given 6 inches of clearance on the top, the rear, and on both sides. To reduce the growth of mold and bacteria in the internal components, this unit is equipped with H-GUARD Plus antimicrobial agent.

Product Details

• KM Series
• Remote, air-cooled system
• 1,433-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 1,330-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Individual crescent cube ice shape
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Removable air filters
• Stainless steel construction
• Stainless steel evaporator
• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin not included
• 18,800 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Drain requires hard pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 48 in. W x 27³/₈ in. D x 27³/₈ in. H
• 12.8 A, 3.83 kW
• 208-230 V/60 Hz/3 ph

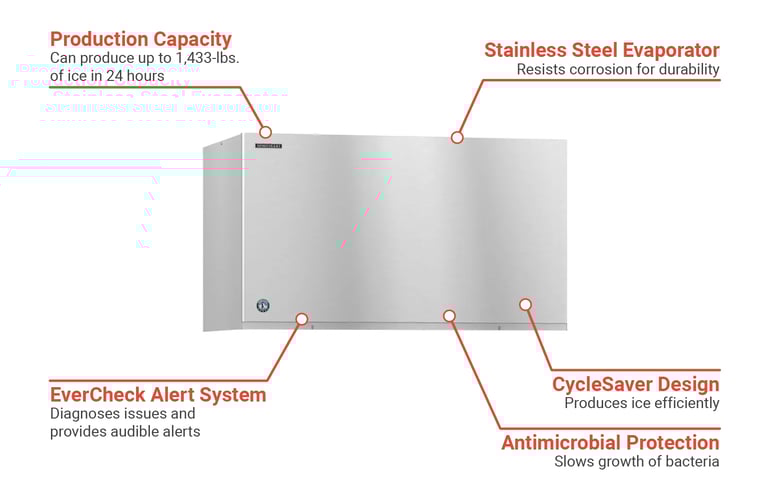

Product Features

*Free shipping on Hoshizaki KM-1301SRJZ3 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, remote condenser (priced separately), production capacity up to 1433 lb/24 hours at 70°/50° (1330 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1301SRJZ3 Specifications

Documents

Spec Sheet

Warranty

Manual
