Hoshizaki KM-1301SAJ 48" Crescent Cube Ice Machine Head - 1365 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$9,375.00 /Each
Contact us for details!
Hoshizaki KM-1301SAJ Description
The Hoshizaki KM-1301SAJ crescent cube ice machine head can produce 1,301 to 1,365 pounds of crescent cube ice over a 24-hour period, depending on the ambient operating temperature. The CycleSaver™ design produces the same amount of ice as comparable units in fewer cycles. When service is required, operators are alerted to any issues by the EverCheck™ system. H-Guard Plus™ antimicrobial agent is built into the machine to slow the growth of bacteria.
The stainless steel exterior construction helps prevent damage and resists corrosion; the evaporator is also made of stainless steel to withstand long-term exposure to water and ice. The air-cooled, self-contained condensing system uses R-404A refrigerant, and the air filter and panels are removable for replacement and maintenance. The Hoshizaki KM-1301SAJ crescent cube ice machine head should have at least 6 inches of clearance on all sides for proper airflow.
Note: This unit must be paired with an ice maker bin or ice dispenser.

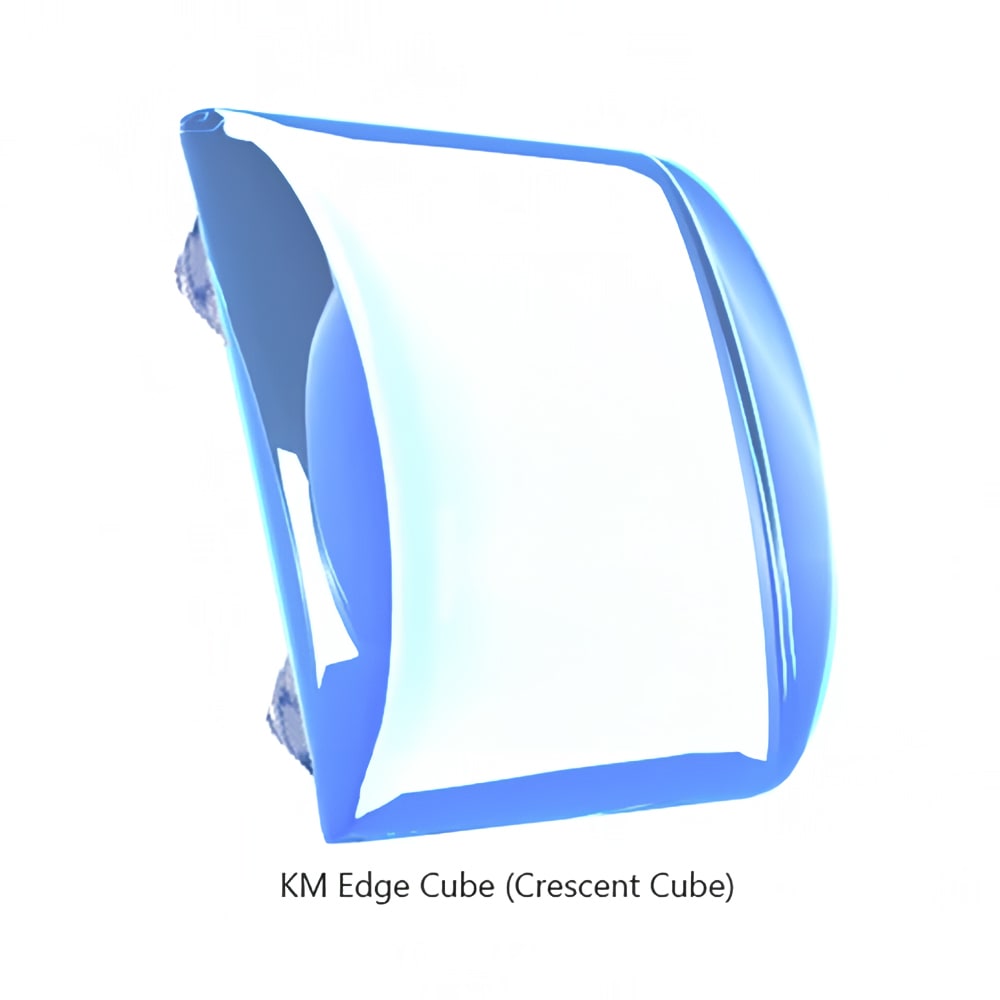

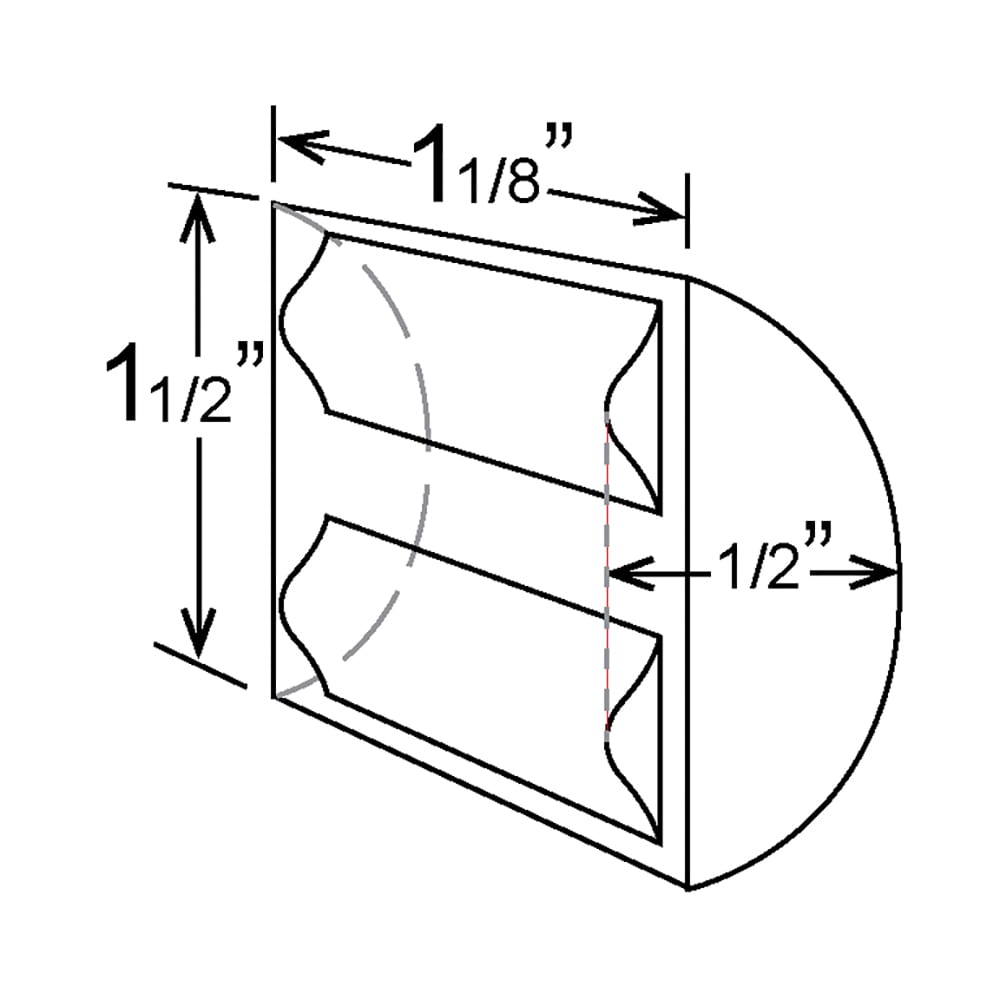

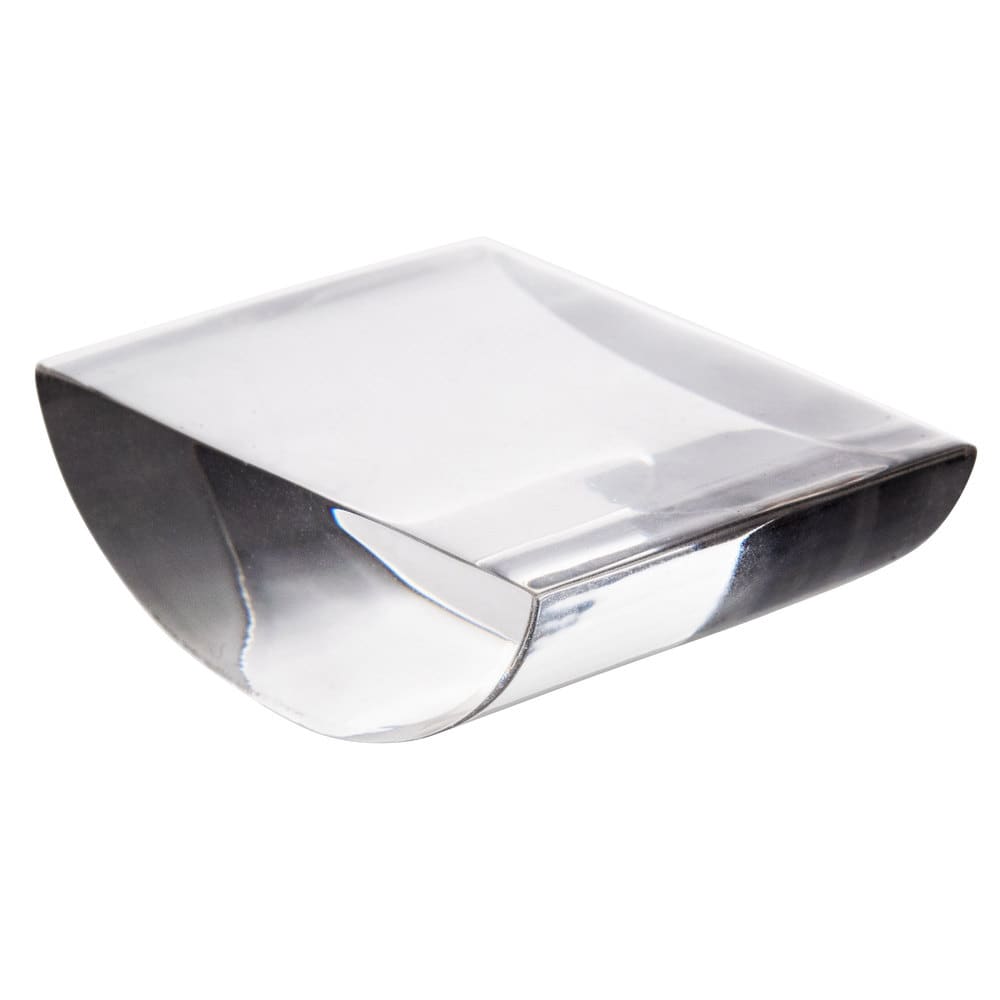

- Crescent cube ice measures 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
- Makes 1,301-1,365 lbs. of ice every 24 hrs. depending on operating temperatures
- CycleSaver technology produces just as much ice as competitors in fewer cycles
- H-Guard Plus antimicrobial agent is built into the unit to slow bacteria growth
- EverCheck alert system lets the operator know when maintenance is needed
- Exterior is durable and resistant to corrosion with its stainless steel construction
- R-404A refrigerant keeps temperatures cool
- Evaporator is constructed of stainless steel for strength
- Air-cooled condenser is self-contained
- Air filter is removable and replaceable
- Panels are easy to remove for maintenance and cleaning
- Bin is sold separately
- 19,400 BTU
- 208-230 V/60 Hz/1 ph, 12.4 A
- Overall Dimensions: 48 1⁄4 in. W x 27 7⁄16 in. D x 27 3⁄8 in. H
- Can operate in ambient temperatures from 45-100 degrees F
- Water temperature should be between 45-90 degrees F
- Optimal water pressure is between 10-113 PSIG
- 6-in. clearance is required on rear, sides, and top for ideal air circulation
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1301SAJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1365 lb/24 hours at 70°/50° (1301 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 12.4 amps, NSF, UL
Watch a video about this product
Hoshizaki KM-1301SAJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1365 |
| Compressor Type | Air Cooled |
| Depth (in) | 27.38 |
| Height (in) | 27.38 |
| Ice Type | Crescent Cube |
| Kitchen Innovations Awards | 2018 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 338.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM1301SAH
Compare to Similar Items
| Attributes |
Hoshizaki KM-1301SAJ Hoshizaki KM-1301SAJ 48" Crescent Cube Ice Machine Head - 1365 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $9,375.00 / Each | $8,361.00 / Each | $8,871.00 / Each | $8,871.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
| 24 Hr. Production (lb) | 1365 | 1553 | 1660 | 1688 |
| Ice Type | Crescent Cube | Half Cube | Half Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 48 | 48 | 48 | 48 |
| Rating | Best | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | KM EDGE | Prodigy ELITE® | Indigo NXT™ | Indigo NXT™ |
| Refrigerant | R404A | R290 (Hydrocarbon) | R410A | R410A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
