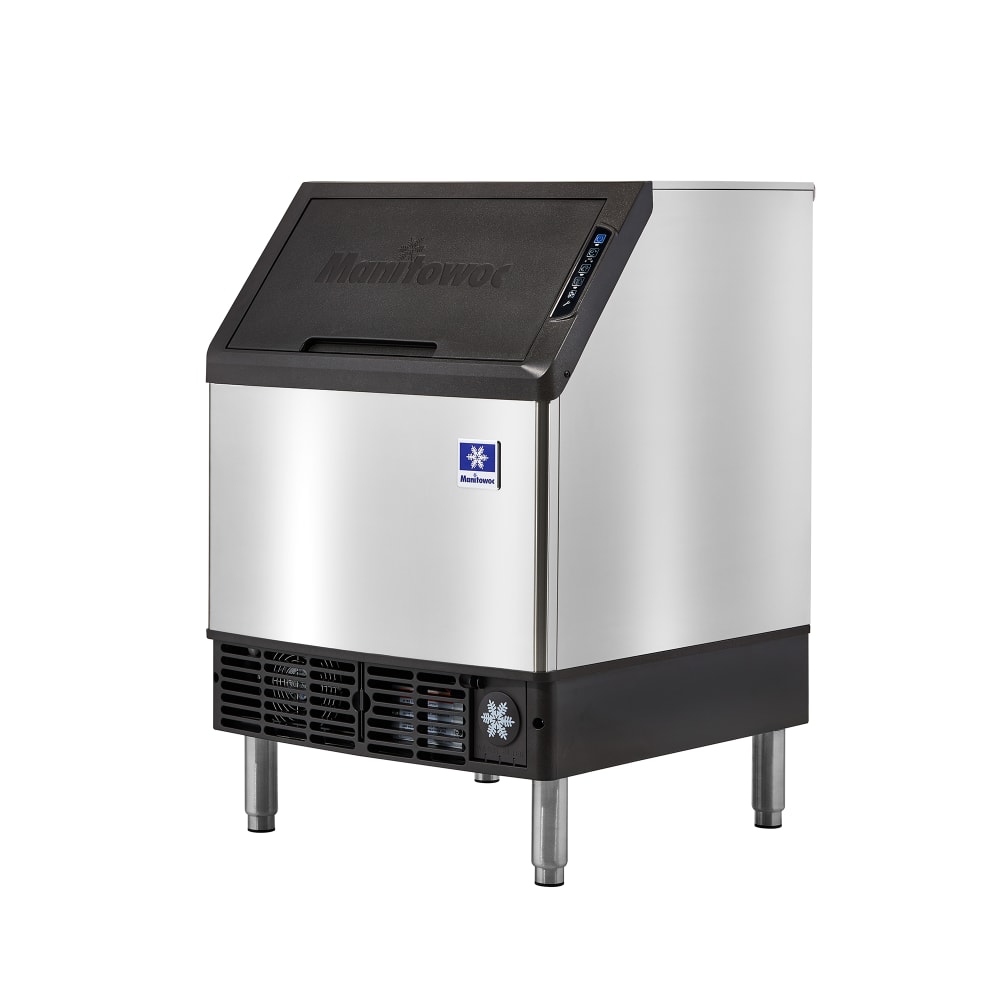

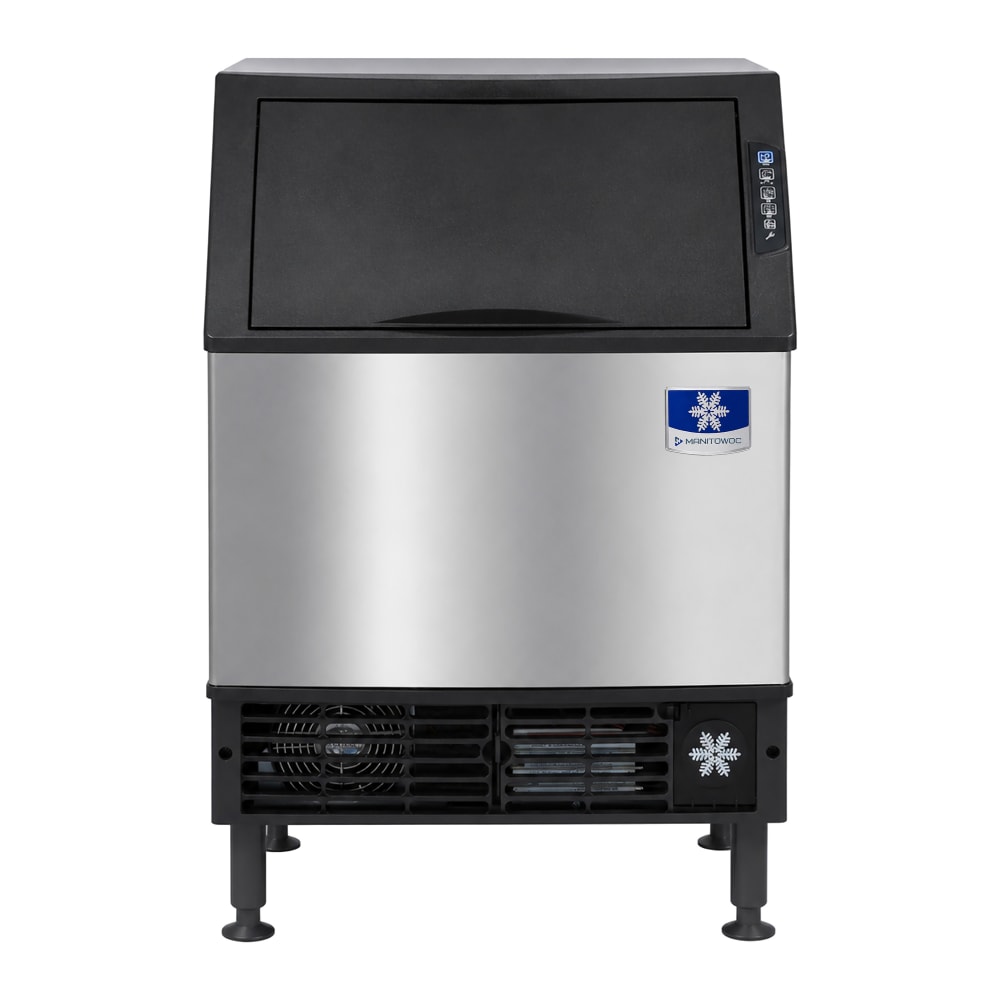

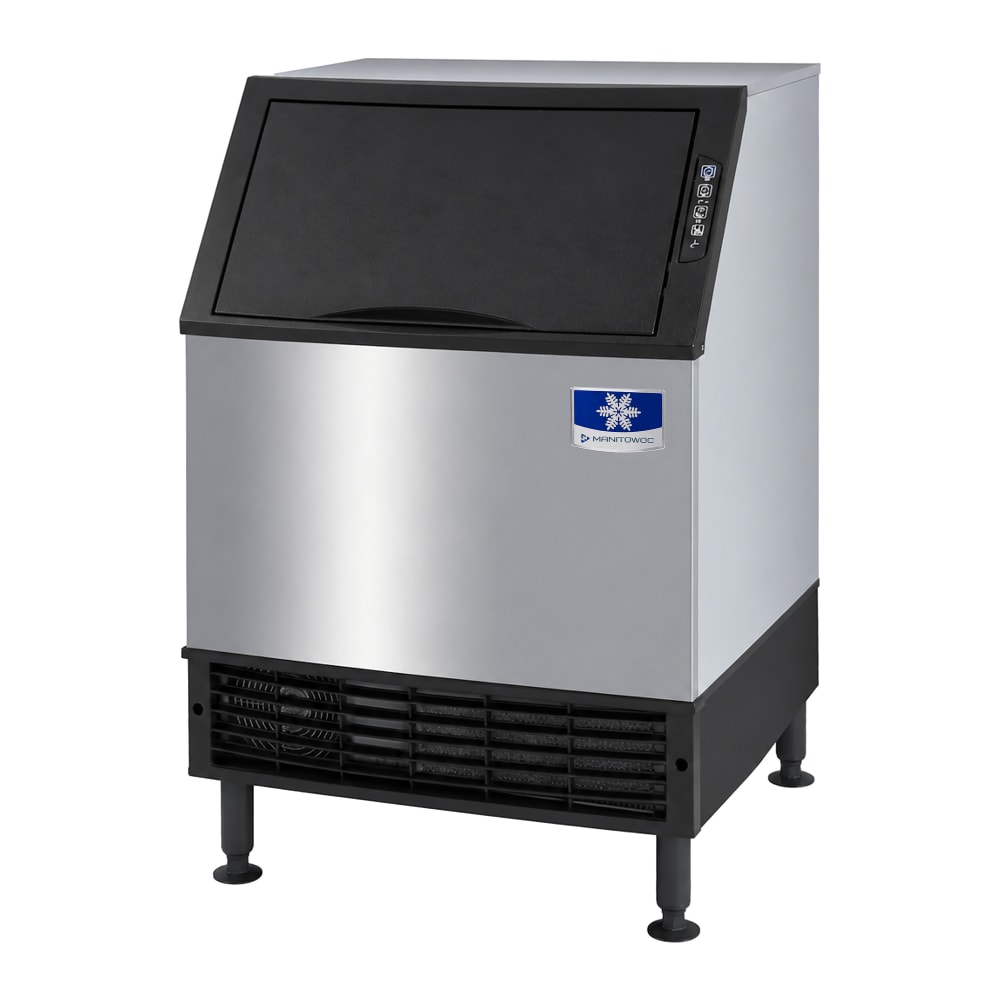

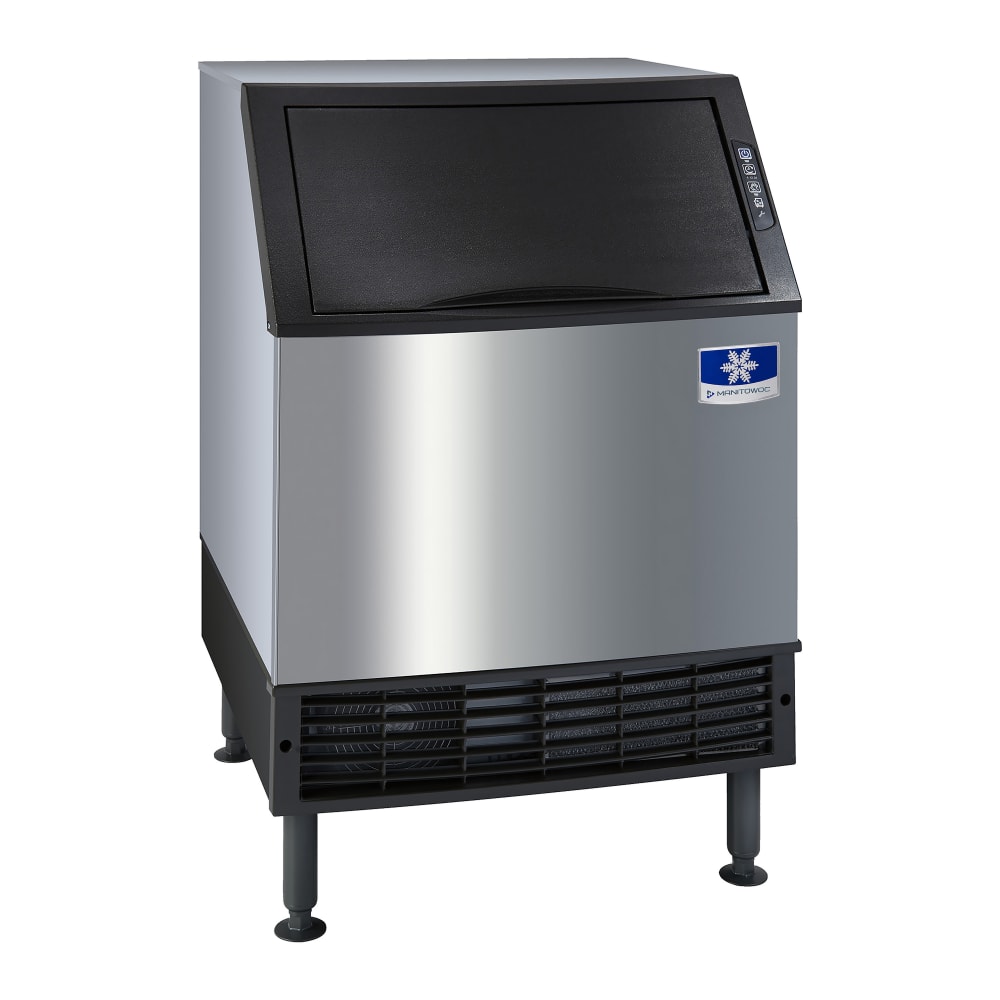

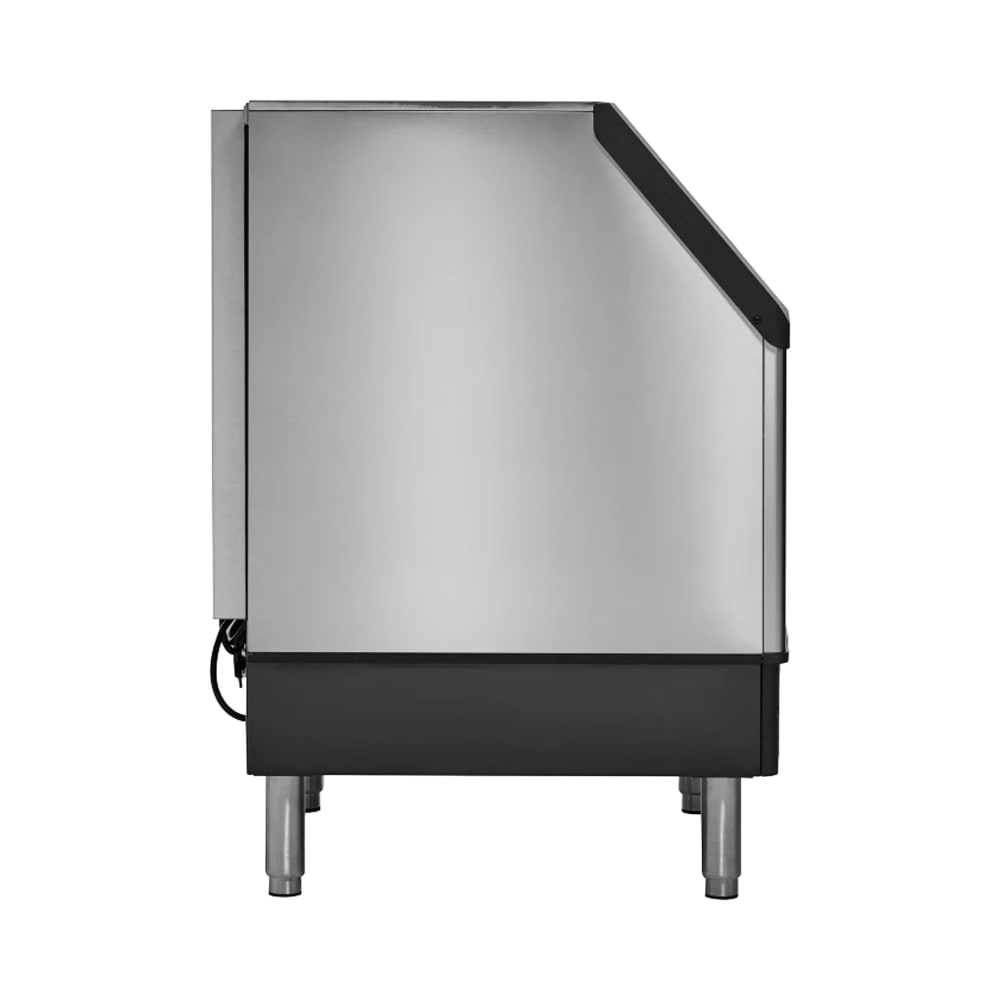

Manitowoc Ice UDP0140A 26"W NEO® Full Cube Undercounter Ice Machine - 140 lbs/day, Air Cooled, Integrated Water Filter
QUICK SHIP: Ships in 1 Business Day
$2,780.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Manitowoc Ice UDP0140A Description
Ideal for compact commercial spaces, the Manitowoc Ice UDP0140A NEO® full-cube undercounter ice machine measures 26 inches wide and includes a front-breathing layout for zero-clearance installation. This model produces up to 140 pounds of dice-style ice every 24 hours and stores 90 pounds in an insulated, removable bin. This unit features a 5-micron onboard water filter that improves ice clarity and helps prevent internal buildup over time. For quick access to key components, this unit features a forward-sliding bin.

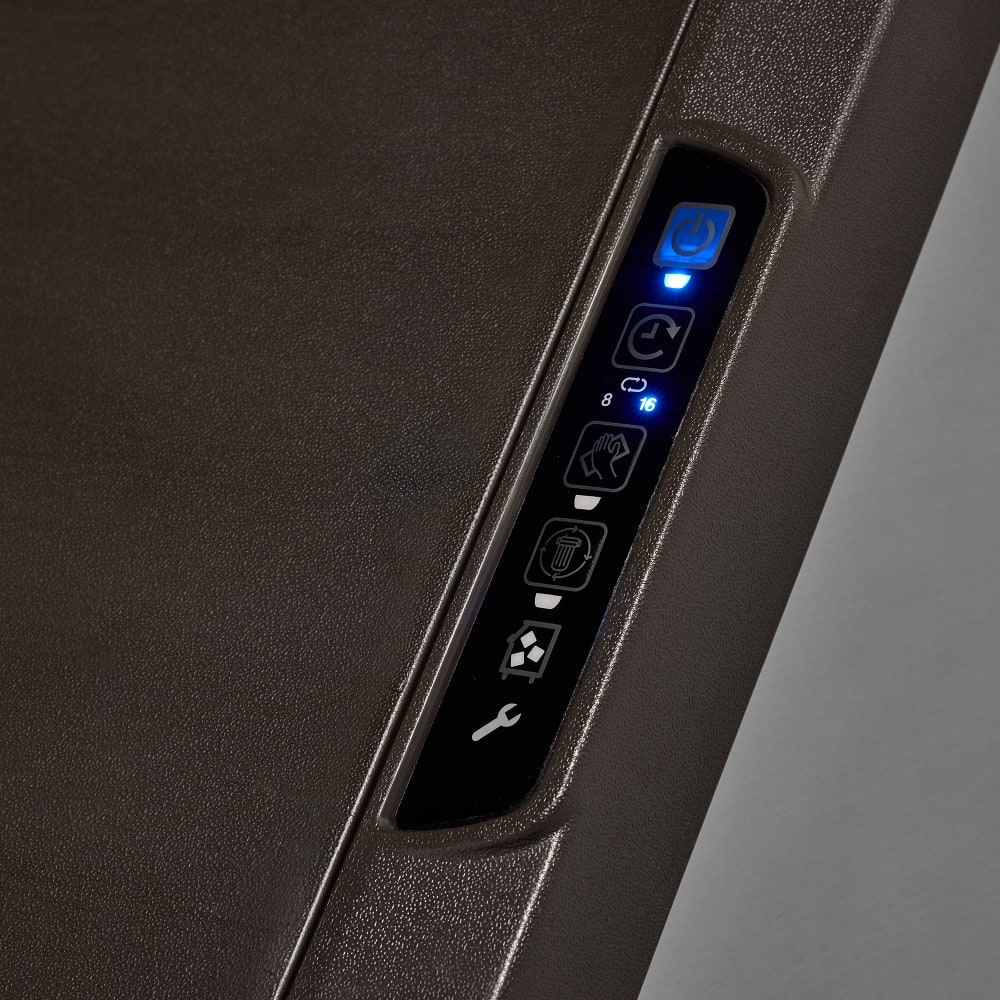

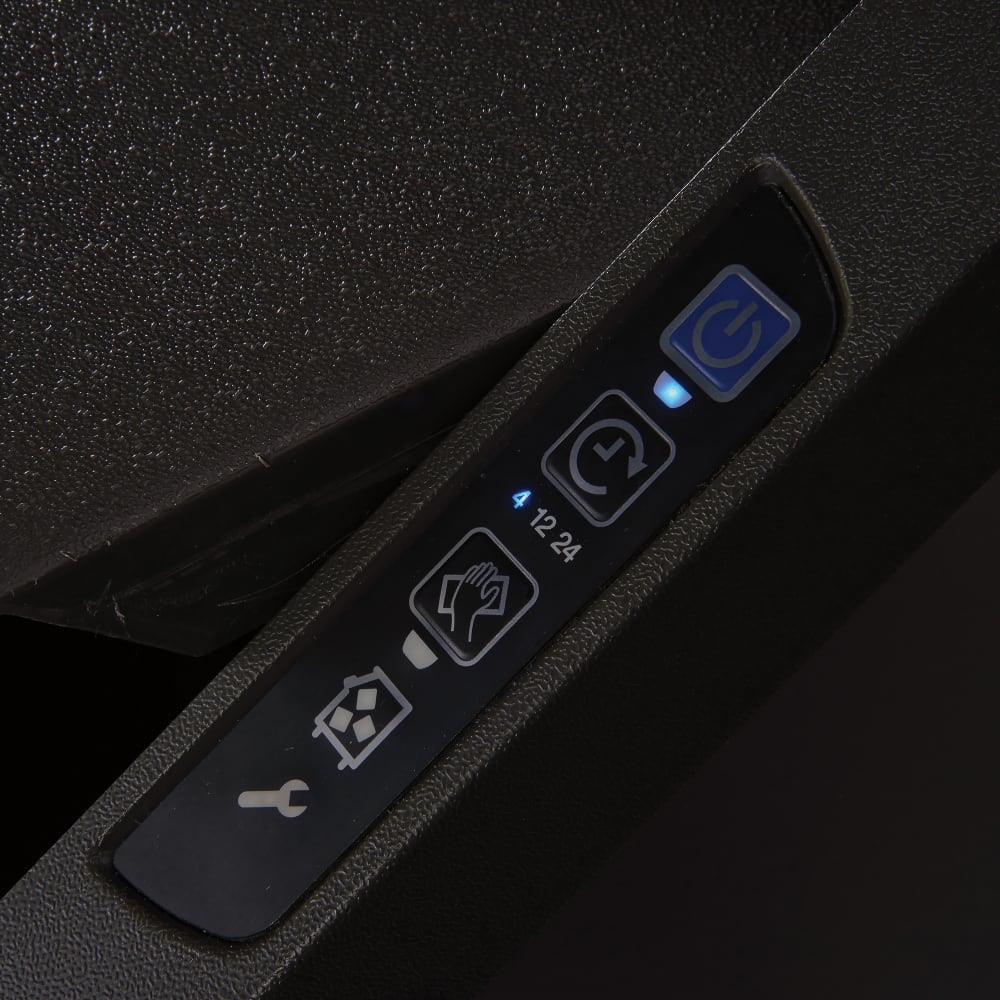

The Manitowoc Ice UDP0140A NEO full cube undercounter ice machine is equipped with a self-contained, air-cooled refrigeration system and a 1⁄2-horsepower compressor. A user-friendly touchpad provides access to core functions and includes alert lights for cleaning, service, filter replacement, and bin status. Designed for efficiency, it includes 6-inch adjustable legs to aid installation on uneven floors.
- NEO series
- Undercounter configuration
- Produces full cube (dice-style) ice
- Up to 140 lbs. ice production per 24 hours
- 110 lbs. AHRI-certified production at 90 degrees/70 degrees F
- Touchpad control panel with on/off button
- Delay mode
- Clean cycle button
- Full bin indicator light
- Integrated water filtration
- Filter change indicator
- Integrated 5-micron water filtration system
- Gravity drain connection
- Includes 6-in. adjustable legs
- 90-lb. storage capacity
- Insulated interior
- Removable
- Forward-sliding access
- Lift-up front door
- Air-cooled condenser
- Self-contained
- R290 hydrocarbon refrigerant
- Ambient operating range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 5 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UDP0140A within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Manitowoc Ice UDP0140A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 140 |
| Also Known As | UDF0140A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2025 |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 160.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice UDF0140A161
Compare to Similar Items
| Attributes |
Manitowoc Ice UDP0140A Manitowoc Ice UDP0140A 26"W NEO® Full Cube Undercounter Ice Machine - 140 lbs/day, Air Cooled, Integrated Water Filter Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,780.00 / Each | $1,679.00 / Each | $3,320.00 / Each | $2,921.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Full Cube | Full Cube | Crescent Cube | Full Cube |
| 24 Hr. Production (lb) | 140 | 165 | 163 | 168 |
| Bin Capacity (lb) | 90 | 89 | 78 | 92 |
| Width (in) | 26 | 26 | 23.75 | 26 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity | Gravity |
| Rating | Best | Better | Best | Better |
| Special Features | Adjustable Leveling Feet | Removable Air Filter | Alert System | Removable Air Filter |
| Series | NEO® | PKU | KM Series | KDF Series |
| Suggested Use | Commercial | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door | Lift Door |
| Depth (in) | 28.5 | 26.5 | 28 | 26.5 |
| Height (in) | 38.5 | 38.5 | 39 | 38.5 |
| Design | Standard Height | Standard Height | ADA Height | Standard Height |
| Refrigerant | R290 (Hydrocarbon) | R404A | R134a | R404A |
| Voltage | 115 | 115 | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor | 1-year Parts & Labor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
The unit produces 140 lbs. of full cube ice daily.
The bin stores 90 lbs. of ice in an insulated container.
The unit produces full cube dice-style ice.
Yes, the front-breathing design fits undercounter installations.
Yes. A 5-micron onboard filter improves ice clarity.
The touchpad includes clean, delay, and status indicators.
Yes, the forward-sliding bin provides access to stored ice.
The unit uses R290 hydrocarbon refrigerant in a sealed system.
It requires a water line, drain connection, and 115V outlet.
