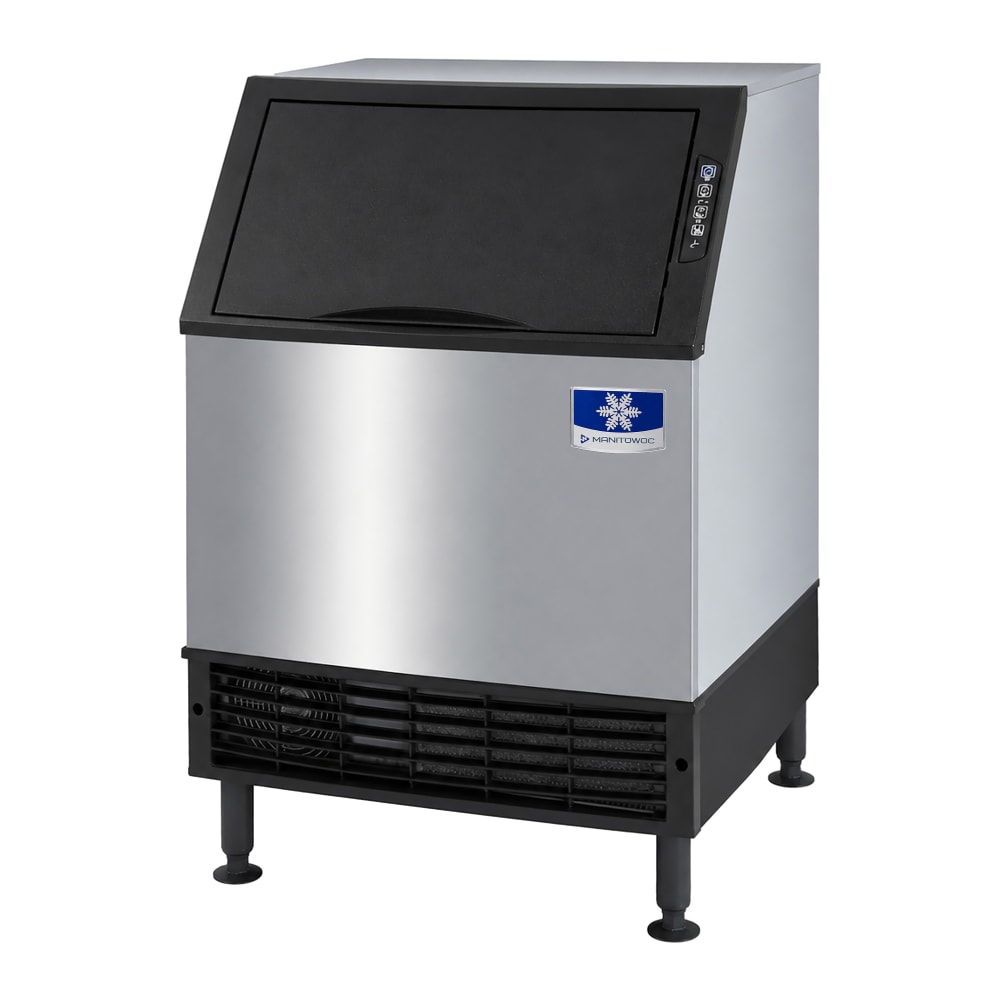

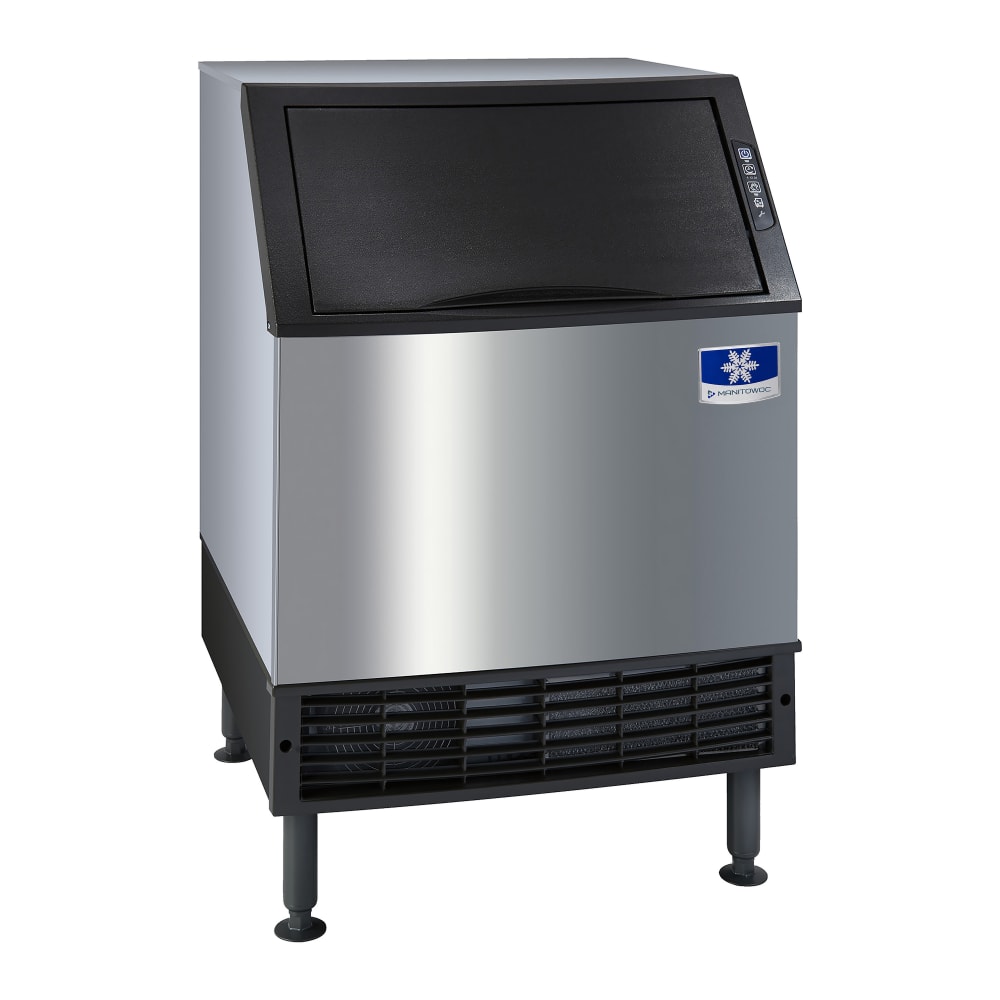

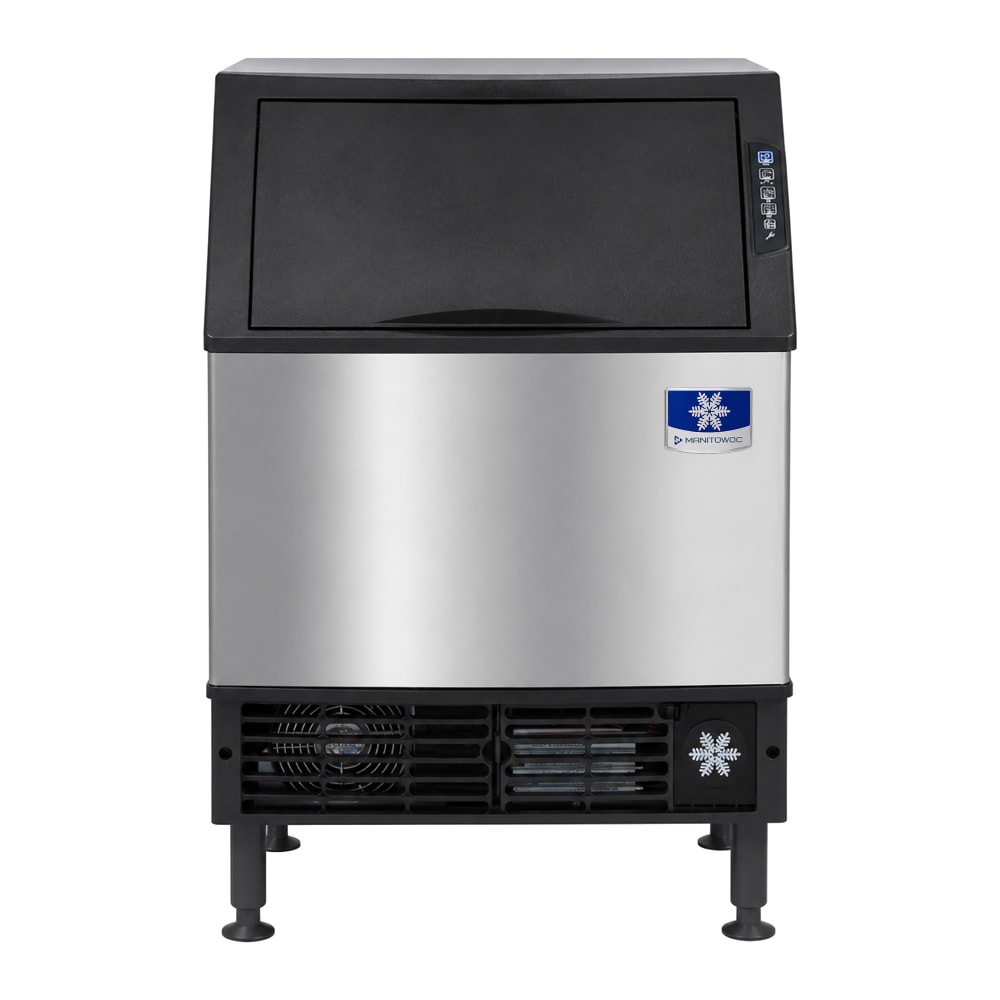

Manitowoc Ice UYP0140A 26"W NEO® Half Cube Undercounter Ice Machine - 150 lbs/day, Air Cooled, Integrated Water Filter
QUICK SHIP: Ships in 1 Business Day
$2,780.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Manitowoc Ice UYP0140A Description
Front-ventilated airflow allows the Manitowoc Ice UYP0140A NEO® undercounter ice machine to sit flush against other equipment, drawing cool air through the grill and pushing heat forward. This design protects critical components and saves space behind crowded bars, while energy-saving R290 refrigerant helps reduce operating costs. An integrated 5-micron water filter helps ensure good-tasting, clean ice.
An angled lift-up door gives bartenders a clear view of half-dice cubes, and the Manitowoc Ice UYP0140A NEO undercounter ice machine positions the opening at a comfortable height to prevent awkward scooping. The wide bin stores 90 pounds, and its forward-sliding base moves out for service, cutting downtime and preserving beverage flow during peak rushes.
- NEO series
- 150-lb. daily production capacity
- 90-lb. storage bin capacity
- Undercounter configuration
- Half-dice cube ice type

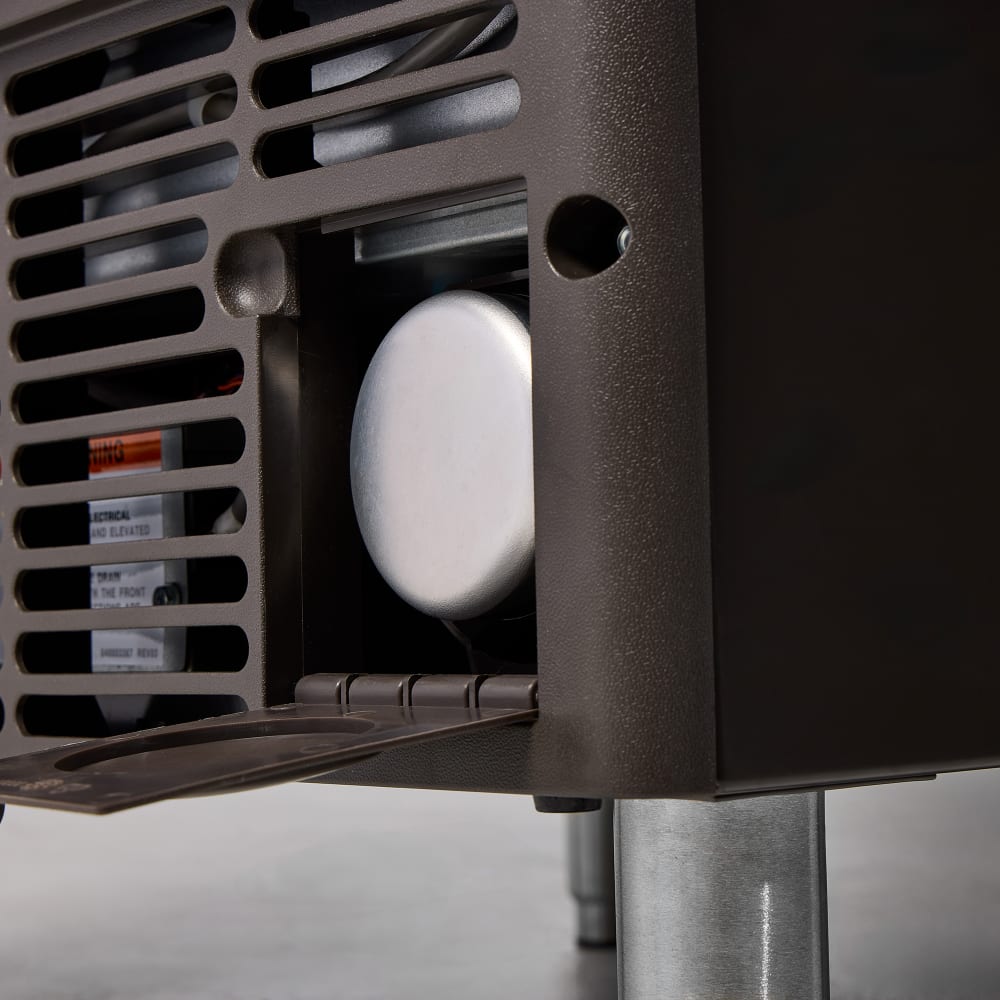

- Forward-sliding insulated storage
- Front ventilation
- Integrated 5-micron onboard water filtration system

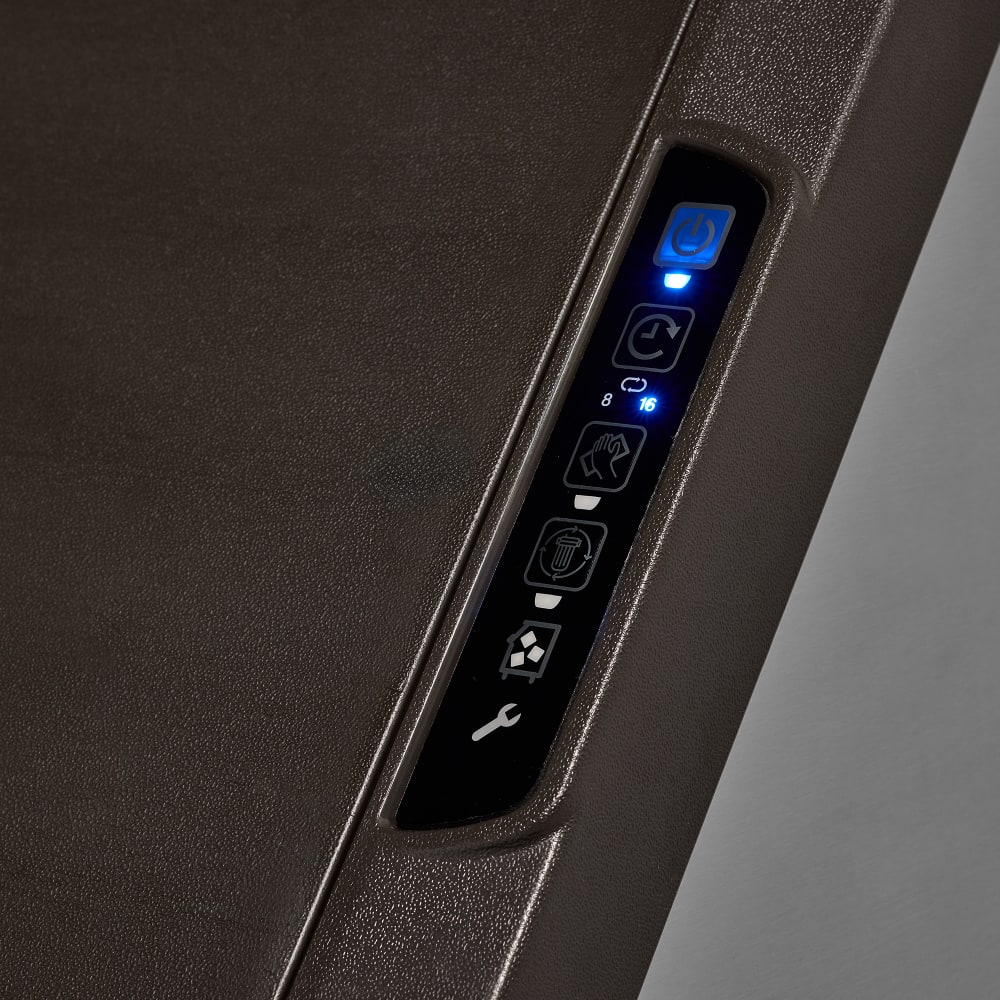

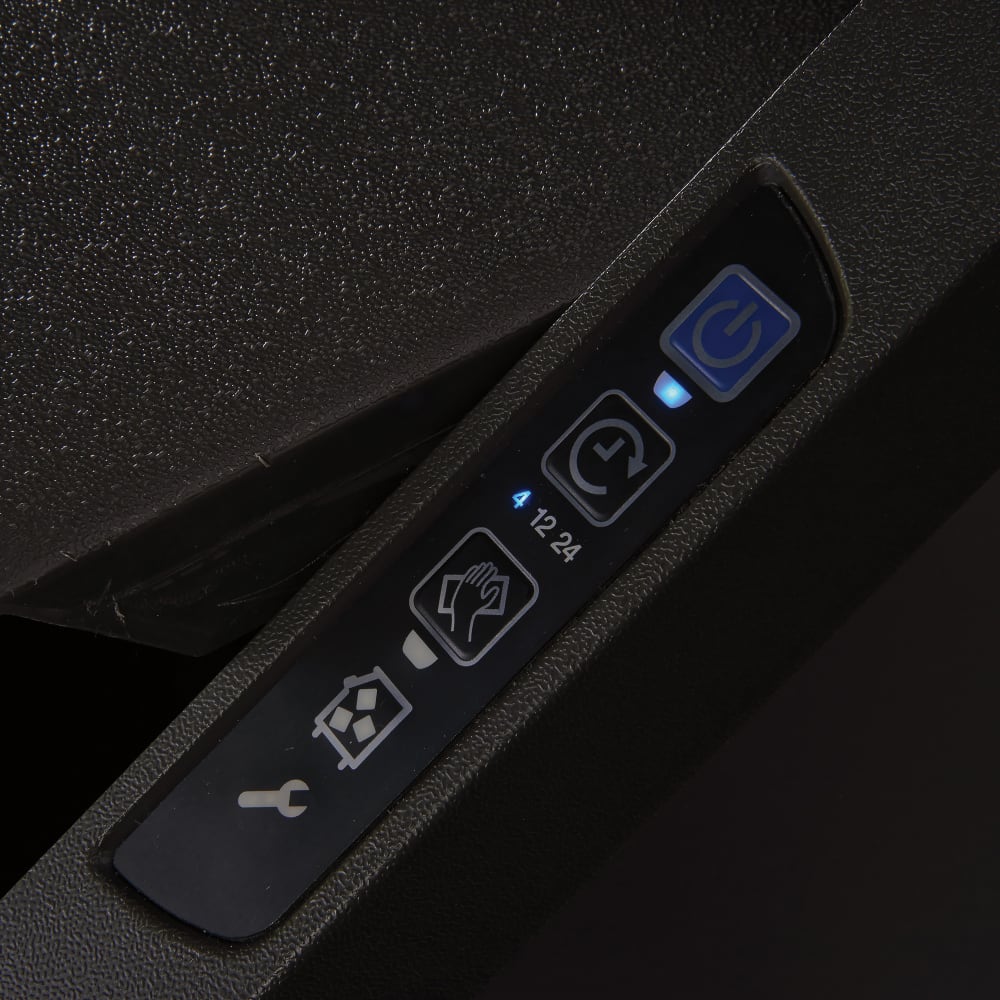

- Touchpad controls
- 6-in. adjustable leveling legs
- R290 hydrocarbon refrigerant
- Air-cooled, self-contained condenser
- Average heat rejection: 2,500 BTU/hr
- Peak heat rejection: 2,900 BTU/hr
- Ambient temperature range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- Water inlet pressure range: 20-80 psi
- Condenser inlet pressure: 20-150 psi
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 5 A
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice UYP0140A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, half-dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 150 lbs./24 hours at 70/50 (114 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI
Watch a video about this product
Manitowoc Ice UYP0140A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 150 |
| Also Known As | UYF0140A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | NEO® |
| Special Features | Adjustable Leveling Feet |
| Special Features | Integrated Water Filtration |
| Special Features | Removable & Insulated Bin |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 26 |
| Weight | 160.00 |
