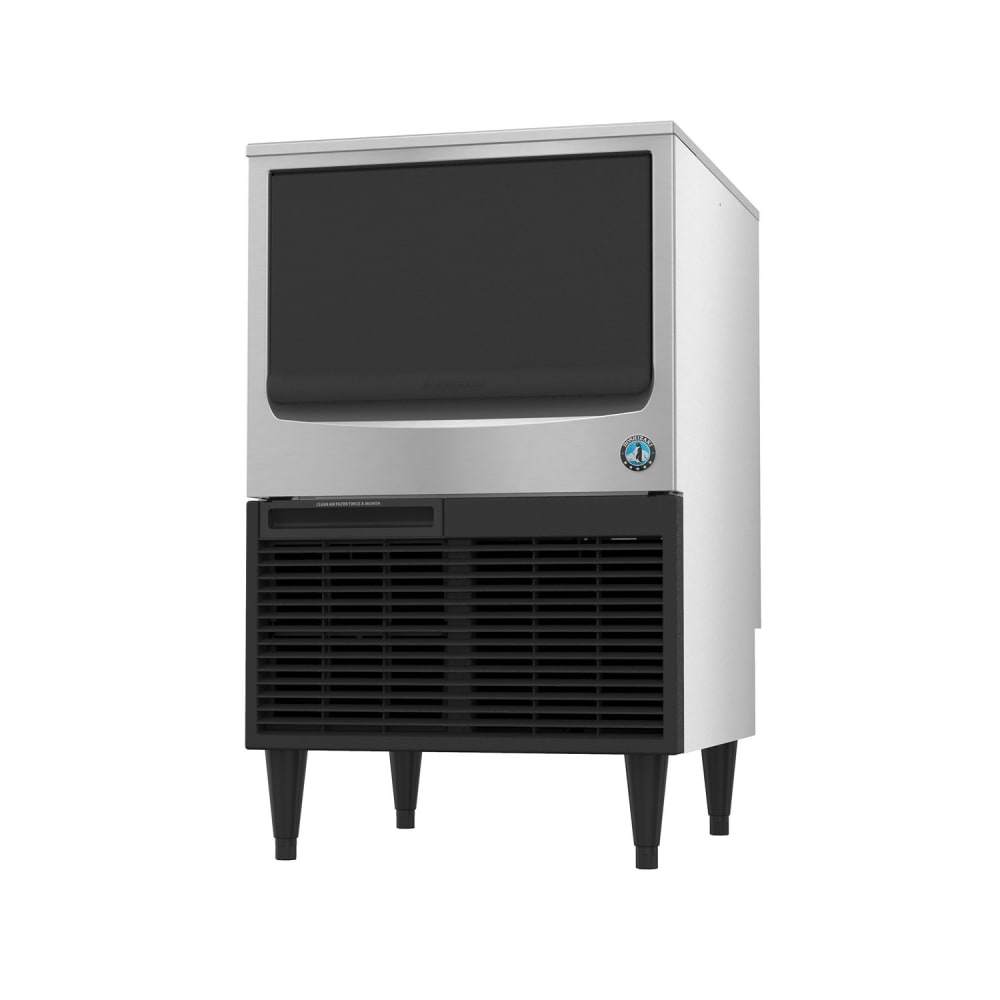

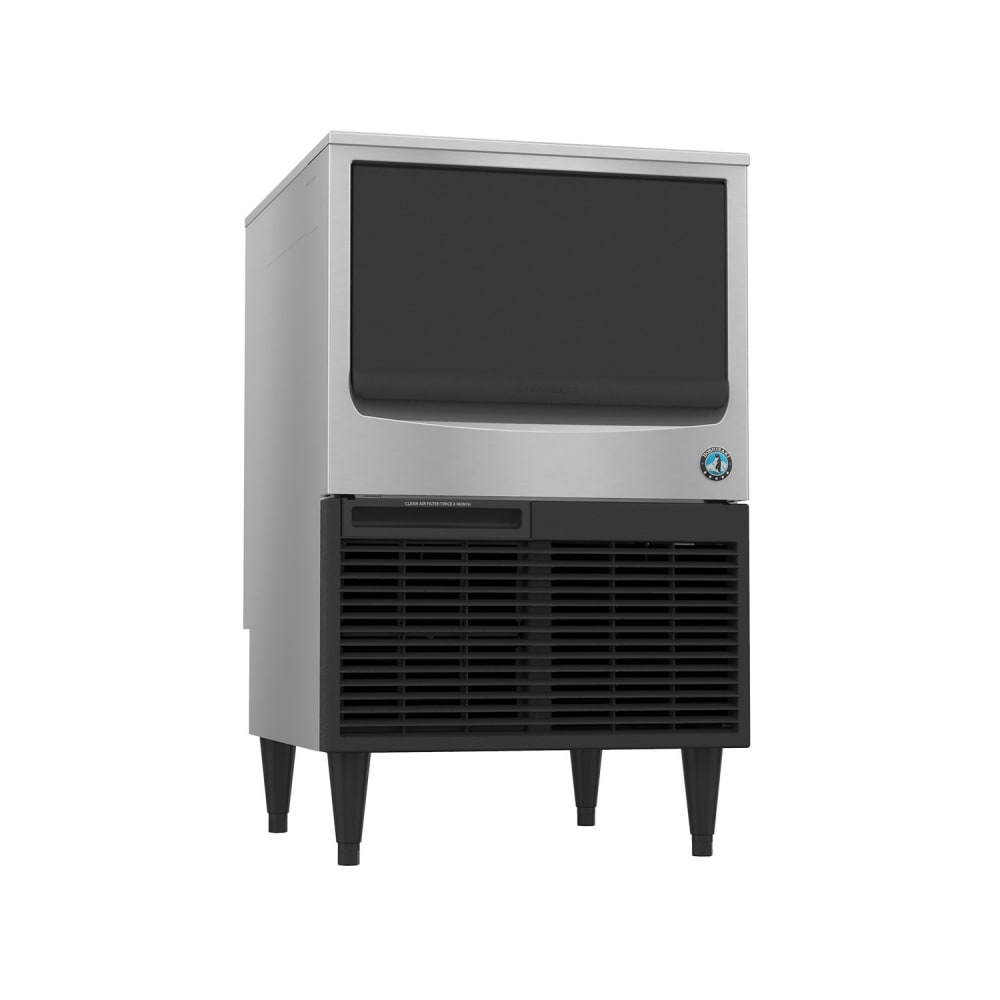

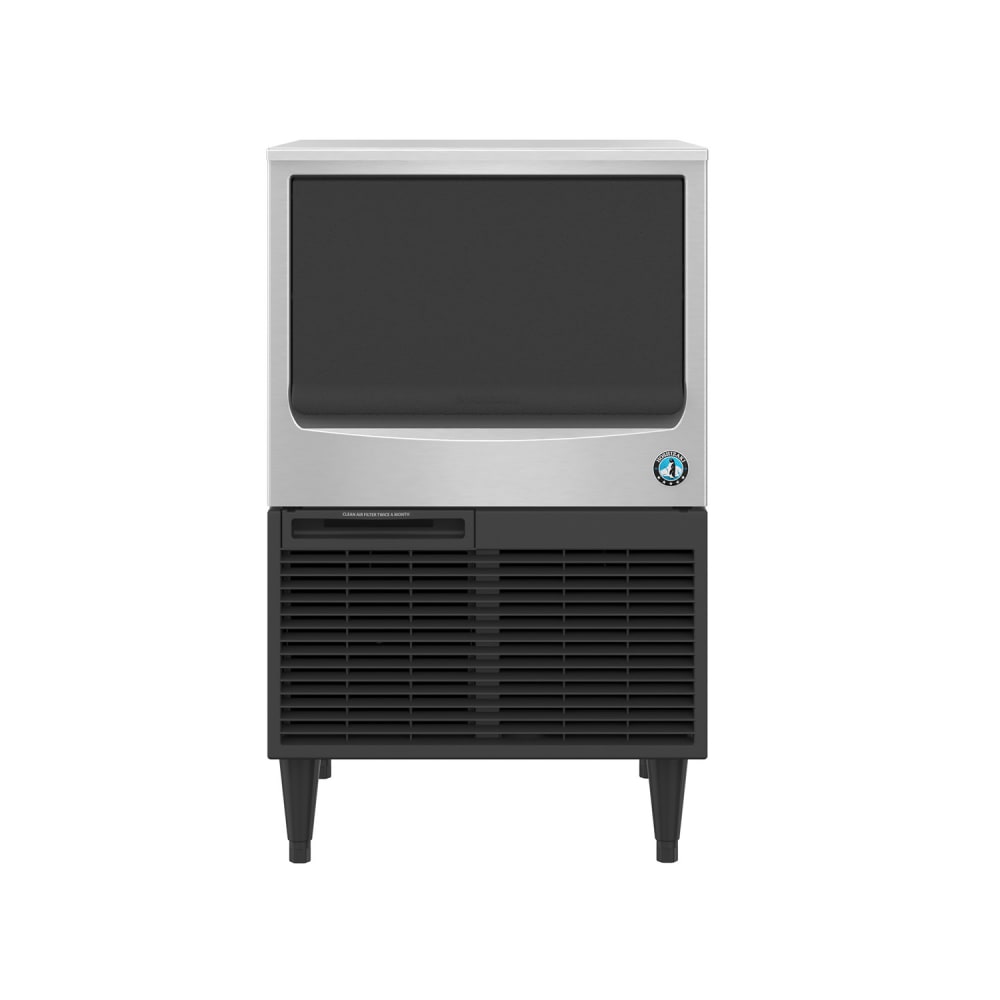

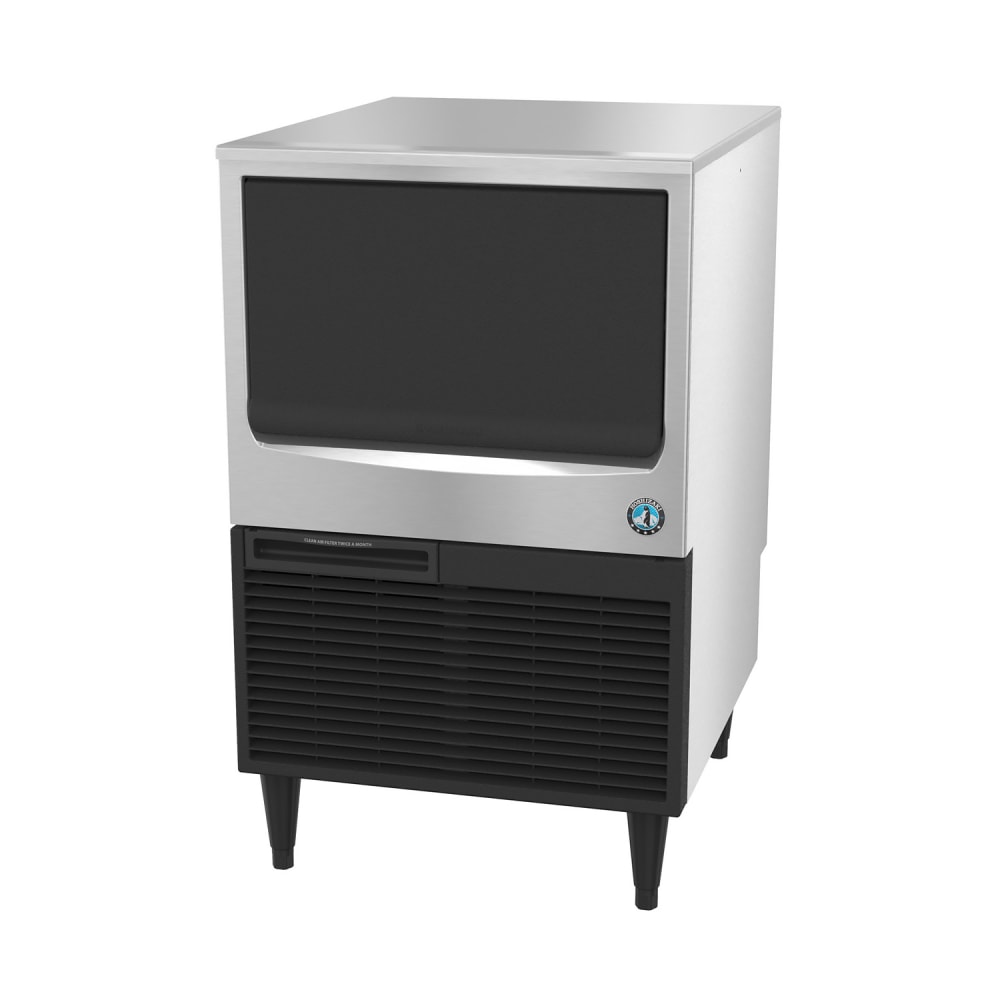

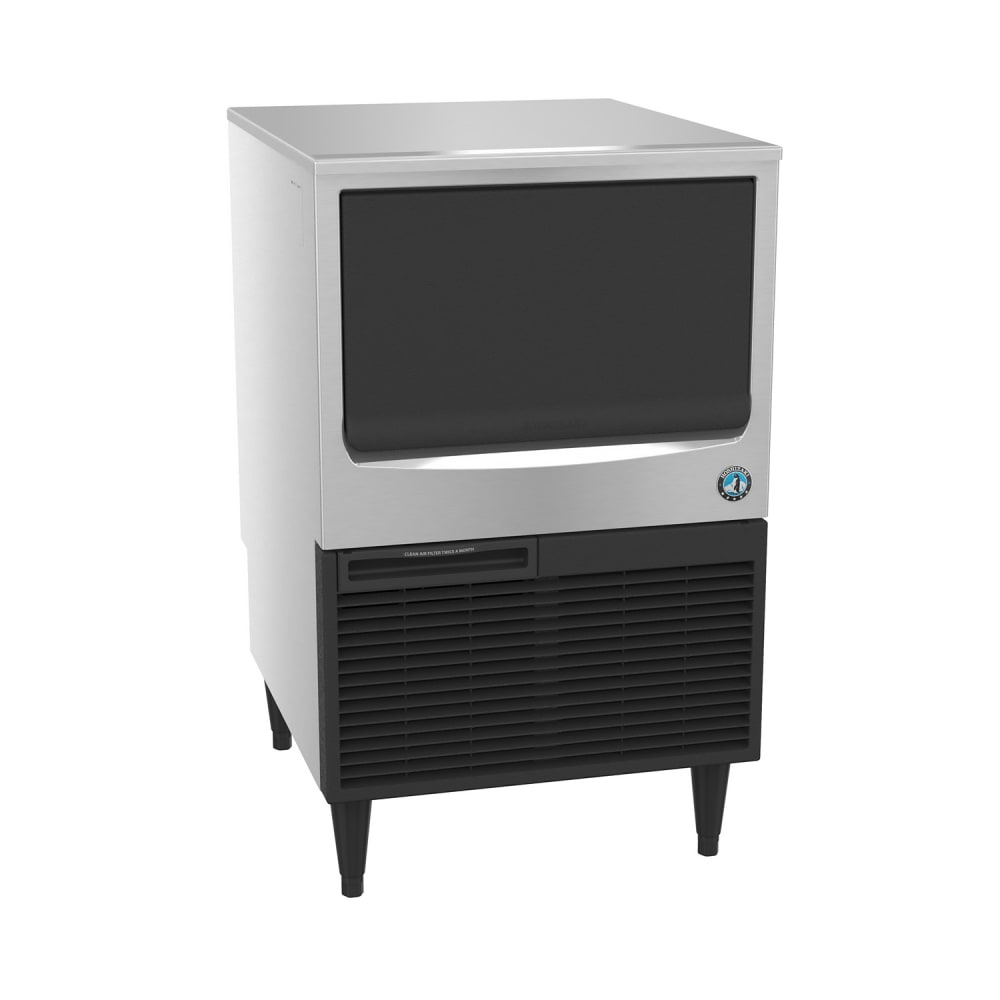

Hoshizaki KM-161BAJ 23 3/4"W Crescent Cube Undercounter Ice Machine - 163 lbs/day, Air Cooled, ADA
IN STOCK: Ships in 1 Business Day
5+ in Stock
$3,320.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Hoshizaki KM-161BAJ Description
Featuring EverCheck™ technology, the Hoshizaki KM-161BAJ undercounter ice maker informs operators of system malfunctions quickly. With a simple on and off switch, this unit can be controlled without removing the panel. Its stainless steel exterior can be wiped clean, and its slide-in door supports quick content access. As many as 78 pounds of ice can be stored in the bin for peak business hours.
In ideal situations, the Hoshizaki KM-161BAJ undercounter ice maker produces as much as 163 pounds of crescent ice per day. In the self-contained condenser, air flows in and out the front, and its filter is removable for cleaning. The H-GUARD Plus Antimicrobial protects the ice scoop from bacteria buildup for clean ice.
- 163-lb. maximum daily ice production
- 123-lb. AHRI-certified daily ice production
- 78-lb. storage capacity
- Stainless steel exterior for durability
- EverCheck technology alerts users of system malfunctions
- Produces crescent cubes measuring 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Front-breathing, self-contained condenser
- Condenser is air cooled with components that can be serviced quickly
- Slide-in door for full access
- Power switch operation
- Runs with R134A refrigerant
- Corrosion-resistant stainless steel evaporator
- CycleSaver™ design makes a lot of ice each cycle
- 6-in. legs
- Ideal water temperature: 45-90 degrees F
- Ideal ambient air temperature: 45-100 degrees F
- 3,050-BTU heat transfer capacity
- ADA compliant
- 23.82 in. W x 28.43 in. D x 39 in. H
- 7.1 A, 8.60 kW
- 115 V/60 Hz/1 ph, 6.5-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-161BAJ within the 48 contiguous states.
From The Manufacturer
Hoshizaki KM-161BAJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 163 |
| Bin Capacity (lb) | 78 |
| Compressor Type | Air Cooled |
| Depth (in) | 28 |
| Design | ADA Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | KM Series |
| Special Features | Alert System |
| Special Features | Antimicrobial |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 23.75 |
| Weight | 161.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM160BAJ
Compare to Similar Items
| Attributes |
Hoshizaki KM-161BAJ Hoshizaki KM-161BAJ 23 3/4"W Crescent Cube Undercounter Ice Machine - 163 lbs/day, Air Cooled, ADA Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $3,320.00 / Each | $1,679.00 / Each | $1,679.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
| Ice Type | Crescent Cube | Full Cube | Half Cube |
| 24 Hr. Production (lb) | 163 | 165 | 165 |
| Bin Capacity (lb) | 78 | 89 | 89 |
| Width (in) | 23.75 | 26 | 26 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity |
| Rating | Best | Better | Better |
| Special Features | Alert System | Removable Air Filter | Removable Air Filter |
| Series | KM Series | PKU | PKU |
| Suggested Use | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door |
| Depth (in) | 28 | 26.5 | 26.5 |
| Height (in) | 39 | 38.5 | 38.5 |
| Design | ADA Height | Standard Height | Standard Height |
| Refrigerant | R134a | R404A | R404A |
| Voltage | 115 | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts | 1-year Parts & Labor | 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 163 lbs. of ice per day.
It includes a 78-lb. built-in storage capacity.
Yes, it uses a self-contained air-cooled condenser.
It produces crescent-shaped cube ice.
Yes, it includes EverCheck™ system alerts.
It uses R290 hydrocarbon refrigerant.
Yes, it requires a gravity drain connection.
A removable air filter supports routine cleaning.
It can produce up to 163 lb. of ice per 24 hours.
Its storage bin holds 78 lb. of ice.
It makes crescent cube ice.
It measures 23 3/4 in. W x 28 in. D x 39 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R134a refrigerant.
Its exterior is made of stainless steel.
Yes, it includes a storage bin with a 78-lb. capacity.
Its listed certifications include AHRI, cETLus Listed, NSF, and UL.
Yes, the air filter can be removed for cleaning.
It requires 7.1 A.
It uses a NEMA 5-15P plug.
It requires a 1/2-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
Yes, it is designed for an ADA-height installation.
