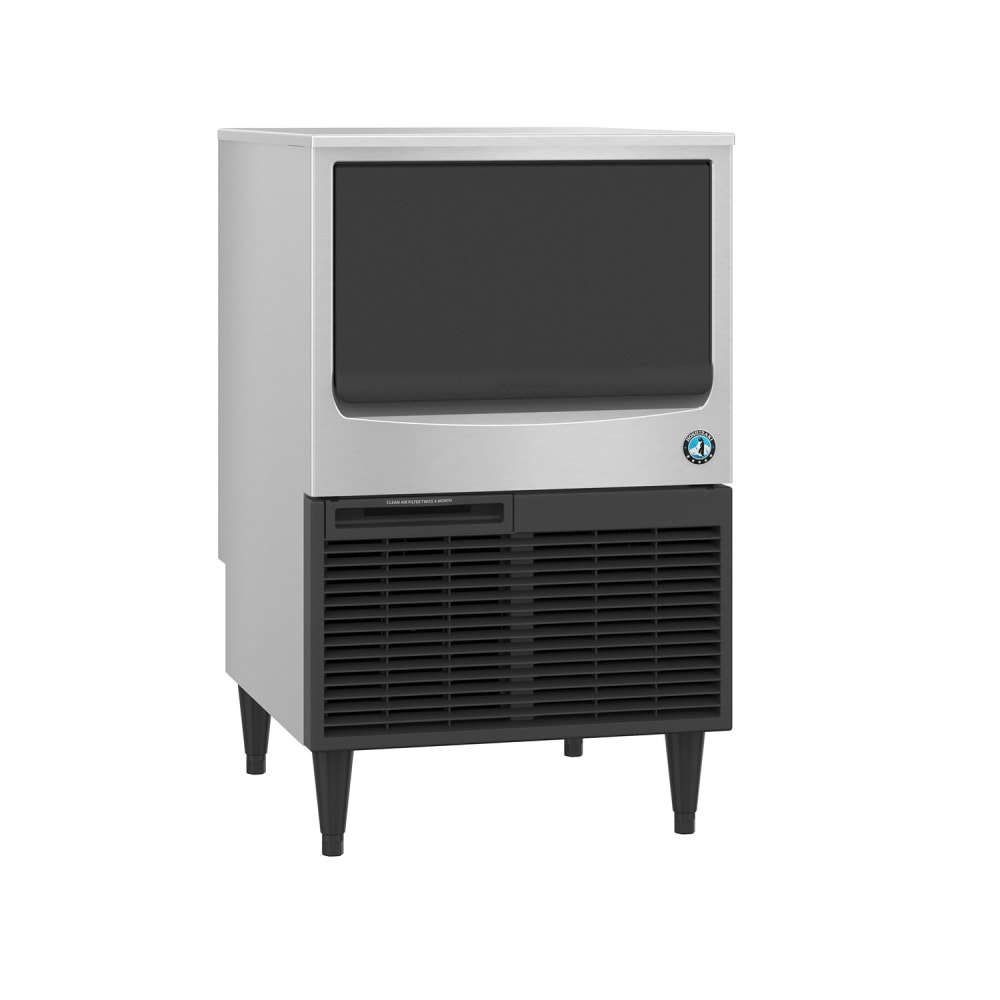

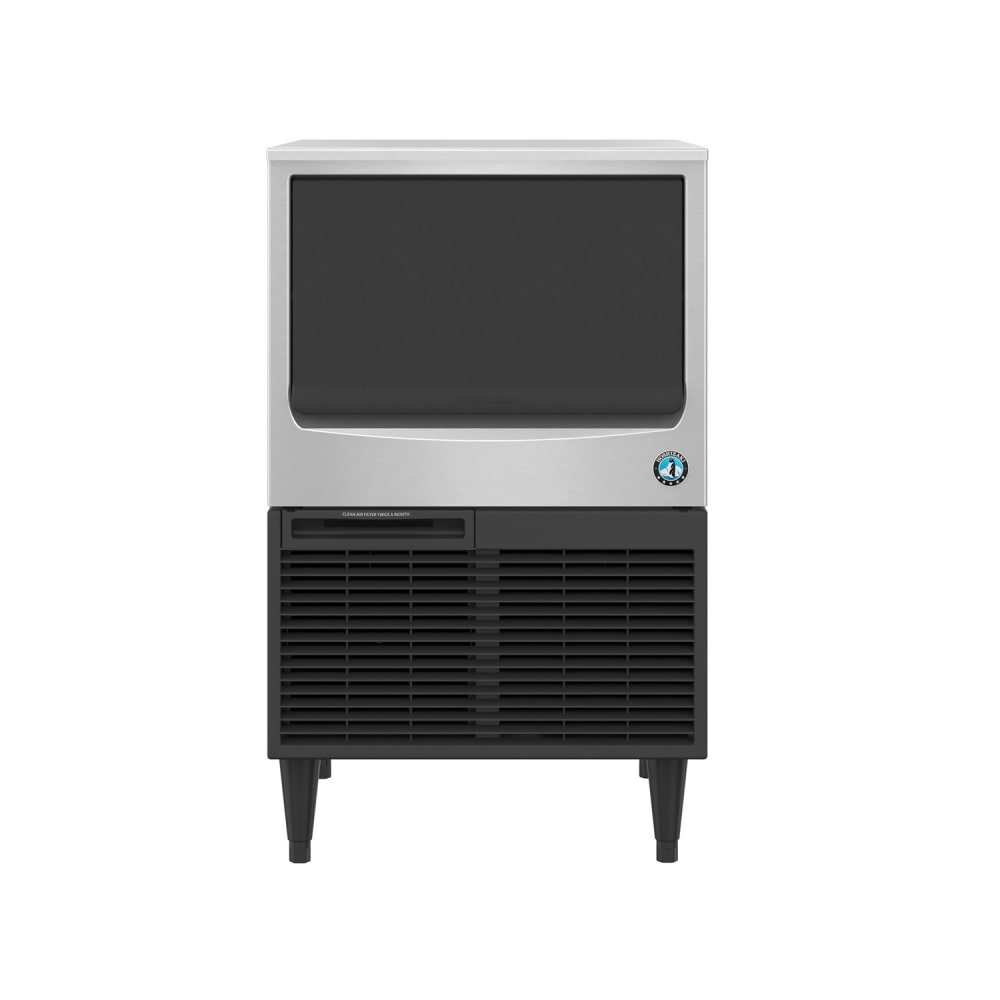

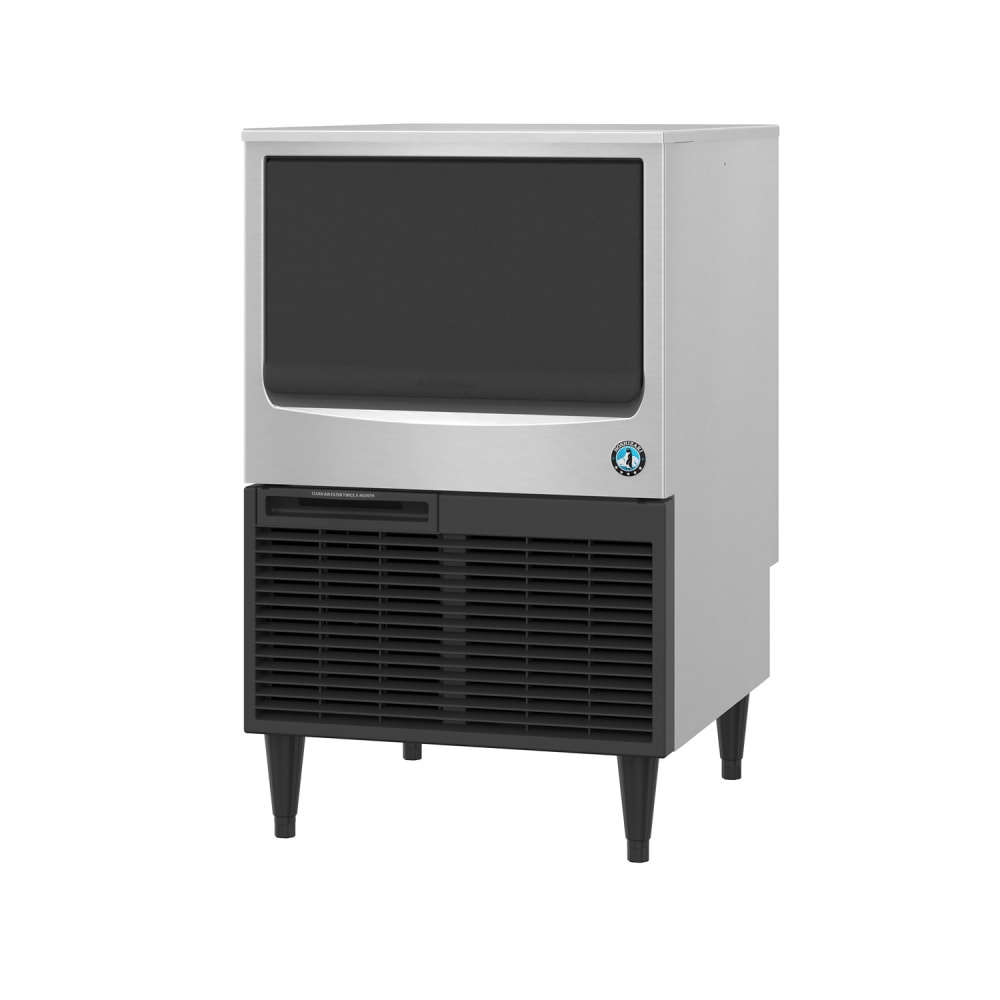

Hoshizaki KM-161BWJ 23 3/4"W Crescent Cube Undercounter Ice Machine - 153 lbs/day, Water Cooled, 115v
Typically ships in 4 - 8 Business Days
$3,710.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-161BWJ Description
The Hoshizaki KM-161BWJ undercounter ice maker produces crescent cube ice, one of the hardest types of ice cubes. Because the cubes are hard, they melt slowly, and the unique shape enables them to fit together tightly in the glass for better product displacement. This unit is water cooled, meaning it transfers heat more efficiently and uses more water than an air-cooled unit.
Fitted with a self-contained condenser and compact design, the Hoshizaki KM-161BWJ undercounter ice maker can fit into areas without much space available. It can hold as much as 78 pounds of ice in its built-in storage bin, and the bin opens from the front for streamlined access. Suitable for smaller, low-volume establishments, this ice machine head produces as much as 153 pounds of ice per 24 hours in ideal conditions.

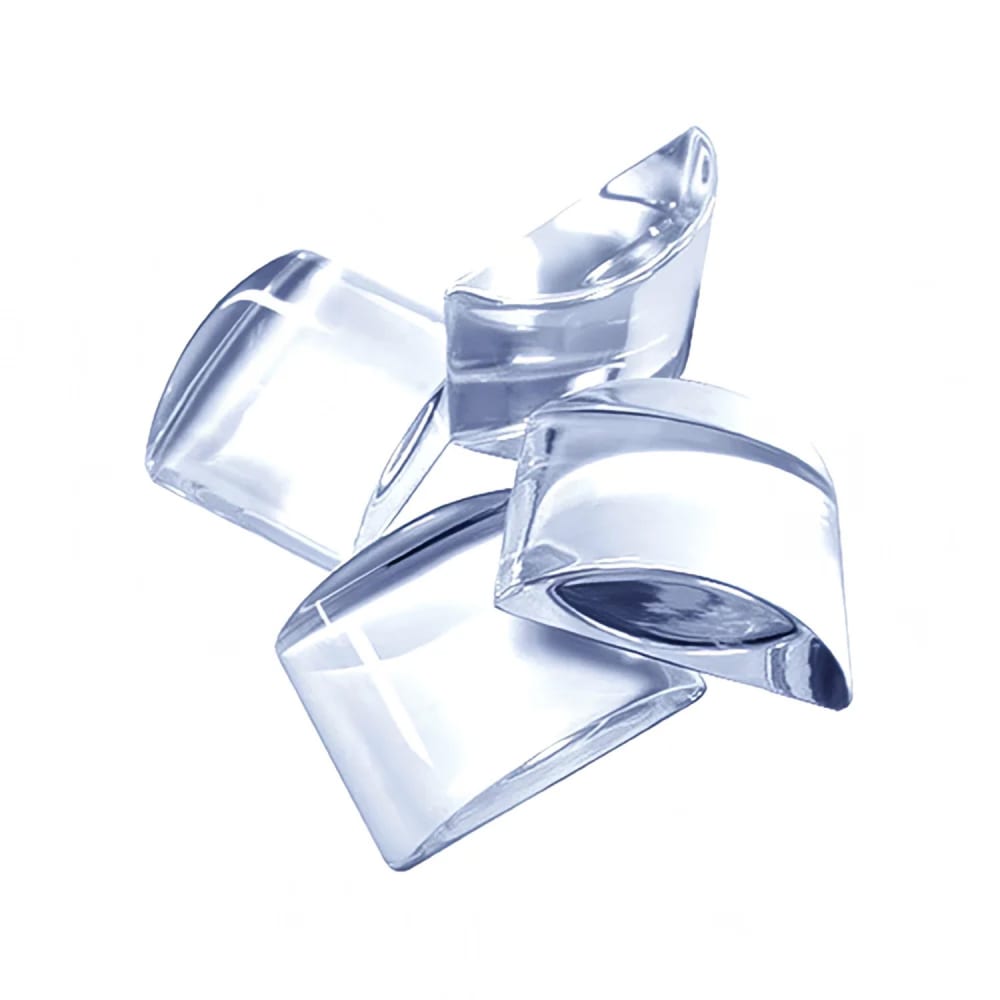

- Crescent cube style ice

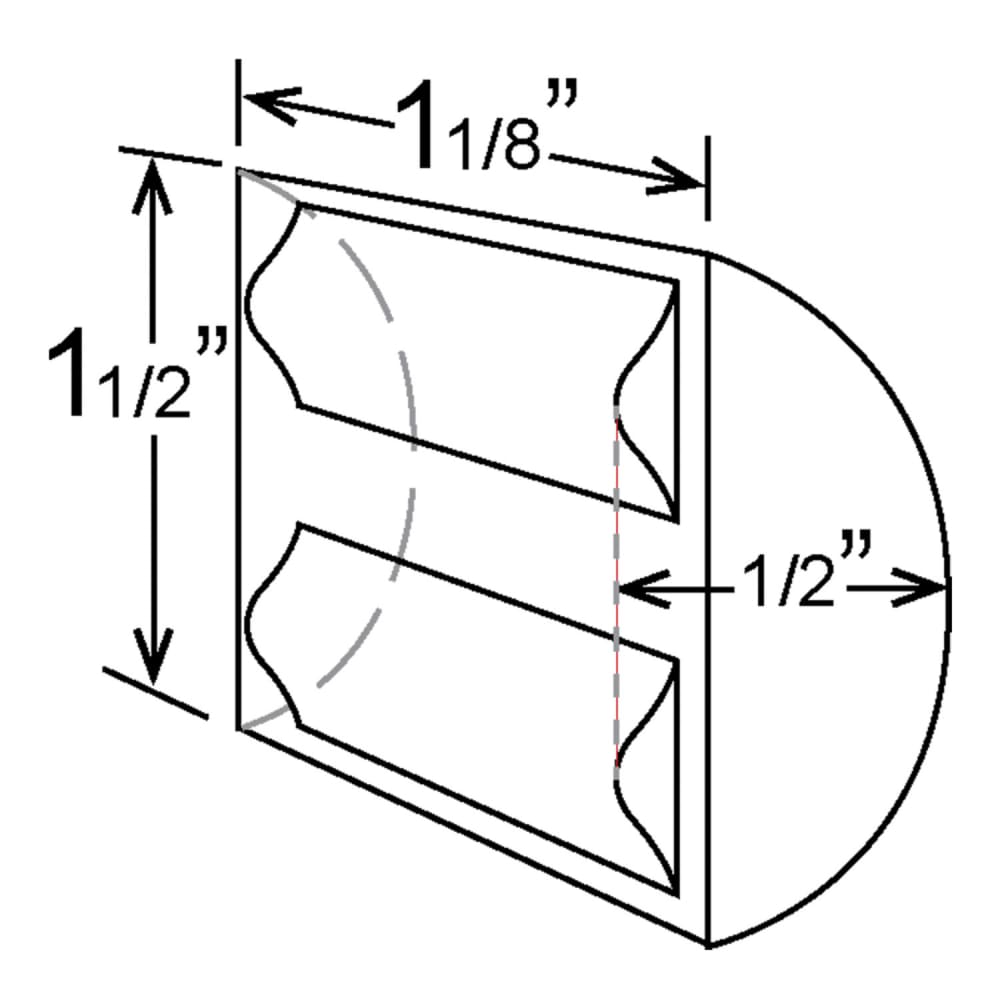

- Cube dimensions: 1⁄2 in. W x 1 1⁄8 in. D x 1 1⁄2 in. H
- 153-lb. maximum daily ice production
- 135-lb. AHRI-certified daily ice production
- 78 lbs. of built-in ice storage capacity
- ADA compliant
- Stainless steel exterior
- Front-opening bin
- EverCheck™ digital controls with alert system
- LED display
- Front-breathing design
- Removable air filters
- Low-clearance design for built-in installation
- Water cooled
- 2,900-BTU heat transfer capacity
- R134A refrigerant
- Ideal incoming air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 23 3⁄4 in. W x 28 in. D x 39 in. H
- 6.4 A, 6.5 kW
- 115 V/60 Hz/1 ph, 6.5-ft. cord with NEMA 5-15P plug
- Water intake: minimum 1⁄4-in. nominal ID copper water tubing
- Drain line: minimum 3⁄4-in. nominal ID hard pipe
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-161BWJ within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki KM-161BWJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 153 |
| Bin Capacity (lb) | 78 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.25 |
| Design | ADA Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Series | KM Series |
| Special Features | Alert System |
| Special Features | Antimicrobial |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 23.75 |
| Weight | 161.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM160BWJ
- 5
- 4
- 3
- 2
- 1
Review this product!
Yes. The front-breathing design supports built-in installation.
Yes. It has a front-opening storage bin.
The EverCheck™ alert system provides operating alerts.
This unit requires 12 in. of front clearance.
It requires an inlet water pressure between 10 and 113 PSIG.
Yes. The air filter is removable for cleaning.
An LED display shows the machine's operating status.
It requires a 3⁄4-in. nominal hard pipe drain connection.
It can produce up to 153 lb. of ice per 24 hours.
Its storage bin holds 78 lb. of ice.
It makes crescent cube ice.
It measures 23 3/4 in. W x 28 1/4 in. D x 39 in. H.
It uses a water-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R134a refrigerant.
Its exterior is made of stainless steel.
Yes, it includes a storage bin with a 78-lb. capacity.
Its listed certifications include AHRI, cETLus Listed, NSF, and UL.
Yes, the air filter can be removed for cleaning.
It requires 6.4 A.
It uses a NEMA 5-15P plug.
It requires a 1/2-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
Yes, it is designed for an ADA-height installation.
