Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
Manitowoc Ice UDF0140A 26"W Full Cube NEO Undercounter Ice Machine - 135 lbs/day, Air Cooled
QUICK SHIP: Ships in 1 Business Day
Free Shipping Item
$2,522.57 /Each
Contact us for details!
Selected Ice Type: Full Cube
White Glove Delivery
Contact your sales rep for availability
Manitowoc Ice UDF0140A Description

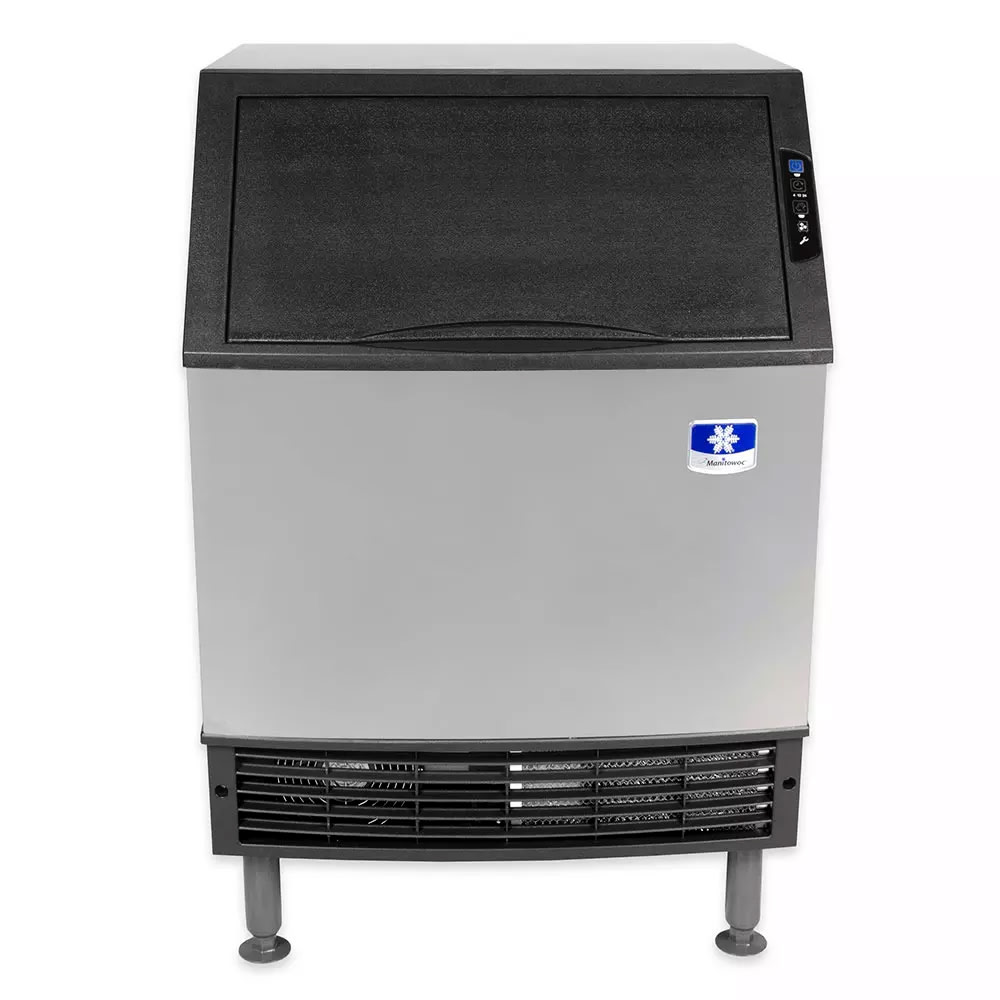

The Manitowoc Ice UDF0140A NEO® undercounter ice machine produces as much as 135 pounds of dice ice in a 24-hour period, however, the actual amount it produces depends on the temperature of the surrounding air and water flowing into the unit. A touchpad on the front can be used to control the machine, and for convenience, operators can program it to stop making ice during slow hours. If the ice maker encounters a problem, it alerts users with an indicator light. Providing convenient internal access, the bin can be pulled off the base from the front.
When cleaning the Manitowoc Ice UDF0140A ice maker, the damper door, distribution tube, and water trough can all be removed. Consisting of parts that water touches, the food zone is sealed to prevent leaking, and important parts have molded-in antimicrobial protection that reduces slime growth.
Product Details
- Part of the NEO ice maker series
- 135-lb. maximum daily ice production
- 95-lb. AHRI-certified daily ice production

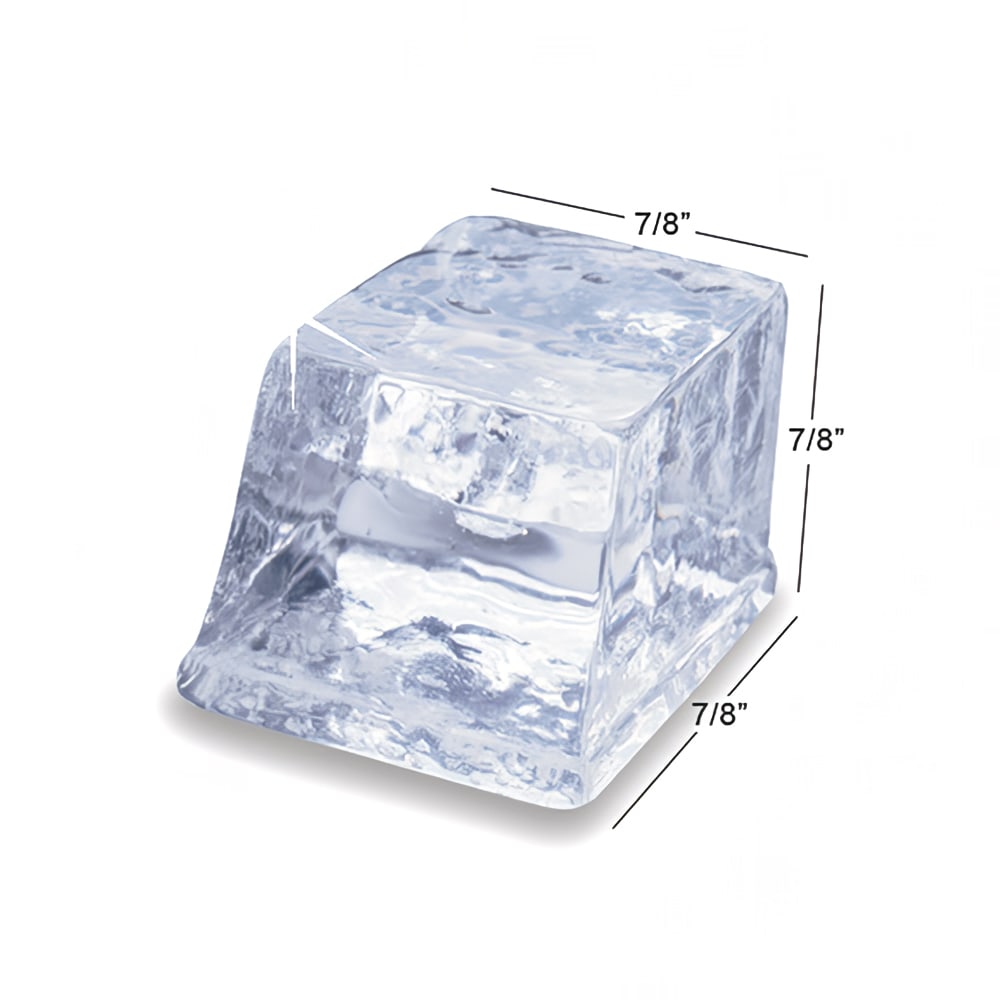

- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Full bin and service indicators
- Delay function enables ice production to be paused during slow periods
- Condenser is air cooled and self-contained to ease installation
- Refrigeration components are accessible without moving the unit
- Sealed food zone includes removable damper door, distribution tube, and water trough
- Key components contain built-in AlphaSan® antimicrobial protection to reduce bacteria growth
- Air filter is removable without tools
- Storage bin holds as much as 90 lbs. of ice
- Includes a plastic, ergonomically designed ice scoop
- 2,150 average BTU; 2,600 peak BTU
Product Features
Ideal Operating Conditions
- Ambient temperature: 40-110 degrees F
- Water temperature: 45-90 degrees F
- Water pressure: 20-80 PSI
- Clearances: 5-in. space on sides, top, and back
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 5 A, 9.8 kW, 0.42 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Free shipping on Manitowoc Ice UDF0140A within the 48 contiguous states.
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 135 lb/24 hours at 70°/50° (95 lb AHRI certified at 90°/70°), 90 lb ice storage capacity, electronic controls, dice size cubes, 6" adjustable legs with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph
*Image may not depict product color, inclusions or accessories.
3-year; 5-year Compressor Parts
Manitowoc Ice UDF0140A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 135 |
| Also Known As | UD-0140A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year; 5-year Compressor Parts |
| Width (in) | 26 |
| Weight | 153.00 |
Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Replacement for the Following Item
- Manitowoc Ice UD0140A
Equivalent Items
Manitowoc Ice UDF0140A Accessories
Manitowoc Ice AR-10000-P
Arctic Pure® Plus Single Primary Water Filter Assembly - 15,000 gal Capacity
Previous
Next
Other Products From This Line
Previous
Next
Related Categories
Previous
Next
Compare to Similar Items
| Attributes |
Current Item: Manitowoc Ice UDF0140A 26"W Full Cube NEO Undercounter Ice Machine - 135 lbs/day, Air Cooled |
MoTak PKU0155FA-161 26"W Full Cube Undercounter Ice Machine - 165 lbs/day, Air Cooled, 115v |
Manitowoc Ice UYF0140A 26"W Half Cube NEO Undercounter Ice Machine - 137 lbs/day, Air Cooled |
Hoshizaki KM-161BAJ 23 3/4"W Crescent Cube Undercounter Ice Machine - 163 lbs/day, Air Cooled, ADA |
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,522.57 | $1,679.00 | $2,522.57 | $3,130.00 |
| Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day |
| Ice Type | Full Cube | Full Cube | Half Cube | Crescent Cube |
| 24 Hr. Production (lb) | 135 | 165 | 137 | 163 |
| Bin Capacity (lb) | 90 | 89 | 90 | 78 |
| Width (in) | 26 | 26 | 26 | 23.75 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity | Gravity | Gravity |
| Rating | Best | Better | Best | Best |
| Special Features | Antimicrobial | Removable Air Filter | Antimicrobial | Alert System |
| Series | NEO® | PKU | NEO® | KM Series |
| Suggested Use | Commercial | Commercial | Commercial | Commercial |
| Front Style | Lift Door | Lift Door | Lift Door | Lift Door |
| Depth (in) | 28.5 | 26.5 | 28.5 | 28 |
| Height (in) | 38.5 | 38.5 | 38.5 | 39 |
| Design | Standard Height | Standard Height | Standard Height | ADA Height |
| Refrigerant | R404A | R404A | R404A | R134a |
| Voltage | 115 | 115 | 115 | 115 |
| Warranty | 3-year; 5-year Compressor Parts | 1-year Parts & Labor | 3-year; 5-year Compressor Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
