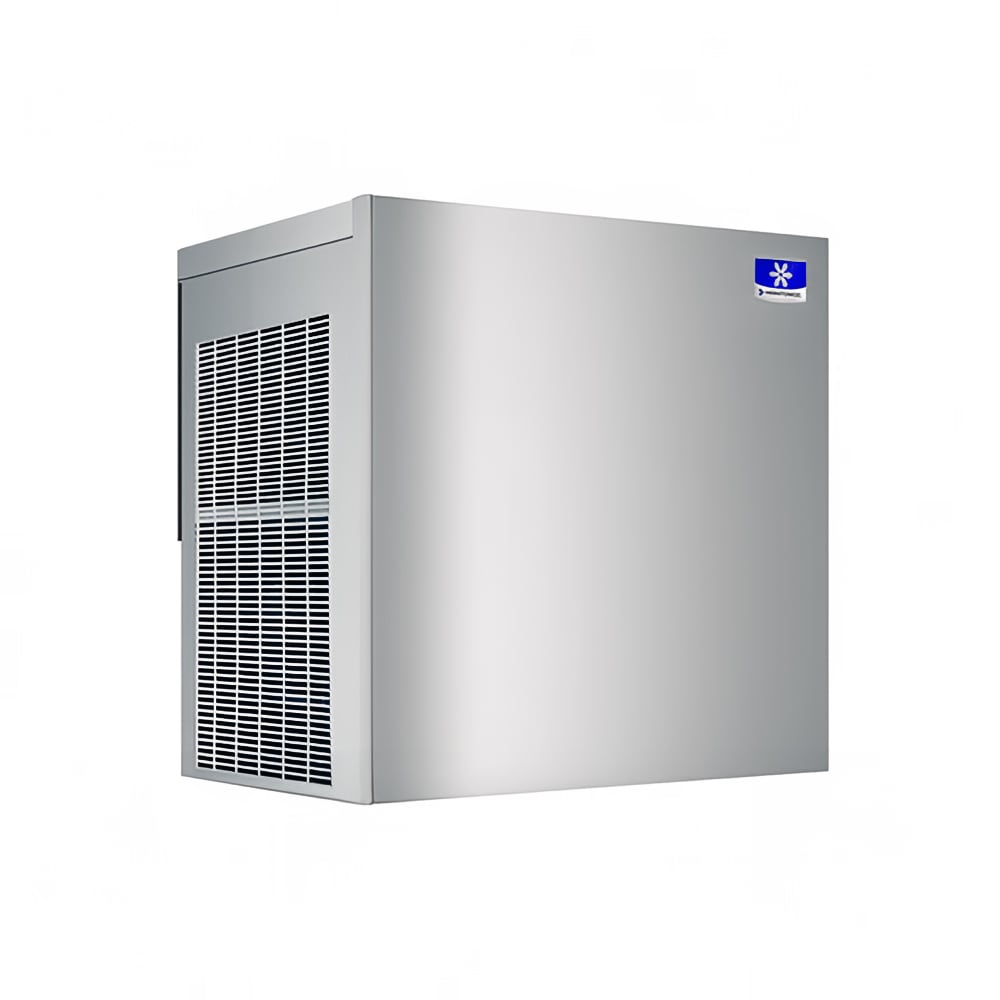

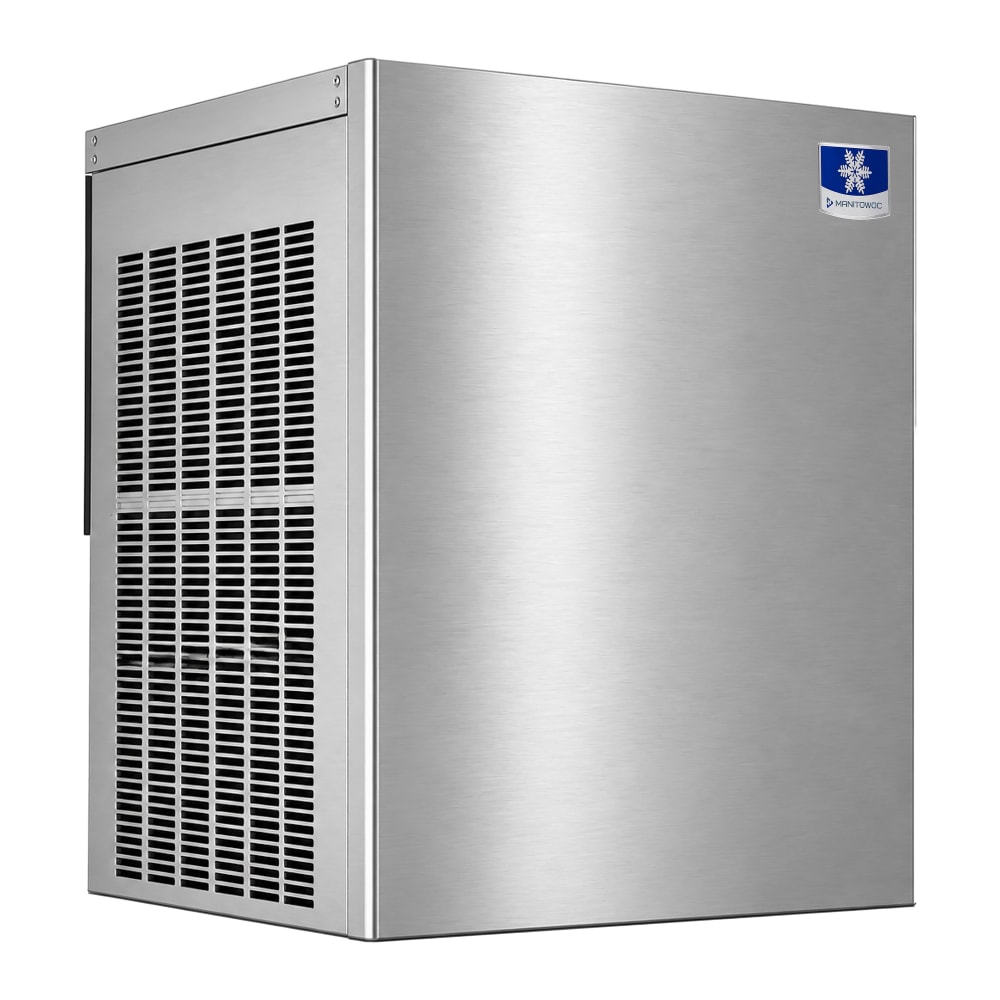

Manitowoc Ice RNP0620A 22" Nugget Ice Machine Head - 591 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$5,184.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Water Cooled
White Glove Delivery
Contact your sales rep for availability
Manitowoc Ice RNP0620A Description
The Manitowoc RNP0620A nugget ice machine produces 591 pounds of ice when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This unit dispenses chewable nugget-style ice, which is ideal for cooling soft drinks or crafting smoothies. For keeping internal conditions optimal, this nugget machine utilizes R290 refrigerant to minimize impact to the ozone layer. It flaunts a stainless steel exterior that's durable and corrosion resistant, and to extend its product life, it features high-load stainless steel bearings.
Overall, the Manitowoc RNP0620A ice machine head measures 22 inches wide by 235/8 inches deep by 26 inches high. It has a 3/8-in. water inlet and 1/2-inch drain to dispose of melted ice. When users install this unit, it requires a top and side clearance of 8 inches and back clearance of 5 inches. Because its condenser is self-contained, installation is simplified.
Product Details
- Produces 591 lbs./24 hours
- Makes nugget-style ice
- High-load stainless steel bearings
- Stainless steel exterior
- Self-contained, air-cooled condenser
- R290A hydrocarbon refrigerant
- Can be paired with the Manitowoc D-420 ice bin
- Ambient temperature range: 50-110 degrees F
- Water temperature range: 37-90 degrees F
- Pressure range: 14-80 PSI
- Must be paired with dispenser or bin (sold separately)
Dimensions & Utilities
- 22 in. W x 235/8 in. D x 26 in. H
- 1/2-in. ice drain connection
- 3/8-in. ice water inlet connection
- 13.5 A, 6.36 kW
- 115 V/60 Hz/1 ph
Product Features
*Free shipping on Manitowoc Ice RNP0620A within the 48 contiguous states.
From The Manufacturer
Ice Maker, nugget style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 591 lb/24 hours at 70°/50° (451 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R290A, 1 HP, NSF, cULus, CE, cETLus
*Image may not depict product color, inclusions or accessories.
Manitowoc Ice RNP0620A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 591 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.63 |
| Height (in) | 26 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| Width (in) | 22 |
| Weight | 210.00 |
Important Prop 65 information for California residents.
- Hoshizaki F-801MAJ-C
- Ice-O-Matic GEM0650A
- Scotsman NS0622A-1
Manitowoc Ice RNP0620A Accessories
Manitowoc Ice AR-10000-P
Arctic Pure® Plus Single Primary Water Filter Assembly - 15,000 gal Capacity
Manitowoc Ice LBCS1360
Ice Bin Cart System w/ 772 lb Capacity - (2) Carts & (6) Totes, 60"W x 36"D x 71"H
Compare to Similar Items
| Attributes |
Current Item: Manitowoc Ice RNP0620A 22" Nugget Ice Machine Head - 591 lb/24 hr, Air Cooled, 115v/1ph |
Hoshizaki F-801MAJ-C 22" Nugget Ice Machine Head - 690 lb/24 hr, Air Cooled, 115v/1ph |
Ice-O-Matic GEM0650A 21" Pearl Ice® Nugget Ice Machine Head - 740 lb/24 hr, Air Cooled, 115v/1ph |
Scotsman NS0622A-1 22" Prodigy Plus® Nugget Ice Machine Head - 643 lb/24 hr, Air Cooled, 115v/1ph |
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $5,184.00 | $6,820.00 | $6,247.00 | $6,056.00 |
| Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 591 | 690 | 740 | 643 |
| Ice Type | Nugget | Nugget | Nugget | Nugget |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 21 | 22 |
| Rating | Best | Best | Better | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Slim-Line | Pearl Ice® | Prodigy Plus® | |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor Parts | Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
-
Very good ice machine
"I had a Scotsman prodigy Plus ice machine and the bearing in the auger went out. I switched from a water cooled to a air cool. The Manitowoc is a great machine and is able to keep up with our ice demand. I was able to use my existing bin. It took about a week for the shipping and I paid for the lift gate service which I would recommend. So far the only con that I have found is the air filter is located on the back side of the unit which makes it a little tricky to clean. The install took a little over an hour."
