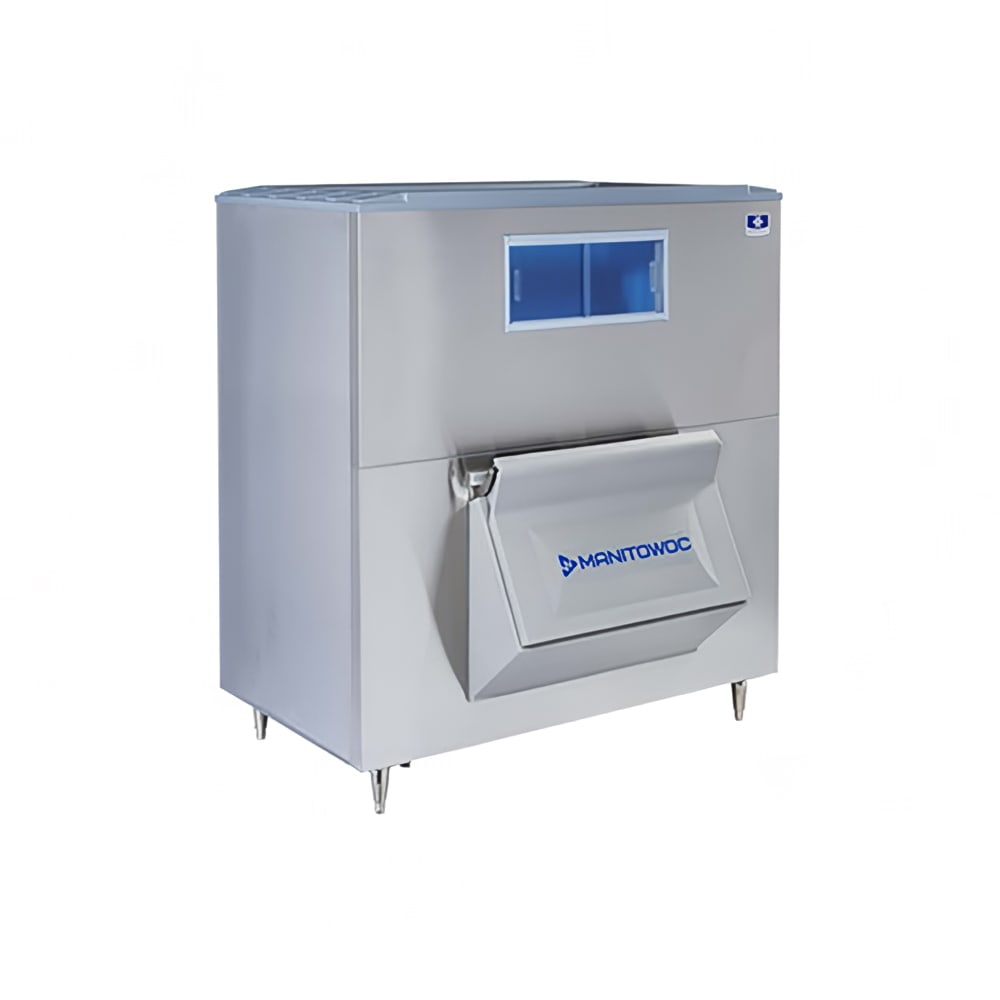

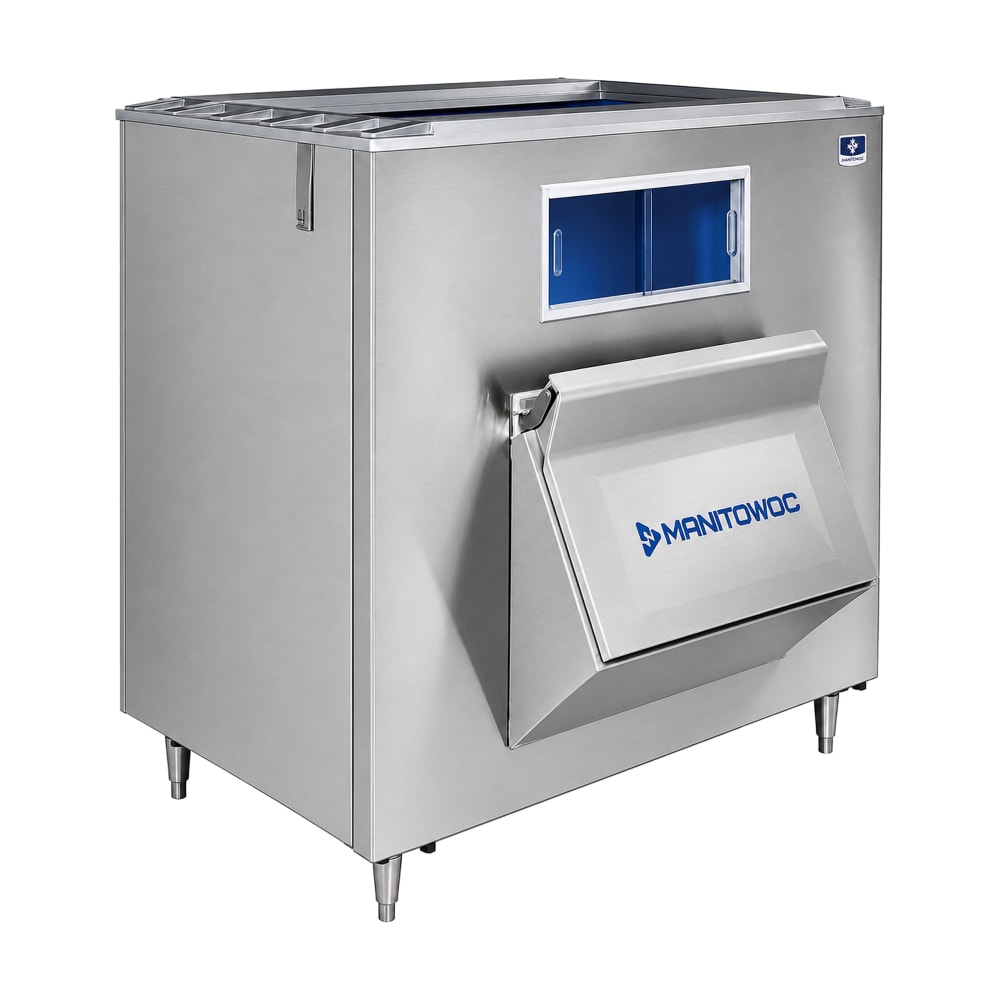

Manitowoc Ice LB1760 60" Ice Bin - 1693 lbs

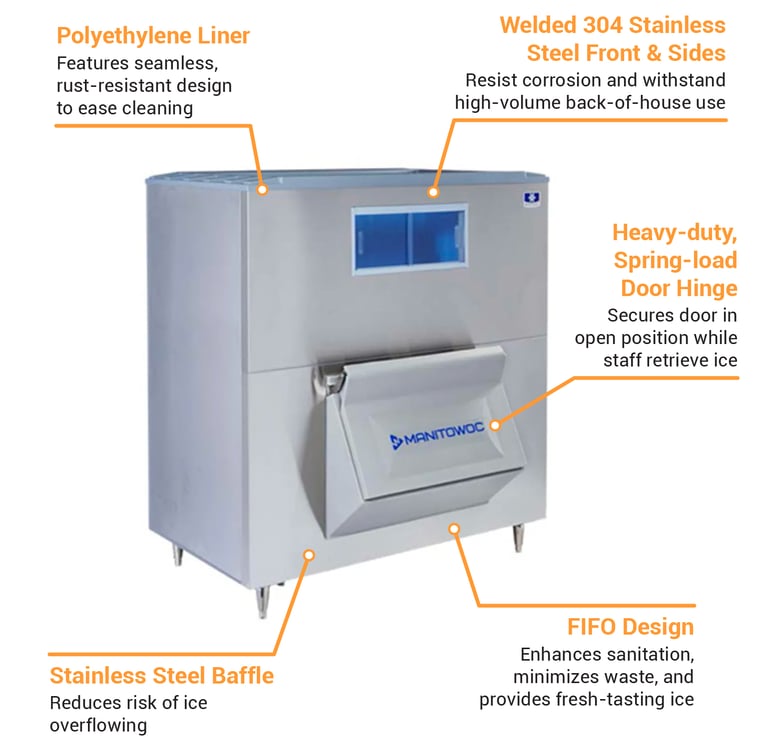

The Manitowoc LB1760 ice bin measures 60 inches wide by 44¹⁄₂ inches deep by 67 inches tall and includes an ice machine adapter with filler panels to accommodate most single ice machine configurations. Great for ice makers that produce large volumes of ice, its 57-cubic-foot interior volume boasts 1,693-pound capacity. To slow ice melting, its walls are insulated with 1¹⁄₂-inch-thick non-CFS polyurethane insulation that's foamed in place. Because its roto-molded polyethylene liner is seamless and resists corrosion, it maintains a clean surface that reduces the appearance of wear over time. Its front and sides are made of welded 304 stainless steel for enhanced durability and strength. To provide stability on irregular surfaces, its stainless steel legs can be raised from 6 inches to 7¹³⁄₁₀₀ inches as needed.

The Manitowoc LB1760 upright ice bin's first-ice-in, first-ice-out configuration ensures operators retrieve fresh-tasting ice. So users have a direct view of the internal ice level, it's built with clear Lexan windows. The door's heavy-duty, spring-load hinge keeps the door open while users retrieve ice from the unit's front, eliminating the need to bend over into the bin. An ergonomic ice scoop with a thumb and knuckle guard comes with this unit to ease ice collection and enhance sanitation. To reduce the chance of ice overflowing, this bin is built with a stainless steel baffle.

Product Details

• 57-cu.-ft. interior storage capacity
• Ice capacity: 1,693 lbs.
• First-ice-in, first-ice-out configuration
• Stainless steel baffles minimize overflow risk
• Clear Lexan windows provide view of ice levels
• Door and snout ship inside bin
• Heavy-duty, spring-load door hinge keeps door open during ice retrieval
• Includes ergonomic sanitary ice scoop with thumb and knuckle guard
• Welded, corrosion-resistant 304 stainless steel front and sides
• Roto-molded, seamless, and rust-resistant polyethylene liner simplifies cleaning
• 1¹⁄₂-in.-thick foamed-in-place polyurethane insulation
• Adapter and filler panels included to accommodate most single ice machine configurations
• Stainless steel legs can be adjusted from 6 in. to 7¹³⁄₁₀₀ in. for stabilization on irregular surfaces
• Overall dimensions: 60 in. W x 44¹⁄₂ in. D x 67 in. H

Product Features

*Free shipping on Manitowoc Ice LB1760 within the 48 contiguous states.

From The Manufacturer

Ice Storage Bin, upright, (FIFO) first ice in, first ice out, 60” W x 34” D x 67” H, stainless steel front and sides, polyethylene liner, 1693 lbs. application capacity, 57 cu. ft internal volume, AHRI, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor

Manitowoc Ice LB1760 Specifications

Documents

Spec Sheet

Warranty

Manual
