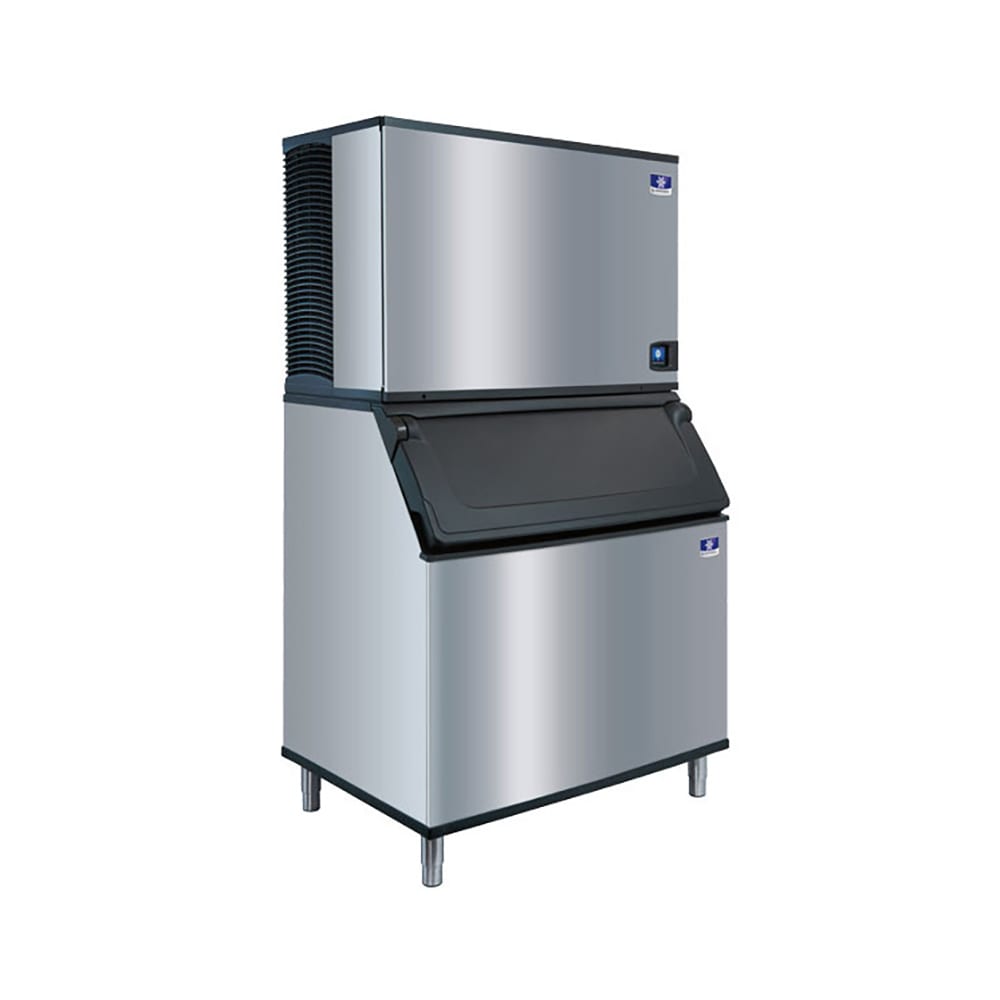

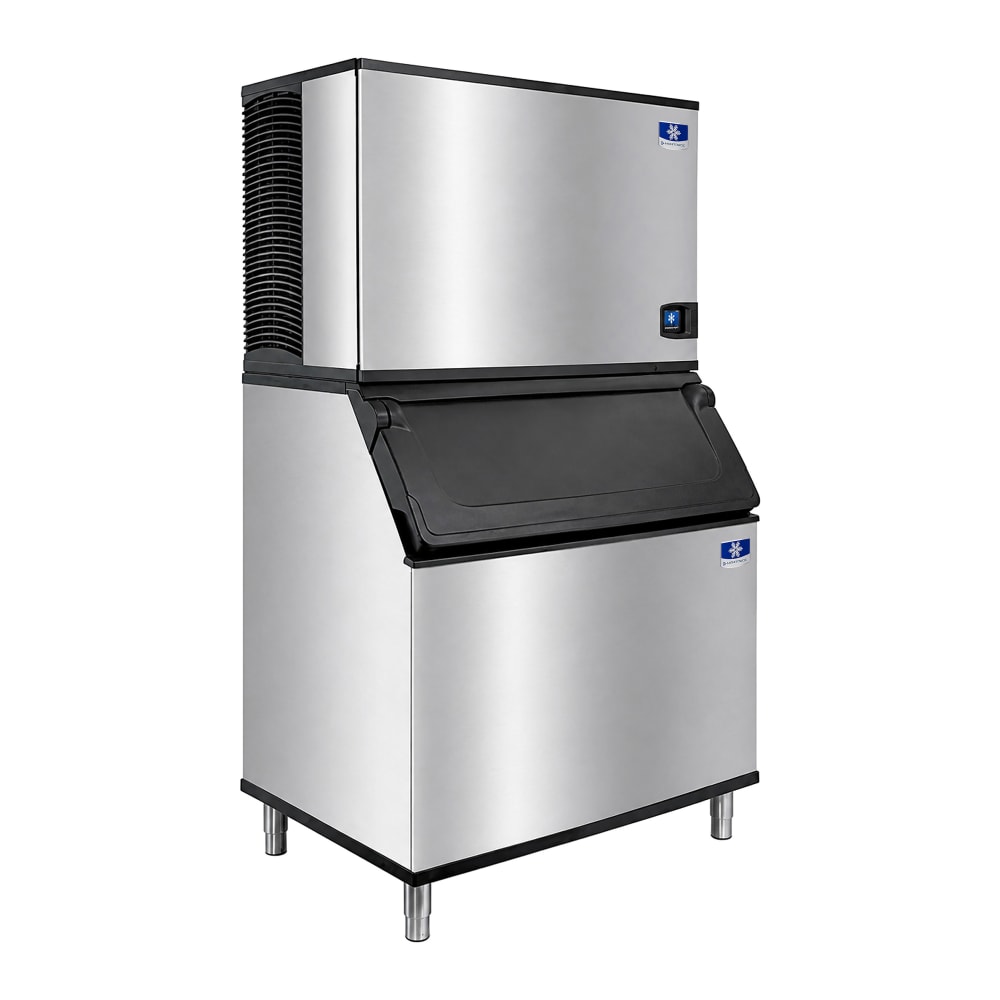

Manitowoc Ice IYT1500W/D970 1590 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 882 lb Storage, Water Cooled, 208-230v

The Manitowoc IYT1500W/D-970 Indigo NXT™ ice machine and bin runs 24-hour diagnostics to monitor the operating status while lights alert the operator of issues on an icon-based control panel. This unit can produce 1,770 pounds of ice within a day if conditions are ideal. Before cubes are released from the evaporator plate, an acoustic sensing probe uses sound waves to monitor thickness. Some removable parts in the food zone have antimicrobial protection built in to slow bacteria growth between cleanings.

Accessing ice is comfortable and easy since the insulated door has side grips that enable it to be opened from different angles. A cammed latch keeps the door open for scooping, and the opening is angled at 53 degrees to support the scooping process. The included ice scoop features a thumb and knuckle guard to prevent ice from contacting hands. The Manitowoc IYT1500W/D-970 ice maker and bin can store 882 pounds, and its stainless steel exterior is coated in a DuraTech® clear coat.

Ice Maker Details

• 1,725-lb. ice production capacity
• 1,480-lb. AHRI-certified ice production capacity
• Icon-based control panel
• Production of ice can be based on time of day or bin volume
• Removable water trough, distribution tube, curtain, water probe, and water pump
• AlphaSan® antimicrobial protection slows bacteria growth
• Runs 24-hr. preventive diagnostics to monitor the operating status
• Thickness of the ice is monitored by sound waves through an acoustical probe
• DuraTech coating over the stainless steel exterior resists the appearance of fingerprints
• Part of the Indigo NXT series
• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Uses R410 refrigerant
• 23,000 average BTU; 27,000 maximum BTU
• Required ambient temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Product Features

Bin Details

• 882-lb. storage capacity
• 29.7-cu.-ft. AHRI-certified storage capacity
• Knuckle and thumb guard on the scoop prevents contamination
• 5.3-lb. scoop capacity
• Side grips facilitate opening the door from various angles
• Cold air is trapped in the bin by foam insulation in the door
• Door stays open with a cammed door latch
• Door is angled to a comfortable 53 degrees
• Smudge-resistant DuraTech clear coat
• Ice clarity is enhanced by the blue polyurethane bin liner

Dimensions and Utilities

• Ice Maker
• 48 in. W x 24 in. D x 29.5 in. H
• 14 A, 3.27 kW
• 208-230 V/60 Hz/1 ph
• Bin
• 48 in. W x 34 in. D x 50 in. H

*Free shipping on Manitowoc Ice IYT1500W/D970 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1590 lb/24 hours at 70°/50° (1392 lb AHRI certified at 90°70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT1500W/D970 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
