Manitowoc Ice IYT0500A/D570 550 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$6,203.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Air Cooled
Manitowoc Ice IYT0500A/D570 Description
The Manitowoc Ice IYT0500A/D570 Indigo NXT™ ice maker with bin can make 550 pounds of ice in 24 hours. It has an easyTouch® control panel that gives the operator the ability to control production times, set cleaning schedules, and see diagnostic information on the unit. Ice production can be controlled based on time of day or volume, and for visibility, the display is illuminated.

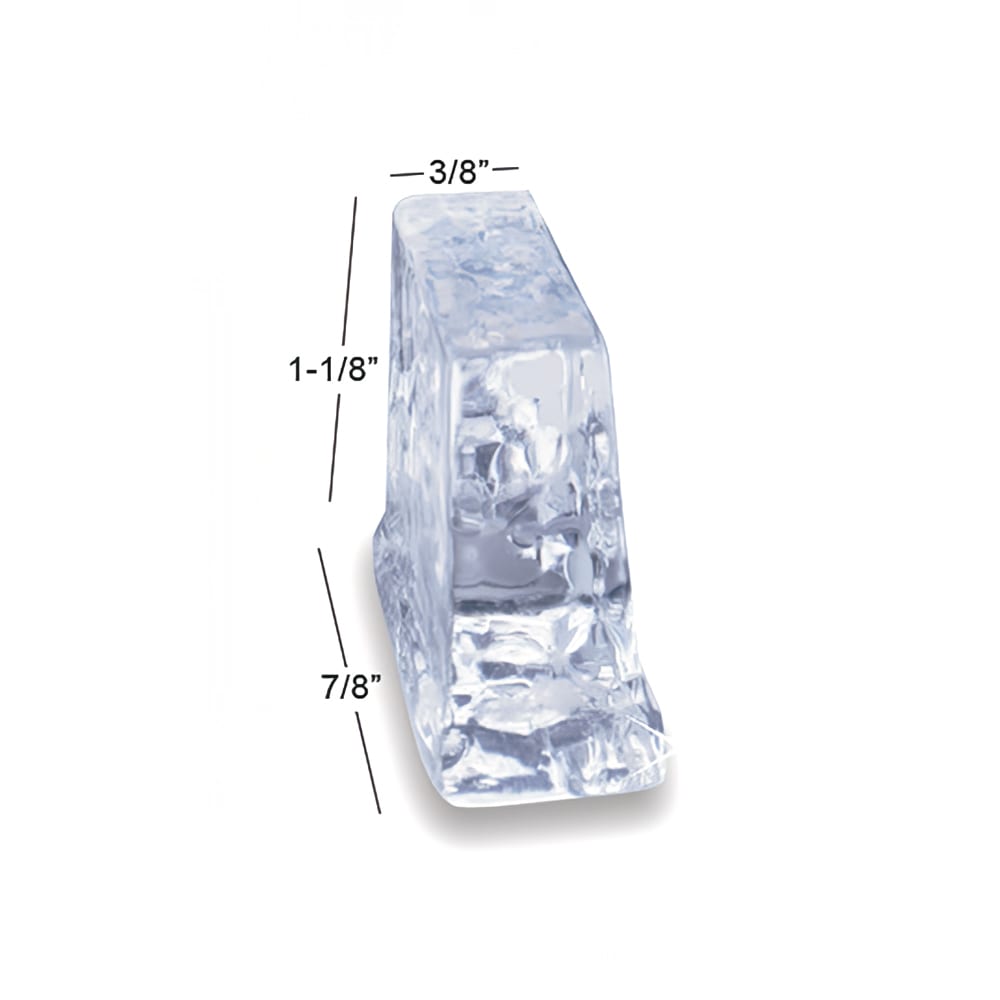

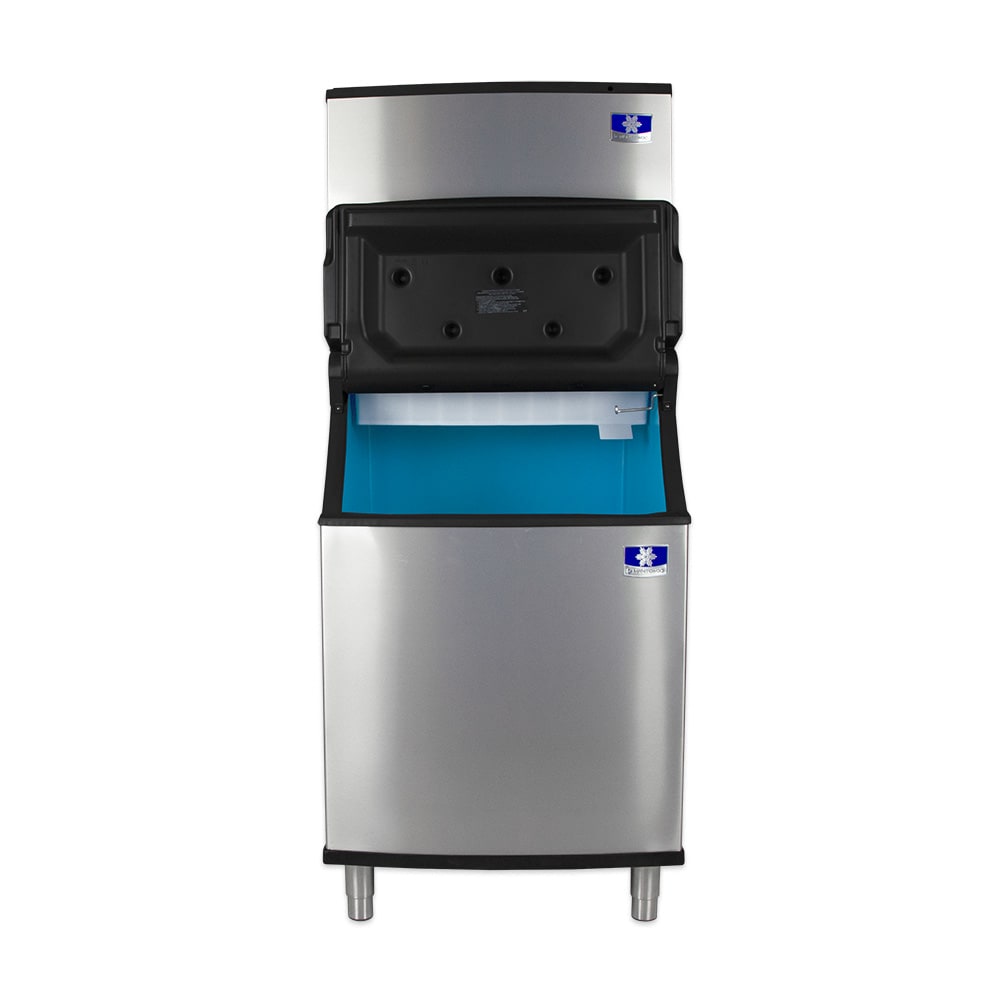

Each half-dice cube measures 1 1⁄8 inch by 7⁄8 inch by 3⁄8 inch. An acoustical ice-sensing probe helps ensure that ice is frozen to the proper thickness and density before it is harvested. The Manitowoc Ice D570 storage bin holds a maximum 532 pounds of ice, and its insulated lid helps keep the ice frozen. An ice scoop comes with the unit, and to prevent cross-contamination, a scoop holder is integrated into the bin.
This Manitowoc Ice IYT0500A ice maker is relatively simple to clean. It features a sealed food zone and a removable water trough, distribution tube, curtain, and sensing probe. Additionally, the stainless steel exterior has a DuraTech® finish that is resistant to fingerprints and corrosion.
- Part of the Indigo NXT series
- 550-lb. maximum daily ice production
- 440-lb. AHRI-certified daily ice production
- Makes half-dice ice
- Cube size: 3⁄8 in. x 7⁄8 in. x 1 1⁄8 in.
- Production can be set by on/off times or daily volume
- easyTouch display provides operation status and cleaning reminders
- Intelligent diagnostic system provides 24-hr. preventive maintenance and troubleshooting information
- Acoustical ice sensing probe detects the thickness of ice and will only dispense ice once the proper thickness has been reached
- Food zone is easy to clean with removable water trough, distribution tube, curtain, and sensing probe
- Several components are made with AlphaSan to slow microbial growth
- DuraTech coating resists fingerprints and corrosion
- Air-cooled condensing system uses R410A refrigerant
- 3,800 average BTU; 6,000 peak BTU
- 532-lb. storage capacity
- 17.9-cu.-ft. AHRI-certified storage capacity
- Insulated door with integrated side grips
- Latch holds door open for convenient scooping
- Scoop features retaining lip and thumb and knuckle guard
- Scoop holder helps prevent ice contamination
- Interior lined with Artic Blue polyurethane
- Exterior coated with corrosion-resistant DuraTech
- Recessed drain
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- Surrounding air temperature: 40-110 degrees F
- Clearances: 12 in. on top, 8 in. on sides, 5 in. on back
- Bin: 30 in. W x 34 in. D x 50 in. H
- Ice maker: 30 in. W x 24 in. D x 21.5 in. H
- 11.5 A, 4.58 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYT0500A/D570 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 550 lb/24 hours at 70°/50° (440 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR® (50hz international)
Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Watch a video about this product
Manitowoc Ice IYT0500A/D570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 550 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 274.00 |
