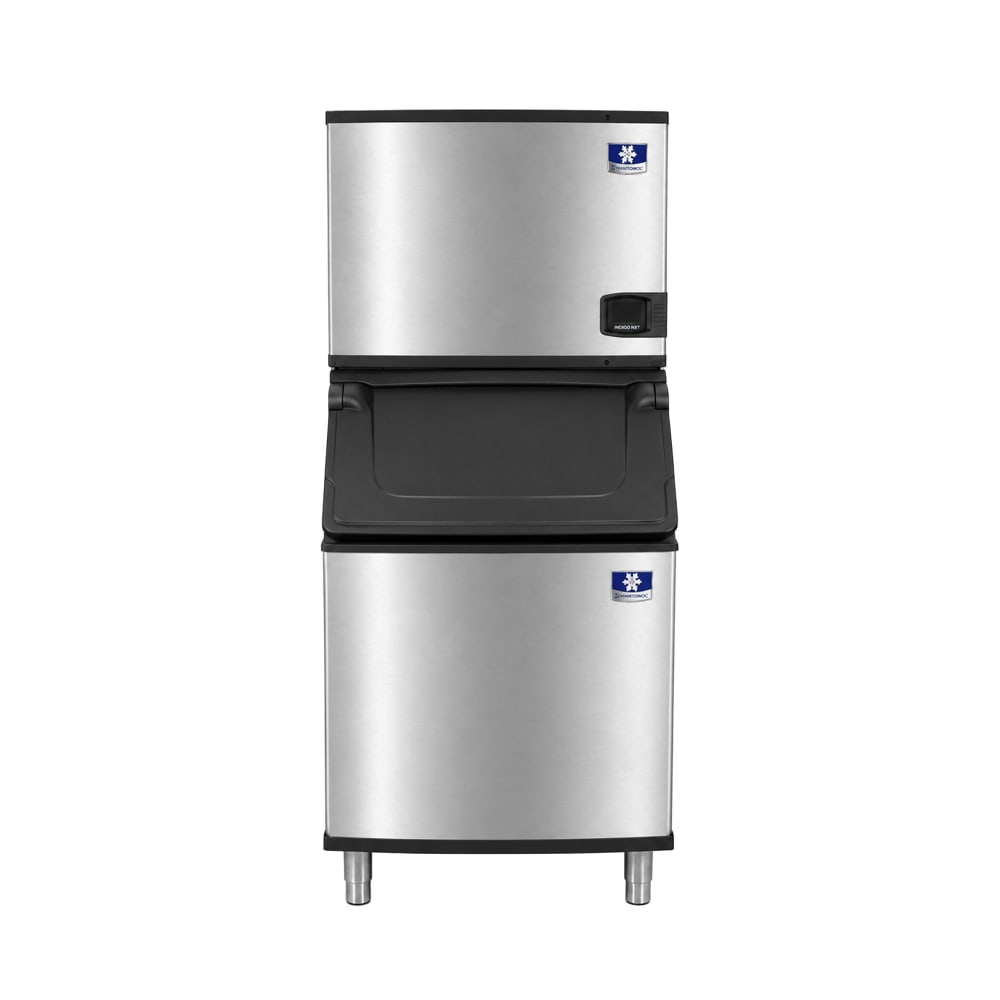

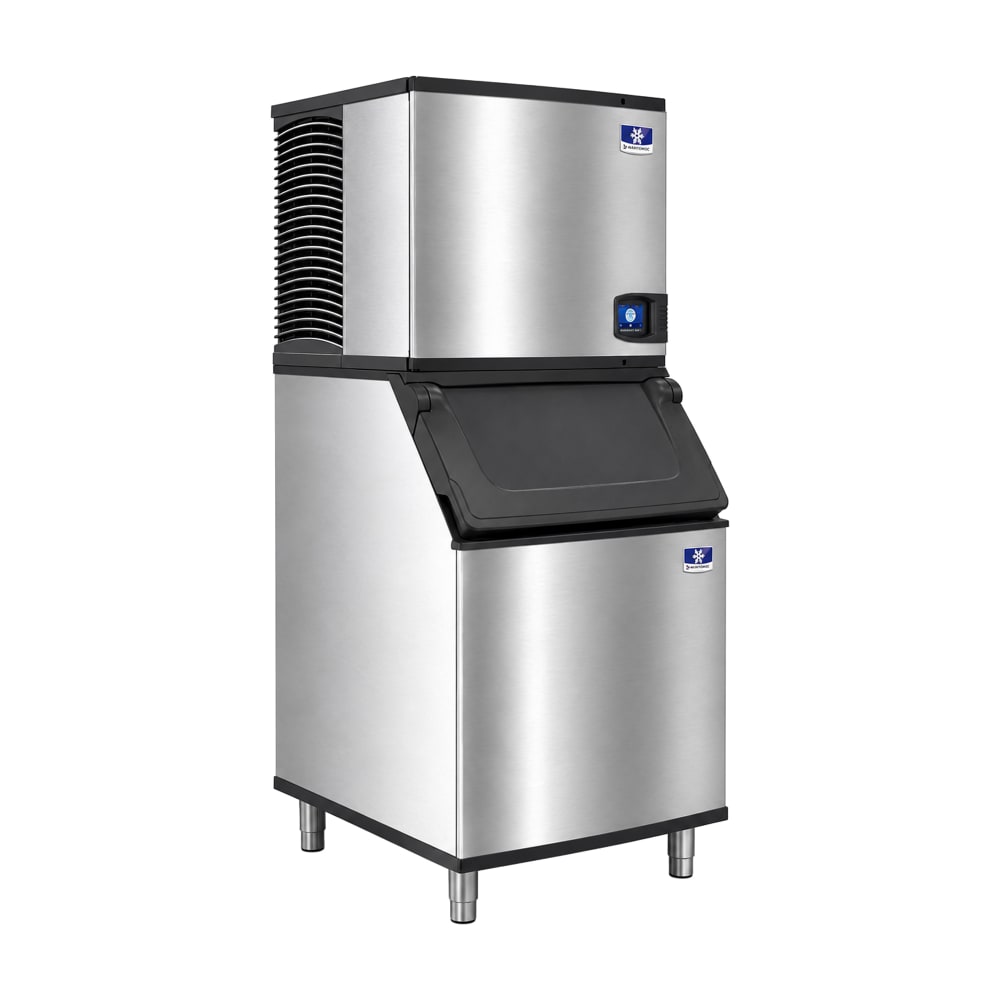

Manitowoc Ice IDP0500A/D570 515 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$6,202.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Attention: Order by 01-01-2027 to save before the price increases!
Manitowoc Ice IDP0500A/D570 Description
The Manitowoc Ice IDP0500A-161/D570 Indigo NXT™ ice maker with bin has a DuraTech™ exterior coating that resists corrosion and diminishes the appearance of stains and fingerprints. The bin is foam insulated and latches open to help staff fill buckets. A polyurethane liner provides an easy-to-clean bin surface, while the head’s removable parts facilitate cleanup. Additionally, several components in the head feature built-in AlphaSan® protection, which reduces bacteria growth between cleanings.
To keep the machine running properly, the Manitowoc Ice IDP0500A-161/D570 ice machine with bin provides preventative maintenance alerts. In ideal conditions, the unit produces 515 pounds of ice per day; however, if less ice is needed, operators can set daily production quotas or program off-hours. The easyTouch® display offers straightforward navigation, with icons marking its various functions. For consistency, an ice-sensing probe checks each cube, ensuring that they measure 7⁄8 inch on every side. Because these dice cubes are bigger than half-dice, flake, or nugget ice, they melt more slowly and water down drinks less.
- Part of the Indigo NXT series
- 515-lb. daily ice production
- Time- or volume-based ice production levels
- User-friendly easyTouch screen controls

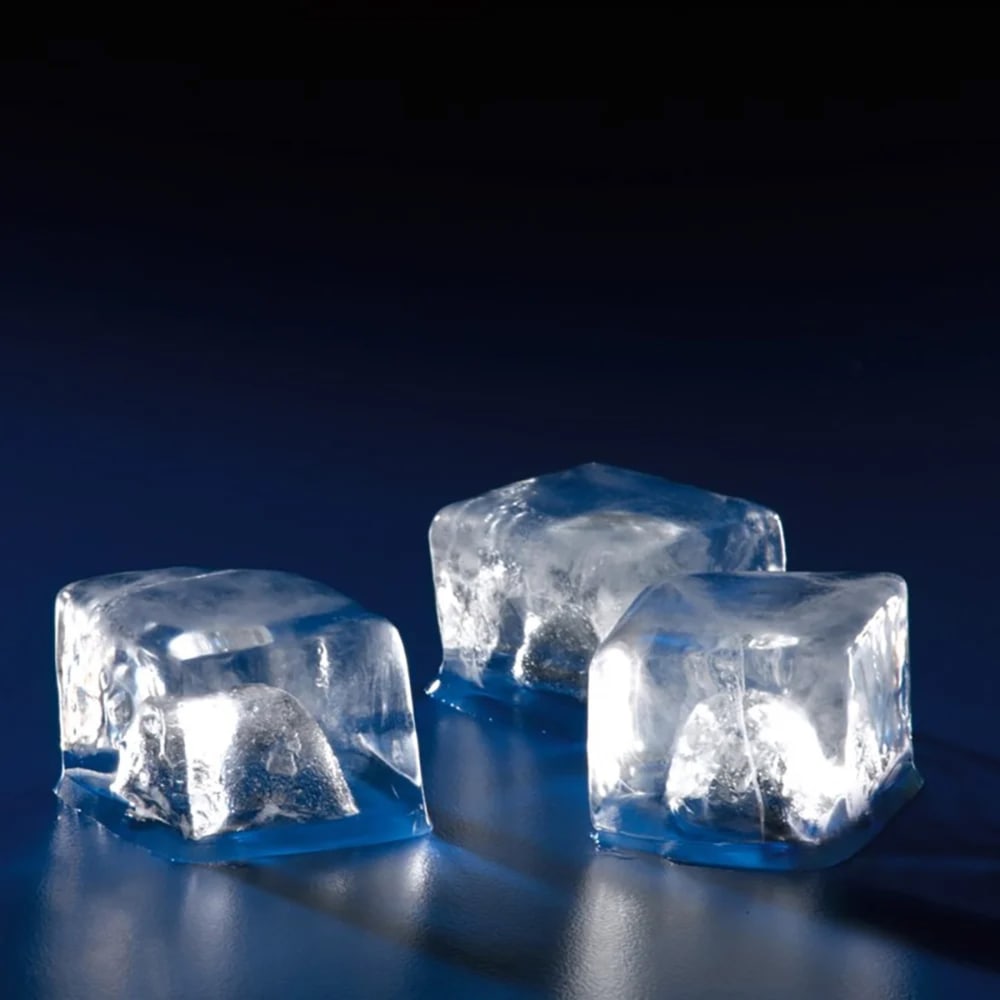

- Makes dice ice

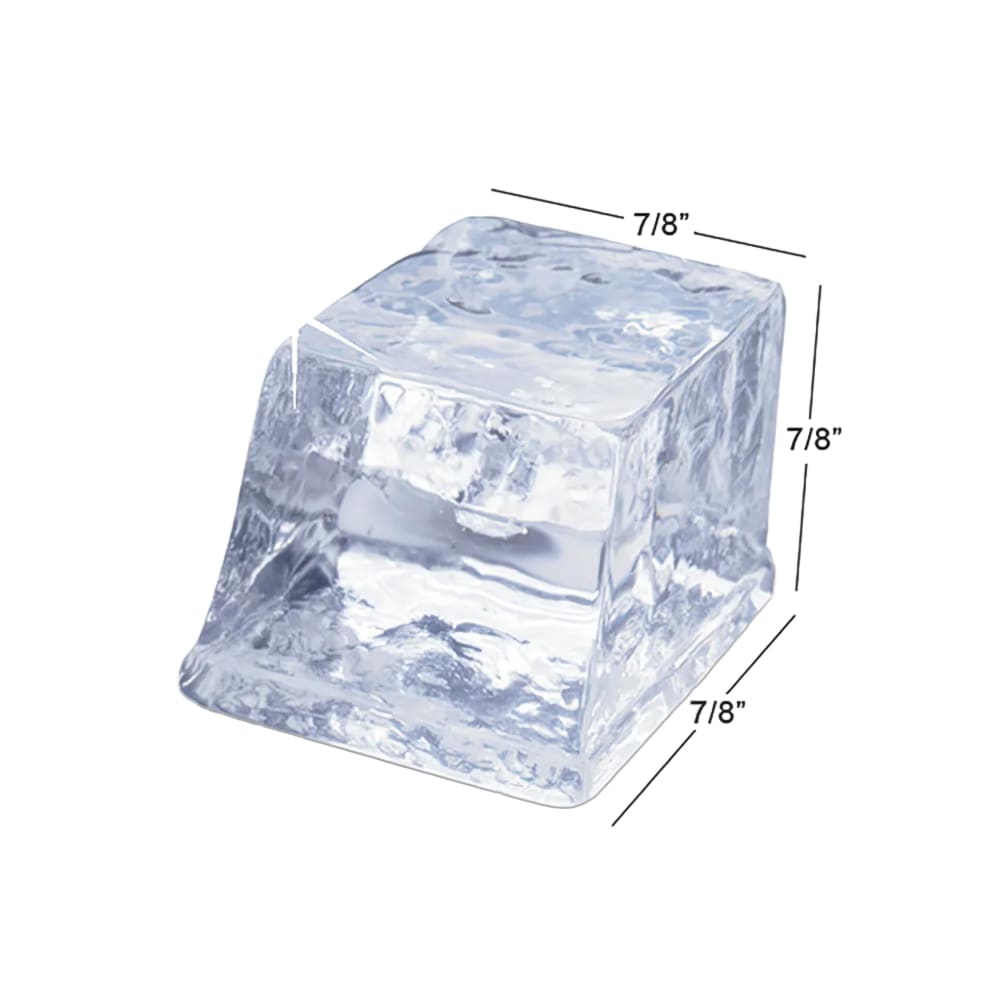

- Dice ice cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Proper ice thickness is ensured by an acoustical probe
- Removable foodzone parts facilitate frequent cleanings
- Antimicrobial agent combats bacteria growth
- 24-hr. self-monitoring system provides diagnostics and preventative maintenance alerts
- External DuraTech coating hides fingerprints and smudges
- Air-cooled condenser ensures quick installation
- R410A refrigerant
- 3,800 average BTU; 6,000 peak BTU
- 532-lb. application ice storage capacity
- 17.9-cu-ft. AHRI-certified ice storage capacity
- Scoop has retaining lip and can hold 5.3 lbs. of ice
- Scoop guards over the knuckle and thumb prevent hands from touching ice
- Holder keeps scoop handle out of the ice for cleanliness

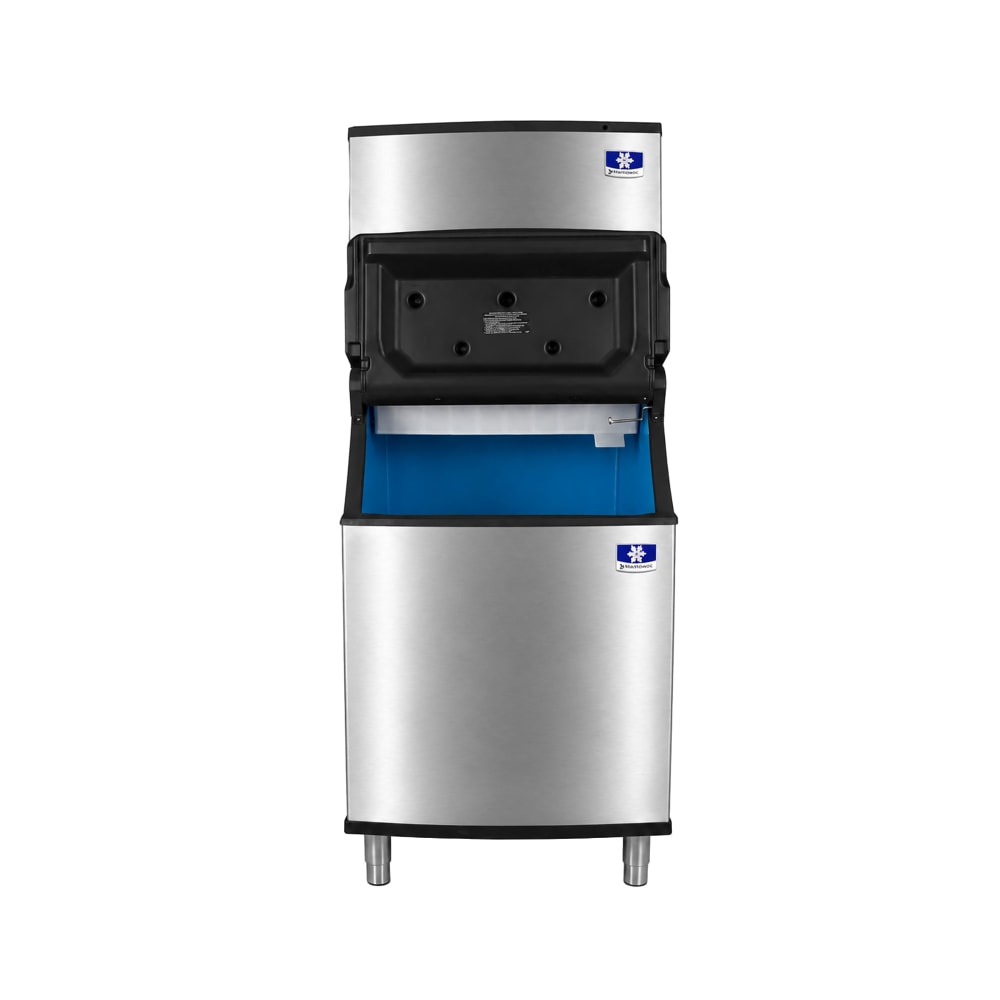

- Door features latches to provide room for scooping
- Built-in grips enable the door to be opened from the sides
- Door insulation slows down melting
- Polyurethane liner resists scratching
- DuraTech exterior resists staining and corroding
- Clearances: 12 in. on sides and top, 5 in. on rear
- Ambient air temperature: 40-110 degrees F
- Incoming water pressure: 20-80 PSI
- Water temperature: 40-90 degrees F
- Bin: 30 in. W x 34 in. D x 50 in. H
- Ice maker: 30 in. W x 24 in. D x 21.5 in. H
- 11.5 A, 5.25 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0500A/D570 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24.5"D x 16.5"H, production capacity up to 515 lb./24 hours at 70°/50° (421 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Bin, 30"W x 34"D x 50"H, with top-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Watch a video about this product
Manitowoc Ice IDP0500A/D570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 515 |
| Access | Lift Up Door |
| Also Known As | IDT0500A/D570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 272.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice ID0502A161B570
- Manitowoc Ice SD0502AB570
Compare to Similar Items
| Attributes |
Manitowoc Ice IDP0500A/D570 Manitowoc Ice IDP0500A/D570 515 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v Current Item |
MoTak PKM0535FA-161/PKB0535 |
|---|---|---|
| Customer Rating |
|
|
| Price | $6,202.00 / Each | $3,288.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
| Ice Type | Full Cube | Full Cube |
| 24 Hr. Production (lb) | 515 | 525 |
| Width (in) | 30 | 30 |
| Bin Capacity (lb) | 532 | 534 |
| Compressor Type | Air Cooled | Air Cooled |
| Rating | Best | Better |
| Height (in) | 71.5 | 71.5 |
| Refrigerant | R290 (Hydrocarbon) | R410A |
| Voltage | 115 | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor | 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
Easy install. Works great.
Puts out a lot of ice quickly.
It stores 532 lbs. of full-cube ice.
Yes. AlphaSan® protection reduces bacteria growth inside the food zone.
The unit requires 16 in. of top clearance and 5 in. of rear clearance.
Yes, the scoop guard prevents hands from touching stored ice.
A full-cube design melts slower in mixed drinks and soft drinks.
It programs production by time, weight, day, or night.
Yes, the air-cooled condenser supports self-contained installation.
Yes, the removable water trough improves interior cleaning access.
It produces up to 515 lbs. of ice per 24 hours.
The bin holds up to 532 lbs. of ice.
It makes full cube ice.
It measures 30 in. W x 34 in. D x 71 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V/60 Hz/1 ph.
It requires a 3/8-in. water inlet connection.
It uses R290 refrigerant.
Ice is accessed through a lift-up door.
Yes, this purchase includes an ice machine head and a storage bin.
Its listed certifications include AHRI, C-UL US, C-UL-US Listed, CE, ENERGY STAR and NSF.
Yes, the bin is insulated.
Yes, the bin has antimicrobial protection.
