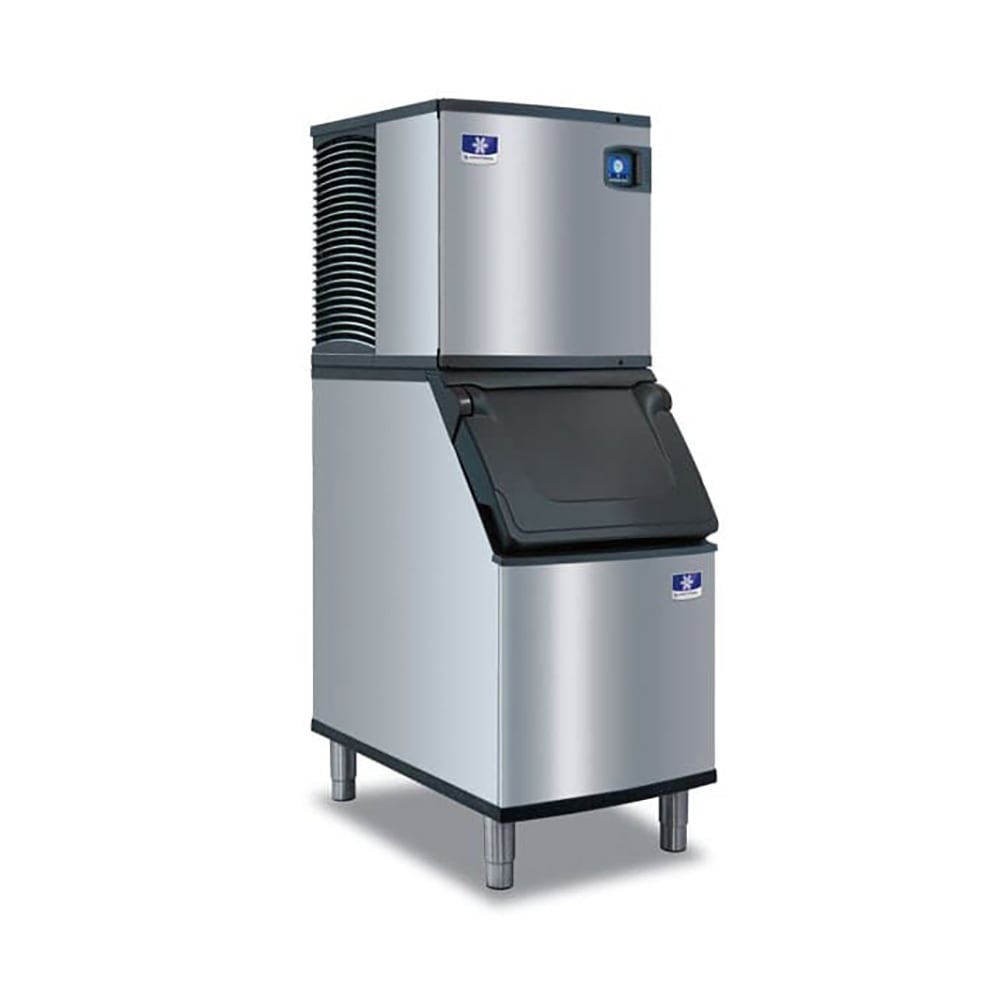

Manitowoc Ice IYT0420W/D420 490 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 383 lb Storage, Water Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$5,949.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYT0420W/D420 Description
The Manitowoc Ice IYT-0420W/D-420 Indigo NXT™ ice machine with bin can make 454 pounds of ice that measures 0.375 inch by 1.125 inches by 0.875 inch in 24 hours. Called half-cube ice, this type is excellent for drinks and bagged applications. Ice is measured for consistency by an acoustical probe, and the daily production amount can be programmed to best suit specific applications.
A hinged door on the ice maker swings out to provide access to components in the food zone. Some of these parts are removable for cleaning, and an antimicrobial agent is built into select components to slow bacteria and fungus growth.
The bin can hold 383 pounds of ice, and its insulation retains cold air to prevent ice from melting. A 5.3-pound-capacity scoop is included with this Manitowoc Ice IYT-0420W/D-420 ice maker with bin. Integrated knuckle and thumb guards in the scoop prevent the user’s hands from contaminating the ice. Users can comfortably open the bin door for scooping since there are grips built into each side. This door stays open due to its self-latching design.
- 454-lb. daily ice production capacity
- 400-lb. AHRI-certified daily ice production capacity
- Programmable ice production time or volume
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Acoustical sensing probe measures ice thickness and consistency
- easyTouch® display provides operators with the machine’s status and alerts
- Hinged door can be swung out for access to components
- Removable water trough, water probe, water pump, distribution tube, and curtain
- Fungus and bacteria growth on select parts are minimized by AlphaSan® antimicrobial agent
- Stainless steel exterior has a corrosion-resistant DuraTech™ clear coat that resists smudges
- Uses R404A refrigerant
- Part of the Indigo NXT series
- 3,800 average BTU; 6,000 peak BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 383-lb. application capacity
- 12.9-cu.-ft. AHRI-certified capacity
- 5.3-lb. ice scoop capacity
- Scoop’s built-in hand guard protects the ice from contamination
- Foam-insulated door construction prevents cold air from escaping
- Grips in the sides of the door for comfortable lifting at different angles
- Door self-latches to remain open while staff are scooping
- DuraTech exterior
- Ice Maker
- 22 in. W x 24 in. D x 21.5 in. H
- 10.6 A, 4.28 kW
- 115 V/60 Hz/1 ph
- Ice Bin
- 22 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYT0420W/D420 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE
Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Manitowoc Ice IYT0420W/D420 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 490 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 383 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 243.00 |
