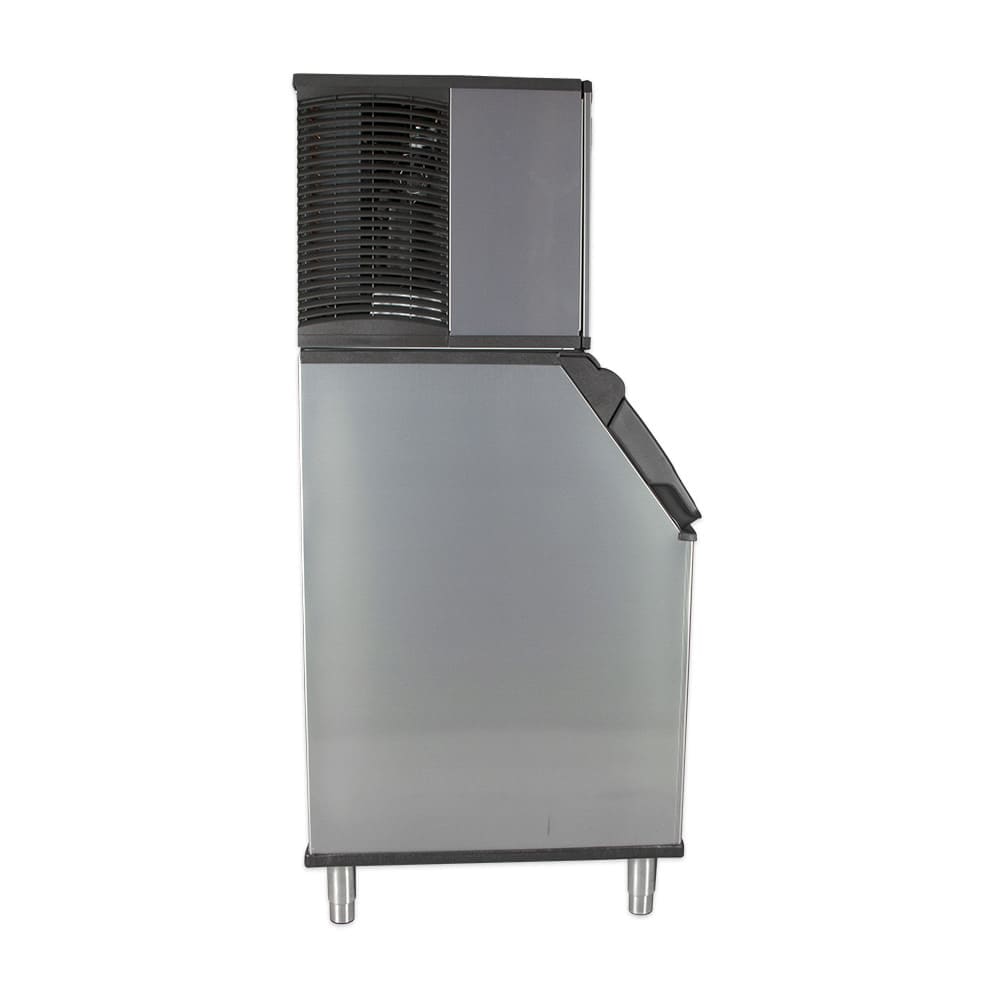

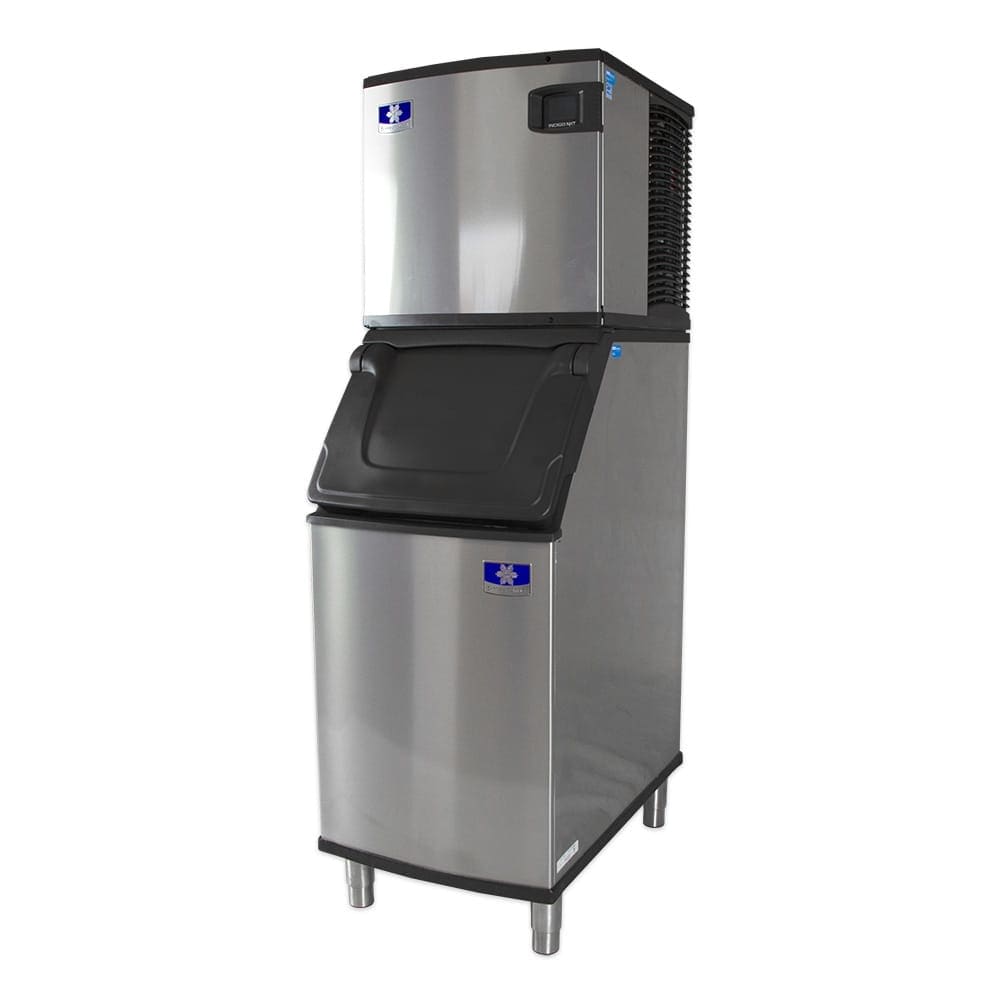

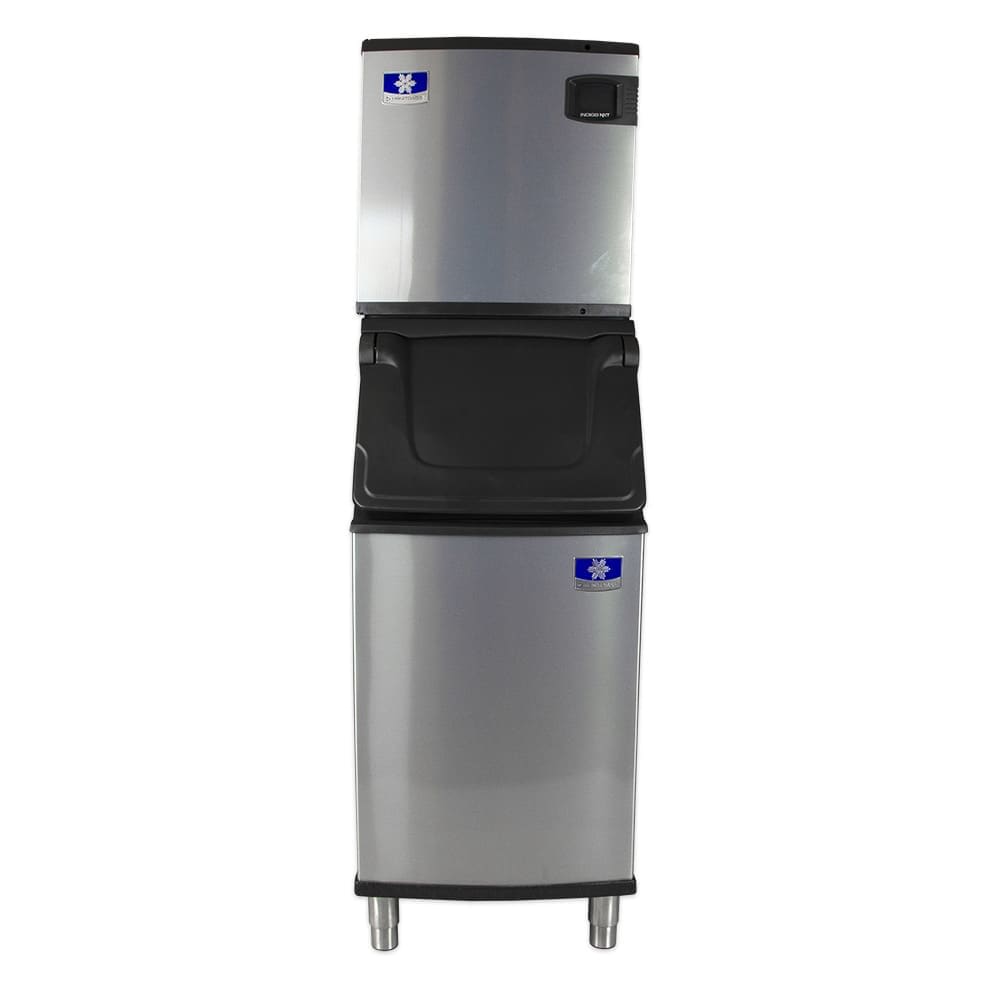

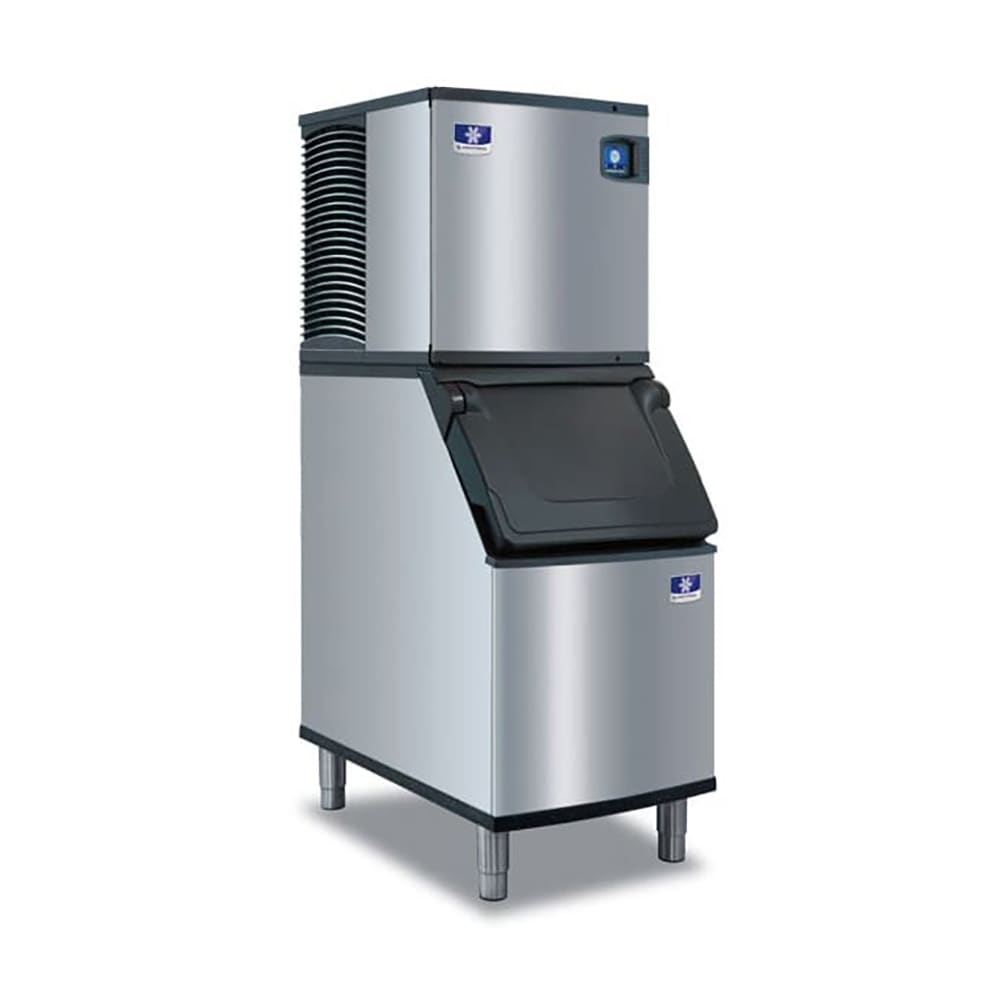

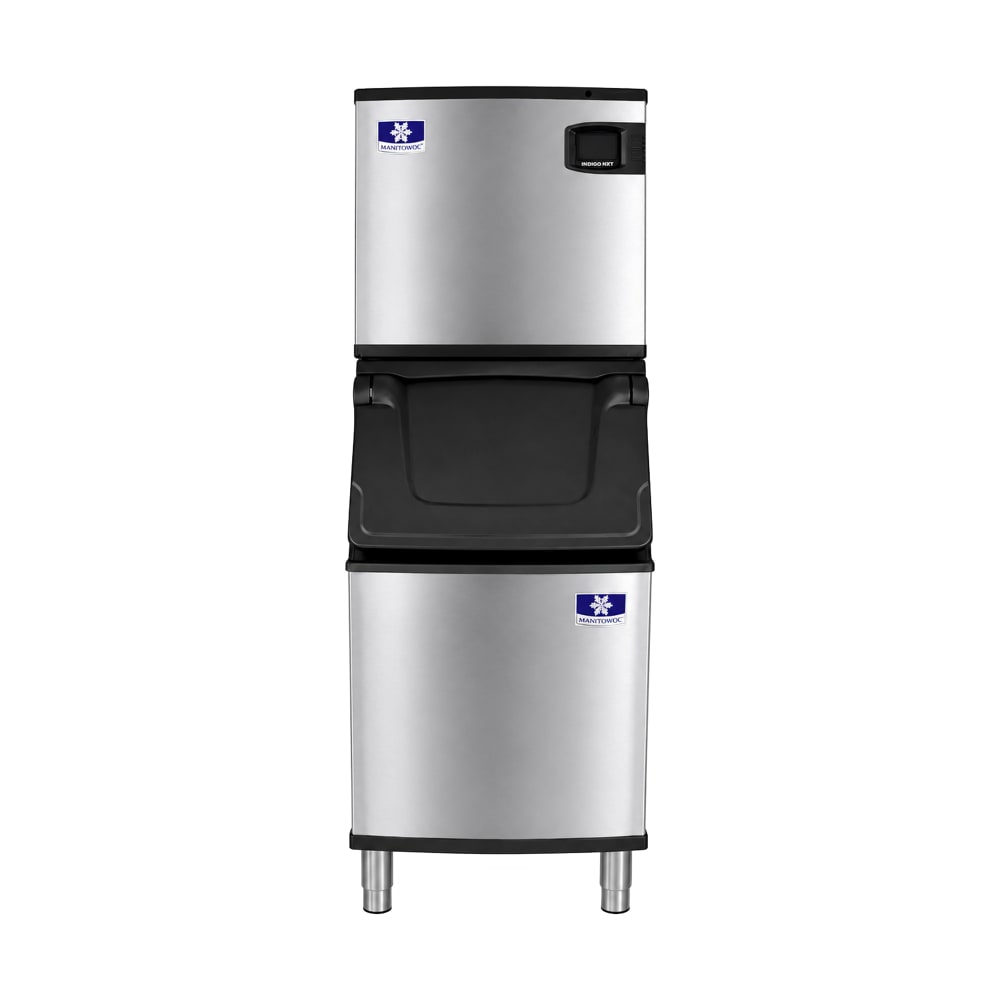

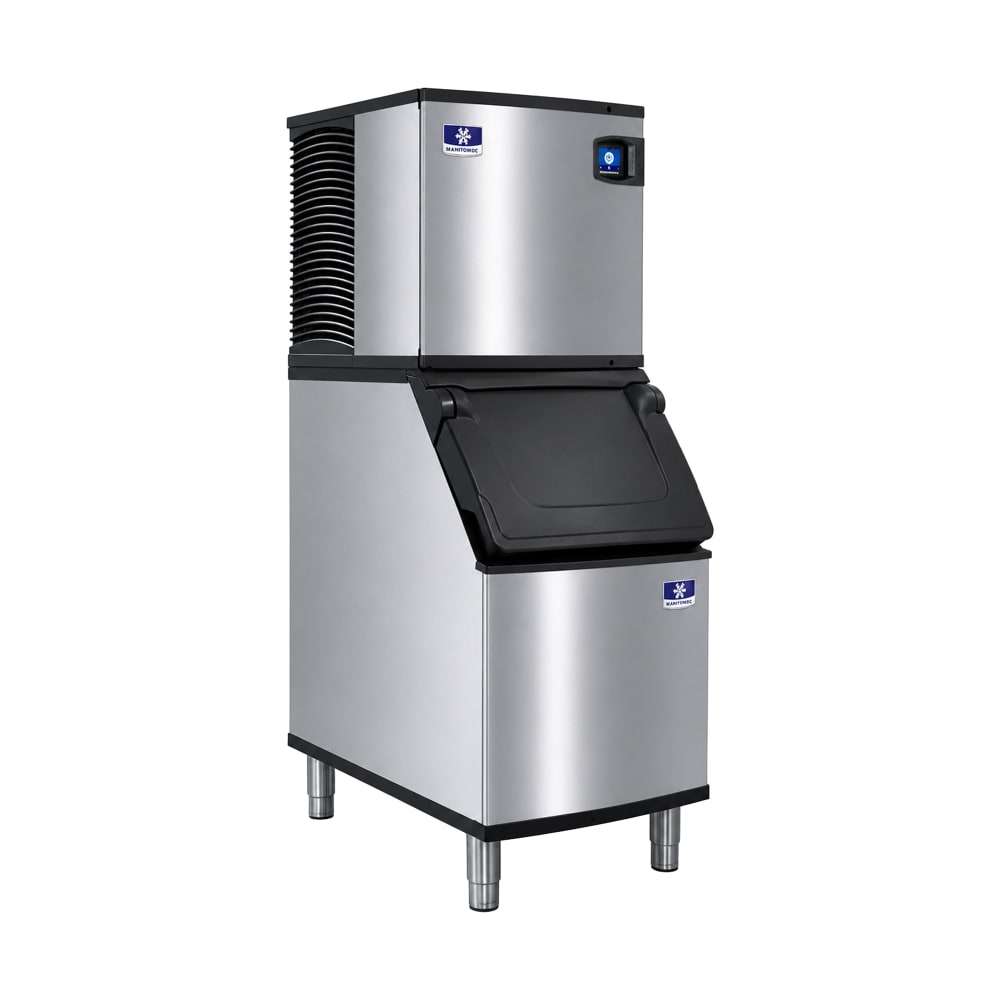

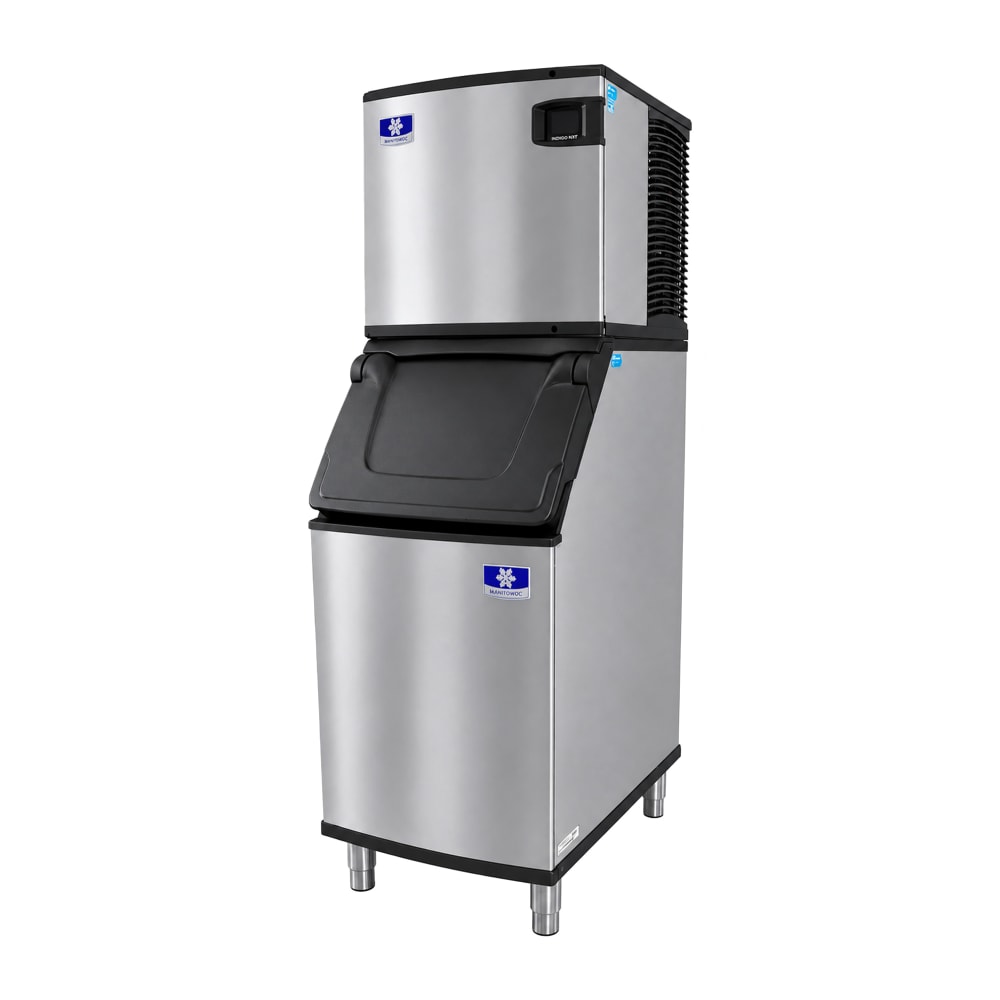

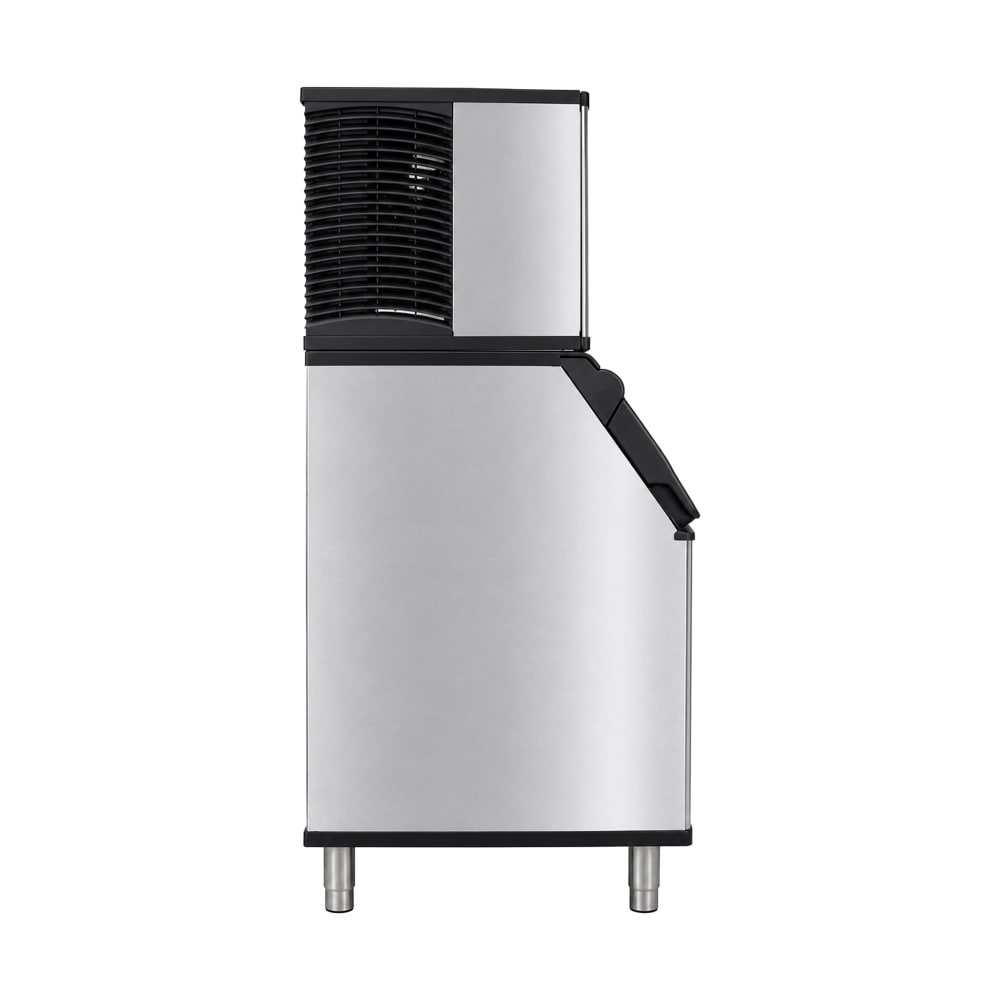

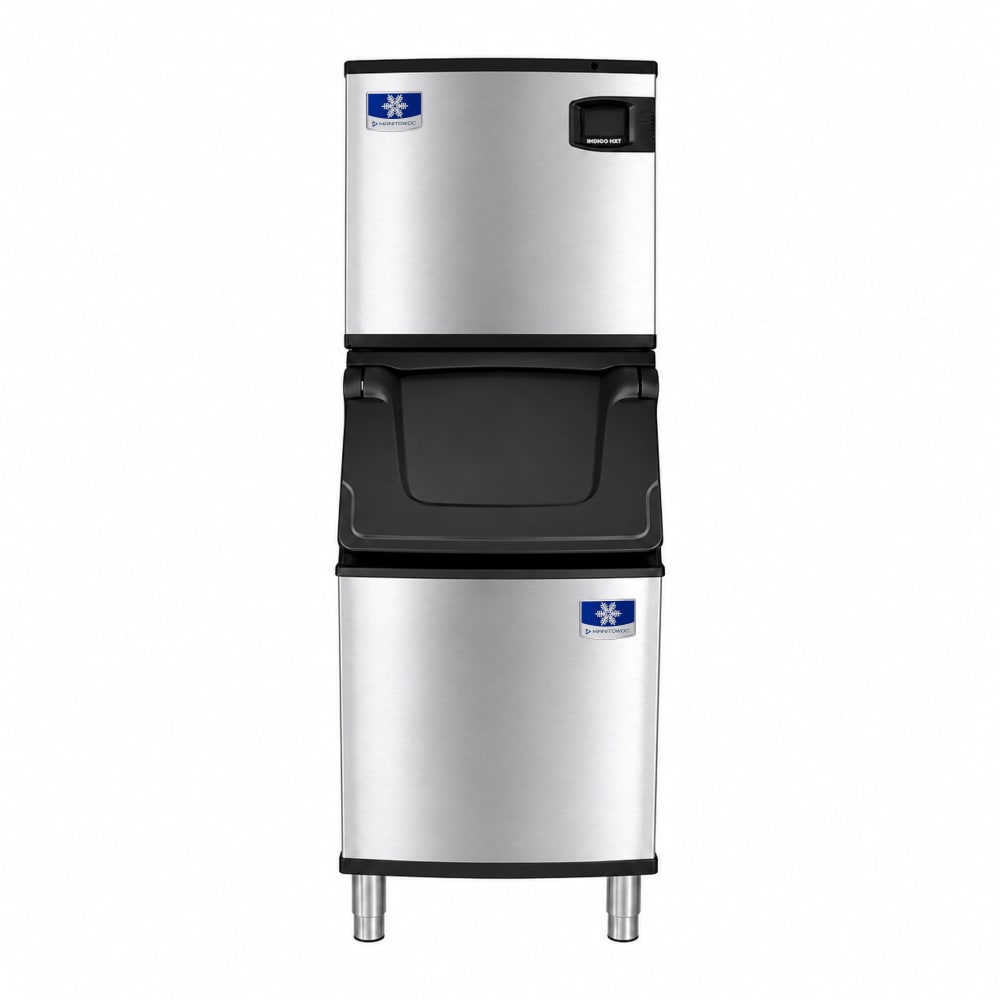

Manitowoc Ice IDP0420W/D420 442 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 383 lb Storage, Water Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$5,949.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDP0420W/D420 Description
The Manitowoc Ice IDP0420W-161/D420 Indigo NXT™ ice maker with bin produces as much as 442 pounds in one day. It makes full-cube ice, which measures 0.875 inch by 0.875 inch by 0.875 inch and is excellent for drinks since it melts slowly. Each cycle is monitored by an acoustical probe that checks ice thickness before it drops into the bin. Operators can check service and energy information on the touchscreen control panel.

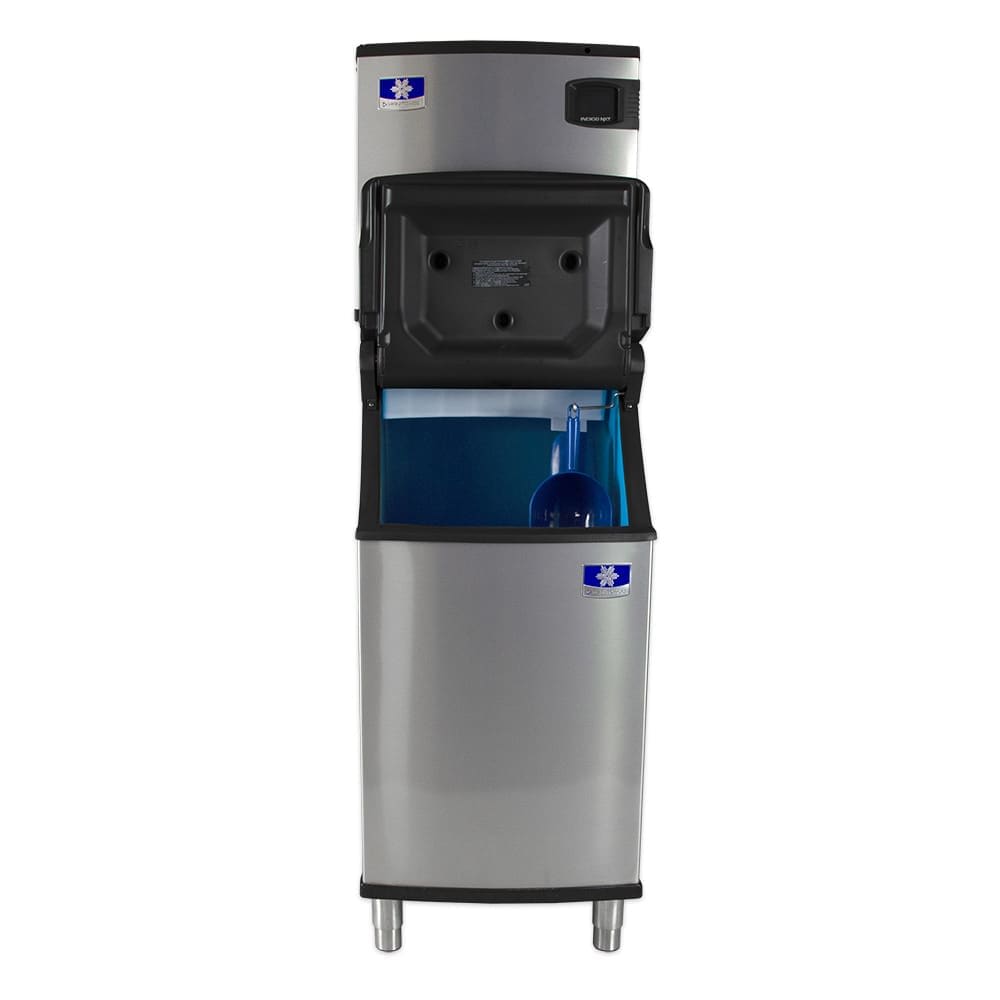

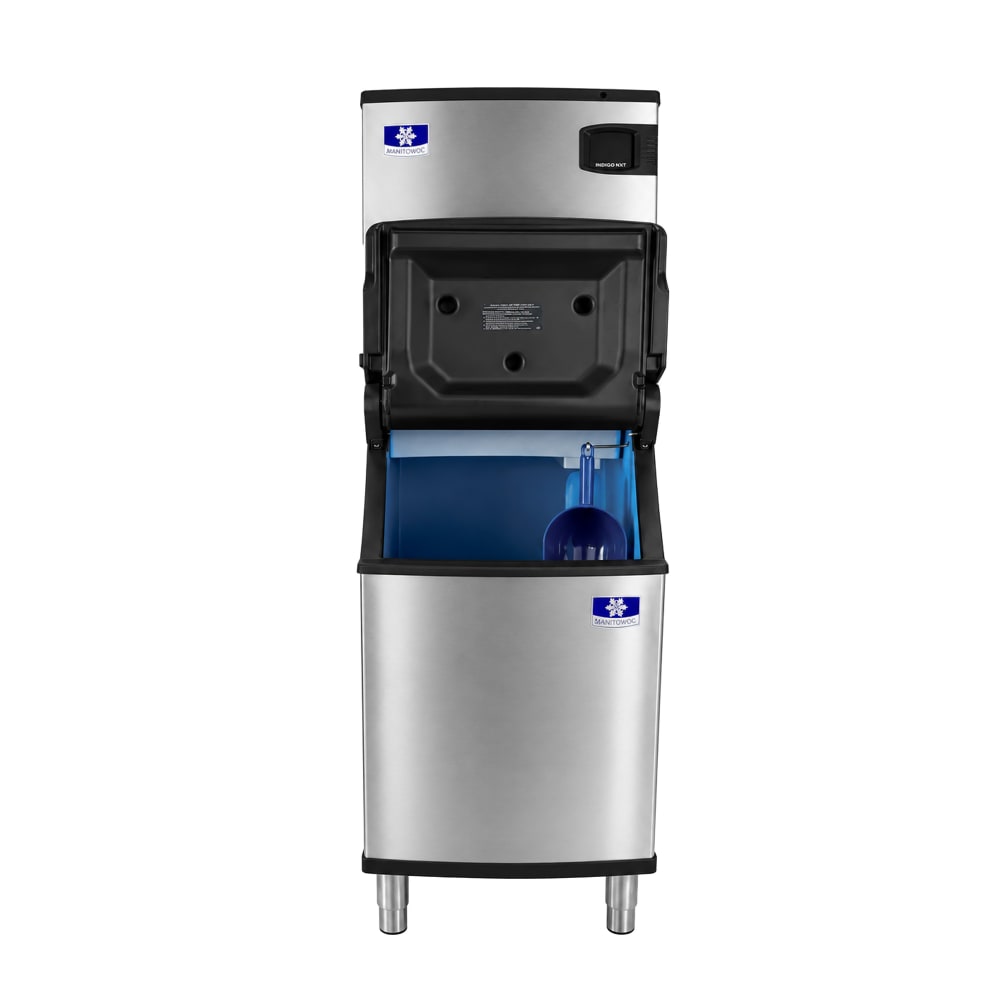

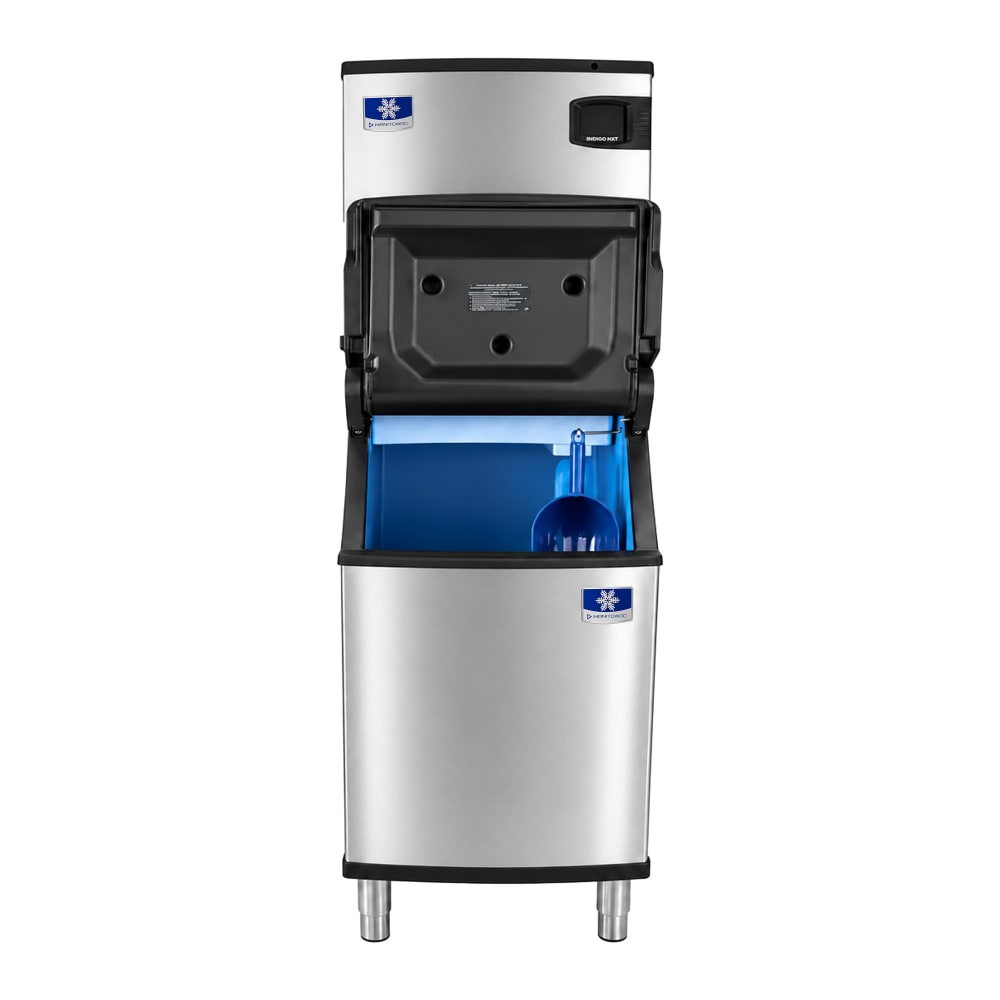

This Manitowoc Ice IDP0420W-161/D420 ice maker with bin has a 383-pound storage capacity and a blue polyurethane liner. Insulated with foam, the bin door traps cold air to slow melting ice. Side grips enable the door to open from any direction and stay open when employees are scooping ice. A scoop with a 5.3-pound capacity and hand guards that eliminate contact with ice is included.
- Part of the Indigo NXT series
- 442-lb. daily ice production capacity
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Programmable ice production based on time of operation or volume
- Acoustical sensing probe measures ice thickness to check for consistency
- easyTouch® display provides energy and service information
- 24-hr. preventive maintenance with diagnostic feedback
- Swing-out, hinged door ensures the food zone components are accessible
- Removable curtain, distribution tube, water trough, and sensing probes
- AlphaSan® antimicrobial agent helps slow bacteria growth
- Stainless steel exterior has a corrosion-resistant DuraTech™ clear coat
- Water-cooled condensing unit
- Uses R290 refrigerant
- 3,800 average BTU; 6,000 peak BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 383-lb. application capacity
- 12.9-cu.-ft. AHRI-certified capacity
- Blue polyurethane bin liner
- Insulation in the door slows melting
- Door's side grips support opening from any angle
- Self-latching door design for scooping
- 5.3-lb. capacity in the ice scoop
- Built-in knuckle and thumb guard in the scoop prevents contamination
- DuraTech exterior
- Ice Maker
- 22 in. W x 24.5 in. D x 21.5 in. H
- 10.6 A, 4.28 kW
- 115 V/60 Hz/1 ph
- Bin
- 22 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0420W/D420 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 442 lb./24 hours at 70°/50° (369 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290A refrigerant, NSF, cULus, CE
Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Watch a video about this product
Manitowoc Ice IDP0420W/D420 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 442 |
| Access | Lift Up Door |
| Also Known As | IDT0420W/D420 |
| Bin Capacity (lb) | 383 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 239.00 |
