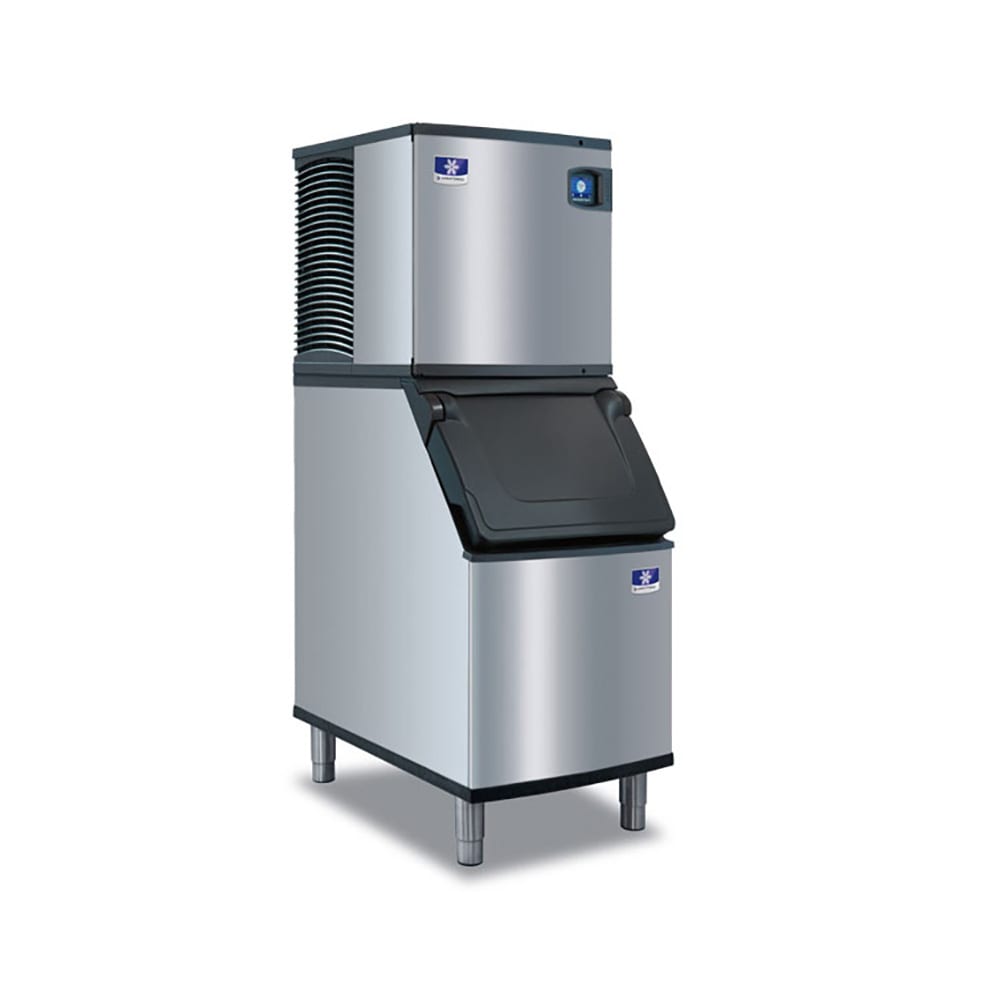

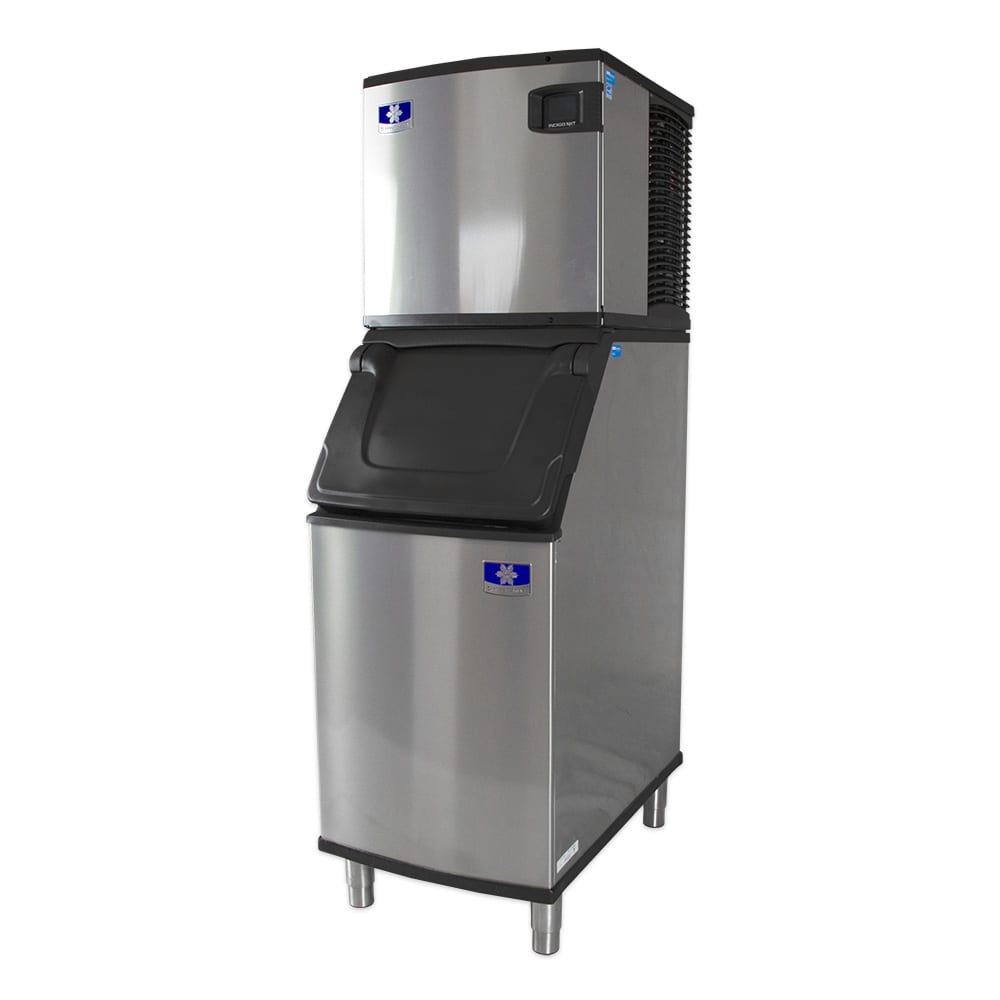

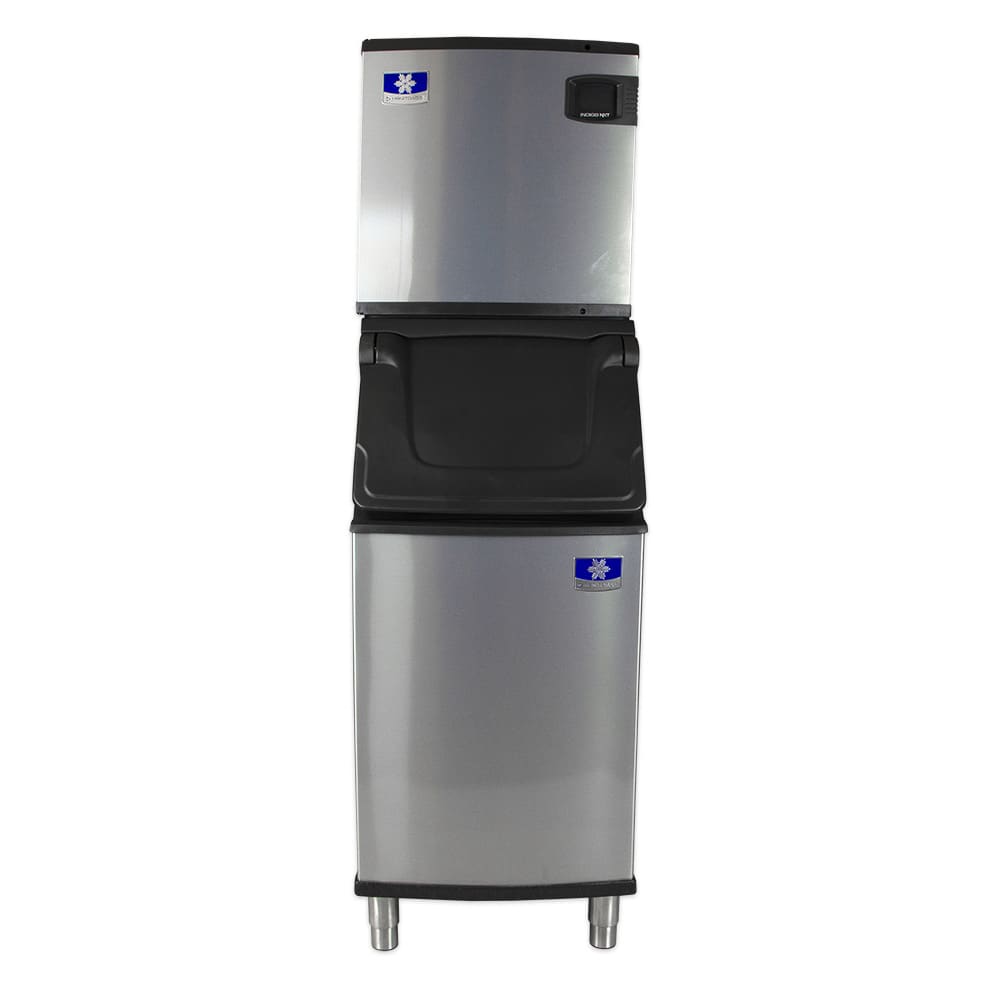

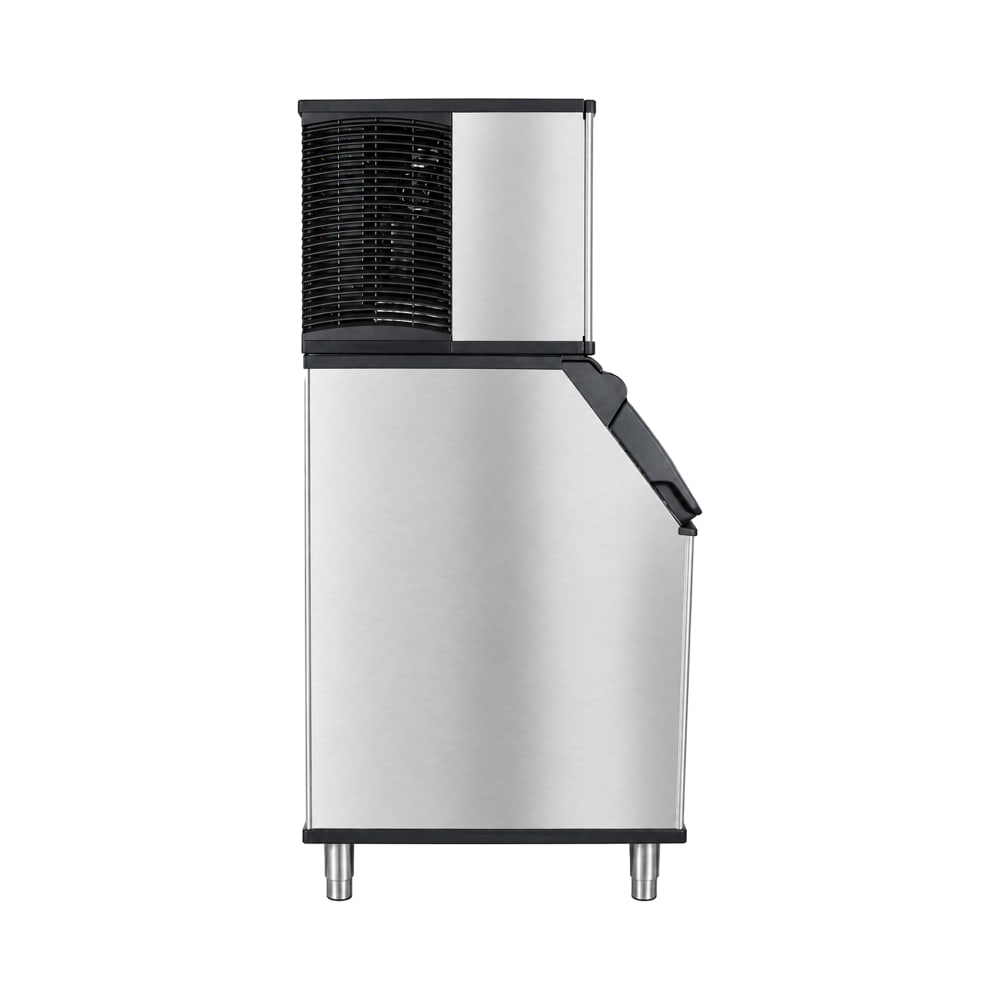

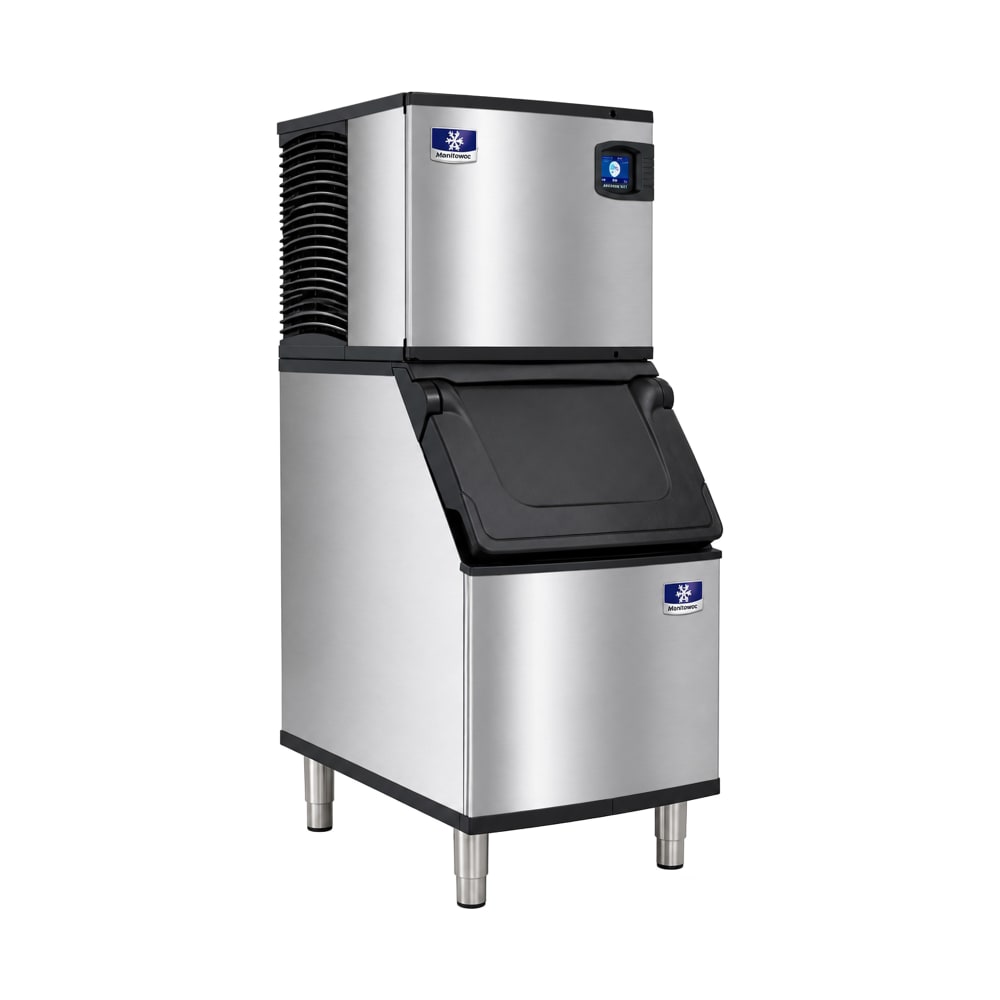

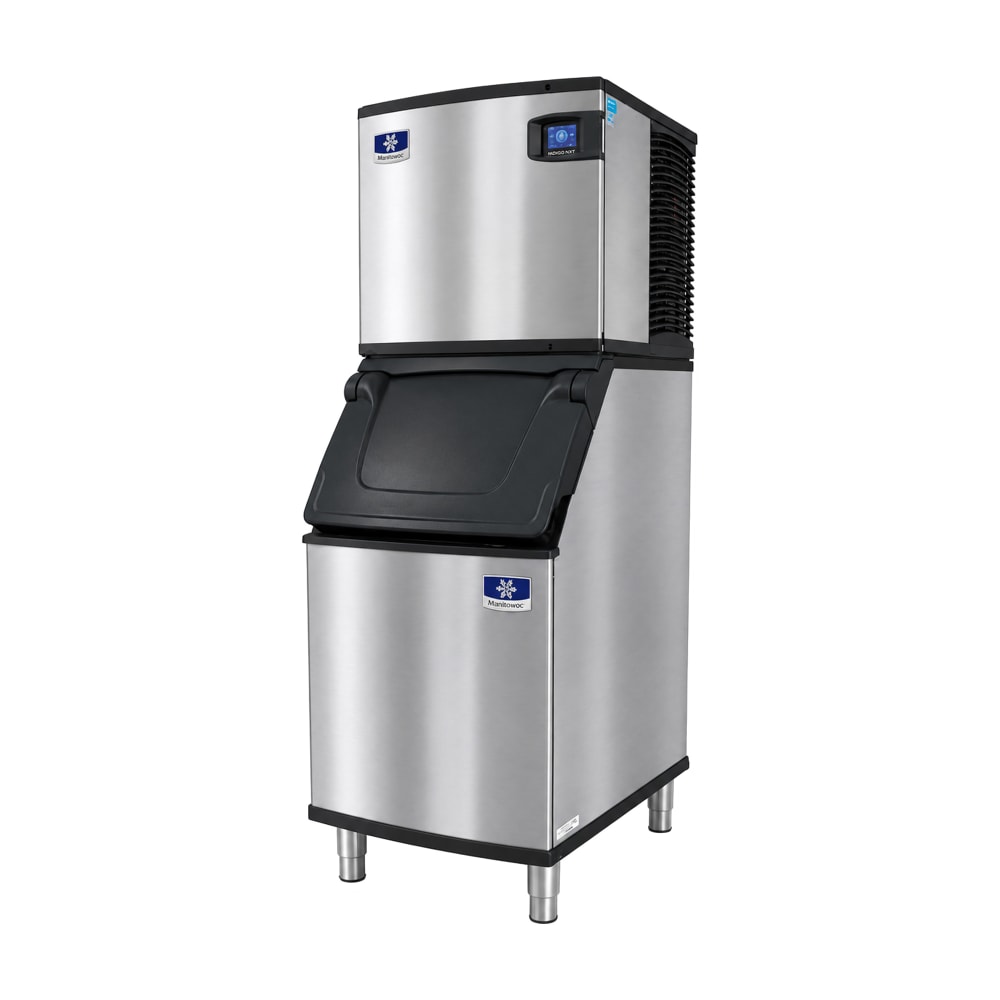

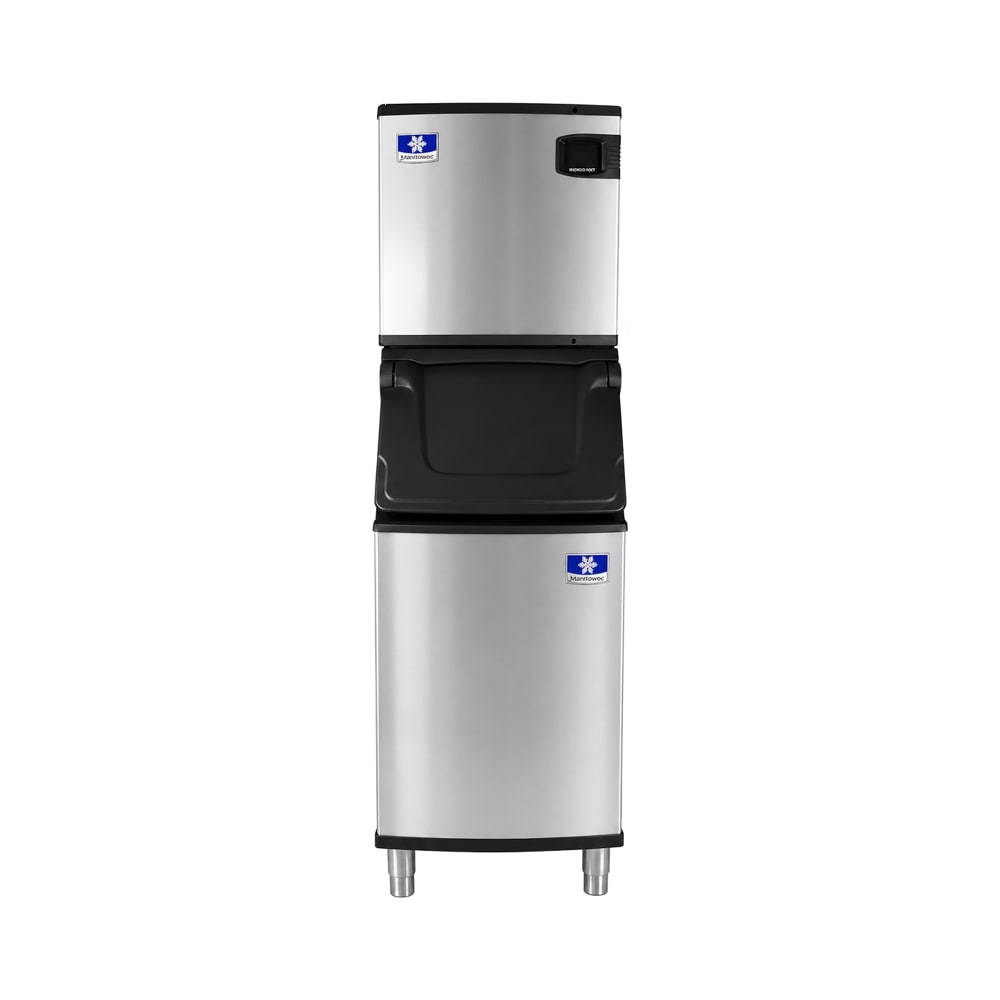

Manitowoc Ice IDT0420A/D420 470 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v

In 24 hours, the Manitowoc Ice IDT0420A/D420 Indigo NXT™ ice maker with bin can produce 470 pounds of dice ice. This amount depends on the surrounding environment, water conditions, and programmed settings. On the touchpad, operators can specify a lower daily amount or designate off-hours to conserve energy. The control screen also displays diagnostics and maintenance notifications, encouraging operators to take proper care of the unit so that it runs for a long time.

The Manitowoc Ice IDT0420A/D420 ice machine and bin combo can store 383 pounds of dice ice. Although not as large as regular dice or gourmet cubes, this type still melts relatively slowly and works great for cooling sodas, cocktails, and other beverages. Ice is accessible through the cammed bin door, which latches open for scooping. The ice scoop can hold 5.3 pounds of ice at a time, and its retaining lip prevents ice from falling to the floor. Finger and knuckle guards prevent users' hands from accidentally contaminating the ice, and as an additional preventative measure, a built-in holder keeps the scoop handle out of the bin.

Ice Machine Details

• Part of the Indigo NXT series
• 470-lb. maximum daily ice production
• 375-lb. AHRI-certified daily ice production
• Makes full-size dice ice

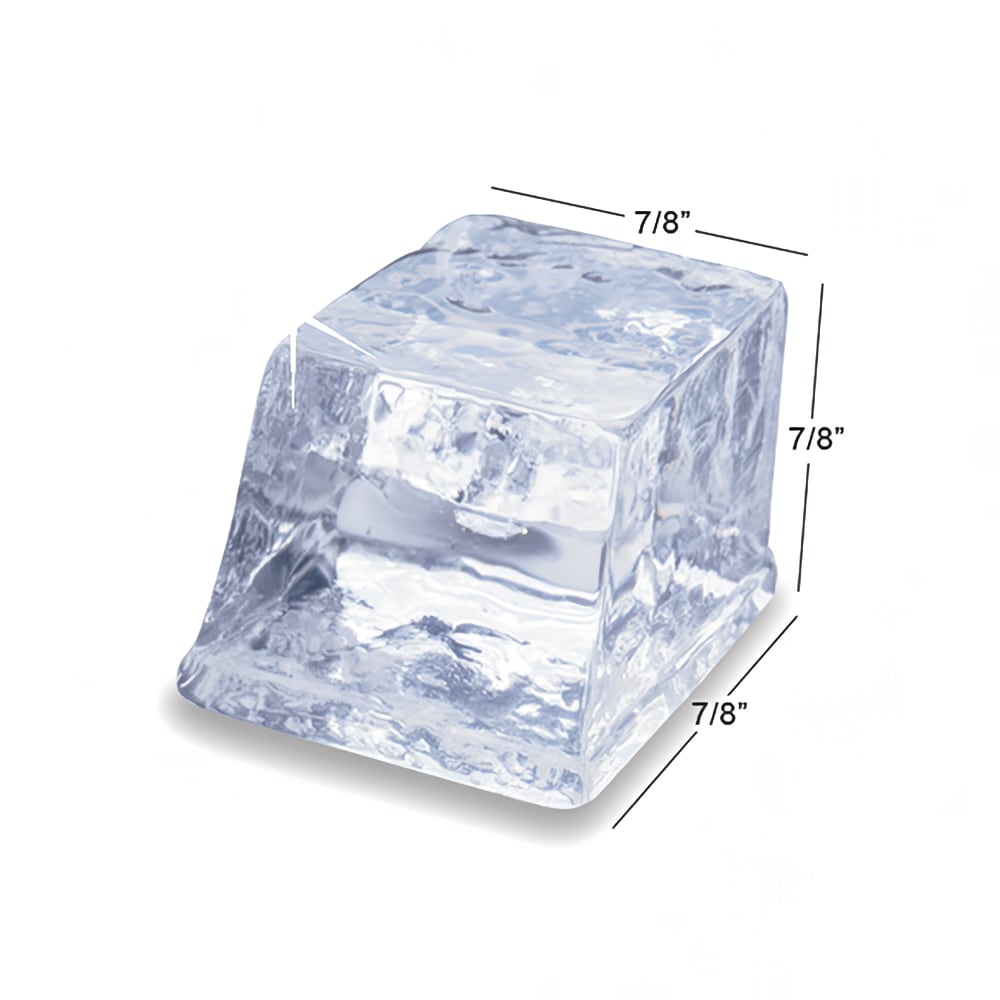

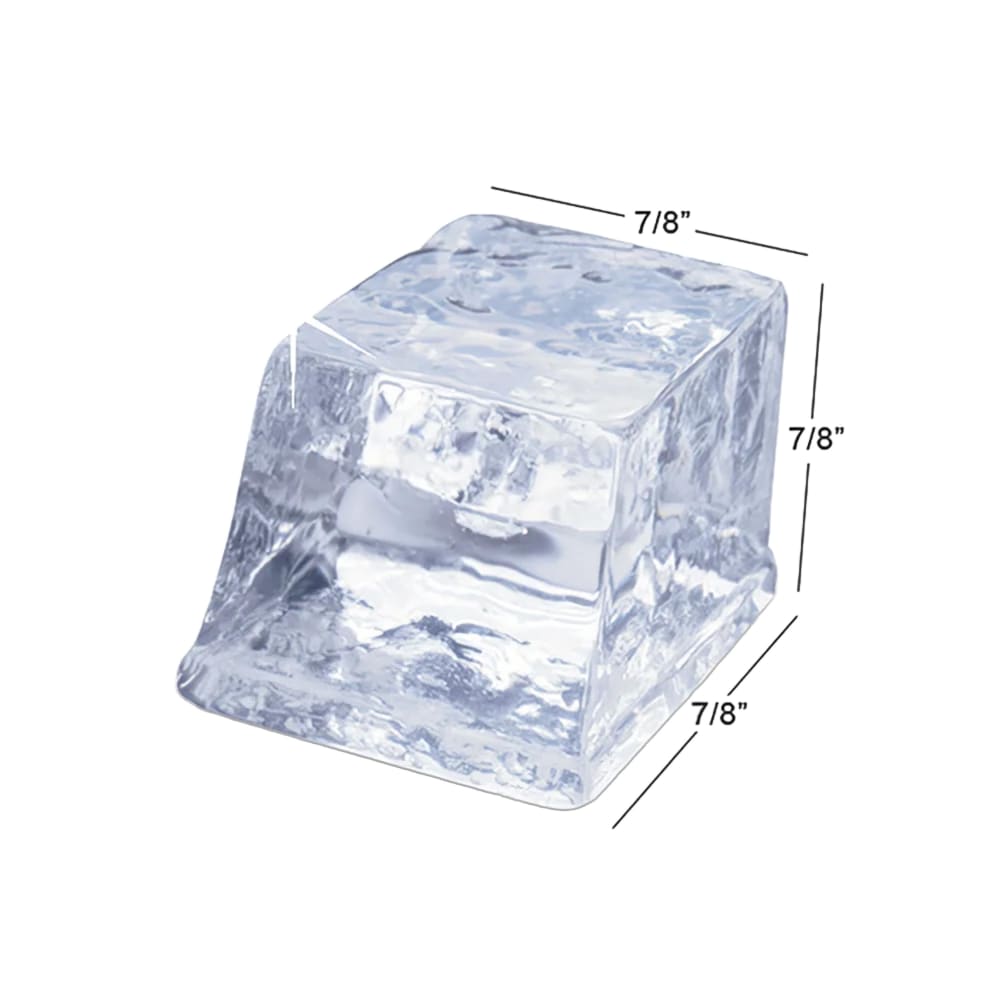

• Cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• easyTouch® display is icon based for straightforward navigation
• User-programmed production times or volume control
• Removable parts in foodzone facilitate cleaning
• Some components are built with AlphaSan® to reduce bacteria growth between cleanings
• Acoustical sensing probe ensures ice is the correct thickness before it goes into the bin
• 24-hr. preventive maintenance diagnostics
• Corrosion-resistant DuraTech exterior

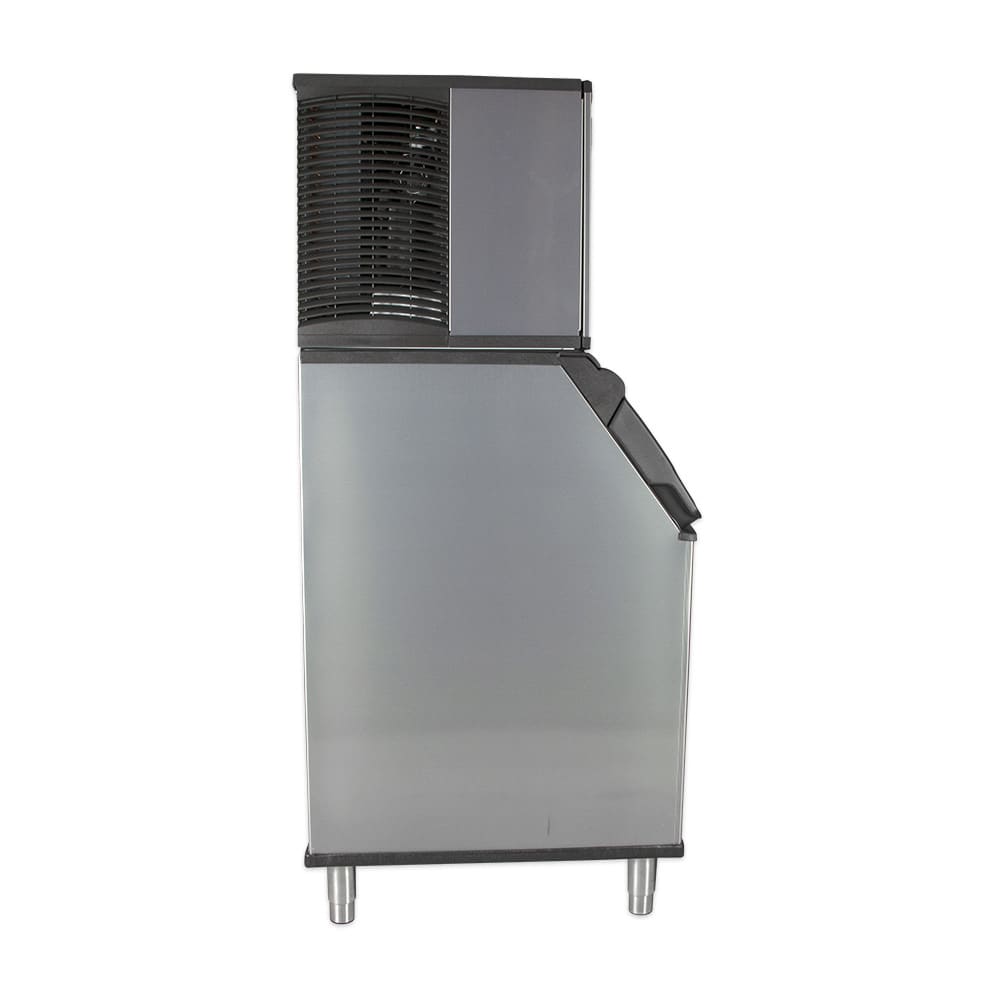

• Air-cooled condenser uses R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU

Product Features

Ice Bin Details

• 383-lb. storage capacity
• 12.9-cu.-ft. AHRI-certified storage capacity
• Door's side grips enable opening from nearly any angle
• Foam-insulated door prevents ice from melting quickly

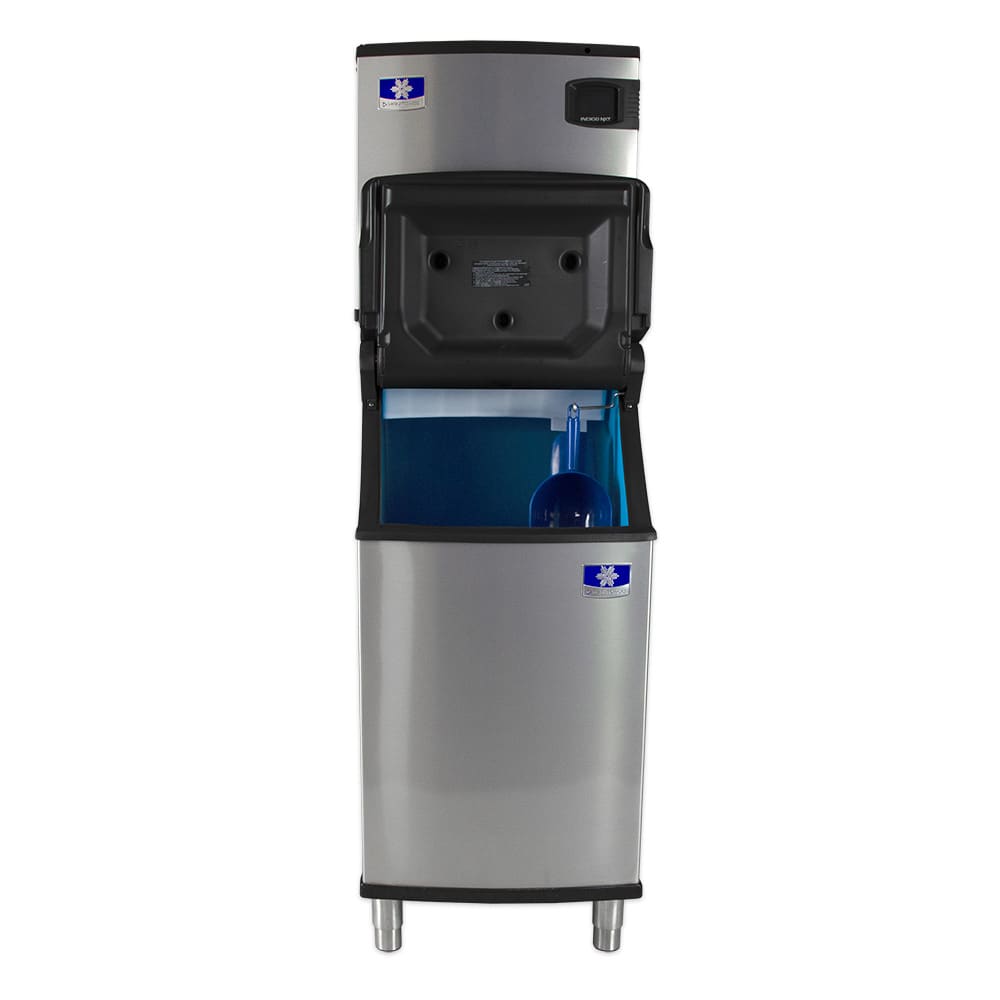

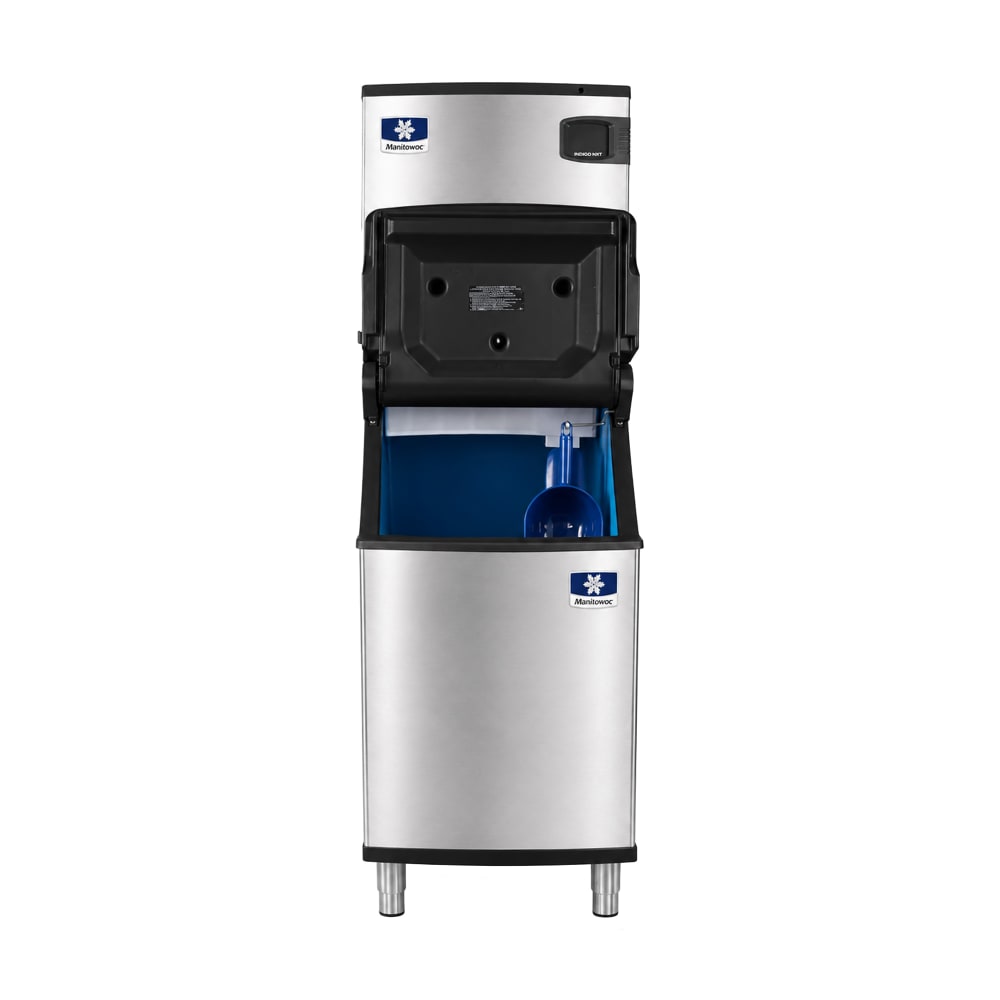

• Cammed bin door latches in an open position for uninterrupted scooping
• 5.3-lb.-capacity scoop
• Scoop's built-in knuckle and thumb guard prevent hands from touching ice
• DuraTech metal exterior finish is very corrosion resistant
• Polyurethane Artic Blue bin liner

Ideal Operating Conditions

• Clearances: 12 in. on sides, 12 in. on top, 5 in. on back
• Ambient air temperature: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI

Dimensions & Utilities

• Bin: 22 in. W x 34 in. D x 50 in. H
• Ice machine: 22 in. W x 24.5 in. D x 21.5 in. H
• 11.3 A, 5.6 kW
• 115 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDT0420A/D420 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
