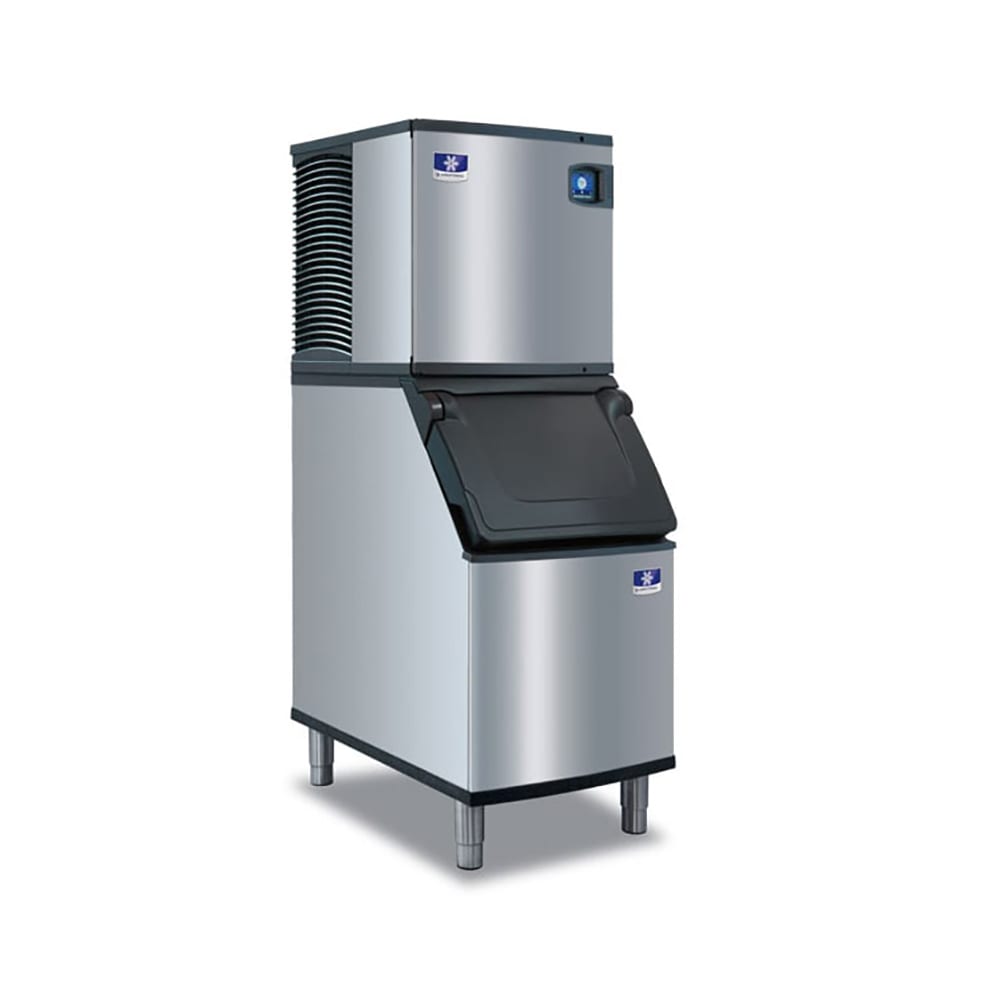

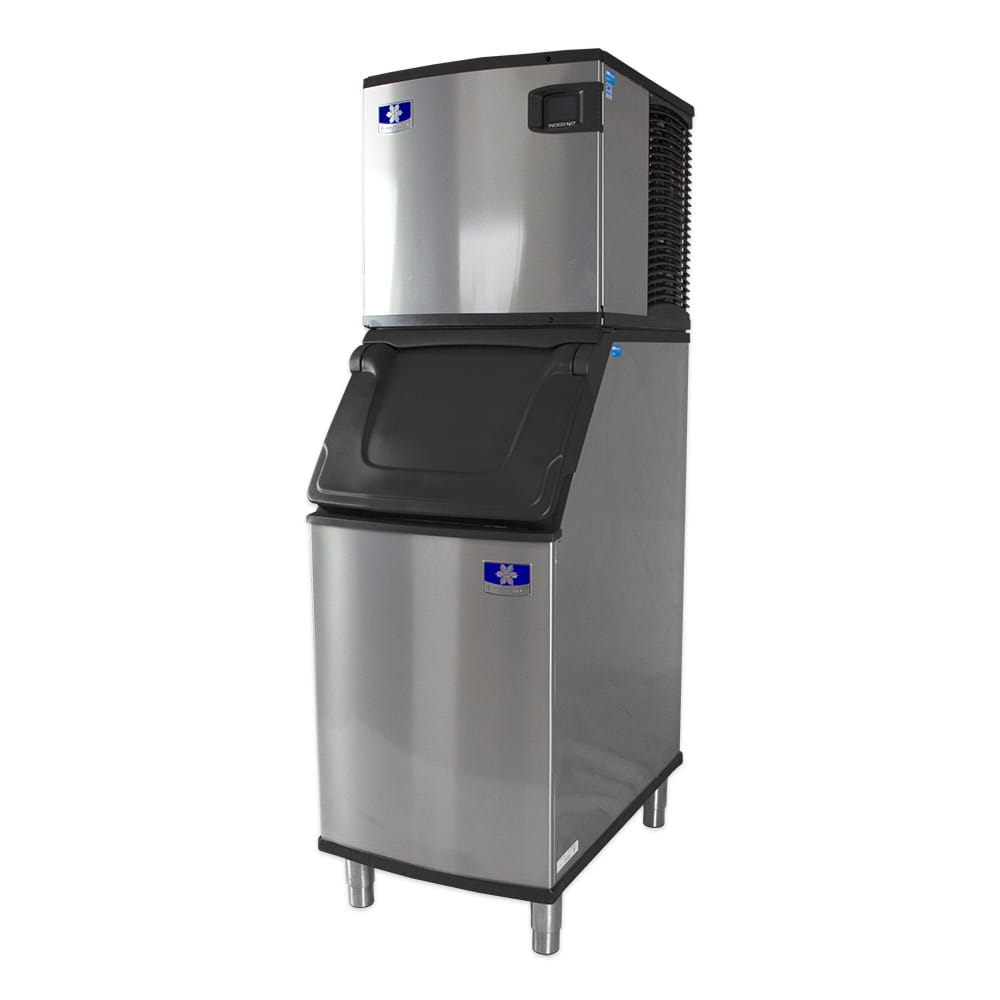

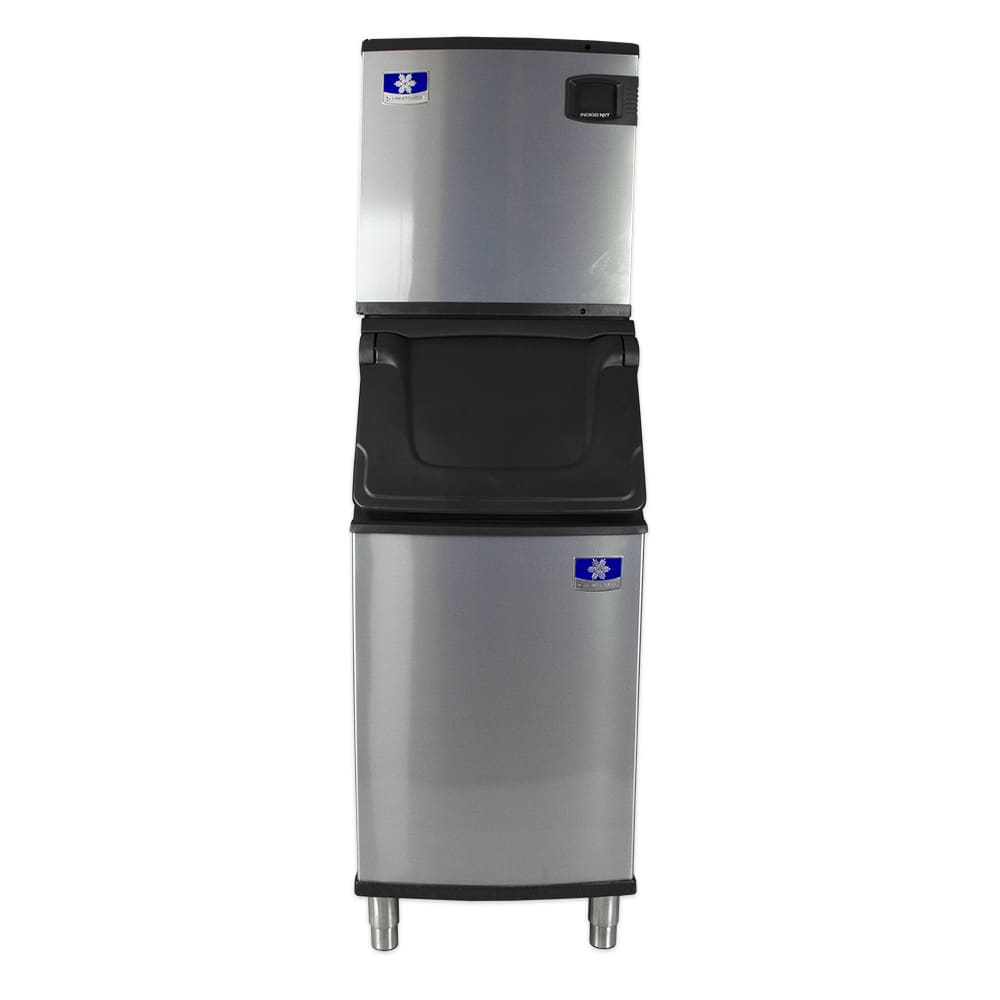

Manitowoc Ice IYT0420W/D320 490 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 264 lb Storage, Water Cooled, 115v

The Manitowoc Ice IYT-0420W-161/D-320 ice maker with bin can produce 490 pounds of ice in 24 hours, though it is certified by AHRI to make 425 pounds. Operators can set ice production based on a desired daily volume or time of day, and ice thickness is measured by a probe to ensure each cycle is consistent. Holding 364 pounds, the bin includes a scoop with built-in thumb and knuckle guards. Foam insulation in the bin door slows the melting process, and side grips enable operators to open the door from any angle.

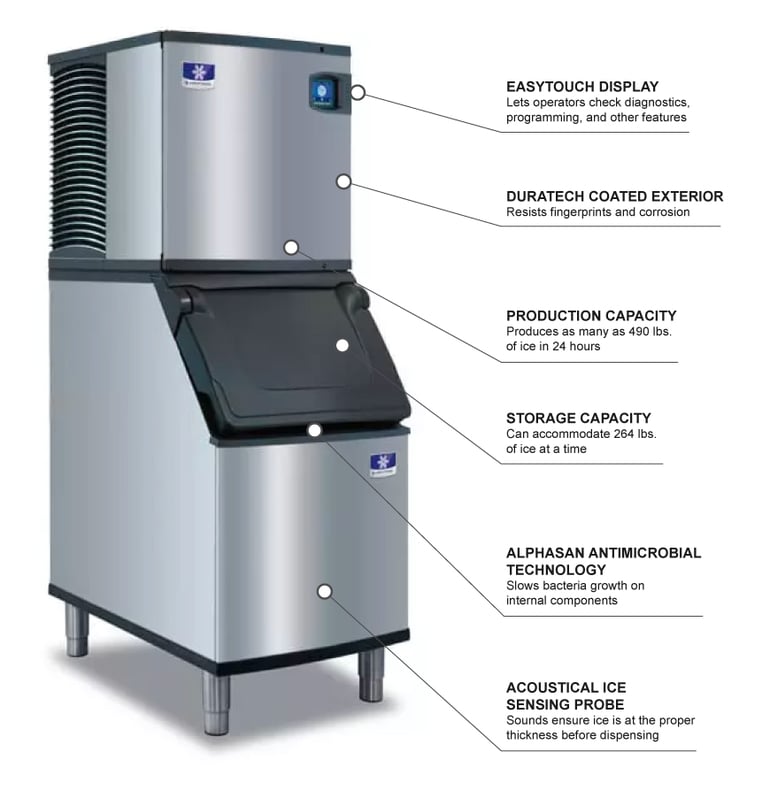

Ice Maker Details

• 490-lb. ice production capacity
• 425-lb. AHRI-certified ice production capacity

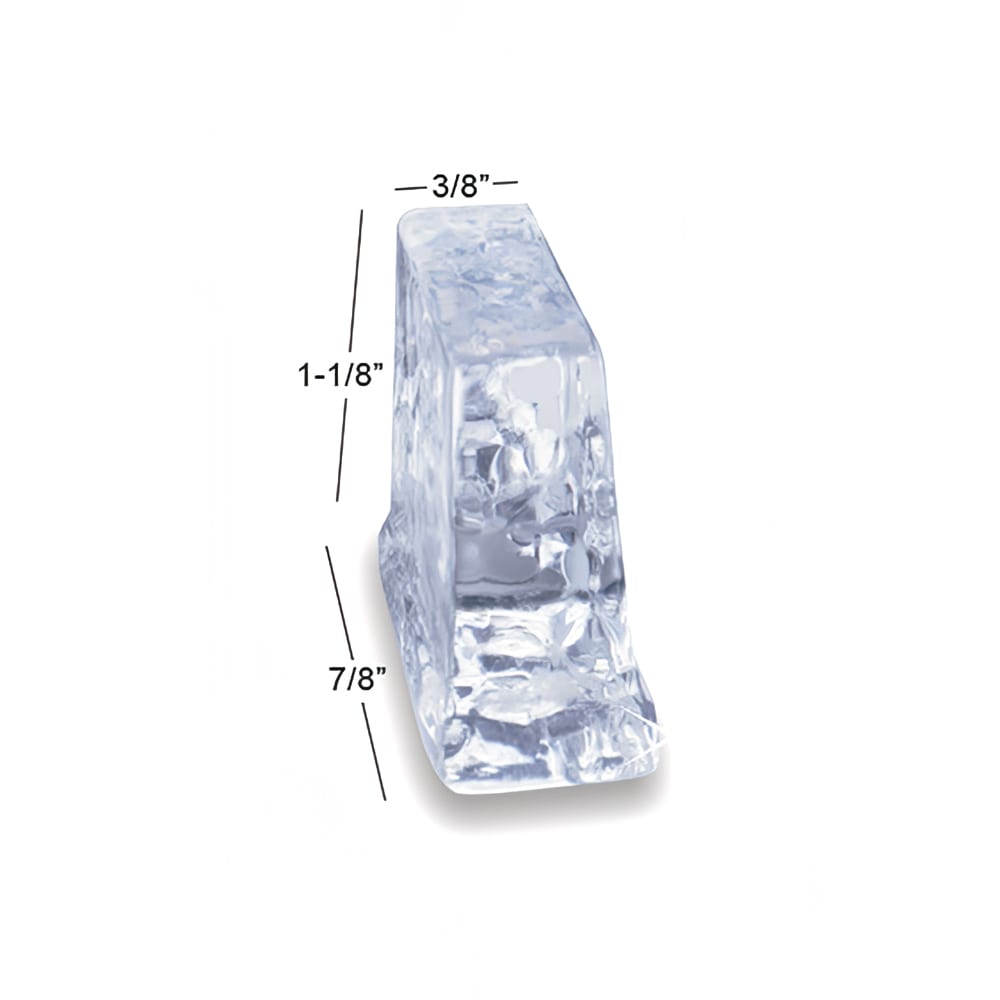

• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Ice production volume and time are programmable
• Acoustical ice sensing probe measures thickness
• easyTouch® display has touchscreen controls
• Runs 24-hr. preventive maintenance and provides diagnostic feedback
• Hinged front door swings out to access food zone components
• Some parts are removable to simplifying cleanup
• AlphaSan® antimicrobial slows bacteria growth on select components
• DuraTech exterior is corrosion resistant and reduces fingerprint visibility

Product Features

Bin Details

• 264-lb. application capacity
• 8.9-cu.-ft. AHRI-certified capacity
• Foam insulation slows melting
• Side door grips for convenient opening

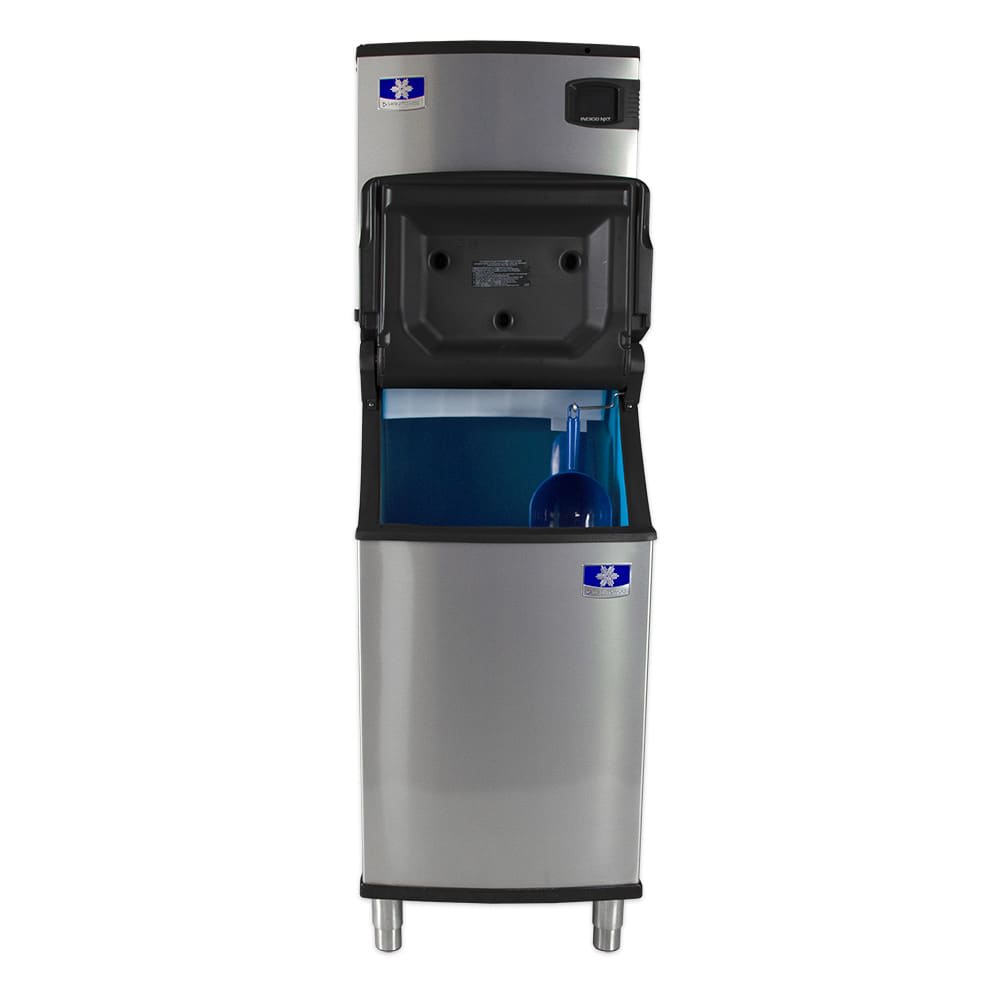

• Self-latching door stays open while employees are scooping ice
• 5.3-lb. ice scoop capacity
• Scoop has a built-in knuckle and thumb guard to prevent contamination
• Polyurethane bin liner
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 10.6 A, 4.24 kW
  • 208-230 V/60 Hz/1 ph
• Bin
  • 22 in. W x 34 in. D x 38 in. H

From The Manufacturer

IYT-0420W Ice Maker: Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), DuraTech™ exterior, half-dice size cubes, R410A, NSF, cULus, CE; D-320 Ice Bin: Ice Bin, 22"W x 34"D x 38"H, with side-hinged front-opening door, side grips, AHRI certified 264 lb ice storage capacity (8.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0420W/D320 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Certifications
