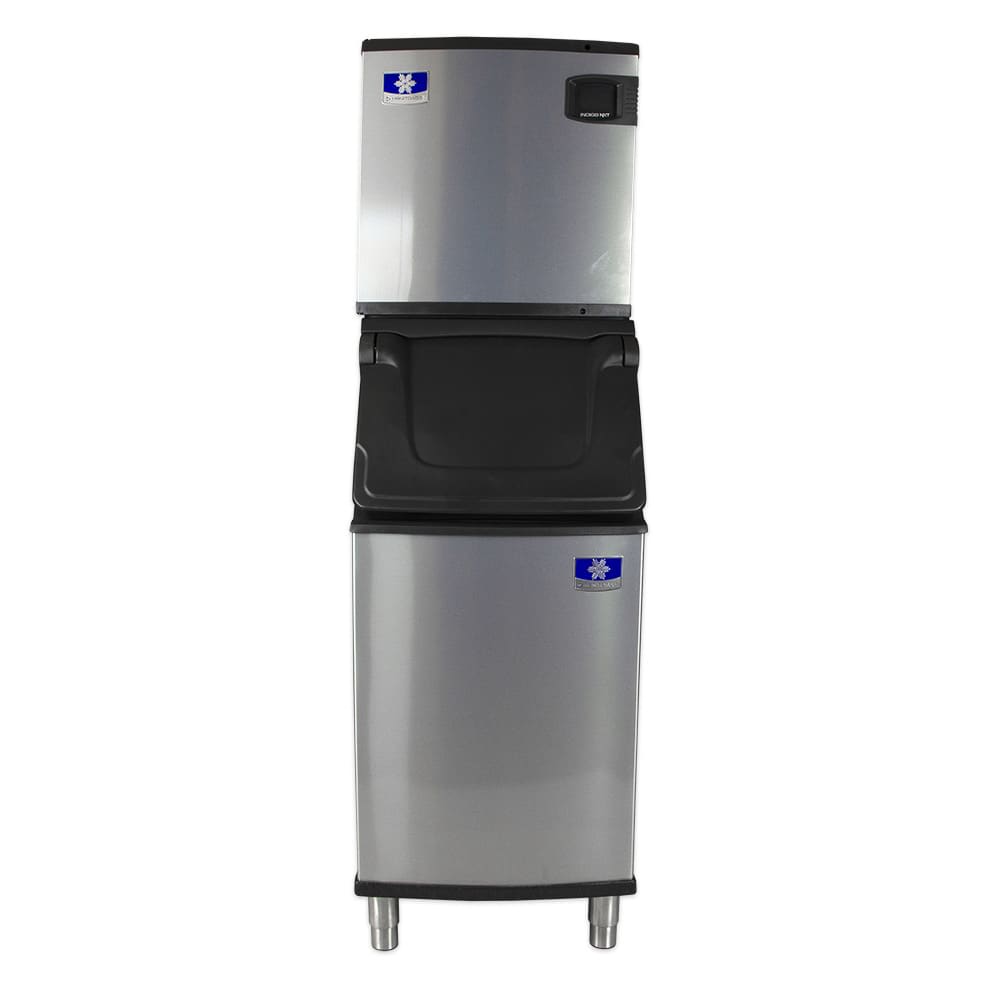

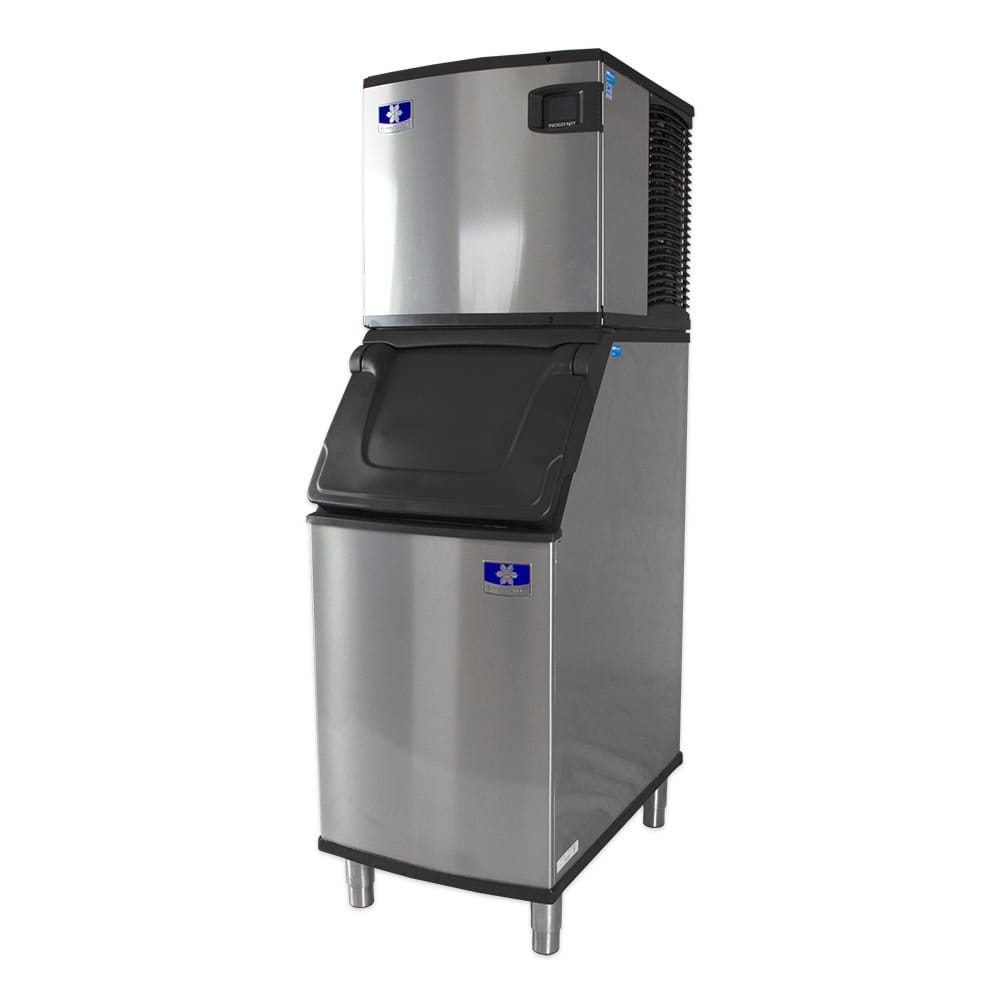

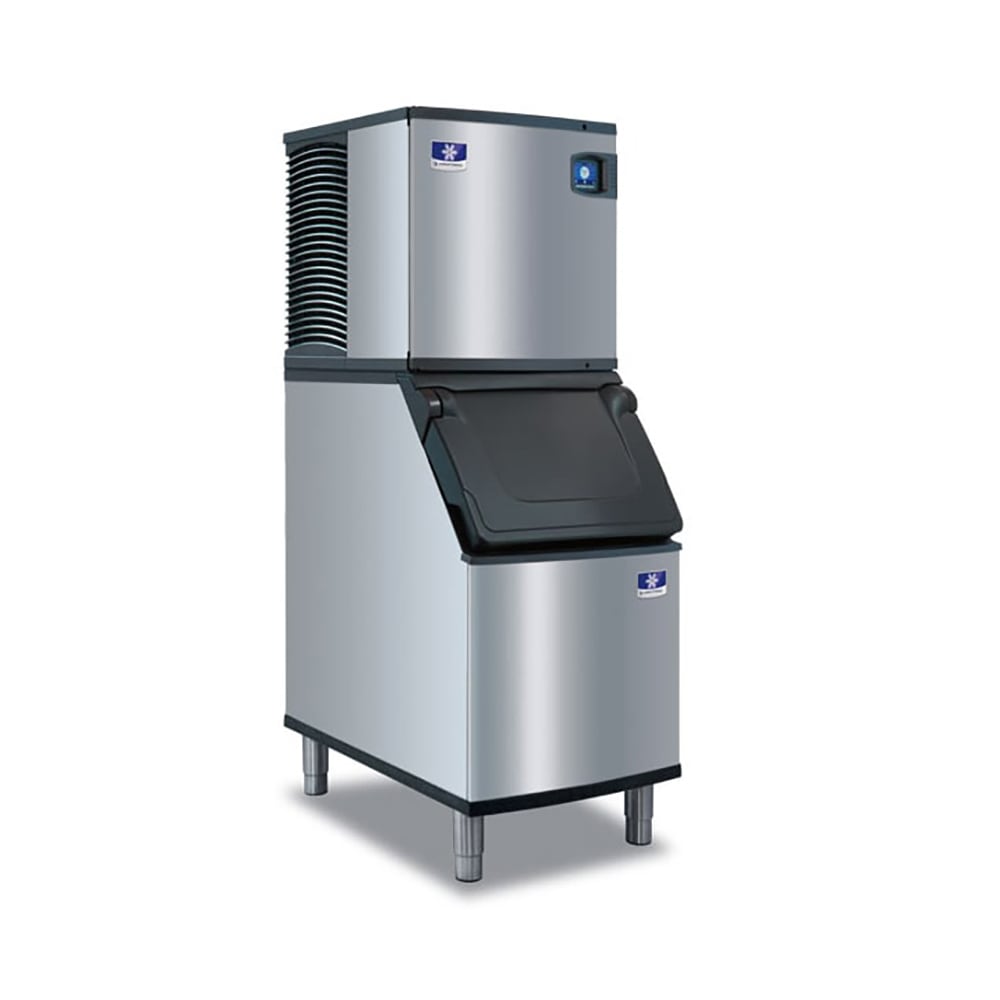

Manitowoc Ice IYT0420A/D320 460 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 264 lb Storage, Air Cooled, 115v

The Manitowoc Ice IYT0420A-161/D320 Indigo® NXT™ ice maker features an ice machine head that produces half-cube ice—ideal for soft drinks, blended frozen drinks, and bagged ice. When ambient air is 70 degrees and incoming water is 50 degrees Fahrenheit, this unit can generate 460 pounds of ice. To enhance reliability, this unit features intelligent diagnostics with 24-hour preventive maintenance and diagnostic feedback as well as an acoustical ice-sensing probe and an active-sense mechanism for consistent ice harvesting in various conditions. Staff can increase and reduce ice production at certain times of day to save energy. By using the easyTouch® display, users can simply navigate the icon-based controls for smooth operation.

This 22-inch-wide by 24¹⁄₂-inch-deep by 21¹⁄₂-inch-tall air-cooled, self-contained unit is built with a corrosion-, fingerprint-, and dirt-resistant DuraTech® exterior. So employees can thoroughly clean the foodzone's components, the hinged front door swings out, providing full access to the removable water trough, distribution tube, curtain, water probe, and water pump. To slow bacterial growth between regular cleanings, some components are primed with AlphaSan® antimicrobial treatment.

The Manitowoc Ice IYT0420A-161/D320 ice maker with bin boasts a 264-pound-capacity storage area beneath the ice maker for convenience. This 22-inch-wide by 34-inch-deep by 38-inch-tall unit features a DuraTech metal finish, while the interior is built with a polyurethane arctic blue liner. So users can safety retrieve ice, its door features side grips that let operators lift it from the center, right, or left, and once it's fully opened, it self-latches to secure the door in place. Because the door is angled 53 degrees, it creates an ergonomic environment that lets staff access the ice in the bin's base. The included NSF-approved sanitary scoop features a built-in knuckle and thumb guard and can scoop 5³⁄₁₀ pounds of ice with each use.

Ice Maker Details

• Part of the Indigo NXT collection
• 460-lb. maximum daily ice production
• Produces half-cube ice

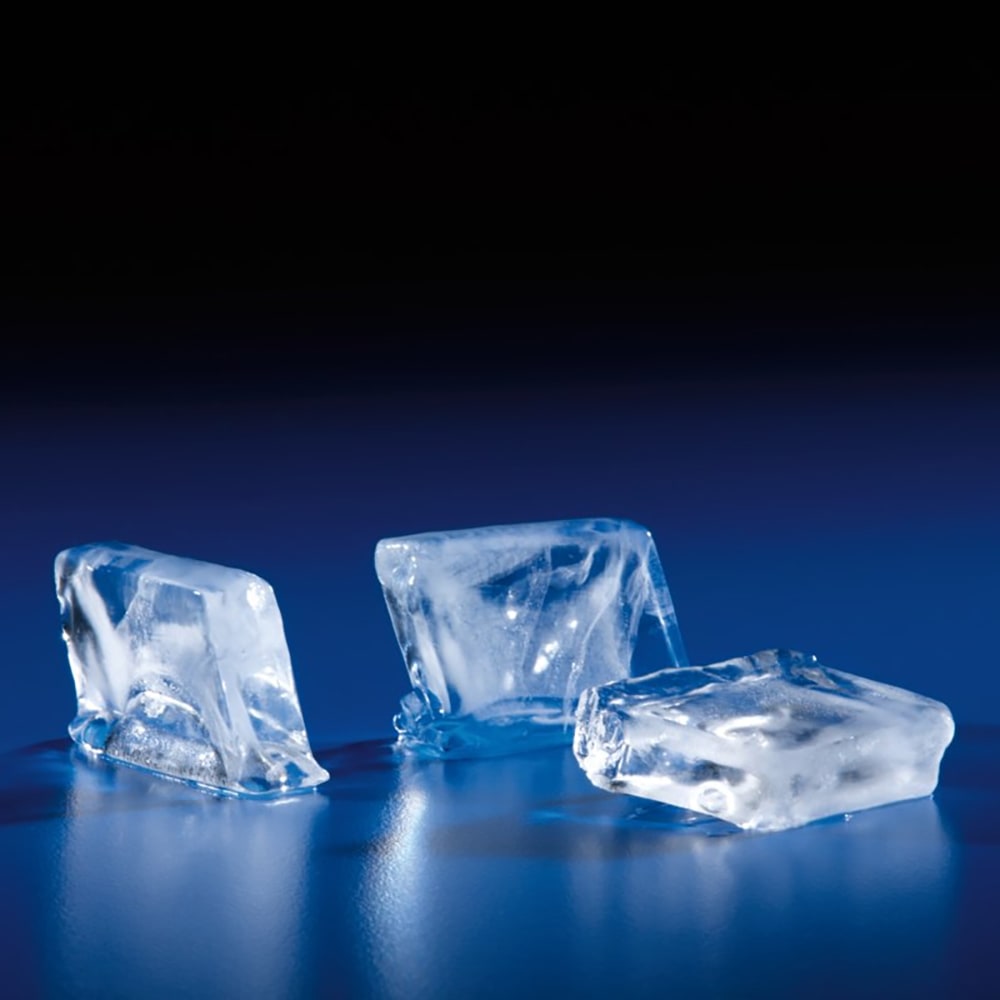

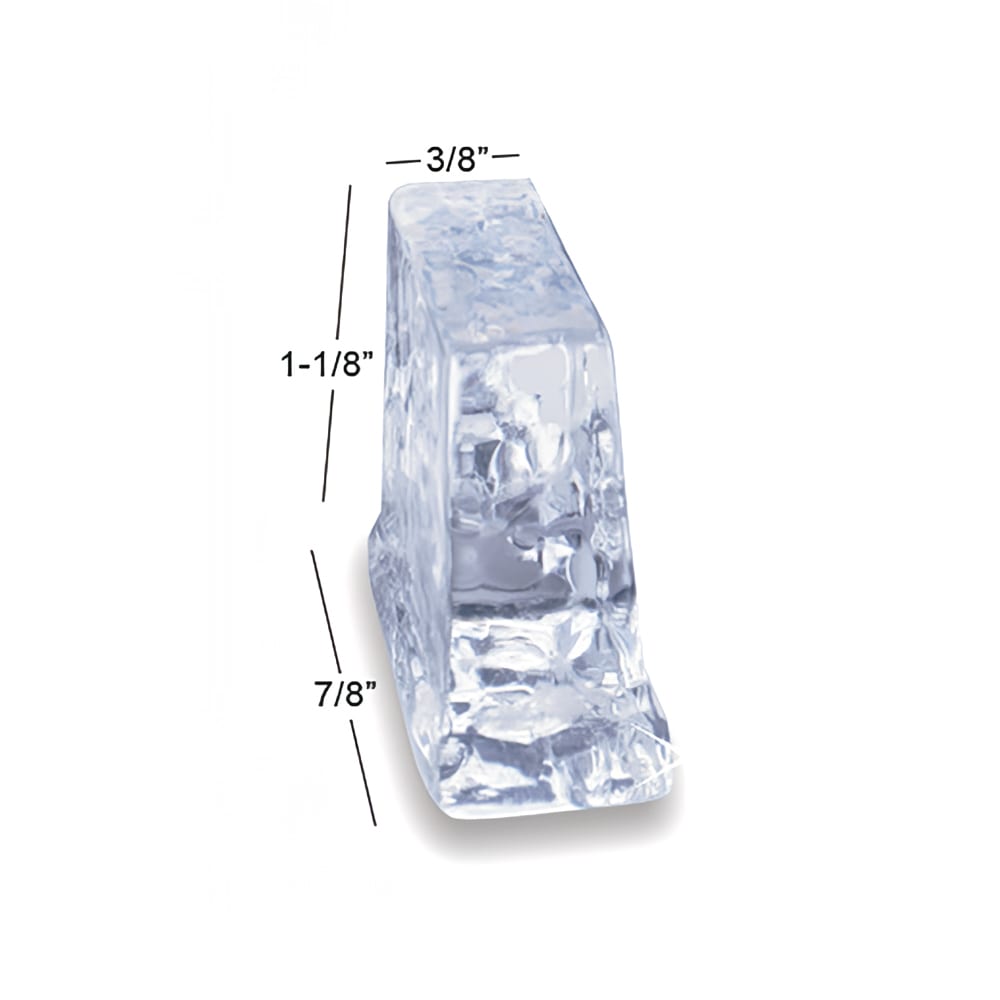

• Half-cube ice size: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.

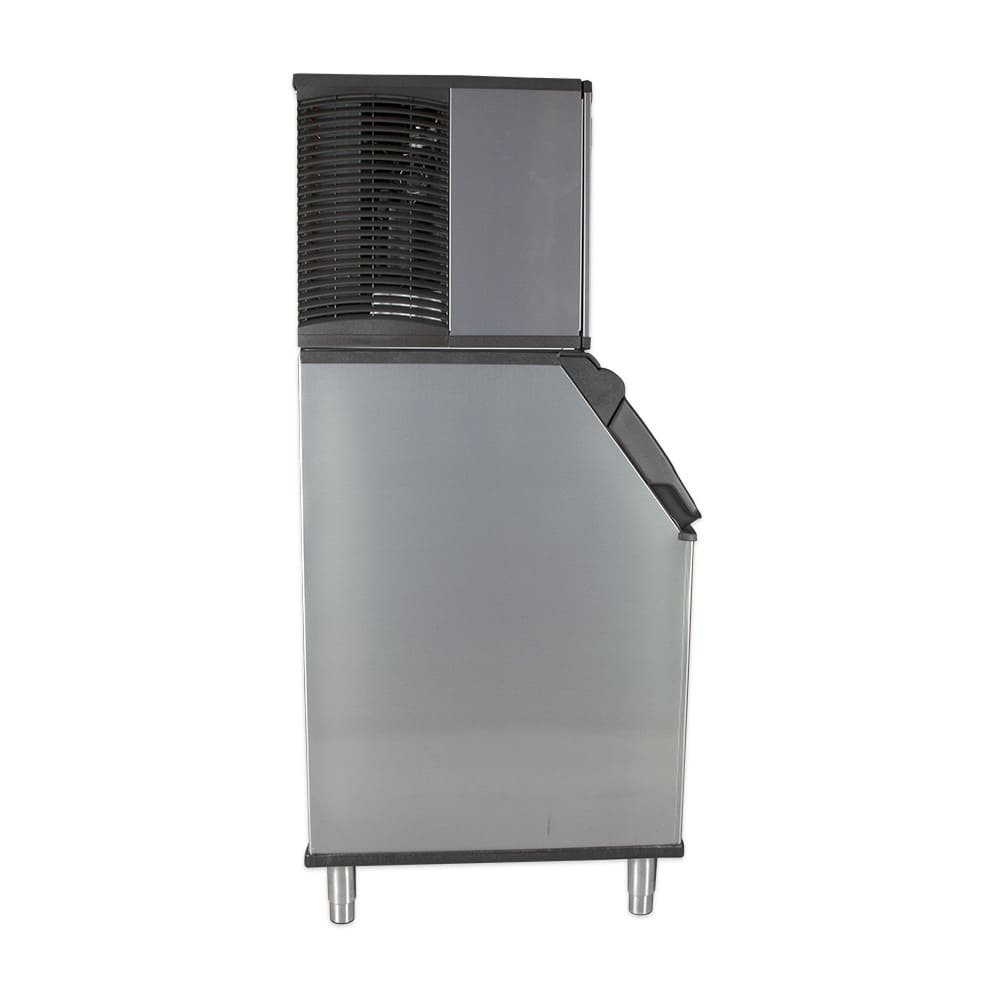

• Air-cooled, self-contained condenser
• CFS-free R410A refrigerant
• easyTouch display with simple-to-navigate icons
• Programmable ice production
• Intelligent diagnostics with 24-hour preventive maintenance and diagnostic feedback
• Acoustical ice-sensing probe
• Active-sense technology ensures consistent ice harvesting
• DuraTech exterior resists corrosion, fingerprints, and dirt
• Hinged front door swings out to foodzone for full access
• Removable water trough, distribution tube, curtain, water probe, and water pump
• Some foodzone components treated with AlphaSan antimicrobial
• Uses 19.9 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required potable water pressure range: 20-80 PSI

Ice Bin Details

• 264-lb. storage capacity
• 8.9-cu.-ft. interior volume
• DuraTech metal finish resists smudging and corroding
• Polyurethane arctic blue bin liner

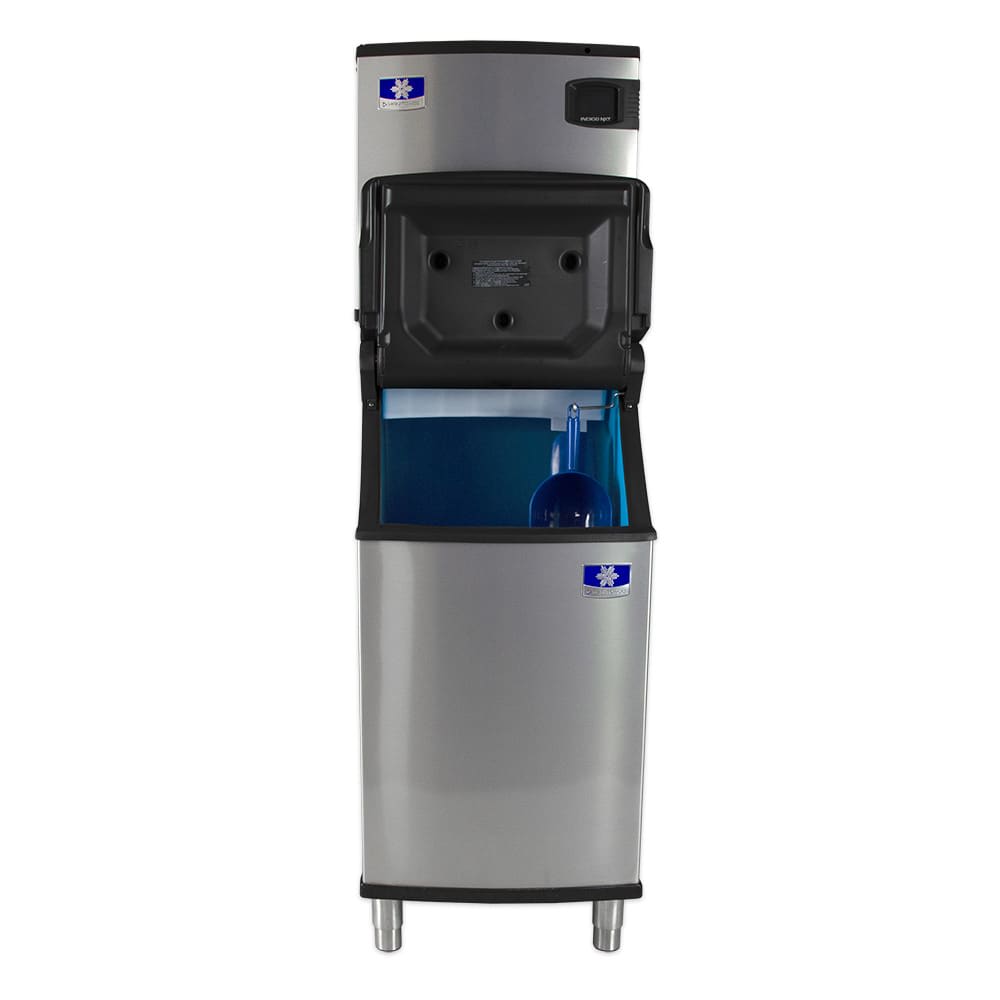

• Insulated, ergonomic door angled 53 degrees
• Built-in door grips
• Door self-latches when open to remain in place
• Includes ergonomic, NSF-approved ice scoop with knuckle and thumb guard
• Rests on set of 6-in. adjustable chrome legs

Dimensions & Utilities

• Ice storage bin: 22 in. W x 34 in. D x 38 in. H
• Ice machine head: 22 in. W x 24¹⁄₂ in. D x 21¹⁄₂ in. H
• Overall: 22 in. W x 34 in. D x 59¹⁄₂ in. H
• 11.3 A, 5.5 kW
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 460 lb/24 hours at 70°/50° (375 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 22"W x 34"D x 38"H, with side-hinged front-opening door, side grips, 264 lbs. application capacity, AHRI certified 8.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
