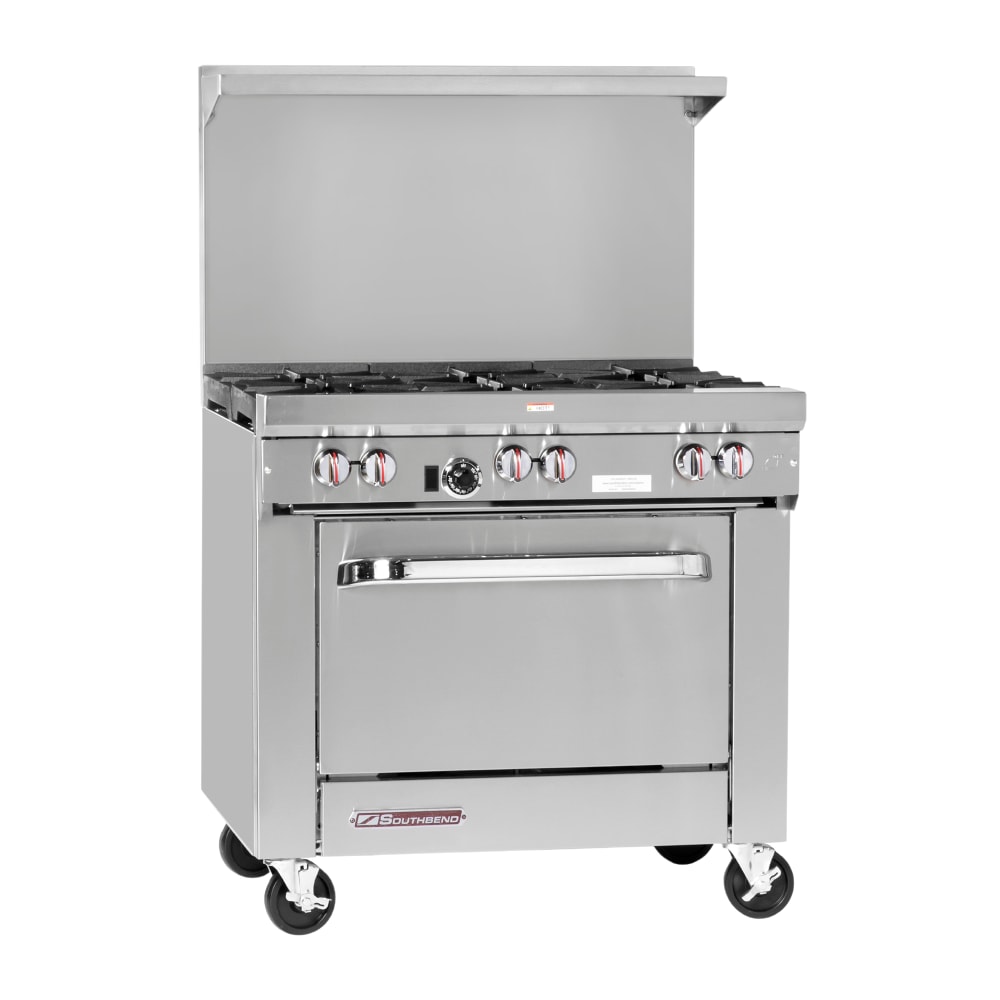

Southbend S36D Description
The Southbend S36D S-series range comes with six 24,000 BTU, no-clog burners that have crumb trays underneath to catch grease and debris to keep the unit clean. Each burner comes equipped with a rugged cast iron grate that spreads heat evenly and helps provide quick temperature recovery. The rear grate can hold a stock pot that is 14-inches in diameter. Plates or pans can be set on the 4-inch, stainless steel front rail. The oven produces 35,000 BTUs and has a snap action thermostat range of 175 to 550 degrees Fahrenheit. Heat is evenly distributed in the oven cavity because of the U-shape of the burner. If the pilot light goes out, gas stops flowing because of the flame failure safety device. The cavity is insulated with rock wool that is self-supporting. There are two position rack guides with one removable rack on the inside of the oven. The entire Southbend S36D S-series range is heated with natural gas.
Product Details
- Heated by natural gas
- 6 no-clog, 24,000 BTU, cast iron burners
- Heavy-duty, cast iron grates evenly spread heat
- Rear grates accommodate stock pots up to 14-in. in dia.
- Stainless steel sides, front, and shelf that is removable
- Removable crumb trays located underneath burners make for easy cleaning
- Metal control knobs include a red stripe so operators can easily identify and adjust burner settings
- Front, sides, and flue riser shelf are constructed with long-lasting stainless steel
- 4-in. front rail provides a landing for plating food and resting pans
- Lower valve panel is hinged for easy access to gas valves
- 6-in. adjustable legs make it easy to install range evenly on the floor
- Factory-installed pressure regulator for safety and consistent gas flames
- Overall Dimensions: 361⁄2 in. W x 34 in. D 591⁄2 in. H
- cCSAus, CSA-Gas, and CSA-Design listed; NSF certified
Oven Features
- Up to 35,000 BTUs heat input
- Snap action thermostat with 175-550 degrees F temperature range
- Heavy-duty, "U"-shaped oven burner provides even heat distribution
- Oven interior is fully enameled for corrosion resistance, easy cleaning, and even temperature distribution
- The top and 4 sides of oven cavity are insulated with dense, self-supporting rock wool
- Safety device cuts off the flow of gas in the event that the pilot flame goes out
- One removable oven rack is included and adjustable on two positions
- Oven interior measures 26 in. W x 261⁄2 in. D x 14 in. H
S-Series Restaurant Range, LP gas, 36", (6) 28,000 BTU open burners, (1) standard oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (1) rack, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 203,000 BTU, CSA, NSF
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Southbend S36D Specifications
PDF Spec Sheet| Manufacturer | Southbend |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 28000 |
| Gas Type | LP |
| Heat | Gas |
| Range Configuration | Burners |
| Width (in) | 36 |
| Warranty | 1 year limited parts and labor |
| Width (in) Range | 30 - 39 in |
| Weight | 535.00 |
