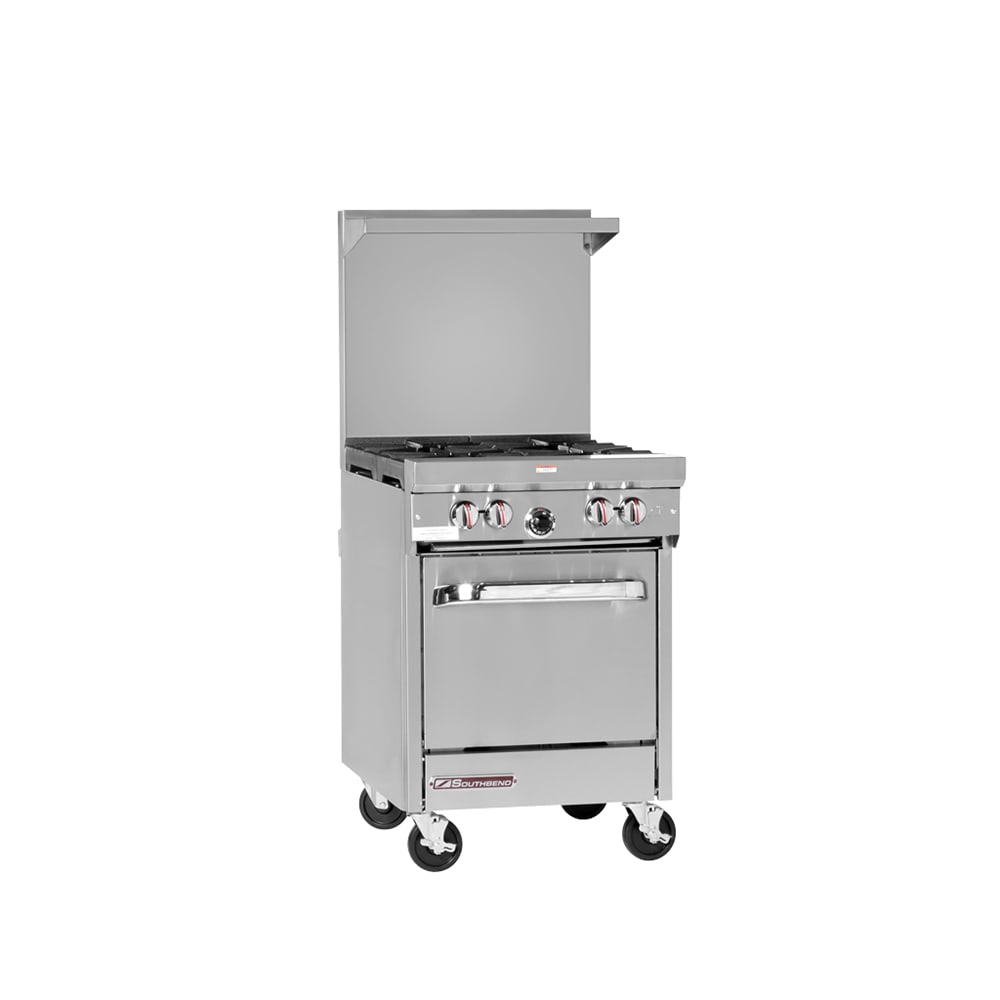

Southbend S24E 24" 4 Burner Gas Range w/ Space Saver Oven, Natural Gas
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$2,365.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Liquid Propane
Southbend S24E Description
The Southbend S24E 4-burner natural gas range has a standard oven that operates at 35,000 BTUs per hour. The range's cooktop is built with four 28,000 BTU open burners. There are four removable, cast iron grate tops, and the rear can hold a stock pot that is up to 14-inches in diameter. For thorough cleaning, crumb drawers sit under the burners and easily remove. With the stainless steel front, sides, and removable shelf, cleaning is simpler.
This range has a U-shaped, heavy-duty oven burner that distributes heat evenly throughout the cavity. For safety, a flame failure safety device cuts off the gas supply if the pilot light goes out. It also has two-position rack guides with one removable rack. The snap action thermostat has a range of 175 to 550 degrees Fahrenheit. Since the Southbend S24E 4-burner natural gas range has 6-inch tall legs, keeping the area under the unit clean is simple.
Product Details
- Standard oven at 35,000 BTUs
- U-shaped heavy duty oven burner
- Quadrant spring doors with chrome handle
- Cook top features 4 non-clog, 28,000 BTU burners
- Removable crumb drawer under the burners to make cleaning easier
- 4 removable, cast iron grate tops
- Factory-installed pressure regulator
- Stainless steel front, sides, and removable shelf
- 4-in. stainless steel front rail for pans or plates to sit on
- Equipped with flame failure safety device that shuts off the gas supply if the pilot light goes out
- Adjustable oven thermostat from 175-550 degrees F
- Includes metal knobs with a red stripe that lets cook quickly identify the heat setting of each
- Hinged, lower valve panel make accessing gas valve easy
- Cavity insulated with self-supporting rock wool with baffle assembly
- Factory installed pressure regulator
- 2-position rack guides with 1 removable rack
- 6-in. adjustable, stainless steel legs
Dimensions & Utilities
- Oven cavity: 191⁄2 in. W x 261⁄2 in. D x 14 in. H

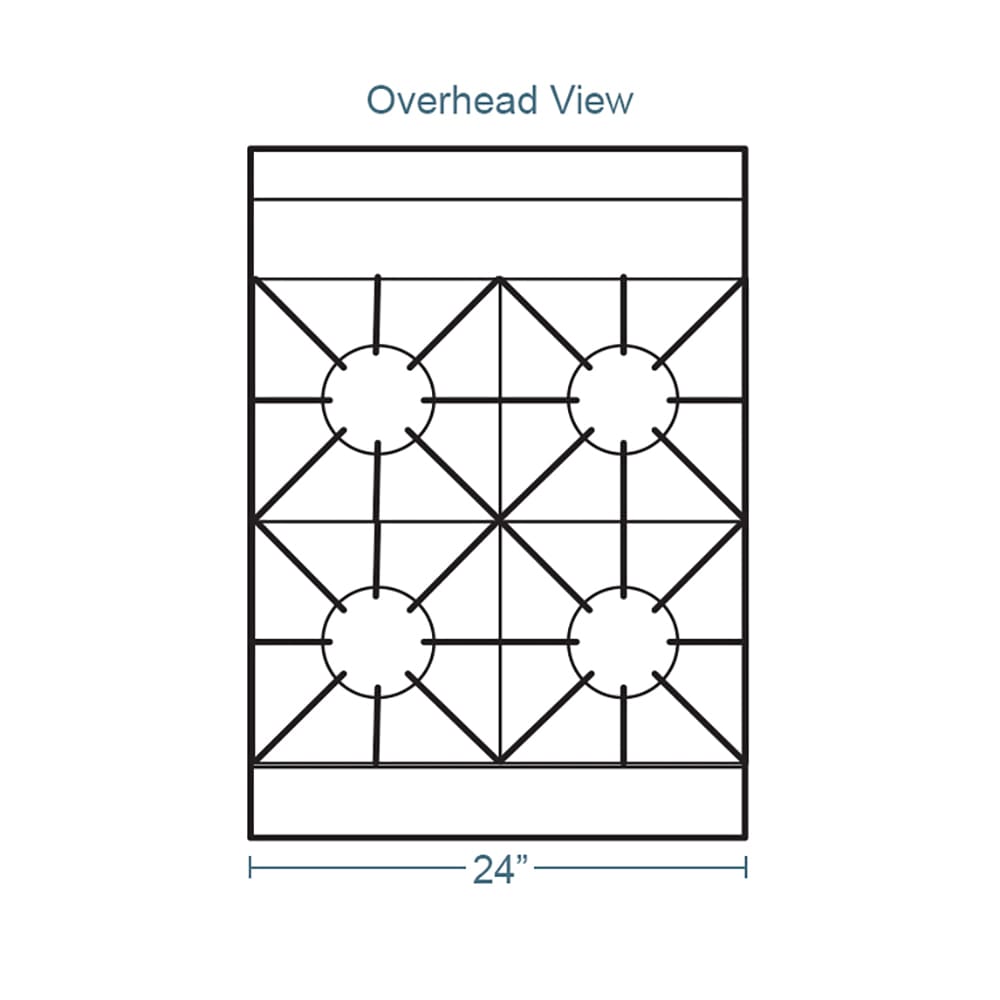

- Overall: 241⁄4 in. W x 34 in. D x 591⁄2 in. H
- Powered by natural gas
Product Features
From The Manufacturer
S-Series Restaurant Range, natural gas, 24", (4) 28,000 BTU open burners, (1) space saver oven, snap action thermostat, removable cast iron grate tops & crumb drawer, includes (1) rack, stainless steel front, sides, removable shelf & front rail &" adjustable legs, 147,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Southbend S24E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Space Saver Oven |
| Total BTU | 147000 |
| BTU / Burner | 33000 |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 59.5 |
| Number of Ovens | Single |
| Range Configuration | Burners |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Series | S-Series |
| Burner Type(s) | Open |
| Rating | Better |
| Product | Gas Ranges |
| Gas Inlet Size | 0.75 |
| Product Type | Cooking Equipment |
| Installation Type | Freestanding |
| Burner Style | Grates |
| Max Temp | 550 |
| Number of Burners | 4 |
| Vent | Backriser w/ hi-shelf |
| Burner Configuration | Standard |
| Open Burner BTU (ea) | 33000 |
| Racks per Standard Oven | 1 |
| Racks per Space Saver Oven | 1 |
| Rack Positions per Space Saver Oven | 2 |
| Space Saver Oven Dimensions | 19-1/2"W x 26-1/2"D x 14"H |
| Space Saver Oven BTU/hr | 35000 |
| Weight | 475.00 |
