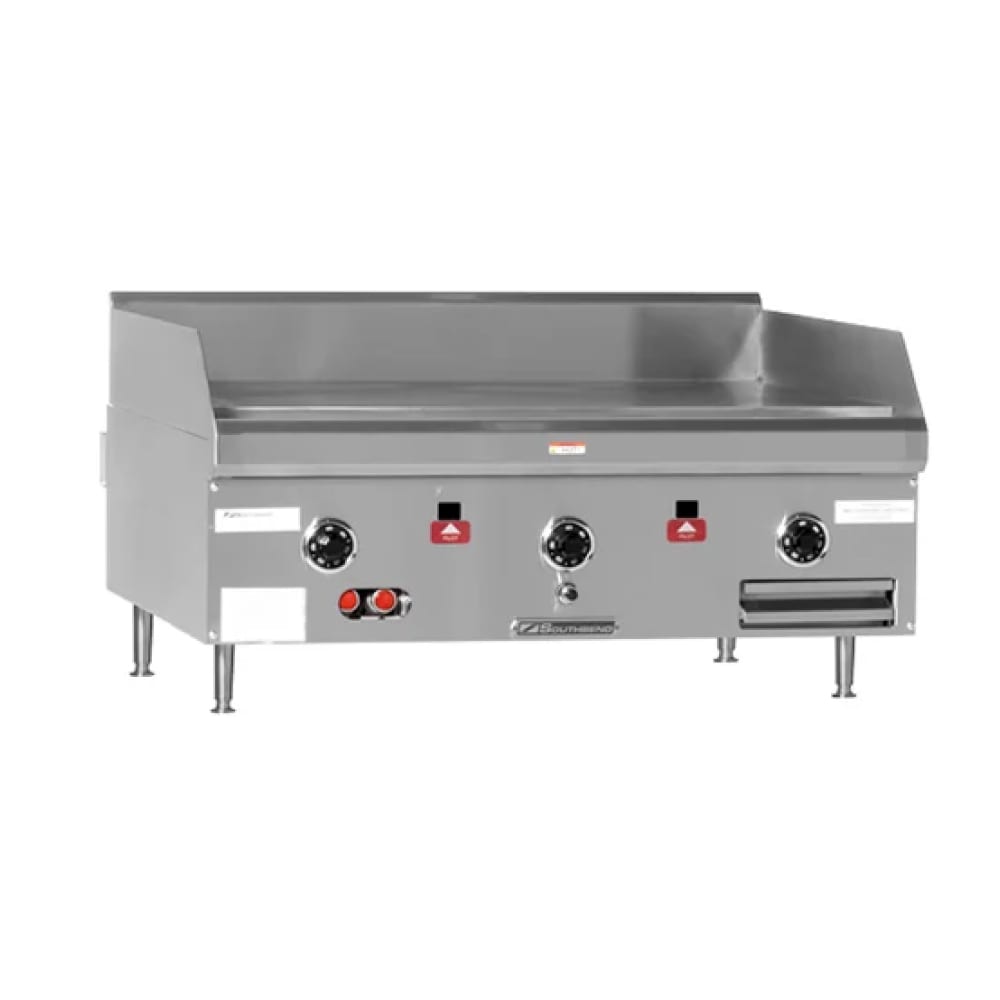

Southbend HDG-60 60" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Liquid Propane

KaTom #: 348-HDG60LP • MPN: HDG-60 LP
  • 348-HDG60LP Primary Thumbnail Image
Free Shipping Item

$9,878.00 /Each

Call for details!

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Liquid Propane

Natural GasNatural Gas
Emerald Medina User Image
Ask a Foodservice Equipment Specialist

Southbend HDG-60 Description

Every 12-inch-wide section of the Southbend HDG-60 gas griddle is controlled by a thermostat and heated by a 30,000-BTU burner, creating five separate cook zones to grill multiple foods simultaneously. Its thermostatic controls have an instant-on feature, offering temperature settings from 200 to 400 degrees Fahrenheit for desired results; because the thermostats are imbedded in the griddle, temperature is monitored constantly. If the burners' flame goes out, the system automatically shuts off. The 60-inch-wide by 24-inch-deep cooking surface has a 1-inch-thick polished steel plate to retain heat for back-to-back use, and its thick design doesn't warp over time.

The Southbend HDG-60 commercial gas griddle is lifted with 4-inch adjustable legs, fitting nicely on counters or mobile racks to accommodate kitchen needs. Able to be raised or lowered, users can clean under the unit, sanitizing hard-to-reach areas to maintain tidy workspaces. Its front, vent, and sides are constructed of stainless steel, and its rear and bottom panels are made of aluminized steel; together, these steel components create a durable surface that thrives in high-volume, bustling kitchens. To keep users safe, its wall sides are insulted and reinforced, so they're cool to the touch. Also, the 5-inch rear and 4-inch side splash guards prevent hot grease from sloshing over the unit's sides and onto nearby surfaces. This layout funnels leftover cooking particles into the grease drawers for proper removal.

  • Stainless steel front, vent, and sides
  • Aluminized steel rear and bottom panels
  • 1-in.-thick fully welded steel griddle plate
  • (1) 30,000-BTU burner per 12-in.-wide section
  • Thermostatically controlled
  • Temperature range: 200-400 degrees F
  • Imbedded thermostats for temperature monitoring
  • Instant-on ignition
  • Flame failure safety mechanism
  • Back splash guard: 5 in.
  • Side splash guards: 4 in.
  • 4-in. adjustable legs
  • Grease drawer
  • Protected flue opening and exhaust vent
  • 5 runner tubes for burners
  • Side clearances: 12 in.
  • Rear clearance: 8 in.
  • 150,000 BTU

  • Cooking surface: 60 in. W x 24 in. D
  • Overall: 60 in. W x 31.75 in. D x 16 in. H
  • Uses LP gas
  • 3⁄4-in. rear gas connection

*Not as Shown - 5 Controls

*Free shipping on Southbend HDG-60 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Griddle, countertop, LP gas, 60" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, flame failure safety device, stainless steel front, sides & 4" adjustable legs, 150,000 BTU, CSA, NSF (Note: Qualifies for Southbend's Service First™ Program, see Service First document for details)

Warranty Icon
1-year Limited Parts & Labor

Southbend HDG-60 Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
