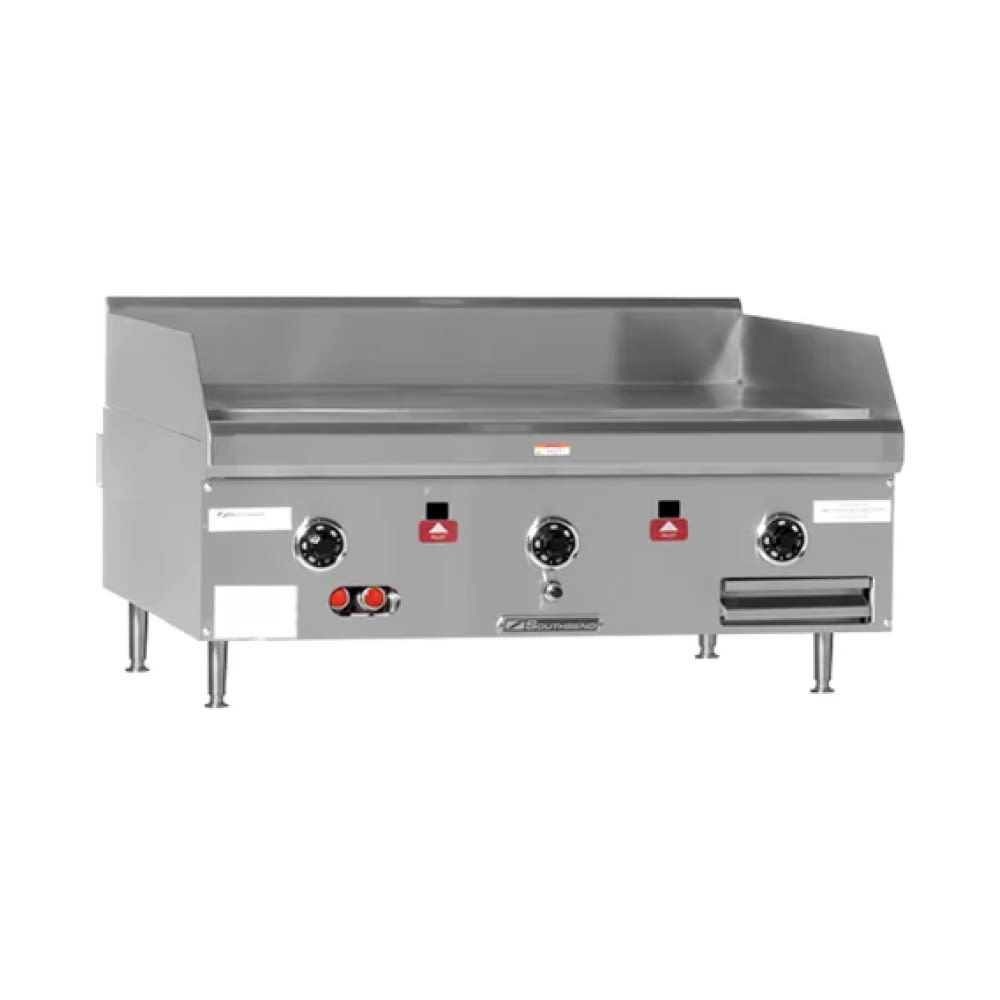

Southbend HDG-24 24" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas
Typically ships in 3 - 4 weeks
$5,187.00 /Each
Call for details!
Selected Gas Type: Natural Gas
Southbend HDG-24 Description
The Southbend HDG-24 griddle uses natural gas and an electronic spark ignition to heat the U-shaped burners under the griddle plate. Each burner is spaced 12 inches apart, ensuring heat is evenly distributed. Because the sides are double insulated, heat is retained, and the unit is constructed of aluminized and stainless steel to resist corrosion and dents. Side and rear splashes contain messes, and liquid and food debris is sent to the grease drawer, which is removable to facilitate cleanup.
This unit has instant-on thermostatic controls that are adjustable with a knob, and the temperature settings on the knob are shown in numbers, ranging from 200 to 400 degrees Fahrenheit. To prevent overheating, the Southbend HDG-24 griddle has 4-inch-tall, adjustable legs that add stability on uneven surfaces. This griddle should be used under a vent hood, and it requires 12-inch clearances on the sides and an 8-inch clearance on the rear.
- Stainless steel front, sides, and vent withstand constant use
- Stain-resistant, aluminized steel rear and bottom panels
- Reinforced, double-insulated sides retain heat
- 1-in.-thick griddle plate will not warp or bend
- Burners are spaced every 12 in.
- Griddle plate evenly distributes heat
- Instant-on thermostatic controls use numbers to show heat settings
- Temperature cooking range: 200-400 degrees F
- Embedded, load-sensing thermostat
- Runner tube for each burner
- 5-in.-tall rear and 4-in.-tall side splashes keep grease and food particles from getting on other surfaces
- Liquids are sent to the grease drawer to simplify cleanup
- Prevent overheating on the countertop with 4-in. legs
- Electronic spark ignition
- 3⁄4-in. rear gas connection and pressure regulator
- Damage-resistant flue opening
- Protected exhaust vent
- Flame failure safety device
- Requires 12-in. clearance on sides and 8-in. clearance on rear
- Must be installed under a vent hood
- 60,000 BTU
- 24 in. W x 31.75 in. D x 20 in. H
- Heated by natural gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend HDG-24 within the 48 contiguous states.
From The Manufacturer
Griddle, countertop, NG gas, 24" W x 24" D cooking surface, 1" thick polished steel plate, thermostatic controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 60,000 BTU, CSA, NSF
Southbend HDG-24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Application | Medium Duty |
| BTU / Burner | 30,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 24 |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 24 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 305.00 |
