Southbend 4601DD-6L 60" 9 Burner Gas Range w/ (2) Standard Ovens, Liquid Propane
$10,661.00 /Each
Call for details!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend 4601DD-6L Description
Southbend's 4601DD-6L LP restaurant range provides three types for burner for a total of nine, creating a versatile cooktop that can be used to boil, sauté, and fry a variety of dishes. Three of those burners are sauté burners designed to create a flame that distributes heat evenly across the bottom of the pan. Behind those are two Pyromax burners, which generate a powerful 31,000 BTU on their highest setting. That power and their extra-large dimensions make them ideal for boiling large stock pots. On the far right side of the restaurant range cooktop are four standard non-clog burners with cast iron grates, which can be used to fry, simmer, and much more.

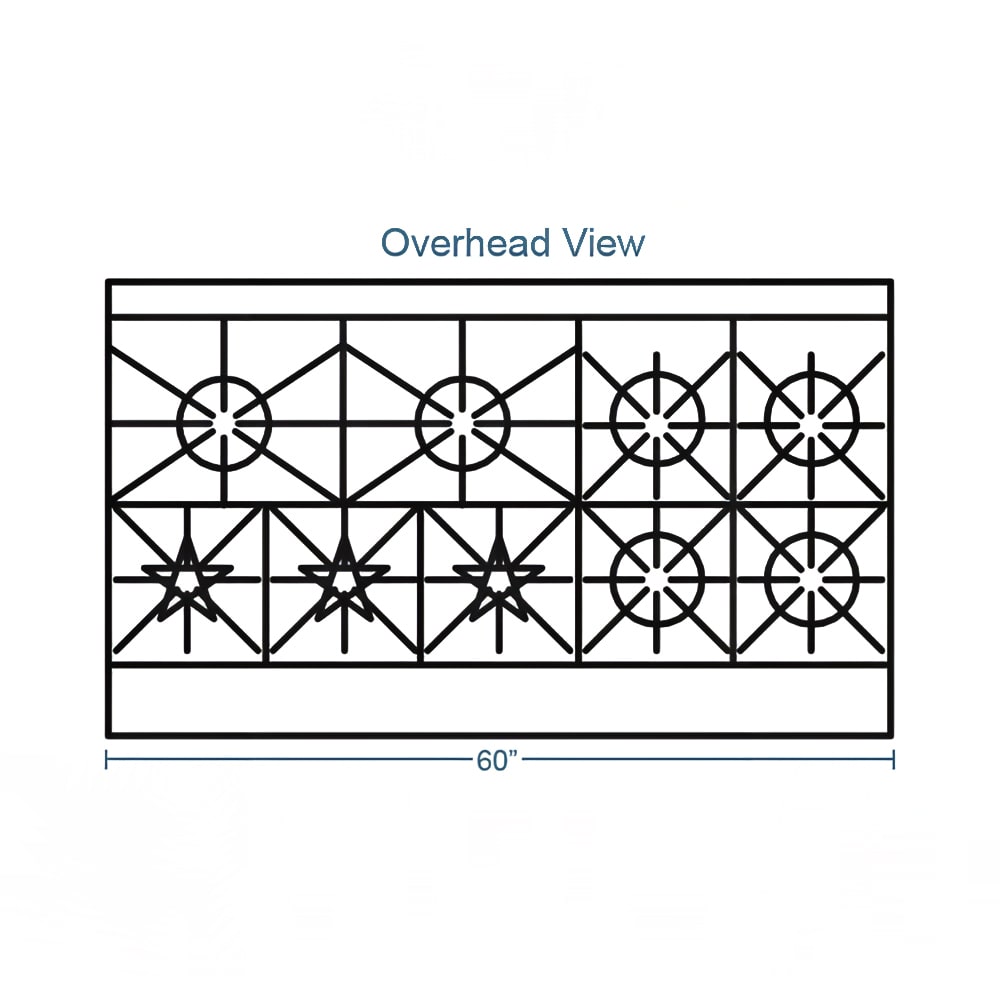

- 3 star/sauté burners on the left front generate 24,000 BTU each and are designed to distribute heat evenly across cookware
- 2 powerful, 31,000 BTU Pyromax burners on the rear left of the range are designed for large stock pots
- 4 standard non-clog cast iron burners on the right of the range generate 24,000 BTU each
- Standing pilot light ignites top burners
- Stainless steel front rail helps protect users from burner heat
- Manual gas shut off located on the front of the range shuts off gas to the entire range
- Factory-installed gas pressure regulator helps ensure safety and consistent burner performance
- 22 1⁄2-in. flue riser with a heavy duty shelf is standard
- 6-in. adjustable steel legs allow for level installation
- Overall Dimensions: 60 3⁄4 in. W x 34 in. D x 59 1⁄2 in. H
- Oven interiors are porcelain enameled on two sides for easy cleaning and to distribute temperatures for an even bake
- Coved interior corners facilitate cleaning and help create uniform airflow inside oven for even temperatures
- Spring-assisted, counterweight doors open and close smoothly for operator comfort
- Precise thermostatic temperature controls with 175-550 degree F range
- Each oven's interior measures 26 in. W x 26 1⁄2 in. D x 14 in. H
- Each oven accepts full-size pans both ways
- Two racks included, adjustable on two positions in each oven
- Ovens lit with battery spark ignition, eliminating the need for a standing pilot and saving on fuel costs
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-6L within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Ultimate Restaurant Range, liquid propane gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (4) non-clog burners right, standard grates, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 320,000 BTU, CSA, NSF
Southbend 4601DD-6L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 24000 |
| BTU / Burner | 31000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open/Sauté/Pyromax |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 9 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 24000 |
| Open Burner BTU (ea) | 31000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 320000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
