Southbend 4601DD-6L 60" 9-Burner Gas Range, NG

KaTom #: 348-4601DD6LNG • MPN: 4601DD-6L NG
free-shipping

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price Increase Message
Retail Price: $10,582.00
$5,820.10 / Each

Southbend 4601DD-6L Description

The 4601DD6LNG from Southbend has two Pyromax burners, three star burners, and four standard burners on the range top, all with durable cast iron grates that are easily removable for cleaning. The base is two standard ovens, each of which comes with an adjustable rack and is large enough to accommodate a full size pan in either direction. Stainless steel construction makes this unit durable and resistant to damage and corrosion.

Product Details

  • Part of Southbend's Ultimate Restaurant Range series
  • Powered by natural gas

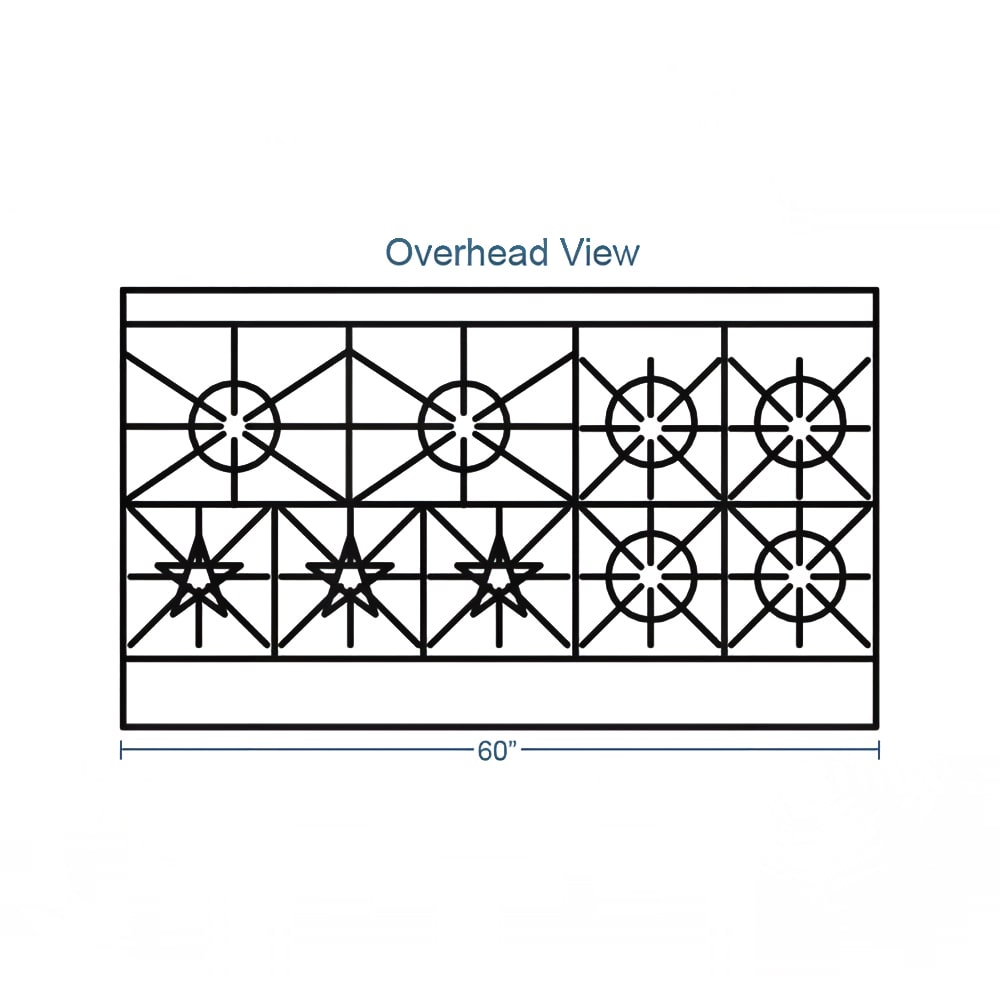

  • Range top consists of:
    • (2) 40,000 BTU Pyromax burners on the back left
    • (3) 33,000 BTU star/sauté burners on front left
    • (4) 33,000 BTU standard burners on the right
  • Pyromax burners are 50 percent larger than standard burners to accommodate large stock pots
  • Star/sauté burners provide a more even flame distribution
  • Pyromax and standard burners feature a drip ring to prevent clogs
  • Cast iron grates are durable and removable for cleaning
  • Drip trays under burners help make thorough cleaning simple
  • Manual gas shutoff located on front of unit for each access
  • 4-in. stainless steel rail runs across the front of the range, providing a surface to plate food.
  • Burners use standing pilot ignition
  • 2212 in. flue riser with shelf
  • 6-in. legs are adjustable for easy installation
  • Factory-installed pressure regulator
  • Overall Dimensions: 6034 in. W x 34 in. D x 5912 in. H
  • CSA-Gas, CSA-Design, cCSAus, CE listed; NSF certified

Range Base

  • Base consists of 2 standard ovens
  • 45,000 BTU
  • Battery spark ignition
  • Temperature range of 175 to 550 degrees F
  • Can hold full size pans both ways
  • Coved corners make cleaning easier and improve air circulation
  • Porcelain enamel interior resists corrosion
  • Doors are counter-balanced for easy operation
  • Includes 1 rack for each oven, which can be adjusted to 2 positions
  • Oven Interior Dimensions: 26 in. W x 2612 in. D x 14 in. H

Ultimate Restaurant Range, NG gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (4) non-clog burners right, standard grates, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 401,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Southbend 4601DD-6L Specifications

PDF Spec Sheet
Manufacturer Southbend
Application Restaurant
Base Standard Oven
BTU / Burner 33000
Gas Type NG
Heat Gas
Range Configuration Burners
Width (in) 60"
Warranty Standard 1 Year
Warranty 1 year limited parts and labor
Weight 1075.00
Southbend 4601DD-6L Certifications
  • NSF
