Southbend 4601DD-3GL 60" 4 Burner Gas Range w/ Griddle & (2) Standard Ovens, Liquid Propane
$13,281.00 /Each
Call for details!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend 4601DD-3GL Description
Southbend's 4601DD-3GL LP Ultimate Restaurant Range includes four 24,000 BTU cast iron burners, a 36 inch griddle, and two standard ovens. Cast iron grates and burners lend themselves to easy maintenance and durability, and the restaurant range's griddle is built with a 1⁄2 inch thick griddle plate that heats evenly. For safety, a manual gas shutoff valve is located on the front of the range to quickly cut off the gas supply to the entire range.
- (4) 24,000 BTU non-clog, 1-piece cast iron burners
- Cast iron grate tops heat evenly, retain heat, and are fully removable for cleaning and maintenance
- Comfortable 37-in. working height
- 60 3⁄4 in. overall cooking surface width
- 4-in. stainless steel front rail accommodates dinnerware and cookware for plating and staging food
- Manual gas-shutoff is mounted on the front of the range to quickly cut off gas to entire range for service
- 22 1⁄2 in. flue riser is equipped with a heavy-duty shelf to hold supplies and ingredients
- Factory-installed gas pressure regulator
- Standing pilot for burners for quick, simple ignition
- Built with stainless steel front and sides for durability and easy cleaning
- 6-in. adjustable stainless steel legs allow for level installation on uneven floors
- Overall Dimensions: 60 3⁄4 in. W x 34-in. W x 59 1⁄2 in. H
- 1⁄2-in. thick polished steel griddle plate for durability and reduced hot spots
- Raised griddle edge helps contain grease
- Manual temperature controls

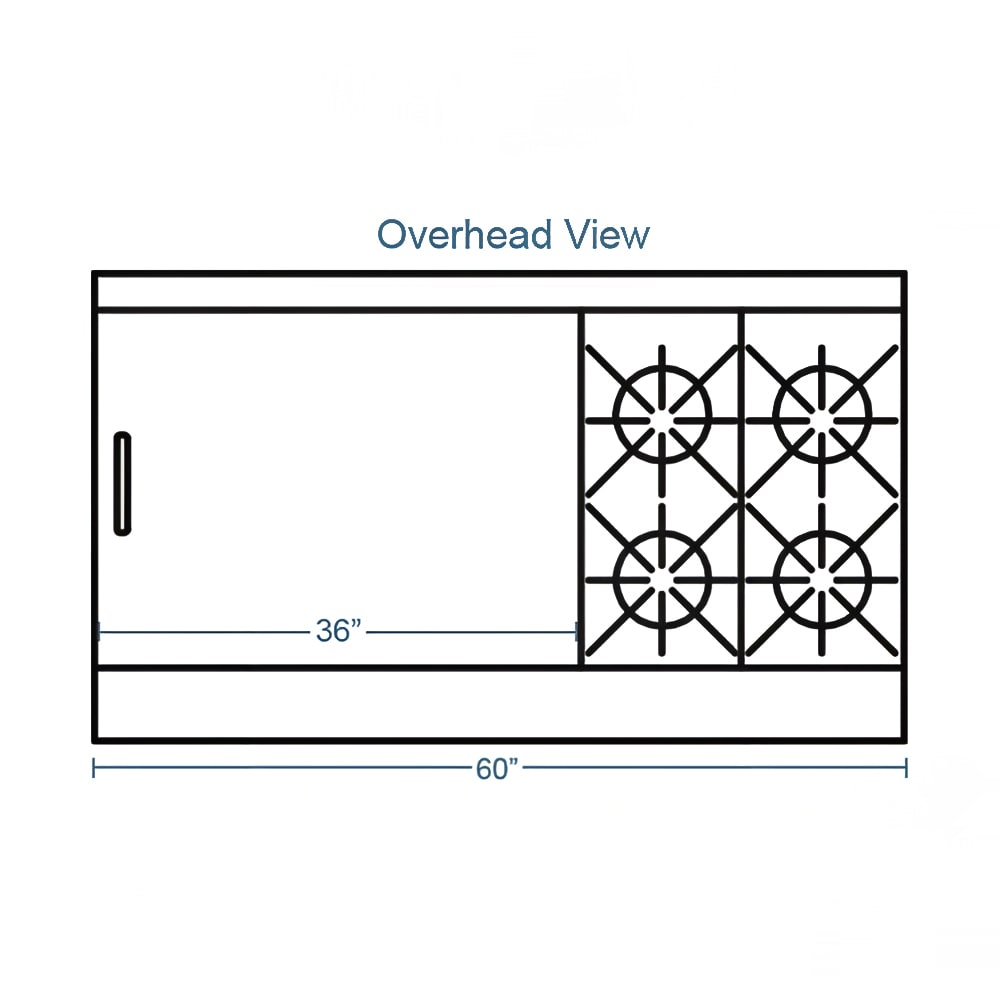

- Griddle is located to the left of the top burners
- Battery spark ignition for fuel efficiency and easy operation
- 175 to 550 degree F range thermostatic controls for each oven
- Oven cavities are porcelain enameled for cleanability and even temperature distribution
- Each oven interior measures 26-in. W x 26 1⁄2 in. D x 14-in. H
- Full-size pans fit both front-to-back and side-to-side inside oven
- Includes one oven rack per oven, each adjustable on two slide positons
- Spring-assisted, counterweighted oven doors are comfortable and easy to open
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-3GL within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Ultimate Restaurant Range, liquid propane gas, 60", (4) non-clog burners, standard grates, (1) 36" griddle left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 250,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
Southbend 4601DD-3GL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 24000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Griddle Location | Left |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 24000 |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 250000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
