Southbend 4601DD-3GL 60" 4-Burner Gas Range with Griddle, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 348-4601DD3GLNG • MPN: 4601DD-3GL NG

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $7,802.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Southbend 4601DD-3GL Description


Southbend's 4601DD-3GL NG Ultimate Restaurant Range is built with four 33,000 BTU non-clog burners, a 36-inch griddle, and two 45,000 BTU standard ovens. Cast iron burners and burner grates heat evenly, are easy to maintain, and virtually indestructible. The manually-controlled griddle is built with a 12 inch thick griddle plate.

Product Details

  • Cooking top is at a comfortable 37-in. working height
  • (4) 33,000 BTU non-clog burners
  • Rugged, even-heating cast iron grates are fully removable for cleaning
  • 4-in. stainless steel front rail
  • Long-lasting, easy-to-clean stainless steel front and sides
  • Manually-operated gas shut-off valve cuts gas supply to the entire range for safety and easy servicing
  • Open burners are ignited with standing pilot light
  • CE, cCSAus, CSA-Gas, and CSA-Design Certified; NSF Listed

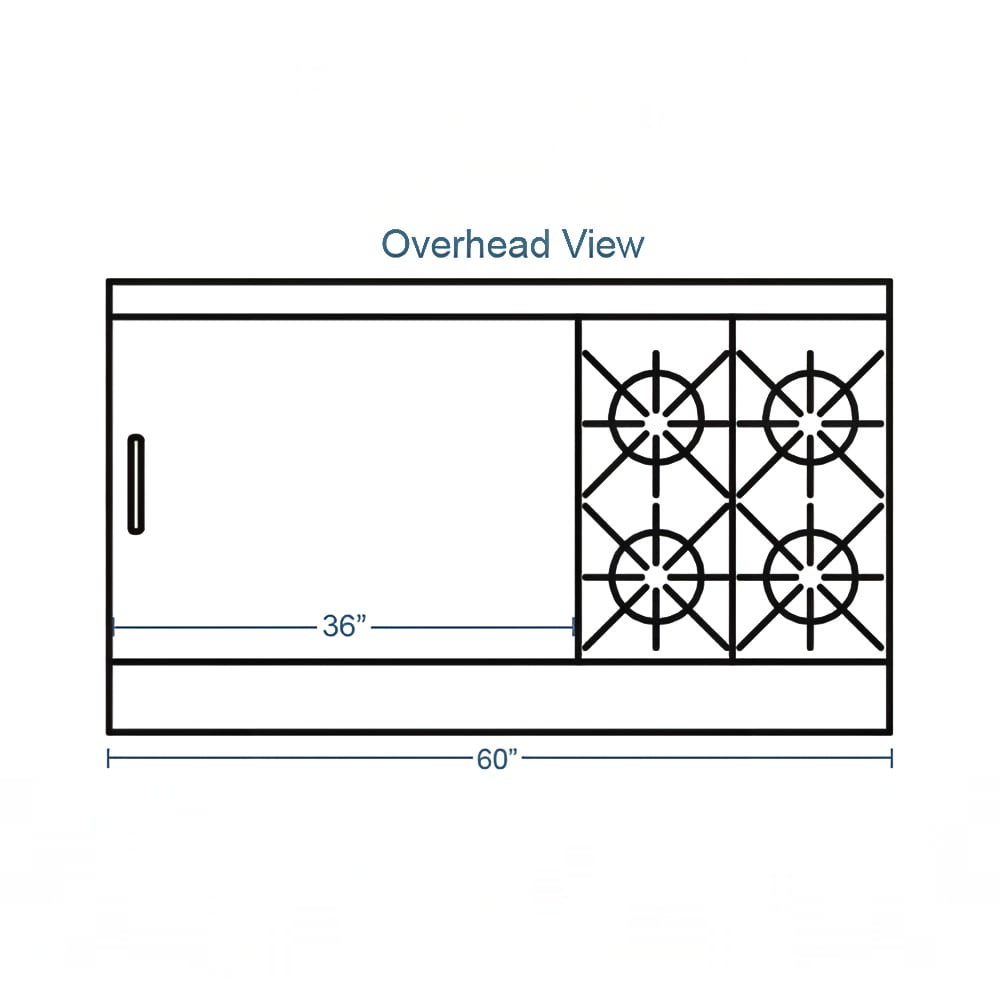

  • Overall Dimensions: 6034 in. W x 34-in. D x 5912 in. H

Manually-Controlled Griddle

  • 36-in. griddle to the left of the burners
  • Smooth, polished 12 in. thick griddle plate heats evenly for reduced hot and cold spots
  • Raised sides help to contain grease for easy cleanup
  • Griddle is located on the left side of the range
  • Manual controls provide operators with direct control over the intensity of the griddle burner flame

Double Standard Ovens

  • 45,000 BTU heat input each
  • Thermostatic controls from 175 to 550 degrees F
  • Porcelain-enameled interiors make for even temperatures throughout oven and easy cleaning
  • Oven interior measures 26-in. W x 2612-in. D x 14-in. H
  • Full-size pans fit both front-to-back and side-to-side in each oven
  • One rack included with each oven; adjustable on two side rail positions

Ultimate Restaurant Range, NG gas, 60", (4) non-clog burners, standard grates, (1) 36" griddle left, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 286,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Southbend 4601DD-3GL Specifications

PDF Spec Sheet
Manufacturer Southbend
Application Restaurant
Base Standard Oven
BTU / Burner 33000
Gas Type NG
Heat Gas
Range Configuration Burners
Range Configuration Griddle
Width (in) 60
Warranty Standard 1 Year
Warranty 1 year limited parts and labor
Width (in) Range 50 - 69 in
Weight 1075.00
Southbend 4601DD-3GL Certifications
  • NSF
